CEL48XSFD-A Huawei CE16800 series Switch 48-port 10GE interface card (FD-A, SFP+)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CEL48XSFD-A overview

CEL48XSFD-A Huawei CE16800 series Switch 48-port 10GE interface card (FD1-G, SFP+)

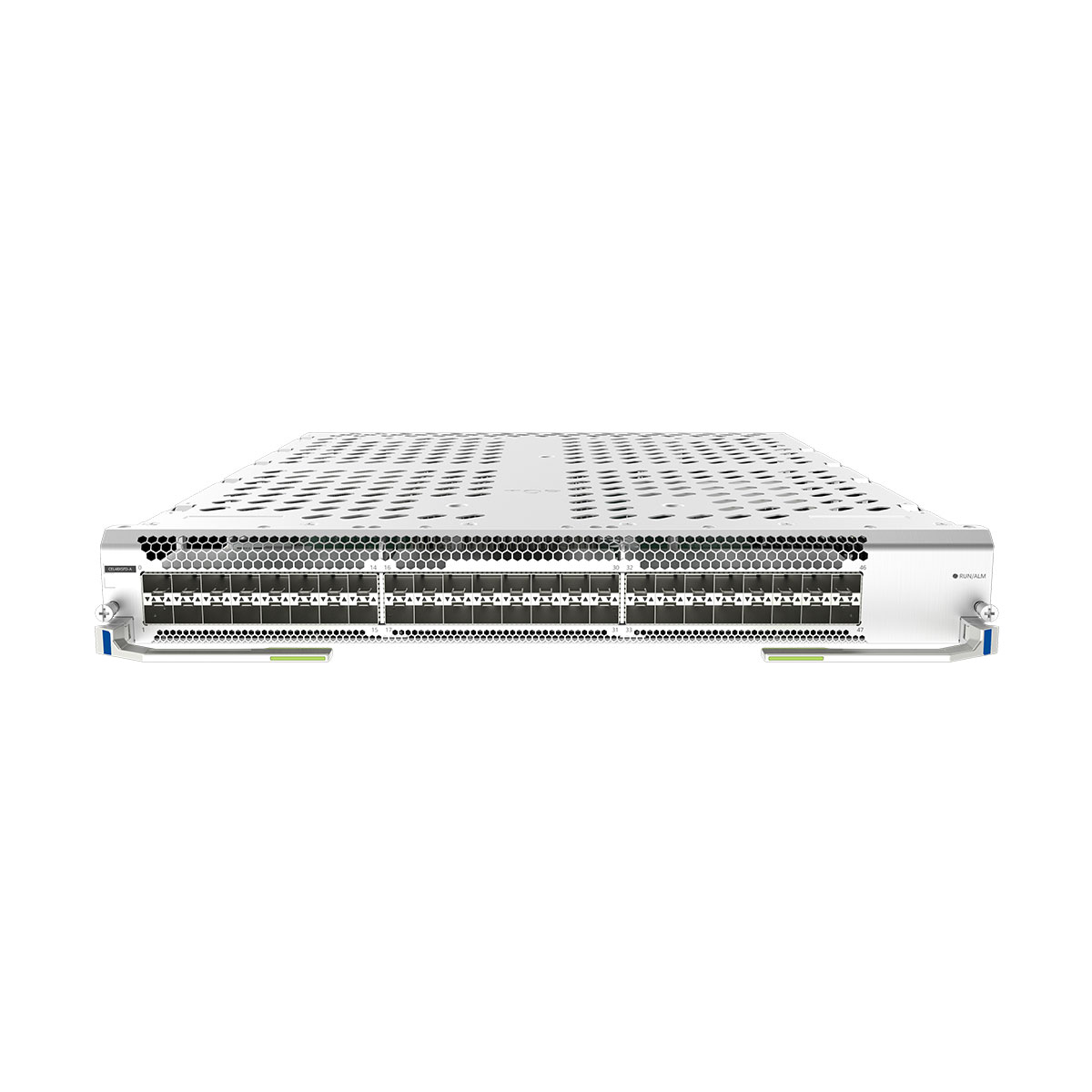

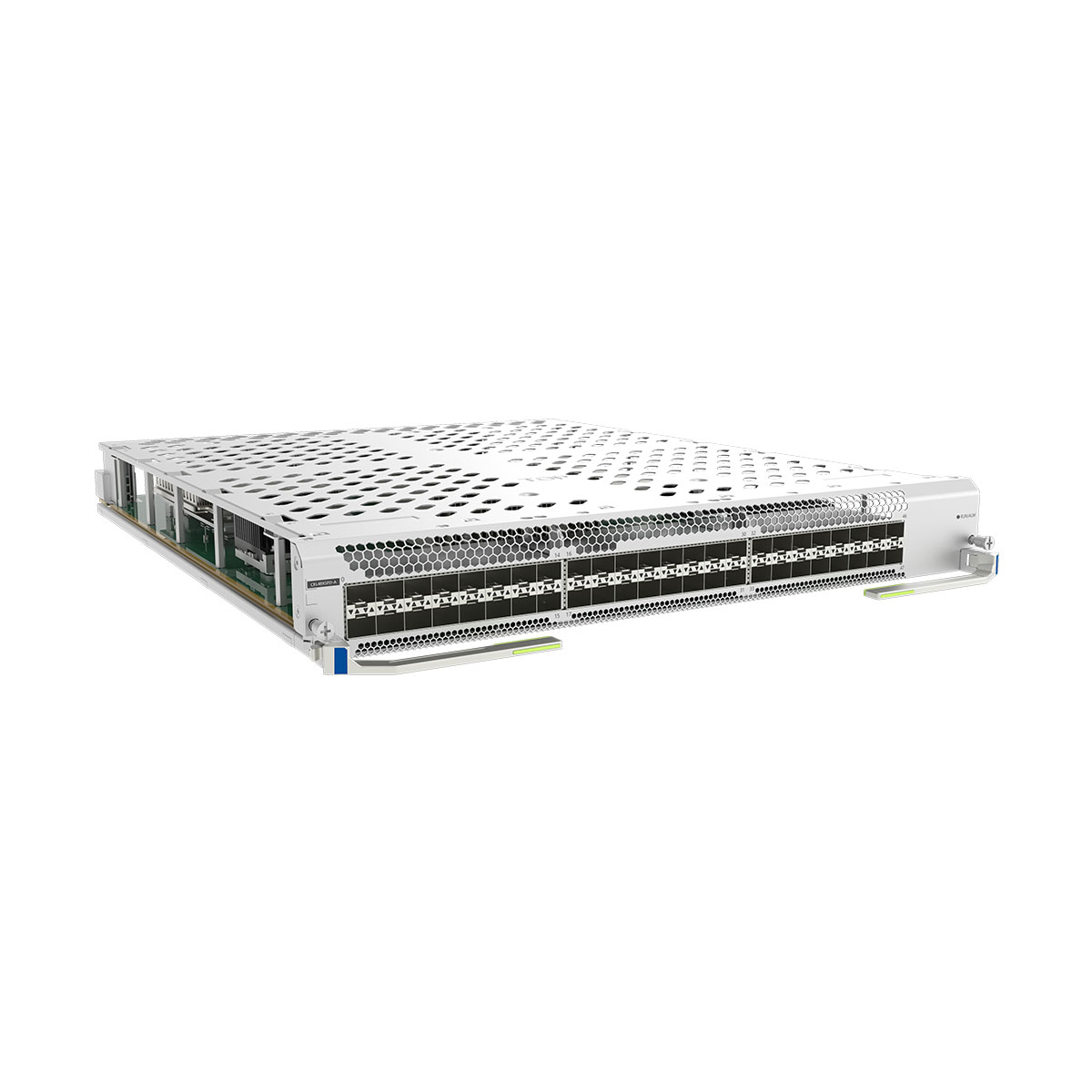

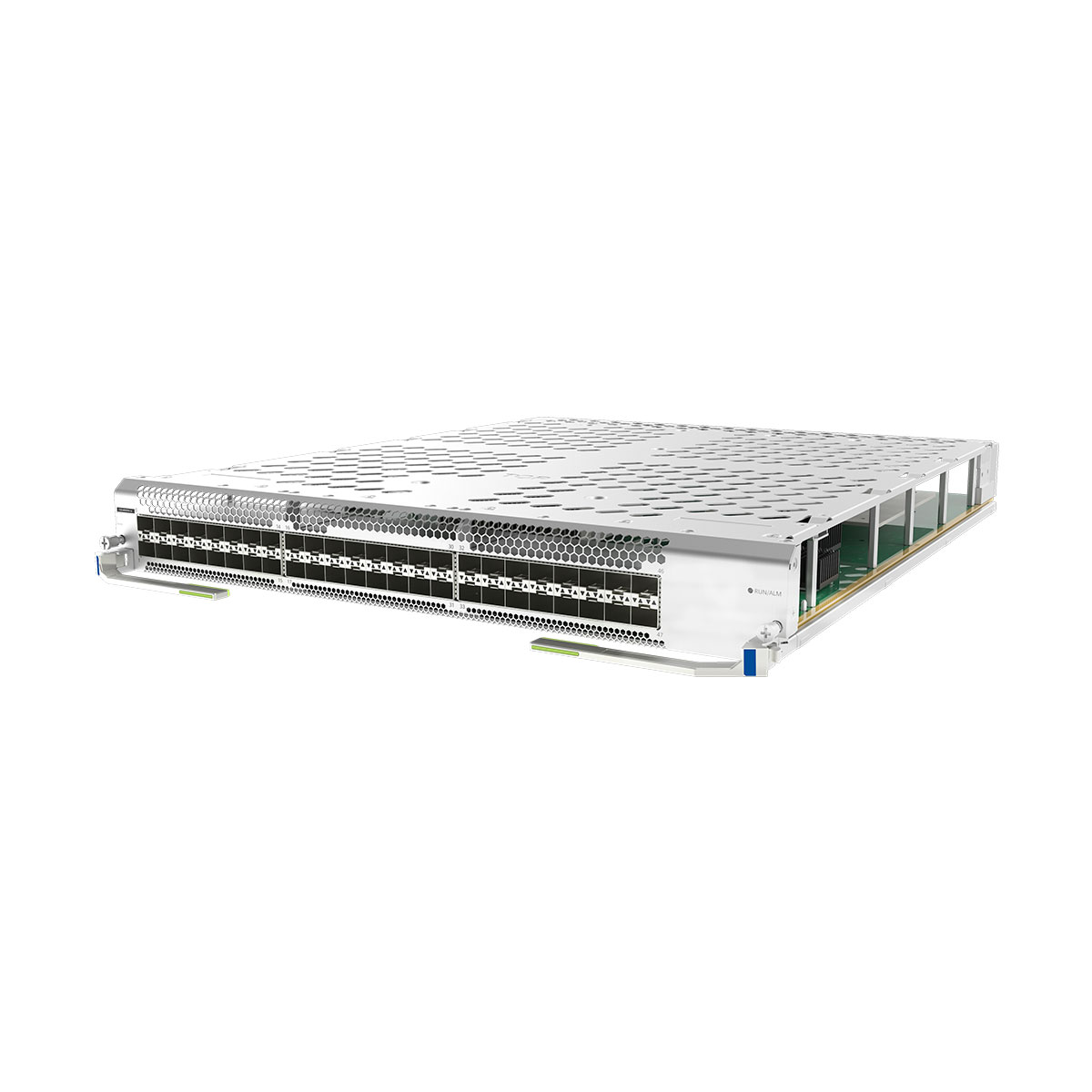

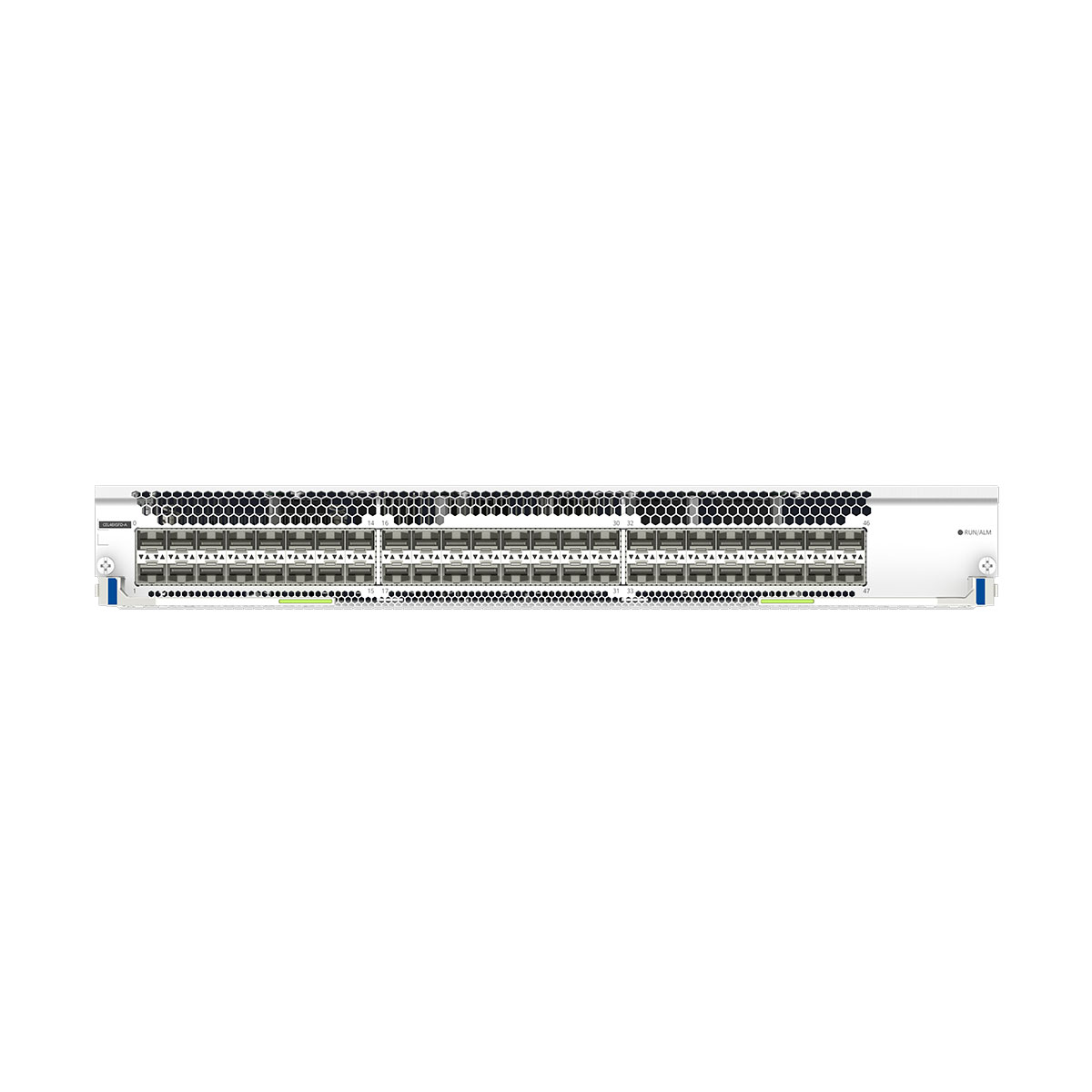

CEL48XSFD-A appearance

CEL48XSFD-A

CEL48XSFD-A application
Product First Supported Version Last Supported Version Unsupported Version Unsupported Model Limitations IDs of available slots
CloudEngine 16804 V200R021C00SPC100 – – – – 1–4
CloudEngine 16808 V200R021C00SPC100 – – – – 1–8
CEL48XSFD-A function and feature
Functions and Features Description
Basic function The card provides data packet processing and traffic management on 48 10GE optical ports.
Maximum port density If all LPUs are these cards:

  • The CloudEngine 16804 chassis provides a maximum of 192 10GE ports.
  • The CloudEngine 16808 chassis provides a maximum of 384 10GE ports.
10GE port When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules, 10GE high-speed cables, and AOC cables.

NOTE:

  • 10GE optical ports 20 to 31 does not support auto-negotiation when it has a GE optical module installed. To connect the two interfaces at both ends of a link, disable auto-negotiation on the peer interface. Otherwise, one interface may go Up and the other may go Down. Other optical ports support auto-negotiation 1000BASE-X.
  • 10GE optical ports 20 to 31 installed with GE copper modules support only the rate of 1000 Mbit/s.
Hot swapping Supported
Item CEL48XSFD-A
Typical power consumption [W] 180 W
Typical heat dissipation [BTU/hour] 615 BTU/hour
Static power consumption [W] 112 W
Static heat dissipation [BTU/hour] 382 BTU/hour
Maximum power consumption [W] 242 W
Maximum heat dissipation [BTU/hour] 826 BTU/hour
CPU Quad-core, 1.4 GHz clock speed
Memory Standard 4 GB
Flash memory Standard 128 MB
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 6.9 kg (15.21 lb)
Weight with packaging [kg (lb)] 10.2 kg (22.49 lb)

Additional information

Brand

Huawei
CE16800 Switch

Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item CEL48XSFD-A
Typical power consumption [W] 180 W
Typical heat dissipation [BTU/hour] 615 BTU/hour
Static power consumption [W] 112 W
Static heat dissipation [BTU/hour] 382 BTU/hour
Maximum power consumption [W] 242 W
Maximum heat dissipation [BTU/hour] 826 BTU/hour
CPU Quad-core, 1.4 GHz clock speed
Memory Standard 4 GB
Flash memory Standard 128 MB
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 6.9 kg (15.21 lb)
Weight with packaging [kg (lb)] 10.2 kg (22.49 lb)
