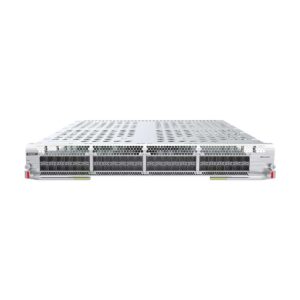

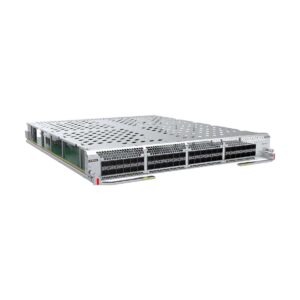

Huawei 16800series Switch CEL48XSFD-E 48-port 10GE interface card (FD-E, SFP+)
| Item | Details |
|---|---|
| Description | 48-port 10GE interface card (FD-E, SFP+) |
| Part Number | 03050DNF |
| Model | CEL48XSFD-E |
| Silkscreen | CEL48XSFD-E |
| Card Type | Interface Card |

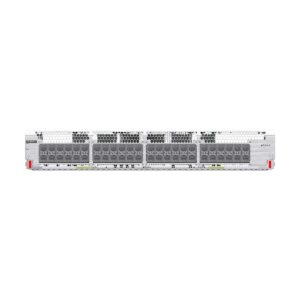

Panel on the CloudEngine CEL48XSFD-E
| 1. Forty-eight 10GE optical ports |
Ports on the CEL24XS12CQFD-E
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 48 x 10GE optical ports | SFP+/SFP | Port for inputting and outputting 10GE/GE optical signals |
|
| Item | CEL48XSFD-E |
|---|---|
| Typical power consumption [W] | 103 W |
| Typical heat dissipation [BTU/hour] | 352 BTU/hour |
| Static power consumption [W] | 85 W |
| Static heat dissipation [BTU/hour] | 290 BTU/hour |
| Maximum power consumption [W] | 193 W |
| Maximum heat dissipation [BTU/hour] | 659 BTU/hour |
| CPU | Quad-core, 1.4 GHz clock speed |
| Memory | Standard 4 GB |
| NOR Flash | Standard 128 MB |
| Dimensions without packaging (H x W x D) [mm (in.)] | 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.) |
| Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.) |
| Weight without packaging [kg (lb)] | 6.7 kg (14.77 lb) |
| Weight with packaging [kg (lb)] | 11.6 kg (25.58 lb) |
| Brand | Huawei |
|---|
| Item | CEL48XSFD-E |
|---|---|
| Typical power consumption [W] | 103 W |
| Typical heat dissipation [BTU/hour] | 352 BTU/hour |
| Static power consumption [W] | 85 W |
| Static heat dissipation [BTU/hour] | 290 BTU/hour |
| Maximum power consumption [W] | 193 W |
| Maximum heat dissipation [BTU/hour] | 659 BTU/hour |
| CPU | Quad-core, 1.4 GHz clock speed |
| Memory | Standard 4 GB |
| NOR Flash | Standard 128 MB |
| Dimensions without packaging (H x W x D) [mm (in.)] | 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.) |
| Dimensions with packaging (H x W x D) [mm (in.)] | 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.) |
| Weight without packaging [kg (lb)] | 6.7 kg (14.77 lb) |
| Weight with packaging [kg (lb)] | 11.6 kg (25.58 lb) |
