CEL48XSFD-EK

0 Reviews Write a review
PN03050ESV
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei 16800series Switch 10GE Interface Card CEL48XSFD-EX 48-port 10GE interface card (FD-EK, SFP+)

Description

CEL48XSFD-EK overview

Item Details
Description 48-port 10GE interface card (FD-EK, SFP+)
Part Number 03050ESV
Model CEL48XSFD-EK
Silkscreen CEL48XSFD-EK
Card Type Interface Card

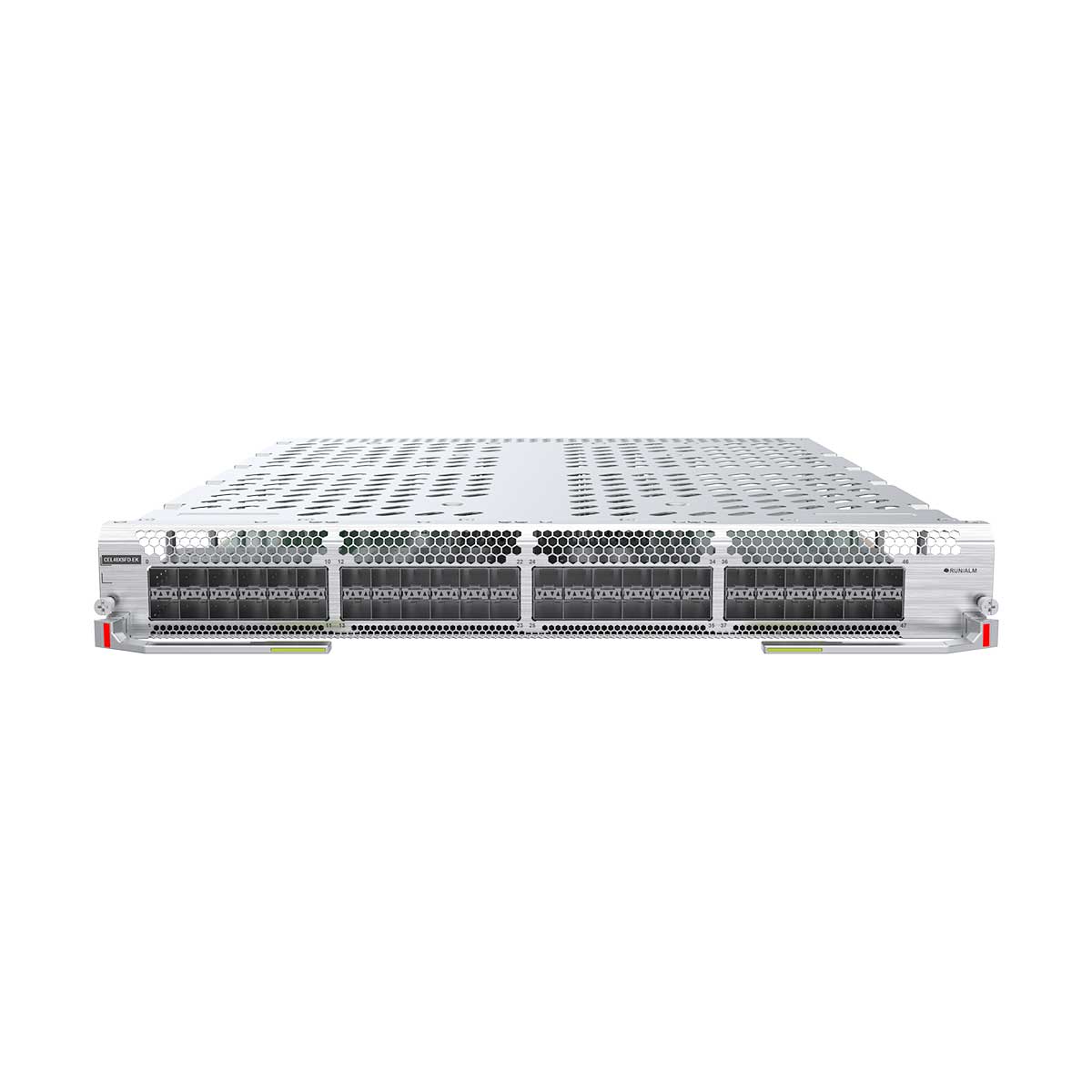

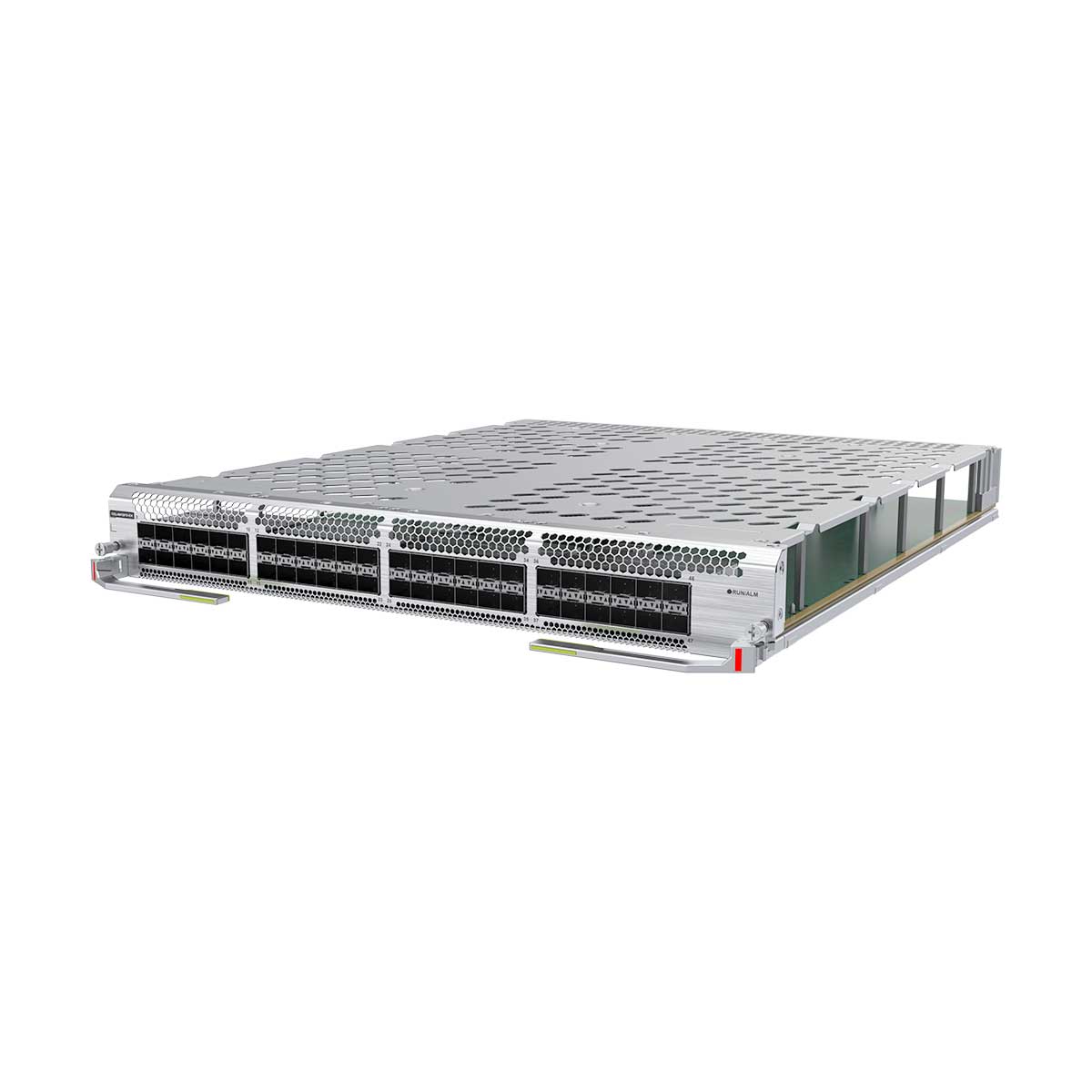

CEL48XSFD-EK Appearance

CEL48XSFD-EK

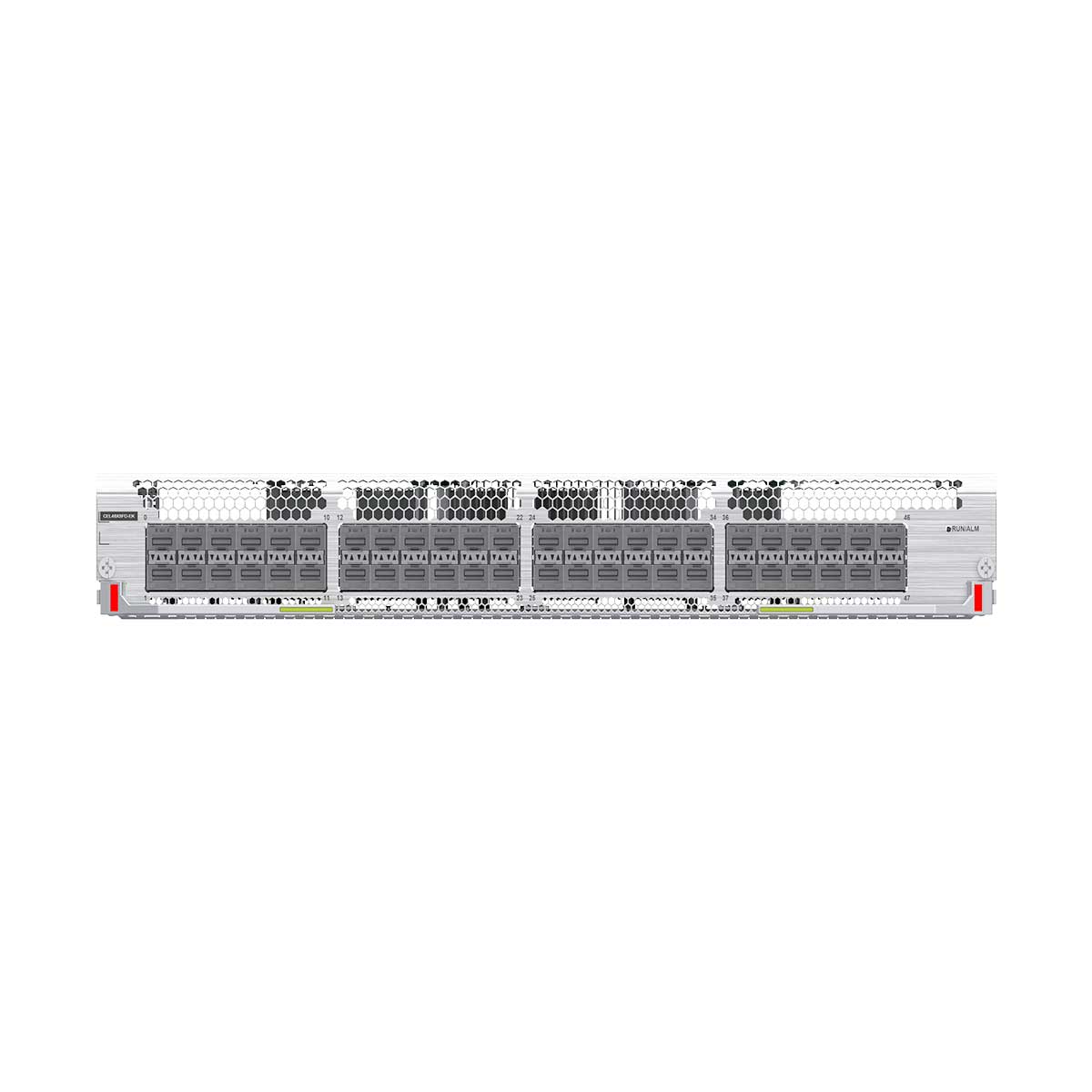

Panel on the CloudEngine CEL48XSFD-EK

1. Forty-eight 10GE optical ports

Ports on the CEL24XS12CQFD-E

Port Connector Type Description Available Components
48 x 10GE optical ports SFP+/SFP Port for inputting and outputting 10GE/GE optical signals
  • GE eSFP optical modules
    GE SFP copper modules
    10GE SFP+ optical modules
    SFP+ to SFP+ AOC cable
    SFP+ to SFP+ high-speed cable
Item CEL48XSFD-EK
Typical power consumption [W] 103 W
Typical heat dissipation [BTU/hour] 352 BTU/hour
Static power consumption [W] 85 W
Static heat dissipation [BTU/hour] 290 BTU/hour
Maximum power consumption [W] 193 W
Maximum heat dissipation [BTU/hour] 659 BTU/hour
CPU Quad-core, 1.4 GHz clock speed
Memory Standard 4 GB
NOR Flash Standard 128 MB
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 6.7 kg (14.77 lb)
Weight with packaging [kg (lb)] 11.6 kg (25.58 lb)

Additional information

Brand

Huawei

Item CEL48XSFD-EK
Typical power consumption [W] 103 W
Typical heat dissipation [BTU/hour] 352 BTU/hour
Static power consumption [W] 85 W
Static heat dissipation [BTU/hour] 290 BTU/hour
Maximum power consumption [W] 193 W
Maximum heat dissipation [BTU/hour] 659 BTU/hour
CPU Quad-core, 1.4 GHz clock speed
Memory Standard 4 GB
NOR Flash Standard 128 MB
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 6.7 kg (14.77 lb)
Weight with packaging [kg (lb)] 11.6 kg (25.58 lb)
