CEL48XSFD-GK

0 Reviews Write a review
SKU2008201
AvailabilityIn Stock
CE16800 Switch 10GE Card
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

CEL48XSFD-GK Huawei CE16800 series Switch 48-port 10GE interface card (FD-GK, SFP+)



Description

CEL48XSFD-GK overview

CEL48XSFD-GK Huawei CE16800 series Switch 48-port 10GE interface card (FD-GK, SFP+)

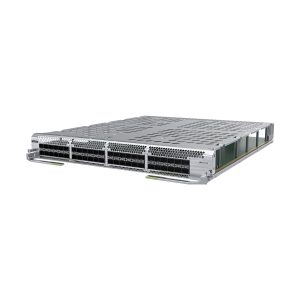

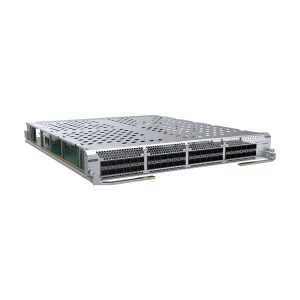

CEL48XSFD-GK appearance

CEL48XSFD-GK

CEL48XSFD-GK application
Product First Supported Version Last Supported Version Unsupported Version Unsupported Model Limitations IDs of available slots
CloudEngine 16804 V200R005C20 1–4
CloudEngine 16808 V200R005C20 1–8
CloudEngine 16816 V200R005C20 1–16
CEL48XSFD-GK function and feature
Functions and Features Description
Basic function The card provides data packet processing and traffic management on 48 10GE optical ports.
Maximum port density If all LPUs are these cards:

  • The CloudEngine 16804 chassis provides a maximum of 192 10GE ports.
  • The CloudEngine 16808 chassis provides a maximum of 384 10GE ports.
  • The CloudEngine 16816 chassis provides a maximum of 768 10GE ports.
10GE port When the 10GE ports work in 10GE mode, they support SFP+ 10GE optical modules, 10GE high-speed cables, and AOC cables.

When the 10GE ports work in GE mode, they support SFP GE optical modules and 1000BASE-T copper modules. When using a 1000BASE-T copper module, a port supports 100M/1000M auto-sensing.

Hot swapping Supported
Restrictions and remarks In V200R021C00 and earlier versions, this LPU is used with the CE-SFU16F-G. When the LPU is installed in slot 14, SFUs cannot work in 4+2 backup mode and can only work in 5+1 backup mode when the device works in six-SFU mode; SFUs cannot work in 3+1 backup mode or any other backup mode when the device works in four-SFU mode.
Item
CEL48XSFD-G
Typical power consumption [W] 103 W
Typical heat dissipation [BTU/hour] 352 BTU/hour
Static power consumption [W] 85 W
Static heat dissipation [BTU/hour] 290 BTU/hour
Maximum power consumption [W] 193 W
Maximum heat dissipation [BTU/hour] 659 BTU/hour
CPU Quad-core, 1.4 GHz clock speed
Memory Standard 4 GB
Flash memory Standard 128 MB
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 6.7 kg (14.77 lb)
Weight with packaging [kg (lb)] 11.6 kg (25.58 lb)

Additional information

Brand

Huawei

CE16800 Switch

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Item
CEL48XSFD-G
Typical power consumption [W] 103 W
Typical heat dissipation [BTU/hour] 352 BTU/hour
Static power consumption [W] 85 W
Static heat dissipation [BTU/hour] 290 BTU/hour
Maximum power consumption [W] 193 W
Maximum heat dissipation [BTU/hour] 659 BTU/hour
CPU Quad-core, 1.4 GHz clock speed
Memory Standard 4 GB
Flash memory Standard 128 MB
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 225 mm x 590 mm x 750 mm (8.86 in. x 23.23 in. x 29.53 in.)
Weight without packaging [kg (lb)] 6.7 kg (14.77 lb)
Weight with packaging [kg (lb)] 11.6 kg (25.58 lb)
