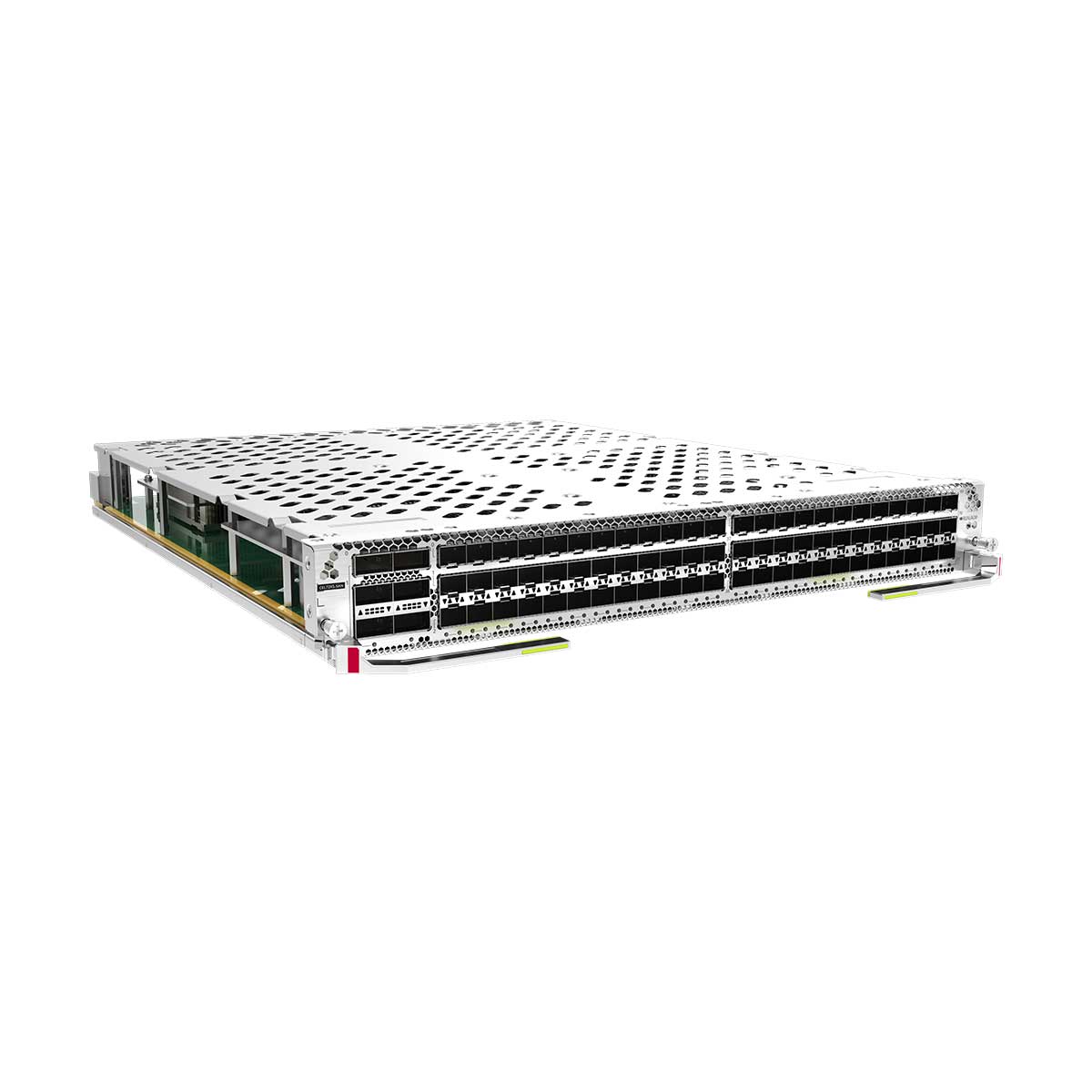

CEL72XS-SAN--2

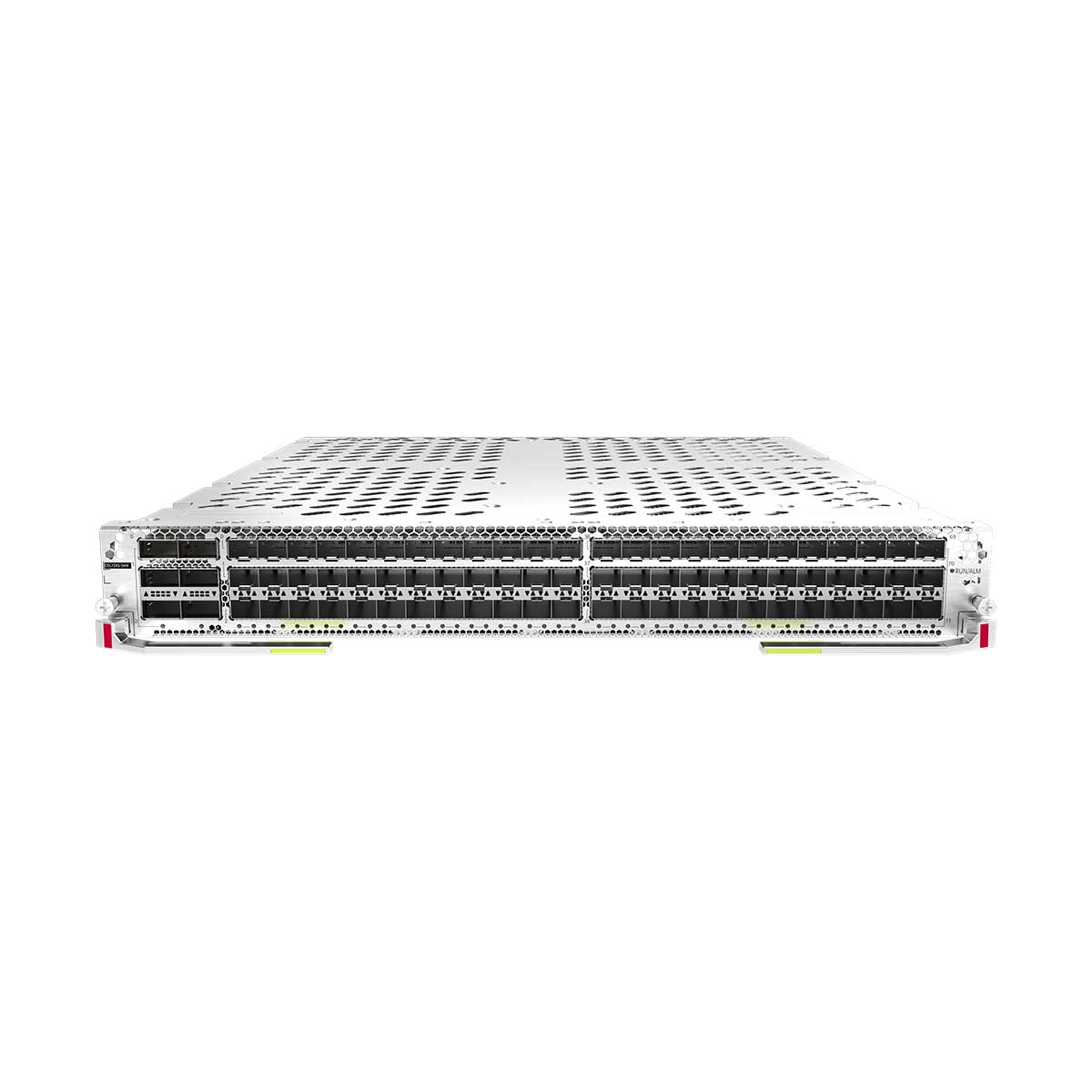

CEL72XS-SAN--3

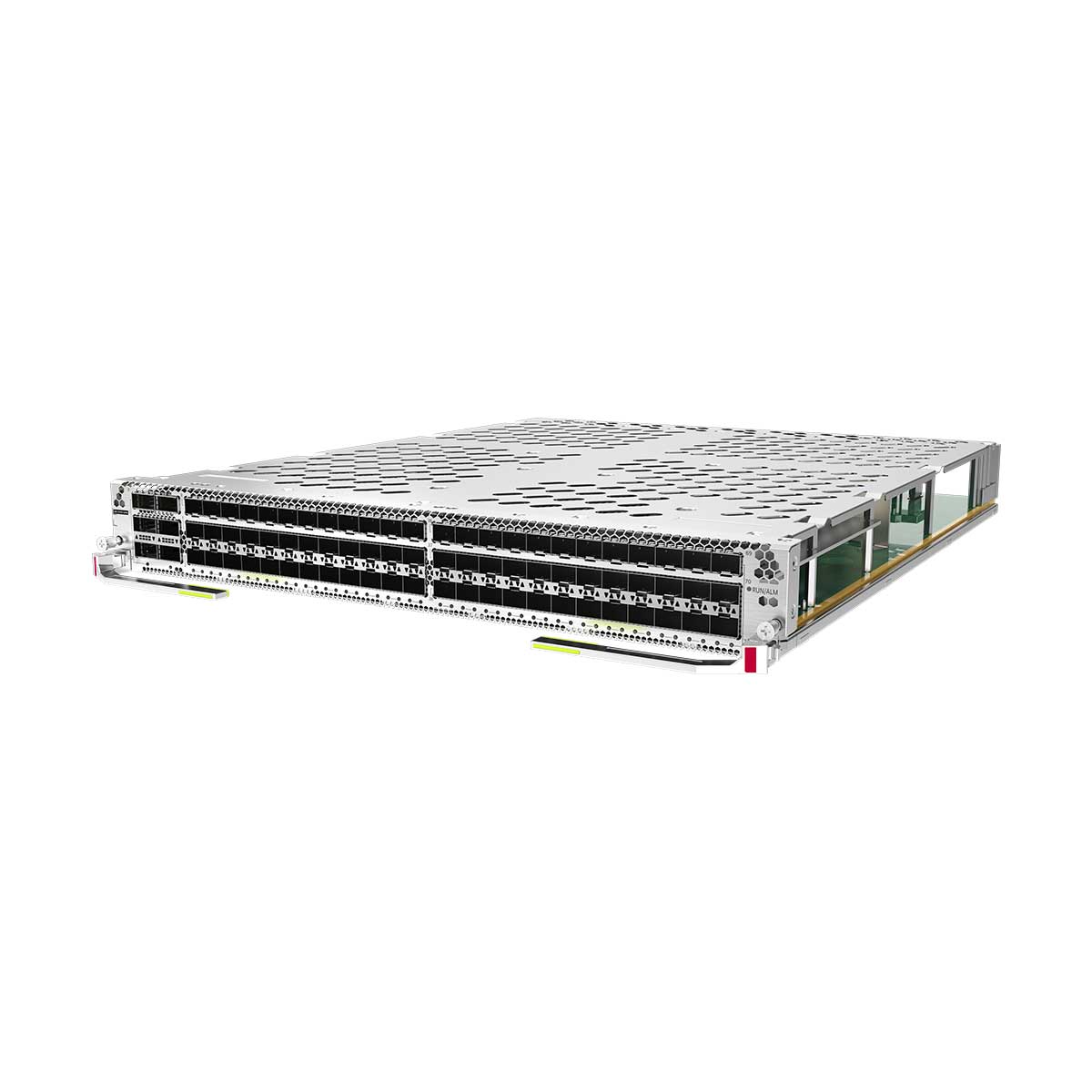

CEL72XS-SAN--4
Categories:

CEL72XS-SAN

0 Reviews Write a review
PN03050DLL
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei 16800series Switch Card CEL72XS-SAN 72-port 25GE and 6-port 100GE interface card (SAN, SFP28, QSFP28) (CM)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CEL72XS-SAN overview

Item Details
Description 72-port 25GE and 6-port 100GE interface card (SAN, SFP28, QSFP28) (CM)
Part Number 03050DLL
Model CEL72XS-SAN
Silkscreen CEL72XS-SAN
Card Type Interface Card

CEL72XS-SAN Appearance

CEL72XS-SAN

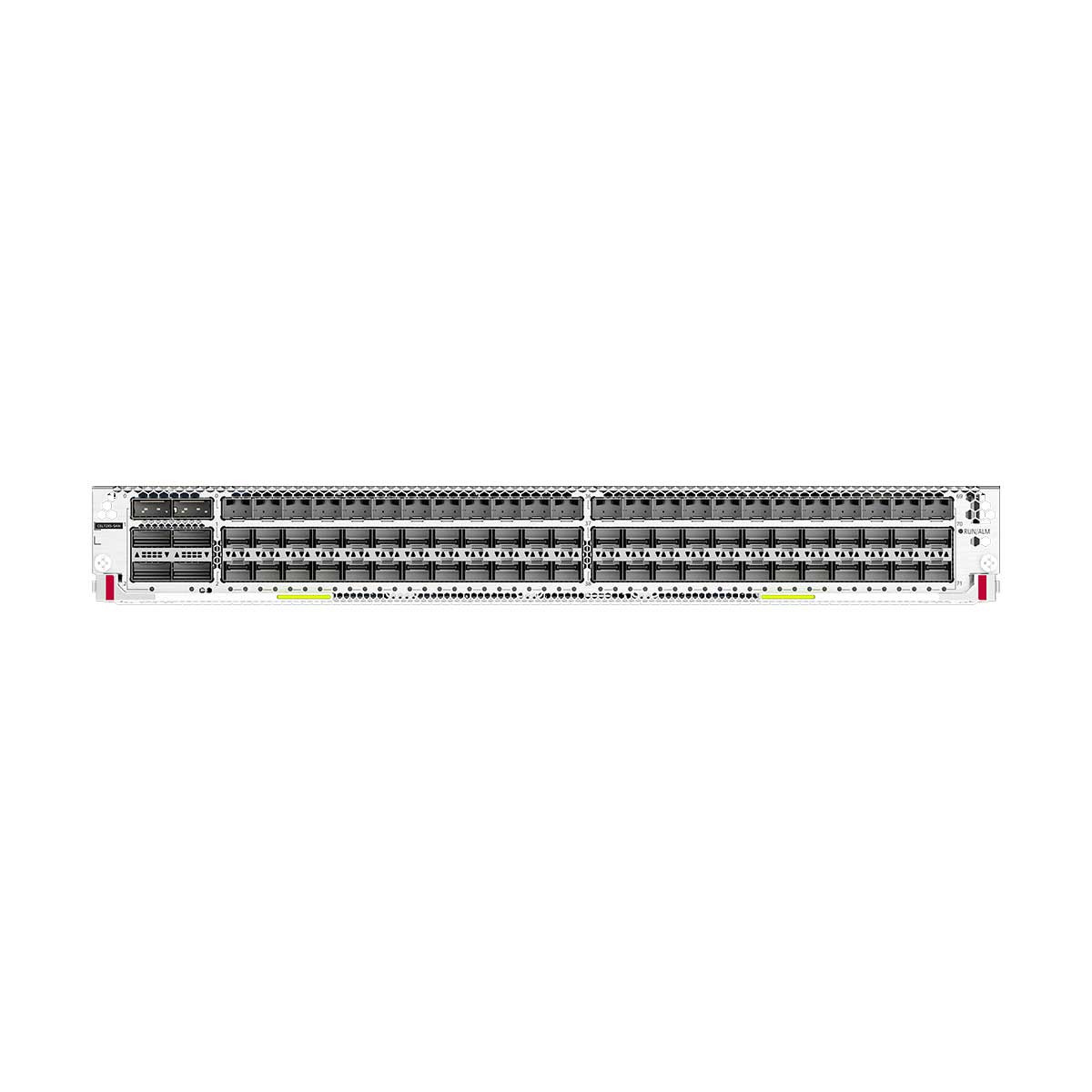

Panel on the CloudEngine CEL72XS-SAN

1. Six 100GE optical ports 2. Seventy-two 25GE optical ports

Ports on the CE-L48YSAJ

Port Connector Type Description Available Components
72 x 25GE optical ports SFP28/SFP+ Port for inputting and outputting 25GE/10GE optical signals
  • 10GE SFP+ optical modules
    25GE SFP28 optical modules
    SFP+ to SFP+ AOC cable
    SFP28 to SFP28 AOC cableThe top-row 25GE/10GE ports also support:SFP+ to SFP+ high-speed cable
    SFP28 to SFP28 high-speed cable
6 x 100GE optical ports QSFP28/QSFP+ Port for inputting and outputting 100GE/40GE optical signals
  • 40GE QSFP+ optical modules
    100GE QSFP28 optical modules
    QSFP+ to QSFP+ AOC cable
    QSFP28 to QSFP28 AOC cable
    QSFP+ to QSFP+ high-speed cable
    QSFP28 to QSFP28 high-speed cable
Show More Show Less
Item CEL72XS-SAN
Typical power consumption [W] 509 W
Typical heat dissipation [BTU/hour] 1737 BTU/hour
Static power consumption [W] 376 W
Static heat dissipation [BTU/hour] 1283 BTU/hour
Maximum power consumption [W] 635 W
Maximum heat dissipation [BTU/hour] 2167 BTU/hour
CPU 4-core, 1.4 GHz clock speed
Memory Standard 8 GB
NOR Flash Standard 128 MB
RTU License Supported Yes. By default, 48 x 25GE (ports 0 to 47, which can only work at the rate of 10 Gbit/s) and 4 x 100GE ports (ports 0 to 3) are available, and other ports are unavailable. The following RTU licenses can be used:
  • 88036EUR: Two 100GE ports are added.
  • 88036EUS: 24 x 25GE ports are added and the port rate is 10 Gbit/s.
  • 88036EUT: The rate of 24 x 25GE ports is upgraded to 25 Gbit/s. A maximum of three licenses can be activated on a device to increase the rate of 72 x 25GE ports to 25 Gbit/s.
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 285 mm x 650 mm x 860 mm (11.22 in. x 25.59 in. x 33.86 in.)
Weight without packaging [kg (lb)] 9.9 kg (21.83 lb)
Weight with packaging [kg (lb)] 16.2 kg (53.15 lb)

Additional information

Brand

Huawei
Item CEL72XS-SAN
Typical power consumption [W] 509 W
Typical heat dissipation [BTU/hour] 1737 BTU/hour
Static power consumption [W] 376 W
Static heat dissipation [BTU/hour] 1283 BTU/hour
Maximum power consumption [W] 635 W
Maximum heat dissipation [BTU/hour] 2167 BTU/hour
CPU 4-core, 1.4 GHz clock speed
Memory Standard 8 GB
NOR Flash Standard 128 MB
RTU License Supported Yes. By default, 48 x 25GE (ports 0 to 47, which can only work at the rate of 10 Gbit/s) and 4 x 100GE ports (ports 0 to 3) are available, and other ports are unavailable. The following RTU licenses can be used:
  • 88036EUR: Two 100GE ports are added.
  • 88036EUS: 24 x 25GE ports are added and the port rate is 10 Gbit/s.
  • 88036EUT: The rate of 24 x 25GE ports is upgraded to 25 Gbit/s. A maximum of three licenses can be activated on a device to increase the rate of 72 x 25GE ports to 25 Gbit/s.
Dimensions without packaging (H x W x D) [mm (in.)] 55.4 mm x 433.0 mm x 523.2 mm (2.18 in. x 17.05 in. x 20.60 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 285 mm x 650 mm x 860 mm (11.22 in. x 25.59 in. x 33.86 in.)
Weight without packaging [kg (lb)] 9.9 kg (21.83 lb)
Weight with packaging [kg (lb)] 16.2 kg (53.15 lb)
