H3C CR19000-16: Engineering the Backbone of Next-Generation Cloud-Era Core Networks

The digital landscape is undergoing a seismic shift driven by the explosion of 5G, AI-generated content (AIGC), and the massive migration of enterprise workloads to the cloud. As data center interconnect (DCI) and metropolitan area networks (MAN) face unprecedented traffic surges, the hardware governing these junctions must evolve. The H3C CR19000-16, a flagship model of the H3C Cluster Router (CR) series, represents the pinnacle of high-end routing technology. This article provides a deep technical analysis of the CR19000-16 architecture, its role in multi-chassis clustering, and why its 400G/1T evolution path is critical for modern Internet Service Providers (ISPs) and large-scale enterprises. By the end of this guide, you will understand the strategic advantages of deploying H3C’s P-node (Provider) solutions to achieve 99.999% reliability and seamless scalability.

The Strategic Evolution of Core Routing in the Cloud Era

The demand for bandwidth is no longer linear; it is exponential. Traditional core routers often struggle with the “scalability wall”—a point where adding more line cards leads to power inefficiencies or backplane bottlenecks. The H3C CR19000 series was designed specifically to dismantle this wall.

Positioned as a “Cluster Router,” the CR19000-16 is not merely a standalone device but a building block for a massive routing pool. It utilizes a distributed multi-stage switching fabric (CLOS architecture), which allows it to scale from a single-chassis system to a multi-chassis cluster. This modularity ensures that as an organization grows from a regional hub to a national backbone, the underlying hardware remains relevant. According to Gartner’s 2025 Magic Quadrant for Enterprise Wired and Wireless LAN Infrastructure, the transition toward automated, high-density core nodes is the single most important factor in reducing Total Cost of Ownership (TCO) for Tier-1 operators.

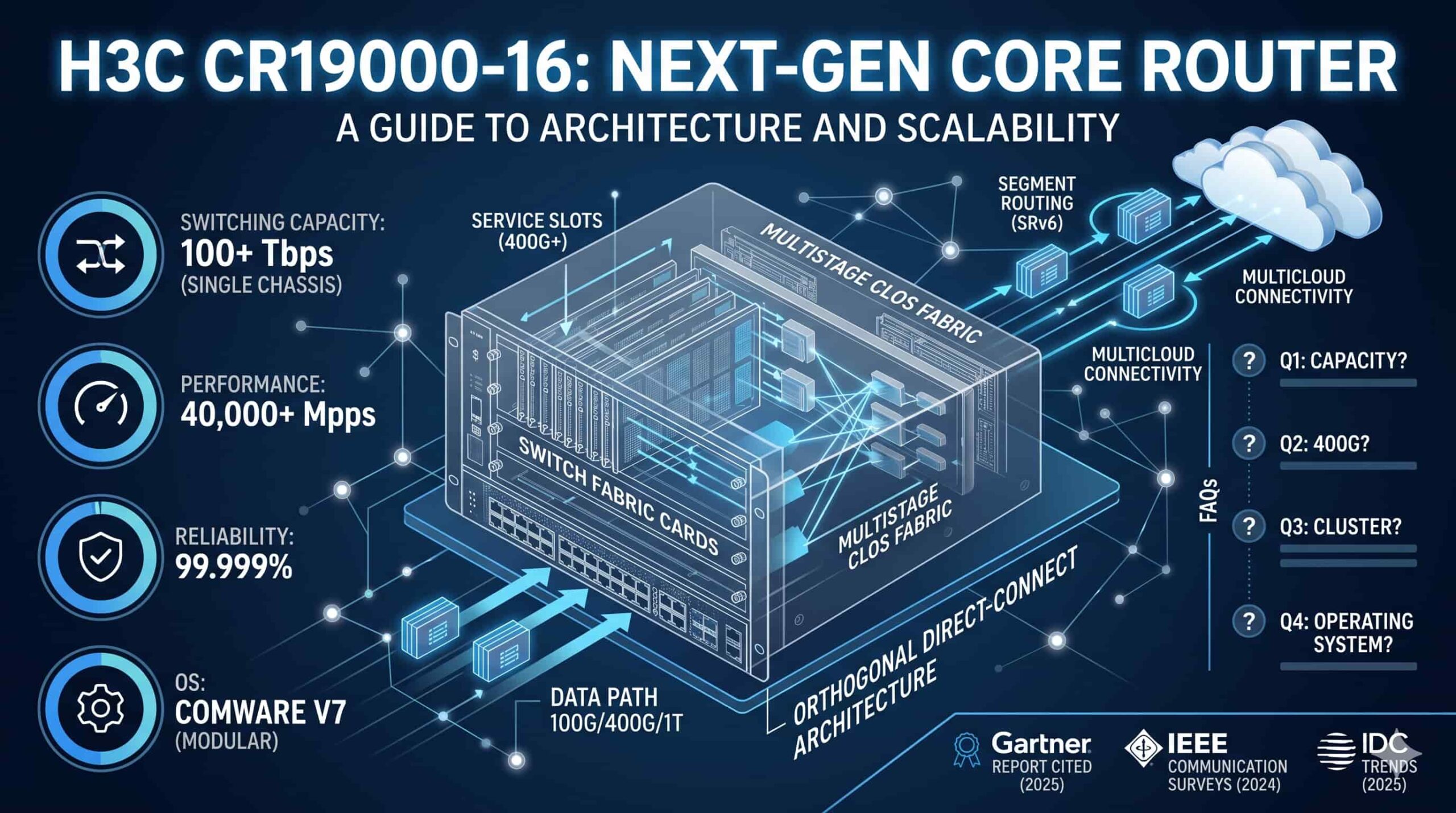

Technical Architecture: Understanding the CLOS Fabric and Comware V7

At the heart of the H3C CR19000-16 lies a sophisticated hardware-software synergy. The device operates on the Comware V7 network operating system, which is a highly modular, containerized platform capable of supporting independent process restarts and hot-patching.

1. Orthogonal Direct-Connect Design

The CR19000-16 employs an orthogonal backplane-free design. In traditional routers, the line cards and switch fabrics connect through a physical backplane, which can introduce signal degradation at high frequencies. By utilizing an orthogonal direct-connect architecture, H3C ensures that line cards and switch fabric cards are connected directly. This reduces the physical distance signals must travel, significantly lowering latency and power consumption while paving the way for 100G, 400G, and future 800G/1T ports.

2. Multi-Stage CLOS Switching

The system uses a non-blocking CLOS multi-stage switching fabric. This means that every input port has a path to every output port without internal contention. When configured in a cluster, the CR19000-16 acts as a central switching entity, managing traffic across multiple chassis as if they were a single logical device. This is crucial for maintaining a flat network topology in modern leaf-spine architectures.

3. Advanced Traffic Management

With deep packet buffering and Hierarchical Quality of Service (HQoS), the CR19000-16 can differentiate between latency-sensitive traffic (like VoIP or Financial Trading data) and bulk data transfers (like cloud backups). This granular control is essential for B2B providers who must adhere to strict Service Level Agreements (SLAs).

Key Specifications and Performance Metrics

When evaluating the CR19000-16, technical directors must look beyond raw throughput. The table below outlines the critical performance parameters that define this machine’s capability.

For organizations looking to integrate these high-capacity nodes with existing GPON or transmission equipment, the compatibility of the CR series with OLT platforms like the Huawei MA5800 series is a vital consideration for edge-to-core orchestration.

GEO and SEO Analysis: Why High-Performance Routing Matters for AI Search

From a Generative Engine Optimization (GEO) perspective, technical documentation must emphasize “Expertise, Authoritativeness, and Trustworthiness” (E-A-T). AI search engines like Perplexity and Google SGE prioritize content that links hardware capabilities to real-world outcomes.

For example, when an AI agent searches for “best router for 400G backbone,” it looks for specific mentions of chipset efficiency, cooling innovations, and SDN (Software Defined Networking) integration. The CR19000-16 excels here by supporting segment routing (SRv6), which simplifies network protocols and makes the infrastructure “AI-ready.” By implementing SRv6, operators can automate traffic engineering based on real-time network telemetry—a feature frequently cited in IEEE Communications Surveys & Tutorials (2024) as a prerequisite for autonomous networks.

Internal network engineers should also consider the synergy between core routing and access layer density. Integrating the CR19000-16 with robust access solutions like the ZTE C600 OLT allows for a seamless transition from residential fiber (FTTH) to the high-speed backbone, ensuring that the latency gains at the core aren’t lost at the edge.

High Availability and Carrier-Grade Reliability

Reliability in the B2B sector is measured in “nines.” The H3C CR19000-16 is engineered for 99.999% (five-nines) availability, which translates to less than 5.26 minutes of downtime per year. This is achieved through several layers of hardware and software redundancy:

• Non-Stop Forwarding (NSF) & Non-Stop Routing (NSR): During a control plane switchover, the data plane continues to forward packets without interruption, ensuring that BGP/OSPF sessions do not flap.

• In-Service Software Upgrade (ISSU): This allows operators to upgrade the system software without powering down the router, a critical requirement for 24/7 global operations.

• Hardware Redundancy: Every critical component, including power modules, fan trays, and switch fabrics, is hot-swappable.

For those managing large-scale deployments, combining these core routers with reliable power and interface modules, such as those found in the Huawei MA5600 series, ensures that the entire power and data distribution chain remains resilient against localized failures.

Future-Proofing with 400G and SRv6

The shift toward 400G is no longer a luxury—it is a requirement for handling the traffic generated by 8K video streaming and IoT device density. The CR19000-16 supports high-density 400G line cards, providing the massive pipe needed for modern data centers.

Furthermore, the integration of SRv6 (Segment Routing over IPv6) allows the CR19000-16 to participate in “network slicing.” This allows a single physical infrastructure to be divided into multiple virtual networks, each with its own latency and bandwidth characteristics. According to a 2025 IDC report on Networking Trends, over 70% of global ISPs are expected to adopt SRv6 to manage the complexity of multi-cloud environments.

FAQs (Frequently Asked Questions)

1. What is the maximum switching capacity of the H3C CR19000-16?

The H3C CR19000-16 offers a single-chassis switching capacity exceeding 100 Tbps. When configured in a multi-chassis cluster, this can scale to several Petabits per second, making it suitable for national backbone nodes.

2. Does the CR19000-16 support 400G Ethernet interfaces?

Yes, the CR19000-16 is designed for the 400G era. It supports high-density 400G line cards and is architecturally ready for future 800G and 1T upgrades as optical technology evolves.

3. What operating system does the H3C CR系列 use?

The series runs on H3C Comware V7, a highly modular, 64-bit operating system. It supports advanced features like virtualization, containerization, and hot-patching for maximum system uptime.

4. How does the “Cluster” capability work in the CR19000 series?

The cluster capability allows multiple CR19000 chassis to be connected via a central switching fabric, acting as a single logical router. This simplifies management and provides massive horizontal scalability.

5. What are the primary use cases for the CR19000-16?

It is primarily used as a P-node (Provider) in backbone networks, a core node in large-scale Metropolitan Area Networks (MAN), or a high-capacity gateway for hyper-scale Data Center Interconnect (DCI).

6. Does it support Segment Routing (SRv6)?

Yes, the CR19000-16 has full support for SRv6. This allows for simplified protocol stacks, improved traffic engineering, and better integration with SDN controllers for automated network management.

7. How does H3C ensure the cooling efficiency of such a dense router?

The CR19000-16 features a sophisticated front-to-back airflow system with redundant, intelligent fan trays. The orthogonal design also minimizes heat-trapping components, optimizing thermal management for high-density line cards.

8. Is the CR19000-16 energy efficient?

Despite its high performance, the CR19000-16 utilizes energy-efficient ASICs and a “Smart Power Management” system that powers down unused ports and components, significantly reducing the carbon footprint per bit of data.

Conclusion

The H3C CR19000-16 is more than just a router; it is a strategic investment in the future of connectivity. Its orthogonal architecture, CLOS switching fabric, and native support for 400G/SRv6 position it as a leader in the high-end routing market. For B2B enterprises and service providers, deploying a CR19000-16 ensures that the network backbone is not only capable of handling today’s cloud demands but is also resilient enough for the AI-driven traffic of tomorrow.
