CR5D00C4CFC1

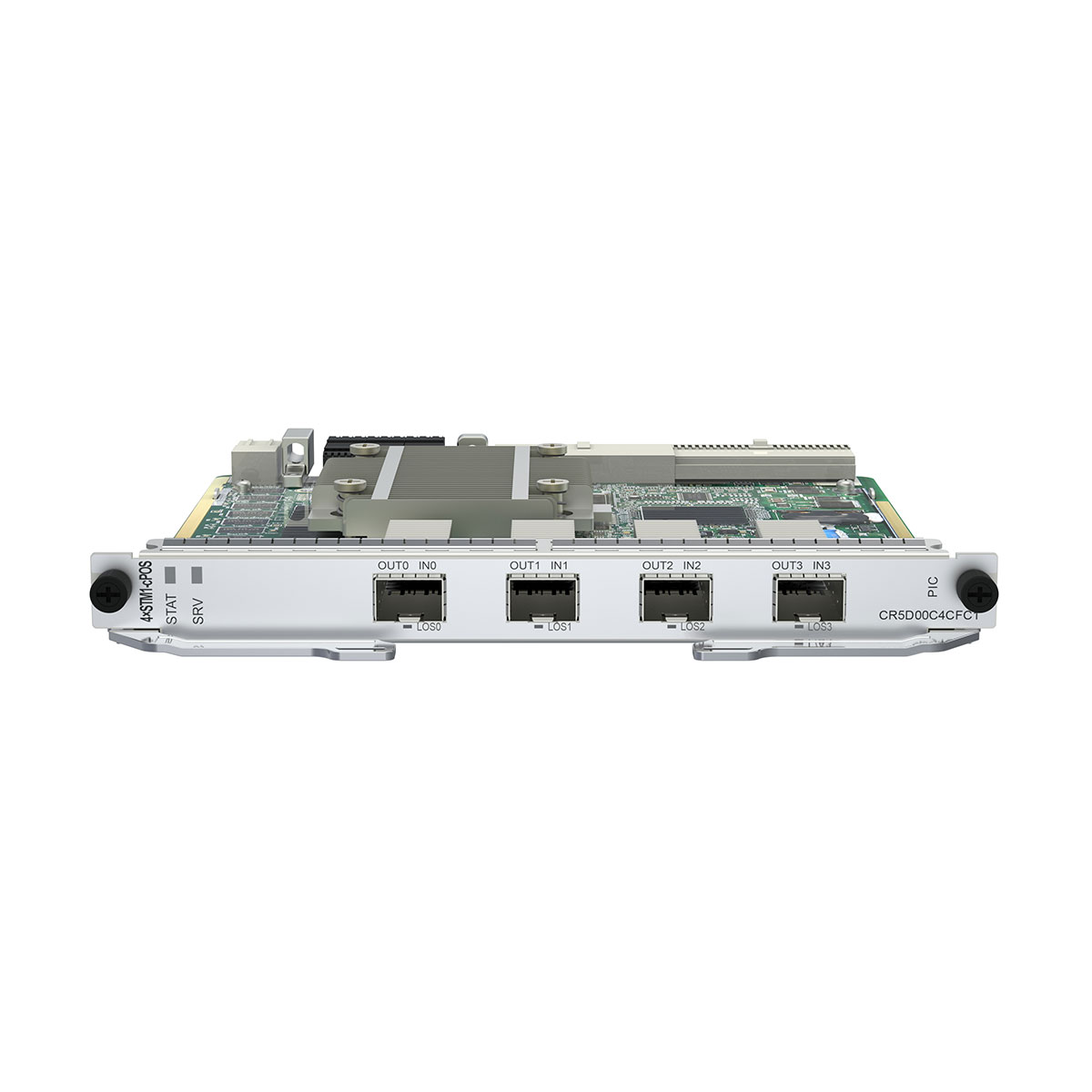

NE8000 CR5D00C4CFC1(4*Port Channelized STM-1c POS-SFP Physical Interface Card(PIC))
Huawei
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Reviews (1)
Description
Basic information about the CR5D00C4CFC1
Item | Details |
---|---|
Description | 4-Port Channelized STM-1c POS-SFP Physical Interface Card(PIC) |
Card type | Interface Card |
Part Number | 03033GGF |
Model | CR5D00C4CFC1 |
Silkscreen | 4xSTM1-cPOS |
Mappings between CR5D00C4CFC1 and product models
Product Sub-Series
|
Product Model
|
First Supported Version
|
Limitations
|
---|---|---|---|
NetEngine 8000 M14 | CR8B0BKPACC2 | NetEngine 8000 M V800R012C00 | – |
NetEngine 8000 M14 | CR8B0BKPDCC1 | NetEngine 8000 M V800R012C00 | – |
NetEngine 8000 M14 | CR8B0BKPACC1 | NetEngine 8000 M V800R012C10 | – |
NetEngine 8000 M8 | CR8BM8BKPDC1 | NetEngine 8000 M V800R012C00 | – |
NetEngine 8000 M8 | CR8BM8BKPAC1 | NetEngine 8000 M V800R012C00 | – |
Item | CR5D00C4CFC1 |
---|---|
Basic function | Supports 63 E1 links over four 155M SDH links. |
Reliability and availability | Supports the hot swappable function. |
Breakout supported | No |
Interface rate auto-sensing supported | No |
Link protocol | TDM, PPP, MP, ATM, IMA |
Dimensions without packaging (H x W x D) [mm(in.)] | 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.) |
Weight without packaging [kg(lb)] | 0.5 kg (1.1 lb) |
Typical power consumption [W] | 16.8 W |
Typical heat dissipation [BTU/hour] | 54.5 BTU/hour |
Long-term operating temperature [°C(°F)] | -20°C to 65°C(-4°F to 149°F) |
