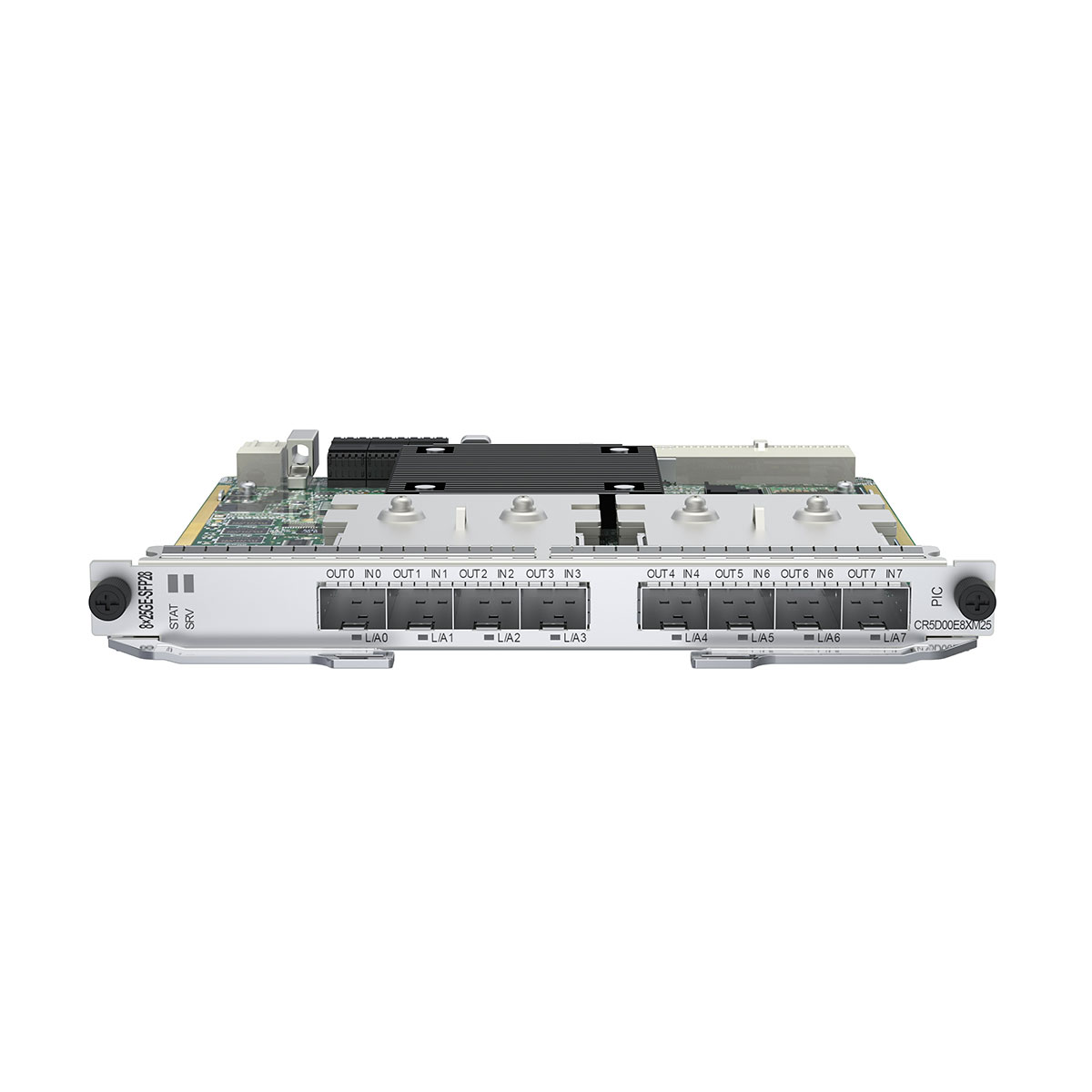

NE8000 CR5D00E8XM25(8*Port 25GE(SFP28)/10GE(SFP+) MACsec Physical Interface Card (PIC))

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Basic information about the CR5D00E8XM25

Item Details
Description 8-Port 25GE(SFP28)/10GE(SFP+) MACsec Physical Interface Card (PIC)
Card type Interface Card
Part Number 03033BLM
Model CR5D00E8XM25
Silkscreen 8x25GE-SFP28



Mappings between CR5D00E8XM25 and product models

Product Sub-Series
Product Model
First Supported Version
Limitations
NetEngine 8000 M14 CR8B0BKPACC2 NetEngine 8000 M V800R012C00 –
NetEngine 8000 M14 CR8B0BKPDCC1 NetEngine 8000 M V800R012C00 –
Show More Show Less
Item CR5D00E8XM25
Basic function Supports optical signal input and output of eight 25GE/10GE ports.
Reliability and availability Supports the hot swappable function.
Restrictions and remarks Ports 0 to 3 belong to a port group, and ports 4 to 7 belong to another one. By default, 25GE/10GE auto-negotiation is supported. You can run the port-mode group-id command in the slot view to switch the mode of a port group to 10GE/GE auto-negotiation. In LAN/WAN switching, the mode of ports in a port group must be switched at the same time.
Breakout supported No
Interface rate auto-sensing supported In 25GE mode, 10GE/25GE auto-sensing supported; In 10GE mode, GE/10GE auto-sensing supported.
Dimensions without packaging (H x W x D) [mm(in.)] 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.)
Weight without packaging [kg(lb)] 0.8 kg (1.76 lb)
Typical power consumption [W] 37.5 W
Typical heat dissipation [BTU/hour] 121.57 BTU/hour
Long-term operating temperature [°C(°F)] -40°C to +65°C (-40°F to 149°F)

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item CR5D00E8XM25
Basic function Supports optical signal input and output of eight 25GE/10GE ports.
Reliability and availability Supports the hot swappable function.
Restrictions and remarks Ports 0 to 3 belong to a port group, and ports 4 to 7 belong to another one. By default, 25GE/10GE auto-negotiation is supported. You can run the port-mode group-id command in the slot view to switch the mode of a port group to 10GE/GE auto-negotiation. In LAN/WAN switching, the mode of ports in a port group must be switched at the same time.
Breakout supported No
Interface rate auto-sensing supported In 25GE mode, 10GE/25GE auto-sensing supported; In 10GE mode, GE/10GE auto-sensing supported.
Dimensions without packaging (H x W x D) [mm(in.)] 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.)
Weight without packaging [kg(lb)] 0.8 kg (1.76 lb)
Typical power consumption [W] 37.5 W
Typical heat dissipation [BTU/hour] 121.57 BTU/hour
Long-term operating temperature [°C(°F)] -40°C to +65°C (-40°F to 149°F)
