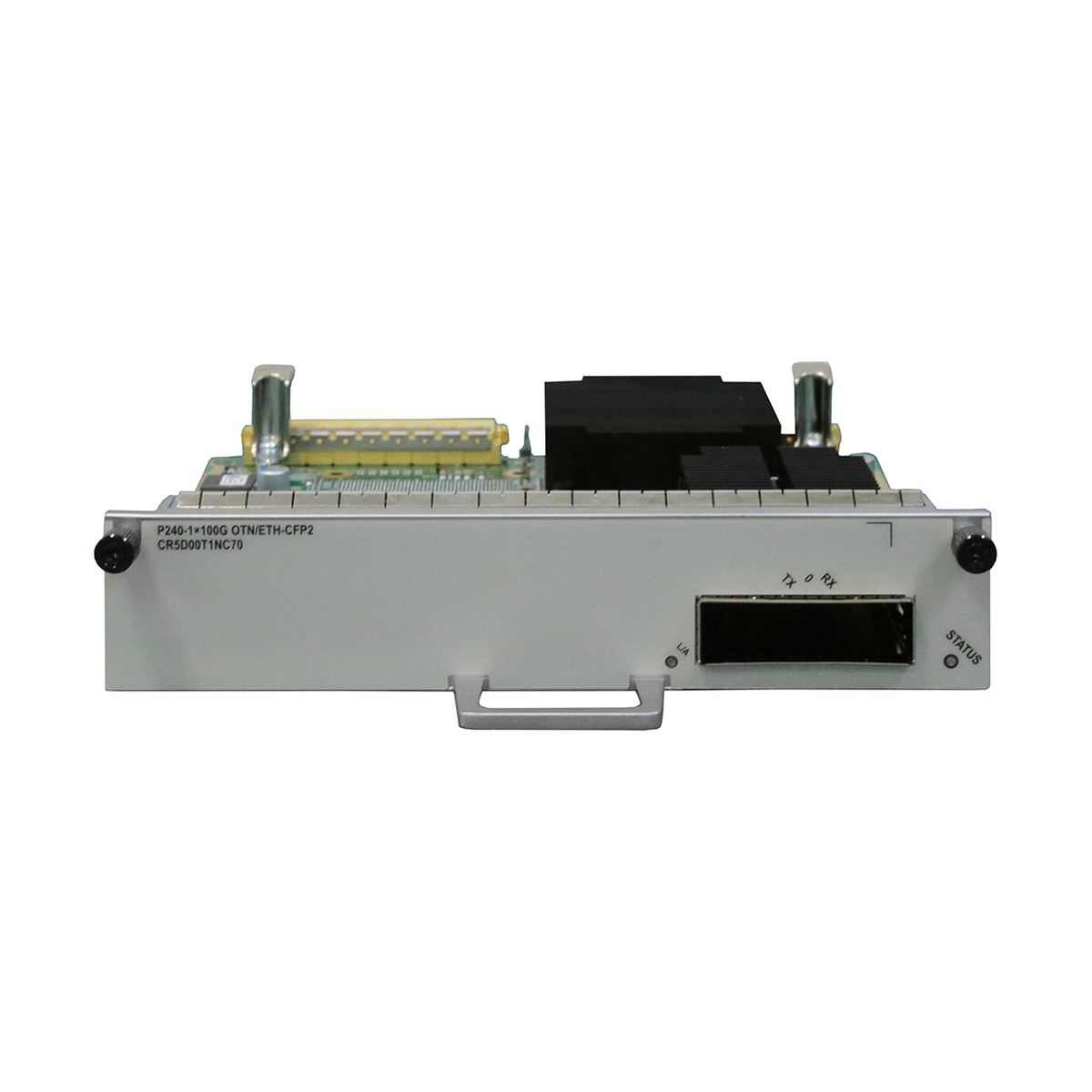

1-Port 100G OTN/ETH-CFP2 Flexible Card(P240)

SKU: 10148 PN: 03032PCD Category:

Description

Item CR5D00T1NC70
Mapping motherboard Flexible Card Line Processing Unit(LPUF-120)

Flexible Card Line Processing Unit(LPUF-120) B

Flexible Card Line Processing Unit(LPUF-120) E

Line-Rate capability
Provides one 100GE interface for line-rate transmitting and receiving.
Whether breakout is supported No
Reliability and availability Hot swappable.
Restrictions and remarks does not support 1588V2.

When this subcard is used together with the CR5DLPUFF170 on an NE40E-X3, the upper limit of the short-term operating temperature of the NE40E-X3 is reduced by 5°C, and the long-term operating temperature range remains unchanged.

Dimensions (H x W x D) 18.4 mm x 169 mm x 189.9 mm (0.72 in. x 6.65 in. x 7.48 in.)
Typical power consumption 50.0 W
0.8 kg (1.76 lb) 0.5 kg (1.10 lb)

Additional information

Weight 2.0000 kg
Dimensions 36.5000 × 31.0000 × 10.0000 cm
