Description

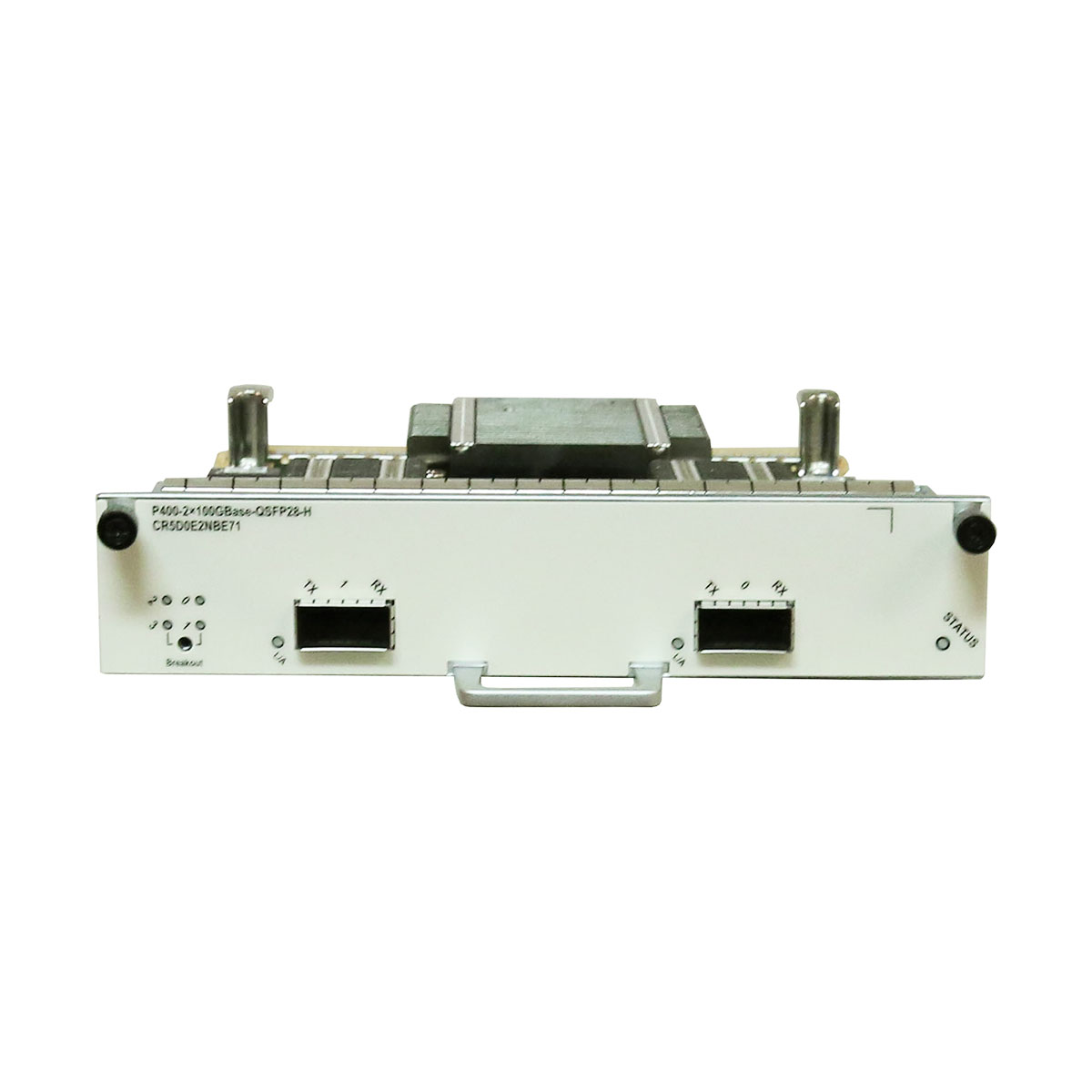

| Item | CR5D0E2NBE71 |
| Description | 2-Port 100GBase-QSFP28 Flexible Card H(P400-H) |
| Mapping motherboard | Flexible Card Line Processing Unit(LPUF-480)
Flexible Card Line Processing Unit B(LPUF-480-B) Flexible Card Line Processing Unit E(LPUF-480-E) Flexible Card Line Processing Unit E(LPUF-480-E) Flexible Card Line Processing Unit(LPUF-480) Flexible Card Line Processing Unit B(LPUF-480-B) |
| Line-Rate capability | Provides two 100GE interfaces for line-rate transmitting and receiving. |
| Whether breakout is supported |
Yes To enable breakout interfaces, run the port split command to complete breakout configuration. |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | When inserting the QSFP+ module, all the four 10GE interfaces split from one interface must work in the same LAN or WAN mode(The interfaces working in WAN mode can function only as master interfaces).The default transmission rate of an interface on the subcard is 100 Gbit/s. When the transmission rate of an interface on the used optical module does not match the default rate, for example, when a 40G optical module is used, run the port split command to enable the interface breakout function. |
| Optical type supported |
100Gbps QSFP28 optical module 40Gbbps QSFP+ optical module |
| Dimensions (H x W x D) | 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.) |
| Typical power consumption | 73.0 W |
| Weight | 1.2 kg (2.65 lb) |
| Ambient temperature | Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F) |
