CR5D0L6XFA70

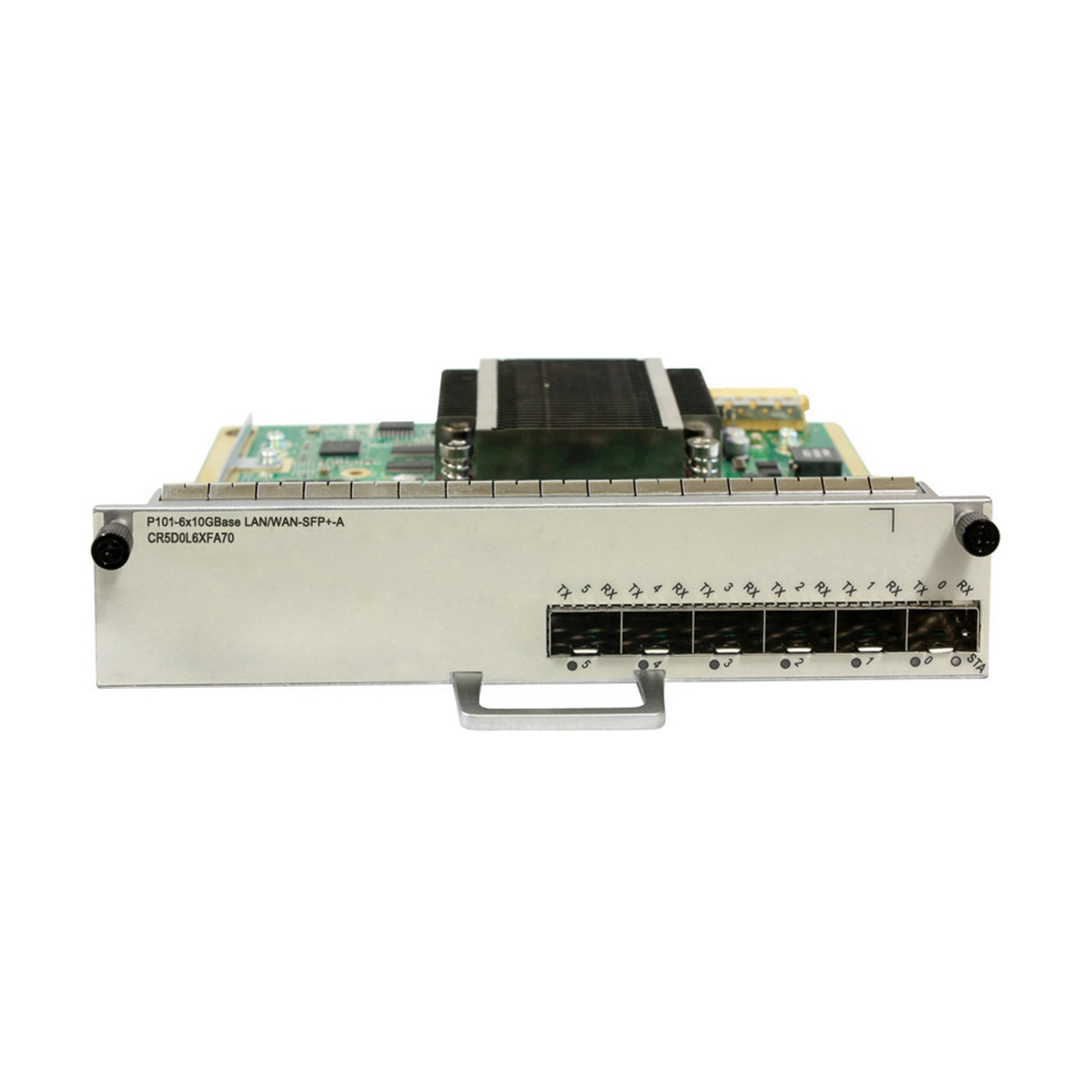

6-Port 10GBase LAN/WAN-SFP+ Flexible Card A(P120-A)
- Description
- Packing info
- Reviews (0)
Description
| Item | CR5D0L6XFA70 |
| Mapping motherboard | Flexible Card Line Processing Unit(LPUF-120)
Flexible Card Line Processing Unit(LPUF-120) B Flexible Card Line Processing Unit(LPUF-120) E |
| Line-Rate capability | Provides six 10GE interfaces for line-rate transmitting and receiving. |
| Whether breakout is supported | No |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | The 10G interfaces working in WAN mode can function only as master interfaces.
When this subcard is used together with the CR5DLPUFF170 on an NE40E-X3,the upper limit of the short-term operating temperature of the NE40E-X3 is reduced by 5°C, and the long-term operating temperature range remains unchanged. |
| Dimensions (H x W x D) | 18.4 mm x 169 mm x 189.9 mm (0.72 in. x 6.65 in. x 7.48 in.) |
| Typical power consumption | 34.0 W |
| Weight | 0.7 kg (1.54 lb) |
Additional information
| Weight | 2.0000 kg |
|---|---|
| Dimensions | 36.5000 × 31.0000 × 10.0000 cm |
