Description
| Item | CR5D0LEXFE72 |

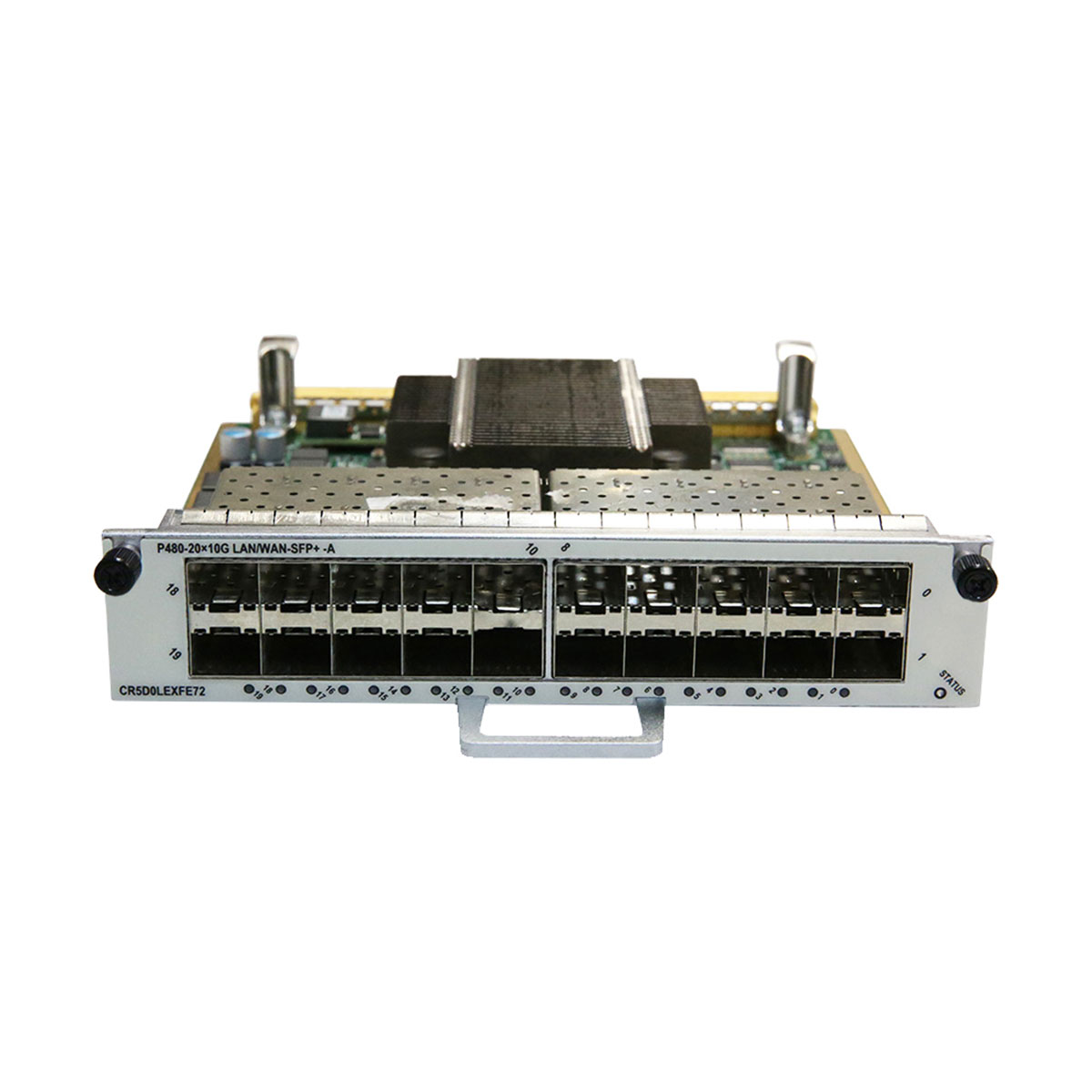

| Description | 20-Port 10GBase LAN/WAN-SFP+ Flexible Card A(P480-A) |
| Mapping motherboard | Flexible Card Line Processing Unit(LPUF-480)
Flexible Card Line Processing Unit B(LPUF-480-B) Flexible Card Line Processing Unit E(LPUF-480-E) Flexible Card Line Processing Unit E(LPUF-480-E) Flexible Card Line Processing Unit(LPUF-480) Flexible Card Line Processing Unit B(LPUF-480-B) |
| Line-Rate capability | Provides 20 10GE interfaces for line-rate transmitting and receiving. |
| Whether breakout is supported |
No |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | The 10G interfaces working in WAN mode can function only as master interfaces. |
| Optical type supported |
100Gbps SFP+ optical module 10Gbps SFP+ CWDM optical module 10Gbps SFP+ BIDI optical module 10Gbps SFP+ DWDM optical module |
| Dimensions (H x W x D) | 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.) |
| Typical power consumption | 93.4 W |
| Weight | 0.9 kg (1.98 lb) |
| Ambient temperature | Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F) |
