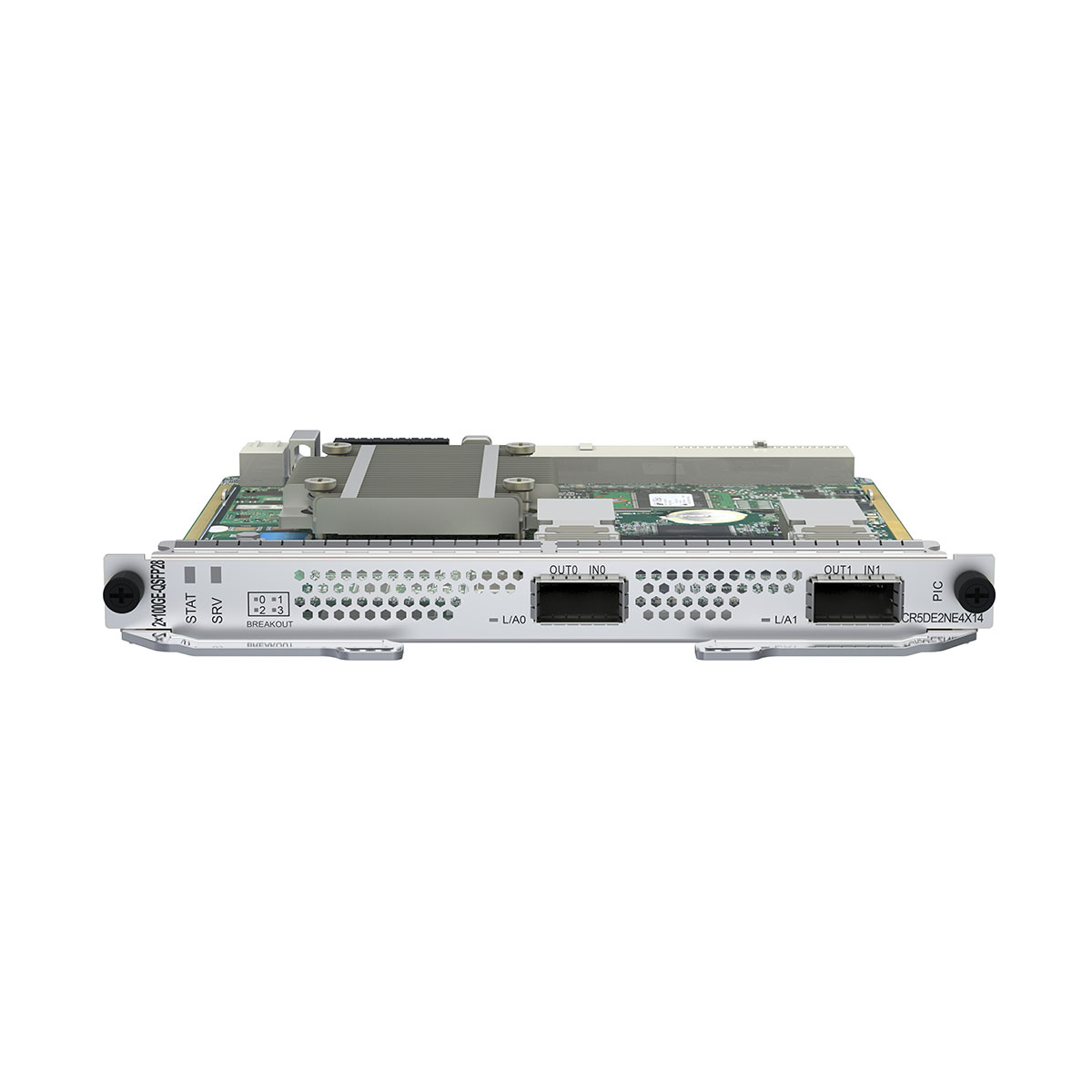

NE8000 CR5DE2NE4X14(2*Port 100GBase/50GBase-QSFP28 FlexE MACsec Interface Card(PIC))

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Basic information about the CR5DE2NE4X14

Item Details
Description 2-Port 100GBase/50GBase-QSFP28 FlexE MACsec Interface Card(PIC)
Card type Interface Card
Part Number 03033GDS
Model CR5DE2NE4X14
Silkscreen 2x100GE-QSFP28



Mappings between CR5DE2NE4X14 and product models

Product Sub-Series
Product Model
First Supported Version
Limitations
NetEngine 8000 M14 CR8B0BKPACC2 NetEngine 8000 M V800R012C00 –
NetEngine 8000 M14 CR8B0BKPDCC1 NetEngine 8000 M V800R012C00 –
NetEngine 8000 M8 CR8BM8BKPDC1 NetEngine 8000 M V800R012C00 –
NetEngine 8000 M8 CR8BM8BKPAC1 NetEngine 8000 M V800R012C00 –





Item CR5DE2NE4X14
Basic function Occupies one flexible card slot. Supports the line-rate receiving and transmitting on two 100GE/50GE interfaces and supports QSFP28 optical modules on the interfaces.
Reliability and availability Support for hot swap.
Restrictions and remarks Supports 100GE, 50GE, 40GE, 4x25GE breakout, and 4x10GE breakout.
Breakout supported Yes. To enable the breakout function on a port, run the port split command.
Interface rate auto-sensing supported Supports 40GE/50GE/100GE auto-sensing.
Dimensions without packaging (H x W x D) [mm(in.)] 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.)
Weight without packaging [kg(lb)] 0.8 kg(1.76 lb)
Typical power consumption [W] 32.2 W
Typical heat dissipation [BTU/hour] 104.41 BTU/hour
Long-term operating temperature [°C(°F)] 0°C to 45°C(32°F to 113°F)
Short-term operating temperature [°C(°F)] -5°C to 55°C(23°F to 131°F)

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item CR5DE2NE4X14
Basic function Occupies one flexible card slot. Supports the line-rate receiving and transmitting on two 100GE/50GE interfaces and supports QSFP28 optical modules on the interfaces.
Reliability and availability Support for hot swap.
Restrictions and remarks Supports 100GE, 50GE, 40GE, 4x25GE breakout, and 4x10GE breakout.
Breakout supported Yes. To enable the breakout function on a port, run the port split command.
Interface rate auto-sensing supported Supports 40GE/50GE/100GE auto-sensing.
Dimensions without packaging (H x W x D) [mm(in.)] 19.8 mm x 193.8 mm x 209.3 mm (0.78 in. x 7.63 in. x 8.24 in.)
Weight without packaging [kg(lb)] 0.8 kg(1.76 lb)
Typical power consumption [W] 32.2 W
Typical heat dissipation [BTU/hour] 104.41 BTU/hour
Long-term operating temperature [°C(°F)] 0°C to 45°C(32°F to 113°F)
Short-term operating temperature [°C(°F)] -5°C to 55°C(23°F to 131°F)
