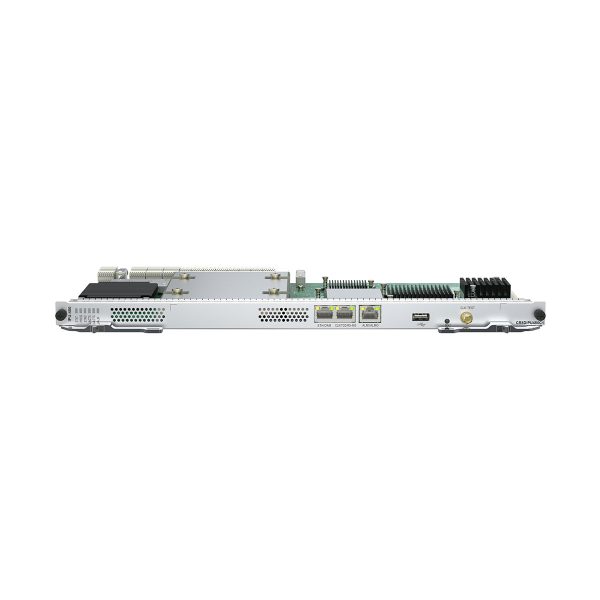

Huawei NetEngine 8000 M Series CR8DIPU480C1 Integrated Network Processing Unit (IPU-480)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

CR8DIPU480C1 Overview

Item Details
Description Integrated Network Processing Unit (IPU-480)
Part Number 03033GLB
Model CR8DIPU480C1
Card type IPU
Silkscreen IPU-480

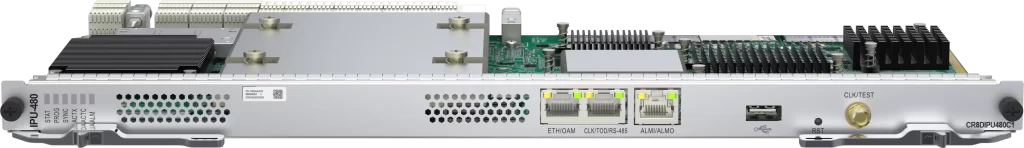

Appearance

CR8DIPU480C1





Mappings between CR8DIPU480C1 and Product Models

Part Type Part Number Part Model Description Supported Versions IDs of available slots
Chassis 02353EWU

CR8BM8BKPAC1

 NetEngine 8000 M8 Integrated AC Chassis Components (Including 2*AC Power,Fan Box) V800R012C00SPC300 and later versions 9,10
Chassis 02356DXB

CR8BM8BKPAC2

 NetEngine 8000 M8 Integrated AC Chassis Components(Including 2*AC Power,Fan Box) V800R024C00SPC500 and later versions 9,10
Chassis 02353ANP

CR8BM8BKPDC1

 NetEngine 8000 M8 Integrated DC Chassis Components (Including 2*DC Power,Fan Box) V800R012C00SPC300 and later versions 9,10
Chassis 02356DWW

CR8BM8BKPDC2

 NetEngine 8000 M8 Integrated DC Chassis Components(Including 2*DC Power,Fan Box) V800R024C00SPC500 and later versions 9,10
Item CR8DIPU480C1
Basic function Data forwarding: The IPU is the core of service processing in the entire system, and is connected to all subcards through data channels. Control and management: Through the management channels between IPUs and the subcards, the IPUs can manage subcards and transmit routing protocol data. The line rate capability is 960 Gbit/s@190 bytes (bidirectional).
Reliability and availability Hot swappable; 1:1 backup mode.
Restrictions and remarks The board cannot work with IPUs of other models.
Breakout supported No
Interface rate auto-sensing supported No
MACsec supported No Check whether the corresponding interface card supports MACsec.
Dimensions without packaging (H x W x D) [mm(in.)] 22.4 mm x 388.4 mm x 209.3 mm (0.88 in. x 15.29 in. x 8.24 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 170 mm x 560 mm x 385 mm (6.69 in. x 22.05 in. x 15.16 in.)
Weight without packaging [kg(lb)] 2.3 kg (5.07 lb)
Weight with packaging [kg(lb)] 3.7 kg (8.16 lb)
Typical power consumption [W] 113.3 W
Typical heat dissipation [BTU/hour] 367.66 BTU/hour
Long-term operating temperature [°C(°F)] –40°C to +65°C (–40°F to +149°F), start: ≥ –20°C (–4°F)
CPU 8-core 1.5 GHz
Memory 8 GB
Storage 4GB NandFlash
