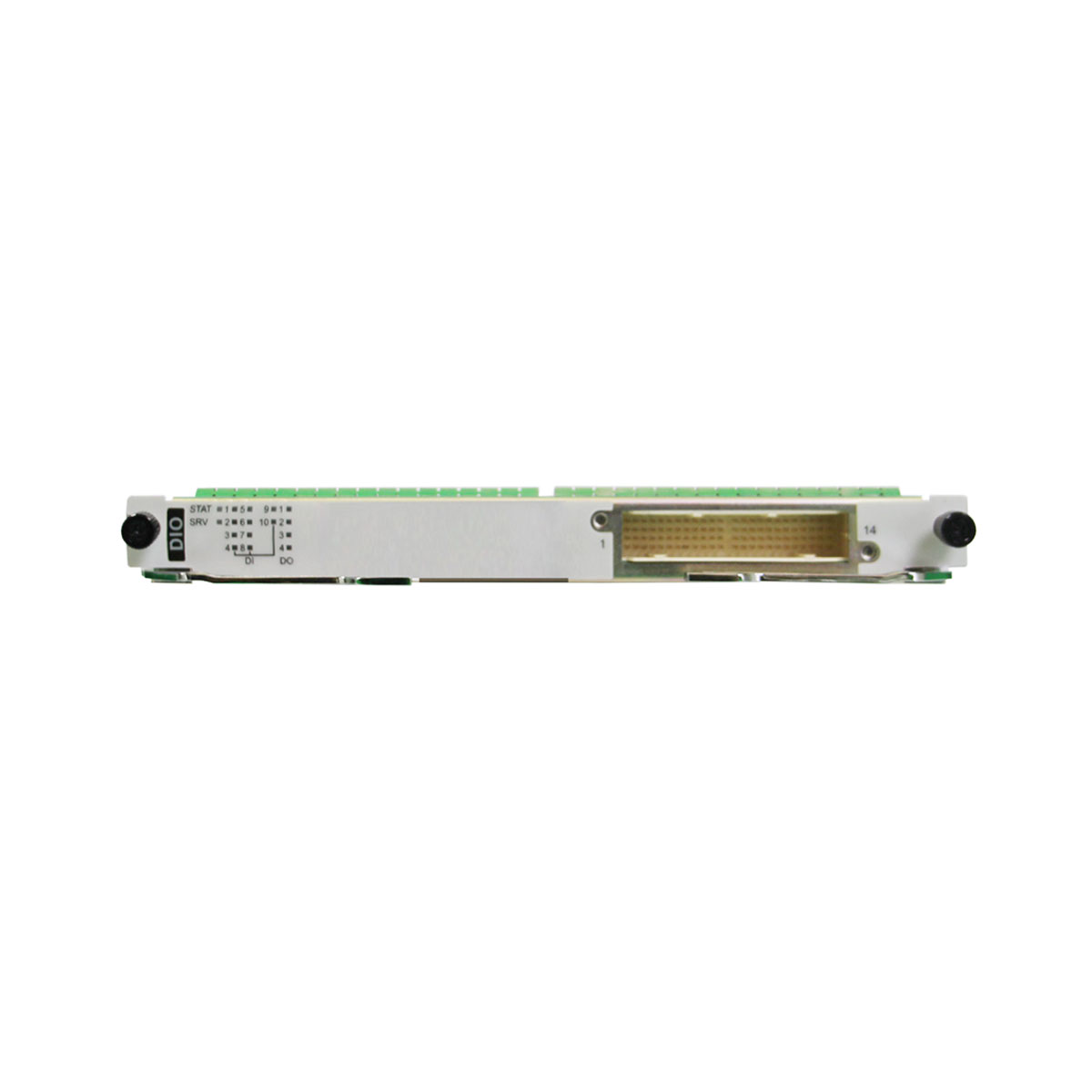

DIO

Basic functions

Supports 10-channel input dry contact signals and 4-channel output dry contact signals, or four channels of cabinet lightening output signals.

Port specifications

• External ports: Values 1 to 14 identify 14 external ports.
  • 1–10: dry contact signal input ports
  • 11–14: dry contact signal output ports or cabinet lightening output ports
• Internal ports: The port number ranges from 65 to 78.

Working modes of ports

Supports the setting of port working modes.

• External ports 1 to 10: No Use, Term, Mux
• External ports 11 to 14: No Use, Term, Mux, Force Out, Light Out
• Internal ports 65 to 78: No Use, Term, Mux, Force Out

Service processing

• Supports the setting of the dry contact signal polarity.
• Supports the setting of the E1 bearing mode of dry contact signals.
• Supports the setting of the alarm severity of the dry contact signal input/output.
• Supports the setting of the combination input and output ports of the dry contact signal output.

Withstand voltage specifications

• Dry contact signal input port: 3.3 V
• Dry contact signal output port: 100 V
• Cabinet lightening output port: 5 V

Overhead processing

Processes path overheads at the VC-12 level, such as J2 and V5 bytes.

Alarms and performance events

Provides various alarms and performance events, facilitating equipment management and maintenance.

Maintenance features

• Supports warm resets and cold resets. Warm resets do not adversely affect services.
• Supports querying board manufacturer information.
• Supports hot board swapping.

VC-12 SNCP

Supported.

E1 SNCP

Ports 65 to 78 on the system side can be used as E1 SNCP sink ports.

TPS protection

Not supported.

2M ASON

When working with TNZ5UXCMS, the board supports this function.
