Huawei EA5801E-GP16 OLT chassis with 16*GPON ports，4*10GE/GE upstream ports

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Huawei EA5801E-GP16 OLT Overview

With the continuous promotion of new services, such as 4K/VR videos, home networks, and network cloudification, optical fiber access has become an important means for countries around the world to popularize broadband networks. As optical fiber access nodes keep moving closer to end users, OLTs are closer to end users. Deployment scenarios are complex and diversified. In this case, network needs OLTs with small volume and low density.

The EA5801E-GP16 is a compact and low-density box-shaped OLT. It provides GPON access, and supports passive optical LAN (POL) and fiber to the home (FTTH) solutions. It carries all services over one fiber network, simplifying network architecture and reducing OPEX.

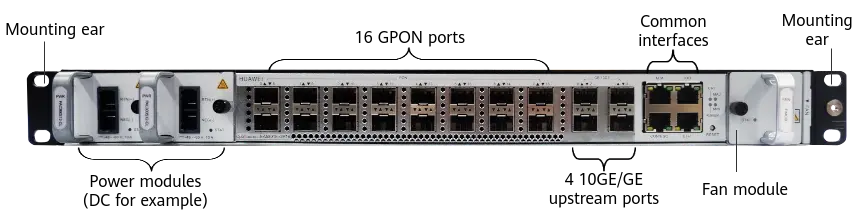

Huawei EA5801E-GP16 OLT Appearance

EA5801E GP16 pic
Huawei EA5801E-GP16 appearance





Huawei EA5801E-GP16 OLT Features

Layer 2 features
VLAN+MAC forwarding SVLAN+CVLAN forwarding
PPPoE+ DHCP option82
Layer 3 features
Static route RIP/RIPng
OSPF/OSPFv3 IS-IS
BGP/BGP4+ ARP
DHCP relay VRF
Multicast
IGMP v2/v3 IGMP Proxy/Snooping
MLD v1/v2 MLD Proxy/Snooping
VLAN-based IPTV multicast IPv4 PIM and PIM-SSM
QoS
Traffic classification Priority processing
trTCM-based traffic policing WRED
Traffic shaping HQoS
PQ/WRR/PQ+WRR ACL
IPv6
IPv4/IPv6 dual stack IPv6 L2 and L3 forwarding
DHCPv6 relay
System reliability
GPON Type B/Type C protection ERPS (G.8032)
2 power boards for redundancy protection In-service board fault detection and rectification
Application security
802.1x AAA
Portal Authentication (V100R021C00 and later versions)
Clock and Time Feature (V100R021C00 and later versions)
Synchronous Ethernet 1588v2

NOTE:

This feature is supported only by products with a clock daughter board.
Huawei EA5801E-GP16 Datasheet
Item Huawei EA5801E-GP16
Dimensions (W x D x H) (mm) Excluding mounting ears: 442 x 220 x 43.6 Including IEC mounting ears: 482.6 x 220 x 43.6 Including ETSI mounting ears: 531 x 220 x 43.6
Maximum fully-loaded weight 5 kg
Power supply mode
  • DC power supply (dual backup)
  • AC power supply (dual backup)
Working voltage range
  • DC power supply: –38.4 V to –72 V
  • AC power supply: 100–240 V
Rated voltage
  • DC power supply: –48 V/–60 V
  • AC power supply: 110 V/220 V
Maximum input current
  • DC power supply: 6 A
  • AC power supply: 2.5 A
Ambient temperature –40°C to +65°C The device can start up at a lowest temperature of –25°C.
NOTE:
The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack.
Ambient humidity 5%–95% RH
Atmospheric pressure 70–106 kPa
Altitude < 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
System switching capacity 140 Gbit/s
MAC addresses 32768
Access ONT 1024
IPv4 routing table 8192
IPv6 routing table 4096
ARP table 16384
Portal authentication users 960
Bit error rate (BER) in full load A BER smaller than 10 e-10 for a port that transmits data in full load
Upstream ports 4 GE/10GE
Service ports 16 GPON
System reliability specifications System availability for the typical configuration: > 99.996% Mean time between failures (MTBF): about 62 years
NOTE:
Due to different network environments and different boards used by devices, the preceding MTBF (62 years) of the EA5801E is only for reference. The preceding values are only for reference. For details, contact the related Huawei engineers.
Power consumption DC power supply:
  • Static power consumption: 52W
  • Typical power consumption: 91W
  • Maximum power consumption: 135W
AC power supply:
  • Static power consumption: 55W
  • Typical power consumption: 95W
  • Maximum power consumption: 140W
NOTE:
The power consumption of a product is tested in the following conditions:
  • Static power consumption: 25°C, no optical module in optical ports, and no service.
  • Typical power consumption: 25°C, 4 x 10GE(10kM) upstream ports, 16 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic.
  • Maximum power consumption: 65°C, 4 x 10GE(10kM) upstream ports, 16 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic.
