EG8247H5 Quick Start
Hi everyone, today this article will introduce you Huawei EG8247H5 CATV ONT.
1 Placing the Device
- Do not install the ONT outdoors or in an outdoor cabinet.
- The ONT can be mounted onto a wall or placed on a desk. Do not install the ONT in other modes, such as ceiling.
- Keep 10 cm clearance on all sides to ensure adequate ventilation.
- It is recommended that the computer and ONT be put far away from electric appliances
that generate strong magnetic or electric fields such as microwave ovens.
Mounting an ONT on the desk
The figure below shows an ONT that is horizontally placed on a desk.
The appearance shown in this document may be different from the actual appearance of
the product. The actual product prevails.

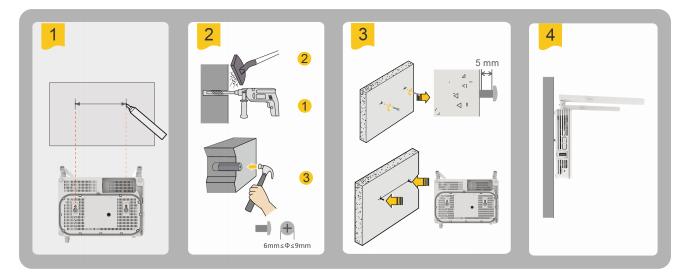

Mounting an ONT onto the wall
- Mark two positions with the same spacing as that between the two mounting
holes of the ONT using a marker on a wall.
- Select a proper drill bit according to the outer diameter of the screws. Use a
hammer drill to drill the marked positions on the wall. Then clean the holes
and install two expansion bolts.
- Use a screwdriver to fasten the screws into the expansion bolts, reserving 5
mm ends out of the wall, and mount the ONT onto the screws.
Note: It’s recommended that the screw be about 4 mm in diameter and longer than 20 mm.
2 Connecting Cables
- The fiberconnector connected to the optical port on the wall varies depending on
actual conditions.
- To ensure normal use of fibers, make sure that the fiber bending radius is larger than 30mm
3 Indicator Description
4 Technical Specifications
Product Function
EG8247H5
- 4 Ethernet ports
- 2 POTS ports
- 1 USB port
- 1 CATV port
- 2.4 GHz Wi-Fi
- Power adapter input: See the nameplate on the adapter.
- System power supply: See the nameplate on the device.
- Ambient temperature: 0ºC to +40ºC
- Ambient humidity: 5%–95% (non-condensing)
- Dimensions (H x W x D): 30 mm x 199 mm x 135 mm (without external
antenna and pads)
- Weight: About 300g
- Maximum system power consumption: 12 W
If you have any questions, please feel free to contact: [email protected]
