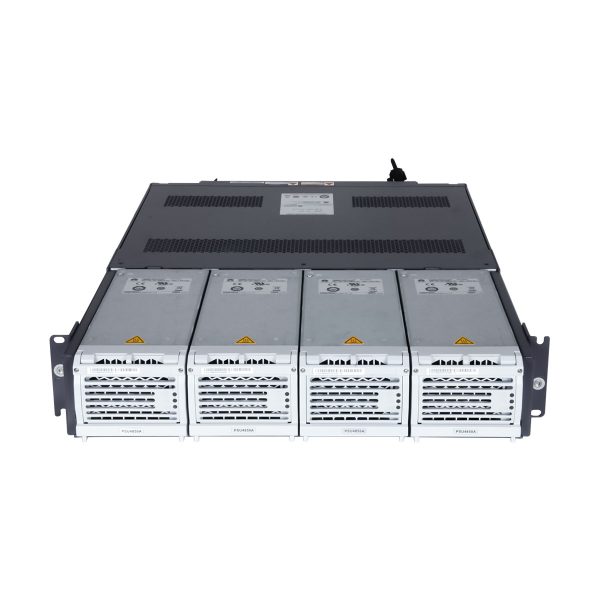

EPS200-4850B 200A power converter with 4xPSU4850A
It is an AC/DC converter, that supplies constant DC voltage to Huawei NE40E and ME60. The AC power system supports 200-240 V AC power. It supports 110 V dual-live-wire inputs but not 110 V AC single-phase inputs. If 110 V dual-live-wire inputs are used, the voltage must range from 180 V to 264 V.
This device comes with 4 AC input, 4 DC output, and 2U in height, which can be installed in a 19-inch rack.
MAX supports 4*50A rectifier PSU4850A, a total of 200A.
| Item | EPS200-4850B |
| Dimensions (H x W x D) | Power distribution cabinet: 86.1 mm x 442 mm x 580 mm (3.39 in. x 17.40 in. x 22.83 in.) Power module: 89 mm x 103 mm x 243 mm (3.50 in. x 4.06 in x 9.57 in.) |
| Weight | Power distribution cabinet: 10 kg (22.1 lb) Power module: 2.8 kg (6.17 lb) |
| Number of AC power input channels | 4 |
| Rated AC input voltage | 200 V AC to 240 V AC |
| AC input voltage range | 180 V AC to 264 V AC |
| Maximum AC input current | 16 A |
| Number of DC output channels | 4 |
| DC output voltage | 53.5 VDC |
| Maximum DC output current | 55 A/module |
| Typical power consumption | 138 W/module |
| Typical heat dissipation | 447.7 BTU/hour |
| Brand | Huawei |
|---|---|
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | EPS200-4850B |
| Dimensions (H x W x D) | Power distribution cabinet: 86.1 mm x 442 mm x 580 mm (3.39 in. x 17.40 in. x 22.83 in.) Power module: 89 mm x 103 mm x 243 mm (3.50 in. x 4.06 in x 9.57 in.) |
| Weight | Power distribution cabinet: 10 kg (22.1 lb) Power module: 2.8 kg (6.17 lb) |
| Number of AC power input channels | 4 |
| Rated AC input voltage | 200 V AC to 240 V AC |
| AC input voltage range | 180 V AC to 264 V AC |
| Maximum AC input current | 16 A |
| Number of DC output channels | 4 |
| DC output voltage | 53.5 VDC |
| Maximum DC output current | 55 A/module |
| Typical power consumption | 138 W/module |
| Typical heat dissipation | 447.7 BTU/hour |
