ET1D2G48SEA0 is 48-Port 100/1000BASE-X Interface Card (EA, SFP) apply for Huawei S9700/S12700 series switches.



Description

ET1D2G48SEA0 Overview

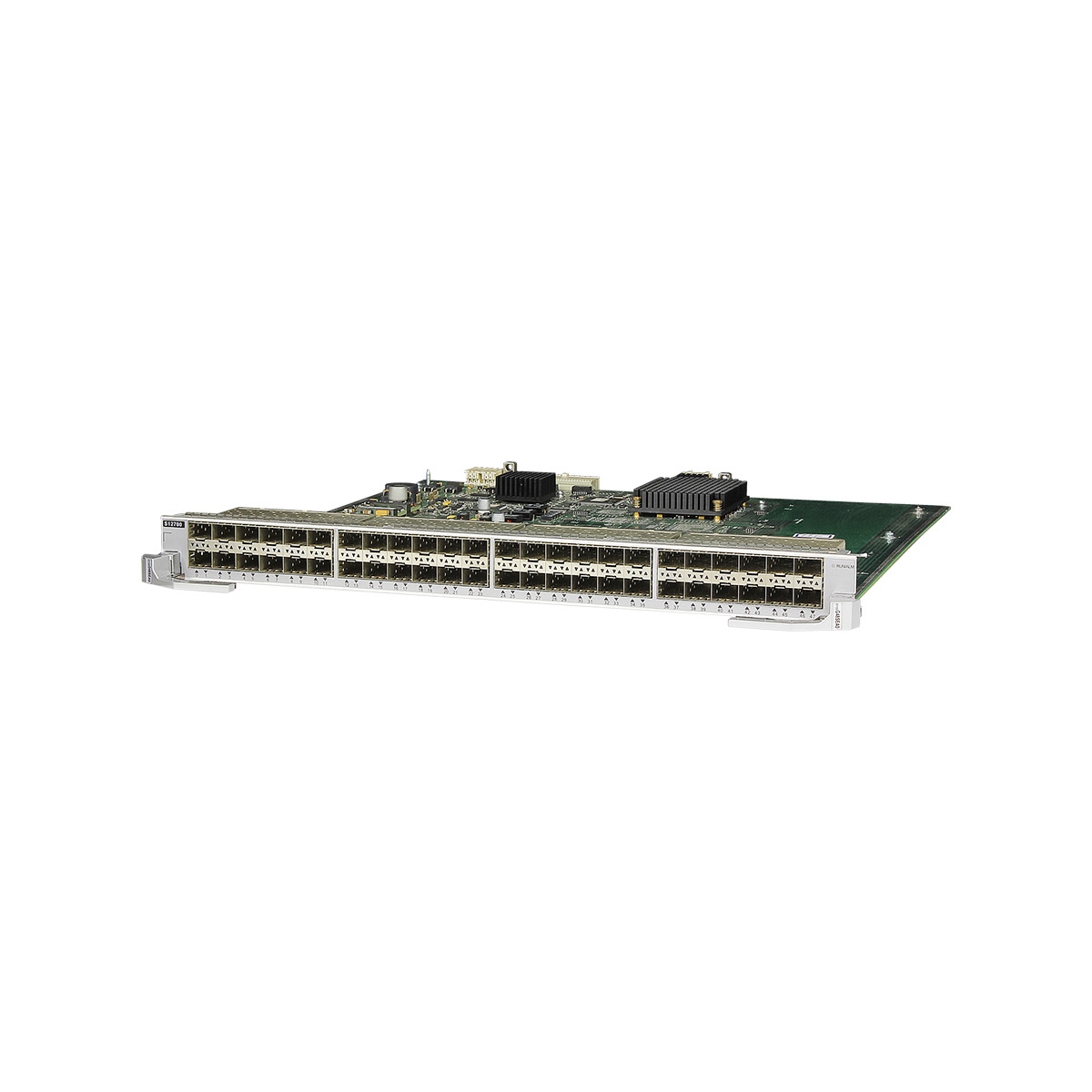

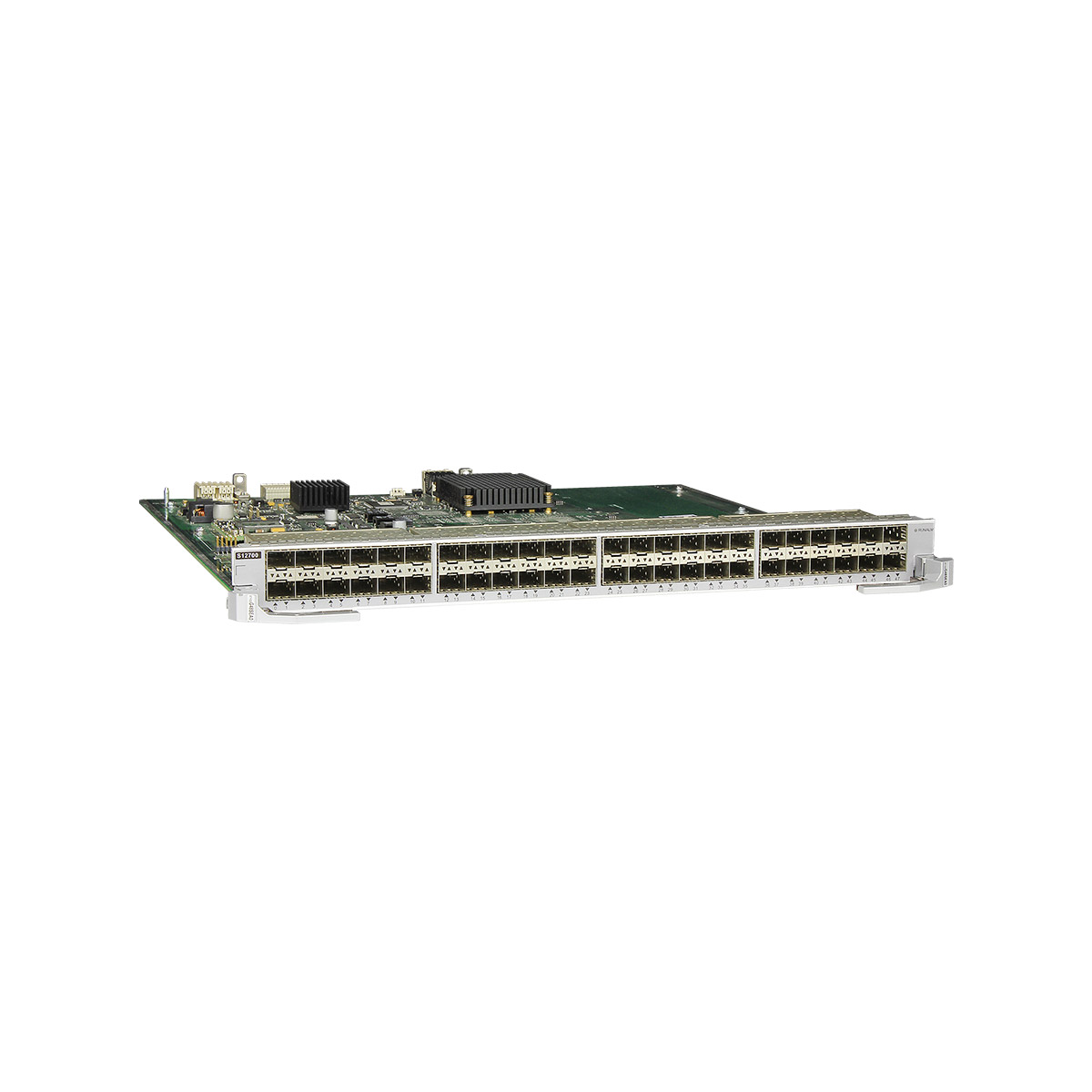

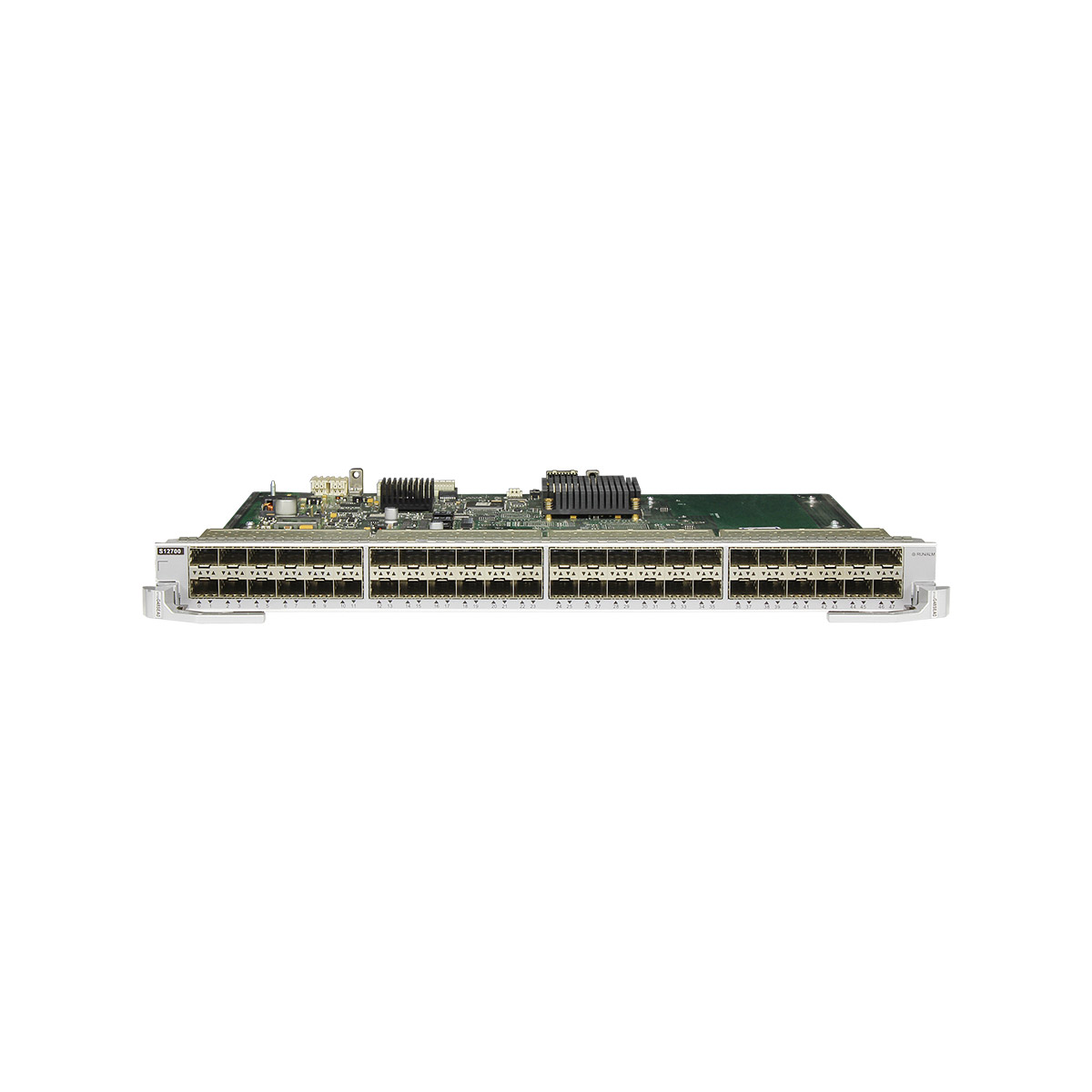

ET1D2G48SEA0 is 48-Port 100/1000BASE-X Interface Card (EA, SFP) apply for Huawei S9700/S12700 series switches.

ET1D2G48SEA0 application
Card Name S9700/S12700 Chassis
ET1D2G48SEA0 Supported only in V200R012C00 and V200R013C00

Slots 01 to 04 in an S12704 chassis.The ET1D2G48SEA0 can be installed in:

  • Slots 01 to 08 in an S12708 chassis.
  • Slots 01 to 10 in an S12710 chassis.
  • Slots 01 to 12 in an S12712 chassis.

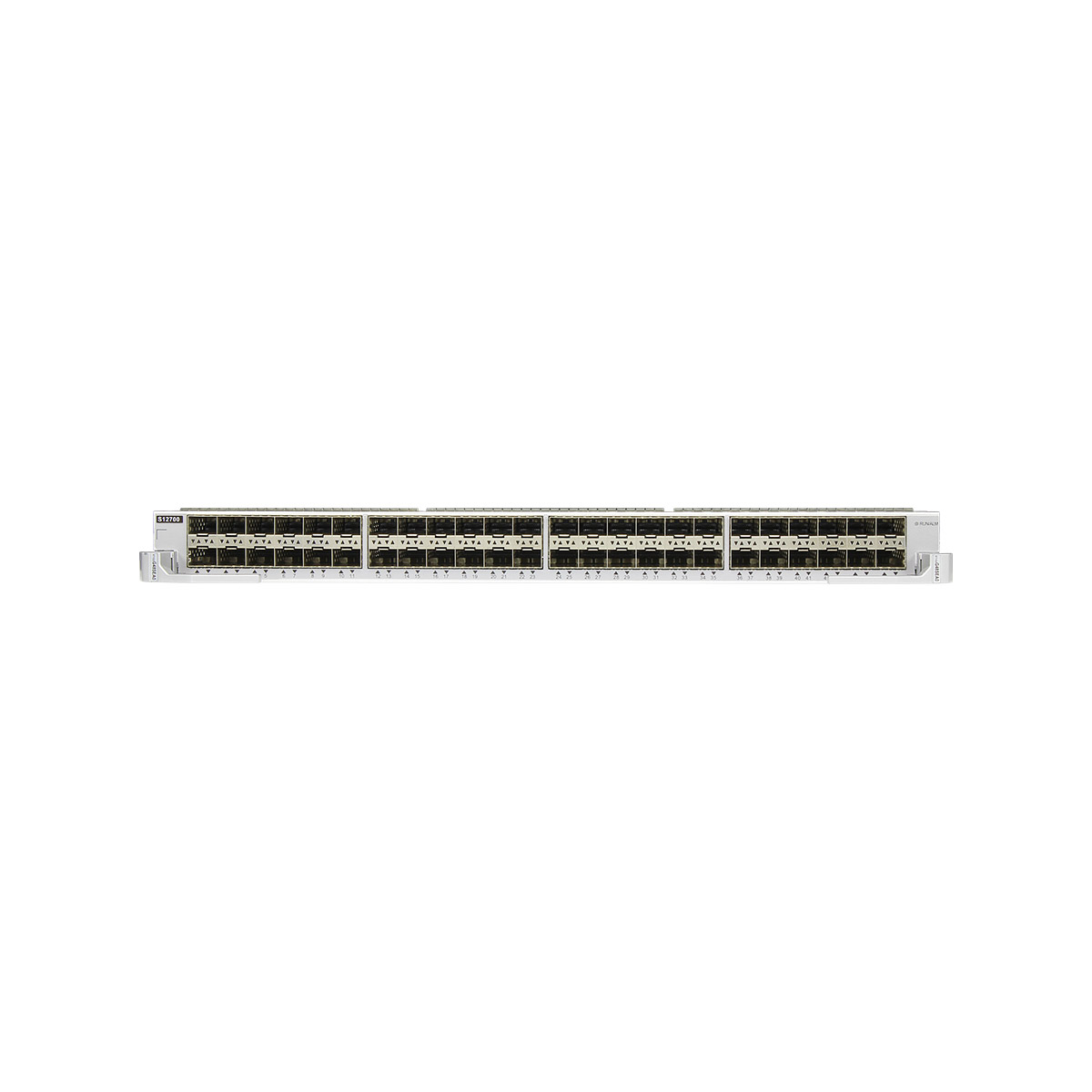

Front panel



ET1D2G48SEA0-F

1 Forty-eight 100/1000BASE-X optical ports



100/1000BASE-X optical ports



Optical port attributes (optical module)

Attribute Description
Connector type SFP
Optical port attributes Depend on the SFP optical module used.

For details about optical modules supported by the ET1D2G48SEA0 and their attributes, see FE SFP/eSFP Optical Modules, GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules.

Standards compliance IEEE 802.3z
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP



Optical port attributes (copper module)

Attribute Description
Connector type SFP
Optical port attributes Depend on the SFP copper module used.

For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (10 Mbit/s, 100 Mbit/s and 1000 Mbit/s rates).

Standards compliance IEEE 802.3ab
Frame format Ethernet_II, Ethernet_SAP, Ethernet_SNAP
Network protocol IP
ET1D2G48SEA0 Datasheet

Item ET1D2G48SEA0
Basic function Provides forty-eight GE optical ports for data transmission and switching.
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Hot swapping The ET1D2G48SEA0 is hot swappable.
Physical specifications
  • Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
  • Weight: 2.54 kg (5.60 lb)
  • Maximum power consumption: 75 W

Additional information

Weight 3.5 kg
Dimensions 43 × 40 × 3.5 cm
Brand

Huawei

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

S12700

S9700

ET1D2G48SEA0 Datasheet

Item ET1D2G48SEA0
Basic function Provides forty-eight GE optical ports for data transmission and switching.
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Hot swapping The ET1D2G48SEA0 is hot swappable.
Physical specifications
  • Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
  • Weight: 2.54 kg (5.60 lb)
  • Maximum power consumption: 75 W
