ET1D2L16QX2H

ET1D2L16QX2H Huawei S12700 switch 16-Port 40GBASE-X Interface Card (X2H, QSFP+)

Huawei

3-5 days

Shenzhen Warehouse

SKU: 2004212 PN: 03032TKR Category:

Description

ET1D2L16QX2H overview

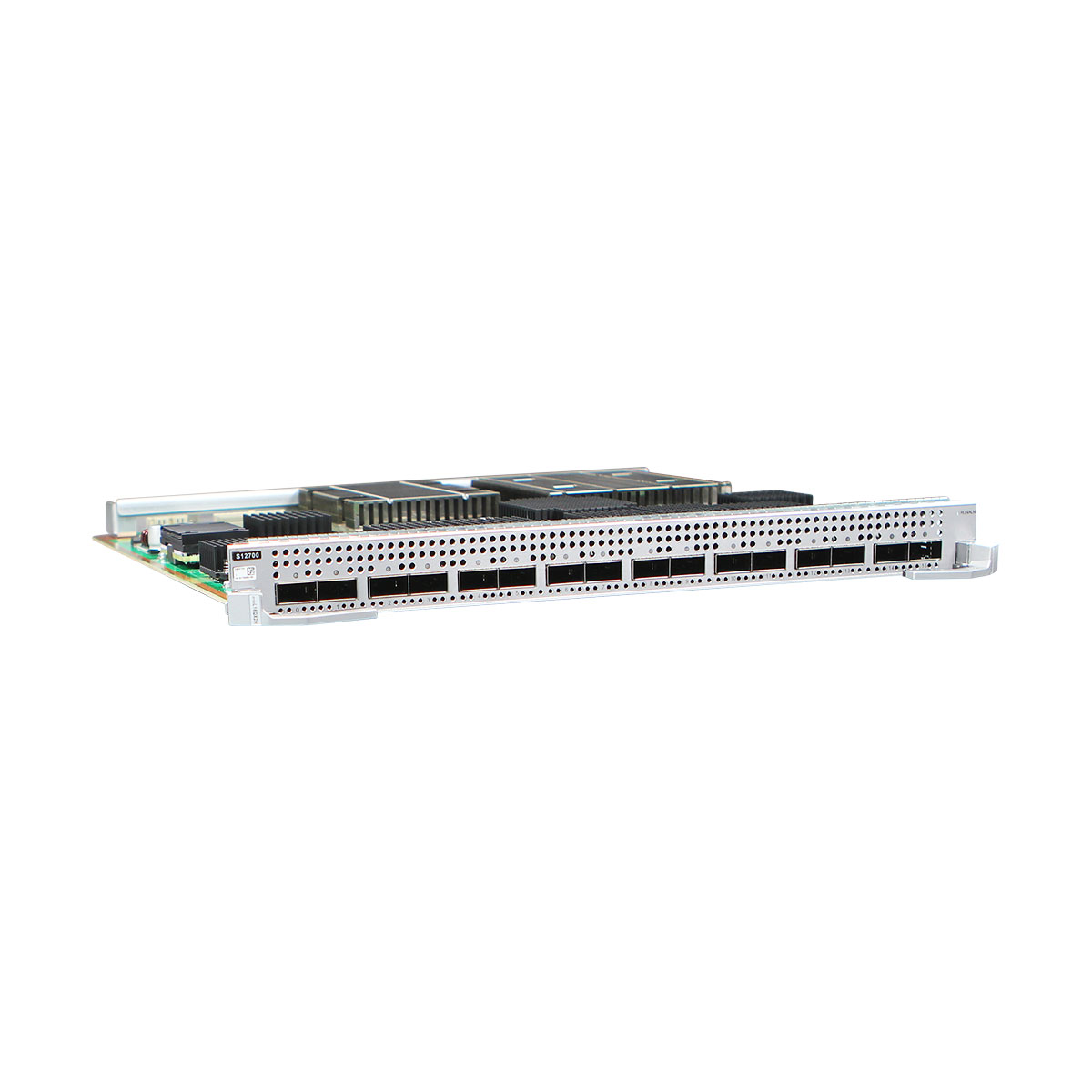

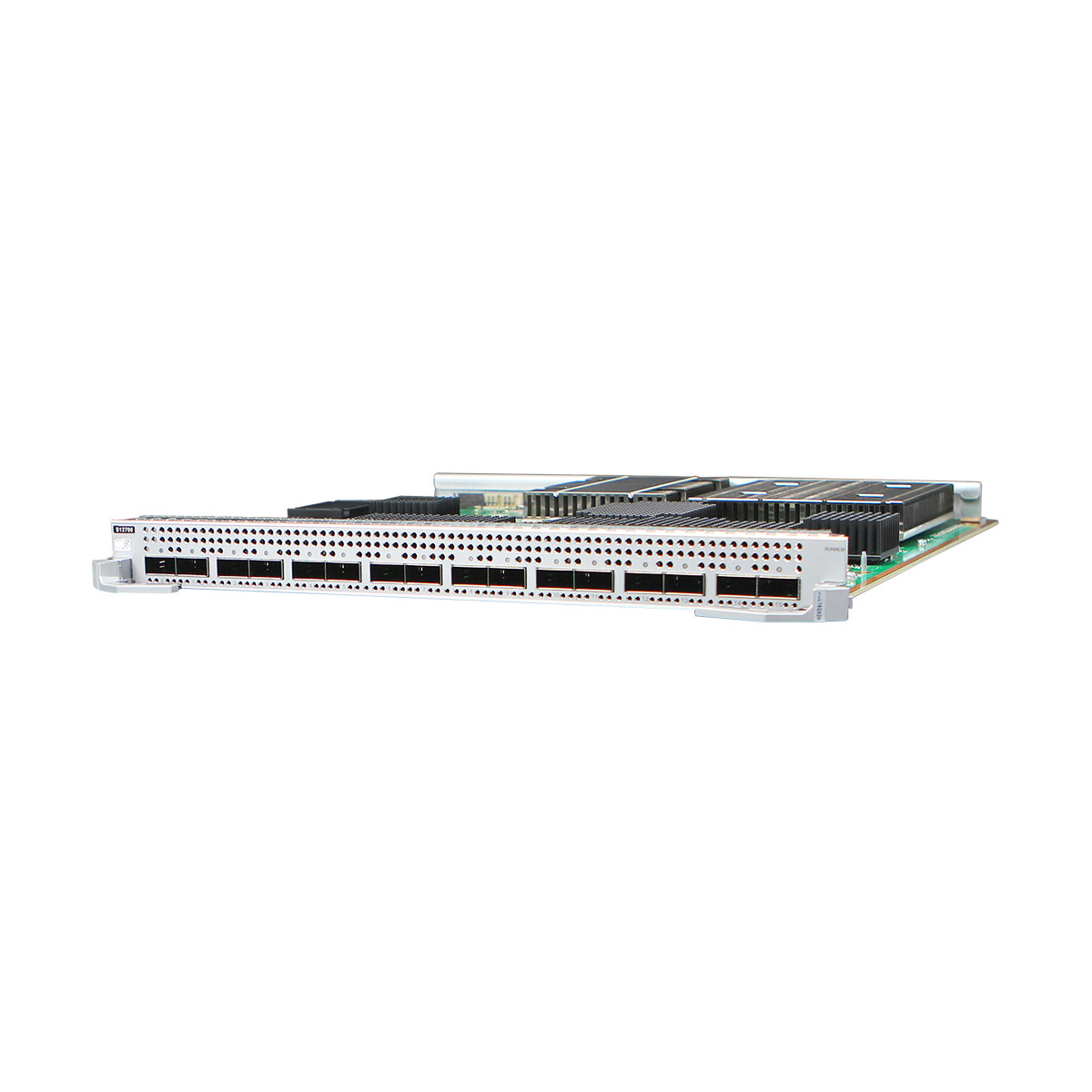

ET1D2L16QX2H Huawei S12700 switch 16-Port 40GBASE-X Interface Card (X2H, QSFP+)



Switch chassis and software versions matching the card (S12700)

Card Name S12700 Chassis
ET1D2L16QX2H Supported in V200R012C00 and later versions

Switch chassis and software versions matching the card (S12700E)

Card Name S12700E Chassis
ET1D2L16QX2H Not supported



The ET1D2L16QX2H can be installed in:



Slots 01 to 04 in an S12704 chassis.
Slots 01 to 08 in an S12708 chassis.
Slots 01 to 10 in an S12710 chassis.
Slots 01 to 12 in an S12712 chassis.

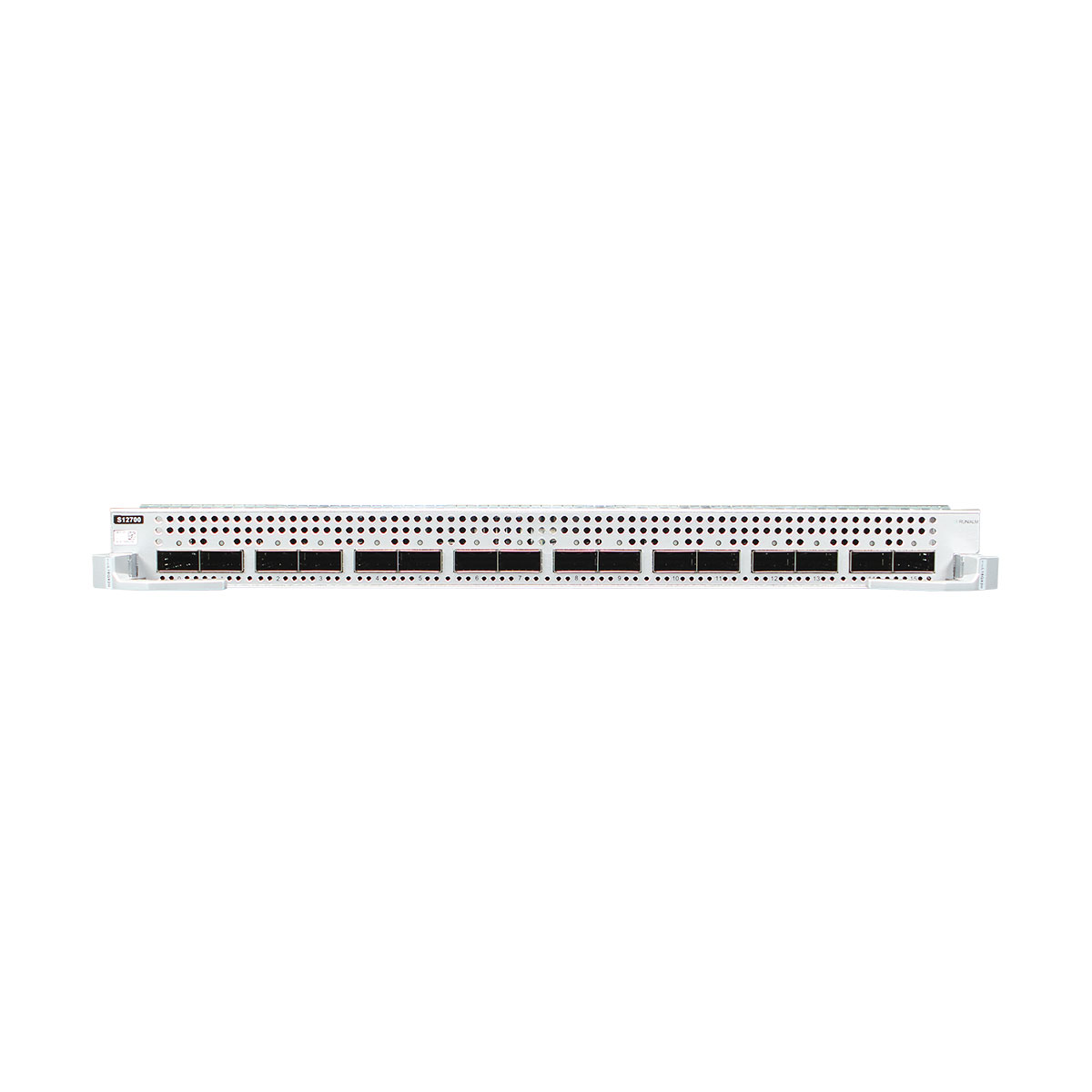

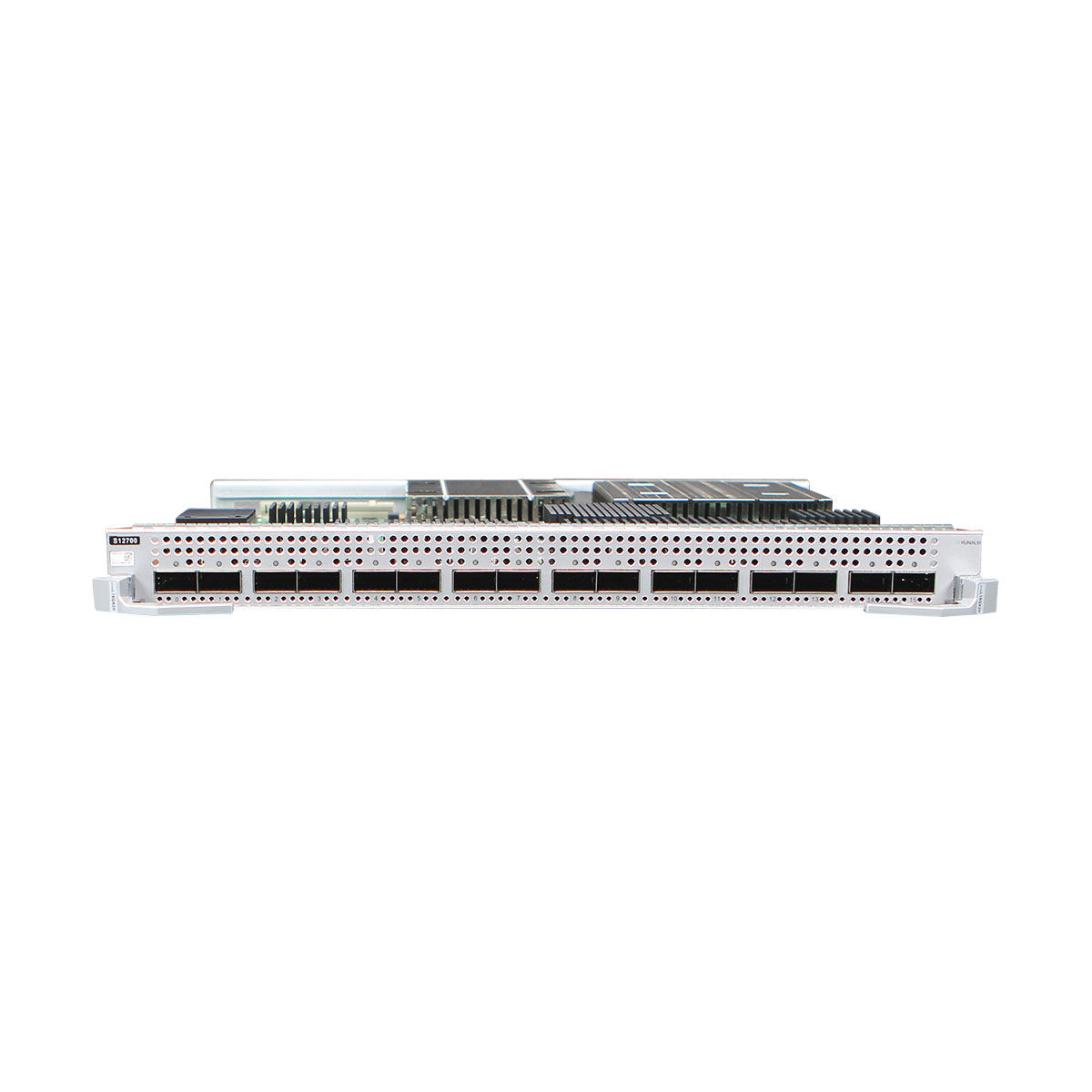

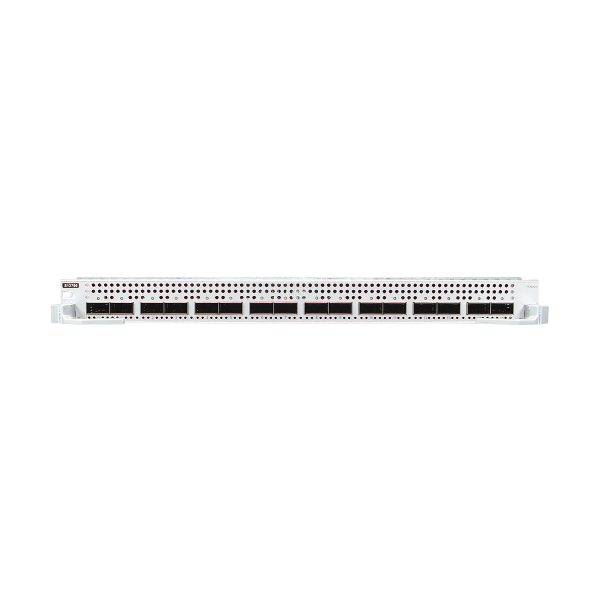

Front panel

ET1D2L16QX2H panel

1 Sixteen 40GBASE-X ports



40GBASE-X port



40GE BASE-X optical port attributes

Attribute

Description

Connector type

QSFP+

Optical port attributes

Depend on the QSFP+ high-speed cable (1 m, 3 m, 5 m), QSFP+ AOC cable, or 40GE QSFP+ Optical Modules used.

Applicable cable

QSFP+ optical module and LC optical fiber

QSFP+ optical module and MPO optical fiber (MPO-MPO or MPO-4*DLC optical fiber)

QSFP+ high-speed copper cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+)

QSFP+ AOC cable (QSFP+ to QSFP+ or QSFP+ to 4*SFP+)

ET1D2L16QX2H Datasheet



Item
ET1D2L16QX2H
Basic function
  • Provides sixteen 40GE Ethernet optical ports for data transmission and switching.
  • Allows a 40GE port to split into four 10GE ports.
Distributed forwarding Performs concurrent data forwarding using a distributed data plane.
Hot swapping Supported
Physical specifications
  • Dimensions (H x W x D): 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.)
  • Weight: 5.7 kg ( 12.57 lb)
  • Maximum power consumption: 301 W
