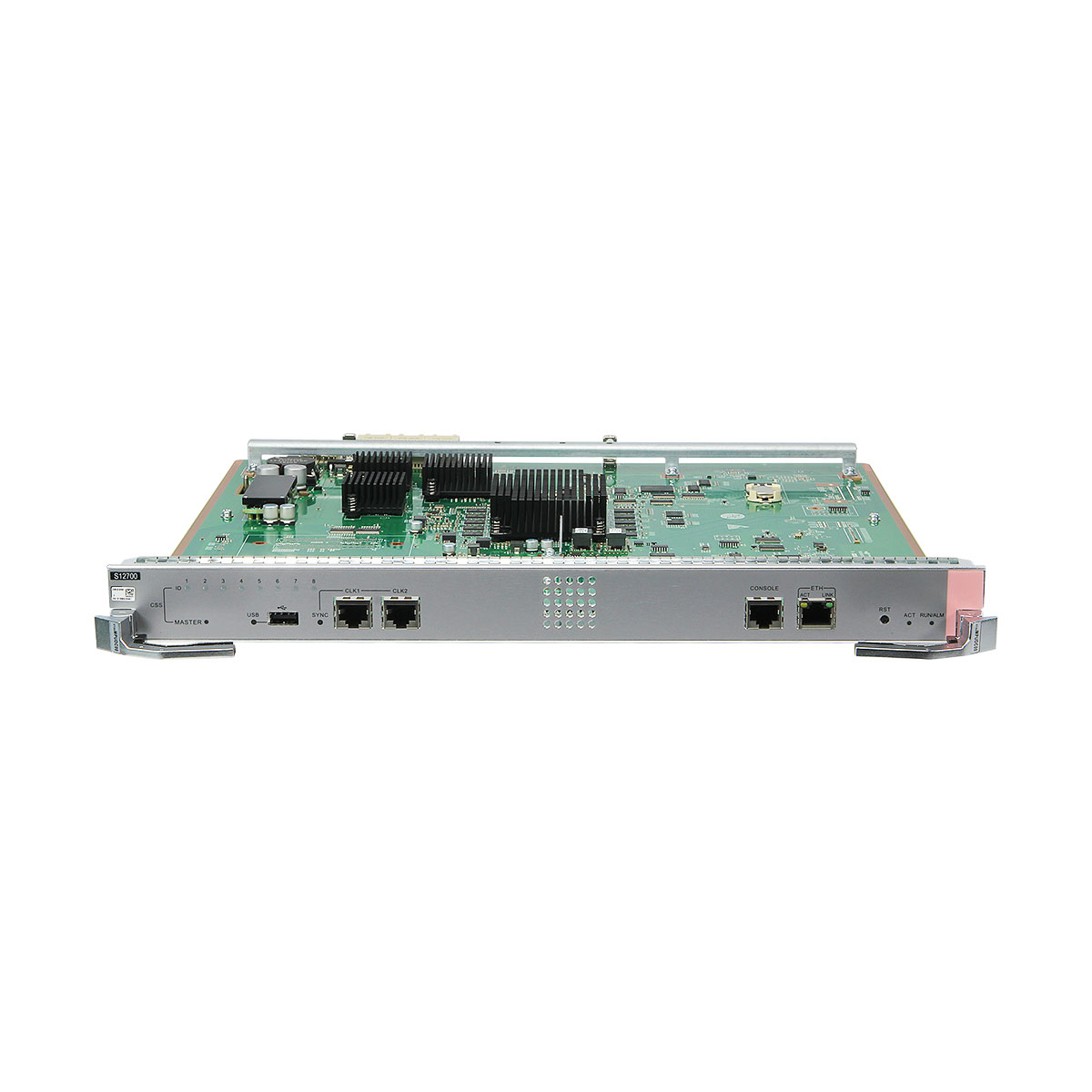

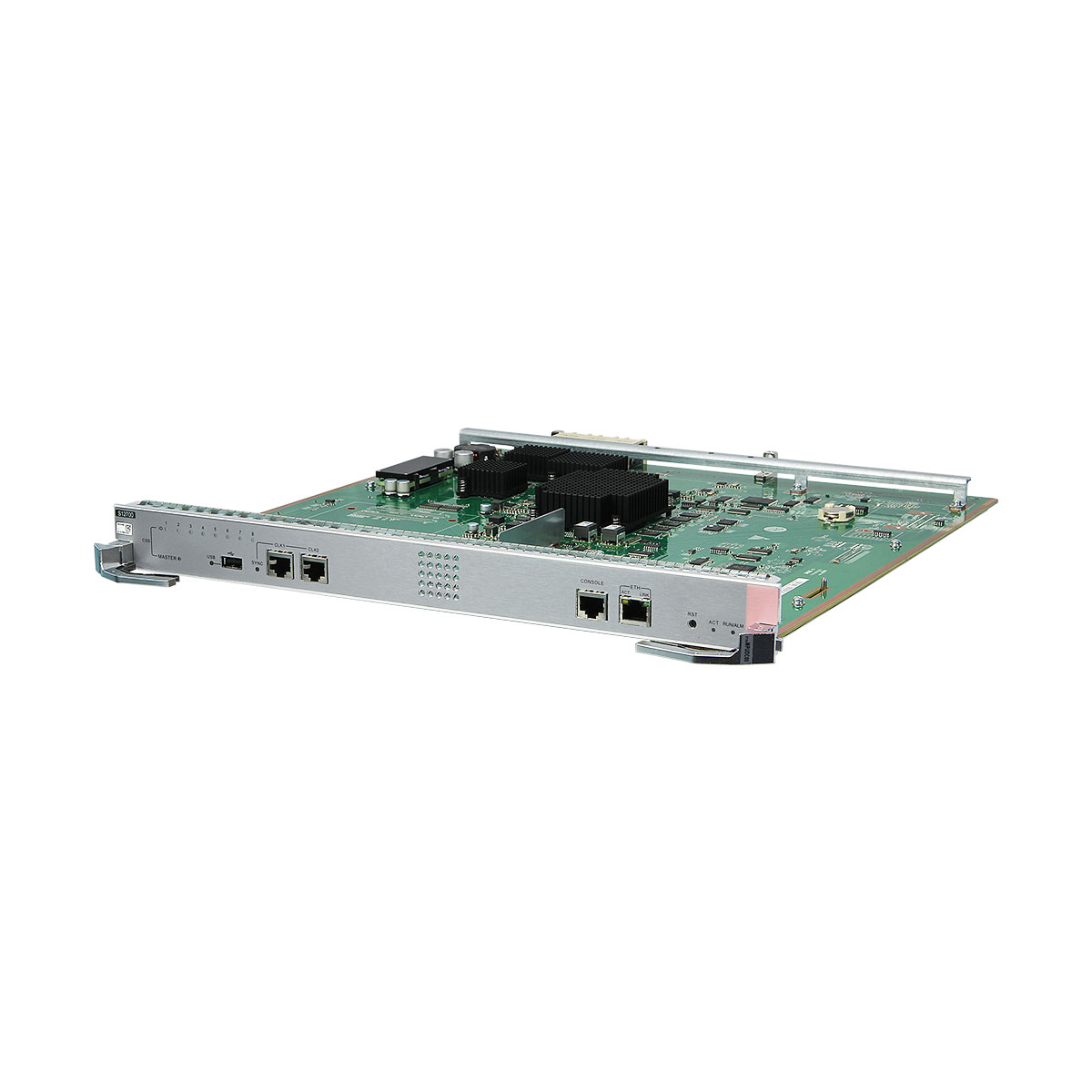

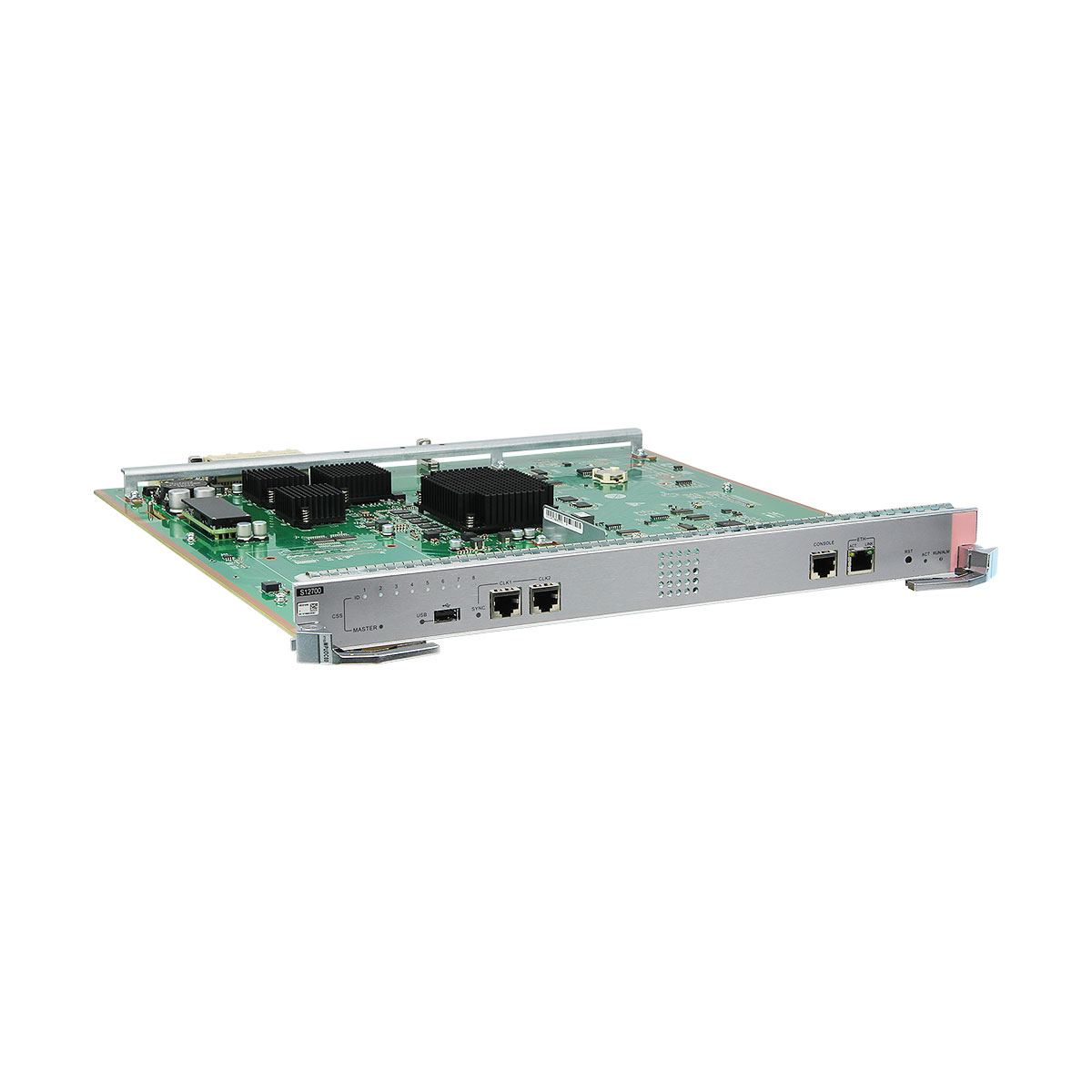

ET1D2MPUDC00

ET1D2MPUDC00 Overview

The ET1D2MPUDC00 provides the control plane and management plane for the entire system.

• The control plane provides functions such as protocol processing, service processing, route calculation, forwarding control, service scheduling, traffic statistics collection, and system security.
• The management plane is responsible for system status monitoring, environment monitoring, log and alarm processing, system software loading, and system upgrades.

The ET1D2MPUDC00 consists of the following functional modules:

• Control module: functions as the control and management plane for the ET1D2MPUDC00 and the entire system, implementing protocol processing, route calculation, forwarding control, system management, and system security.
• Local clock module: provides the working clock for the chips of the control module, and device management and monitoring module on the ET1D2MPUDC00.
• Device management and monitoring module: provides functions of a controller area network (CAN) bus module to monitor the ET1D2MPUDC00 and manage the CAN bus modules of LPUs.
• Power supply module: provides power supply for the ET1D2MPUDC00.
• Value-added service module: provides enhanced services such as operation, administration and maintenance (OAM) and bidirectional forwarding detection (BFD).
