Description
ET1D2X16SSC0 Overview

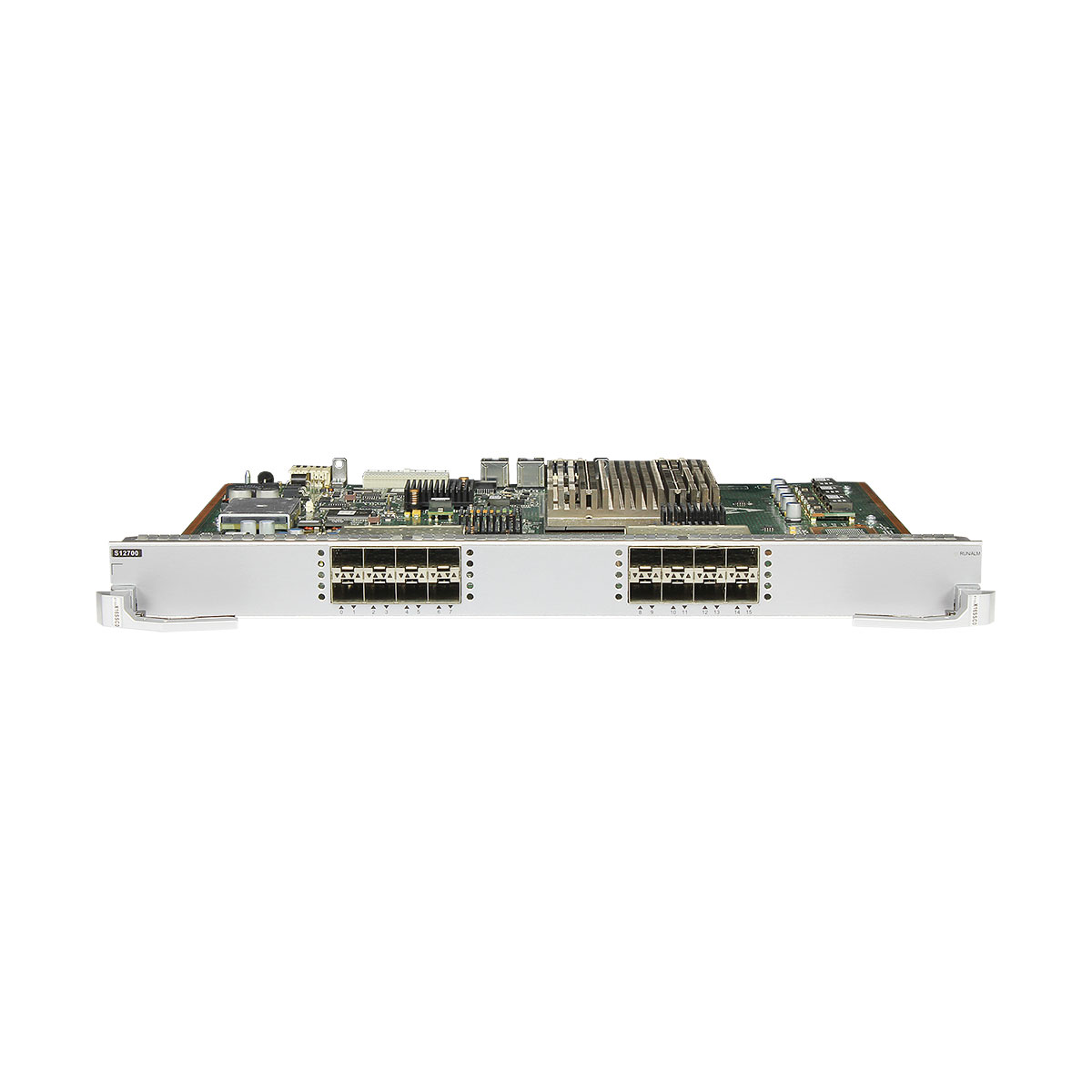

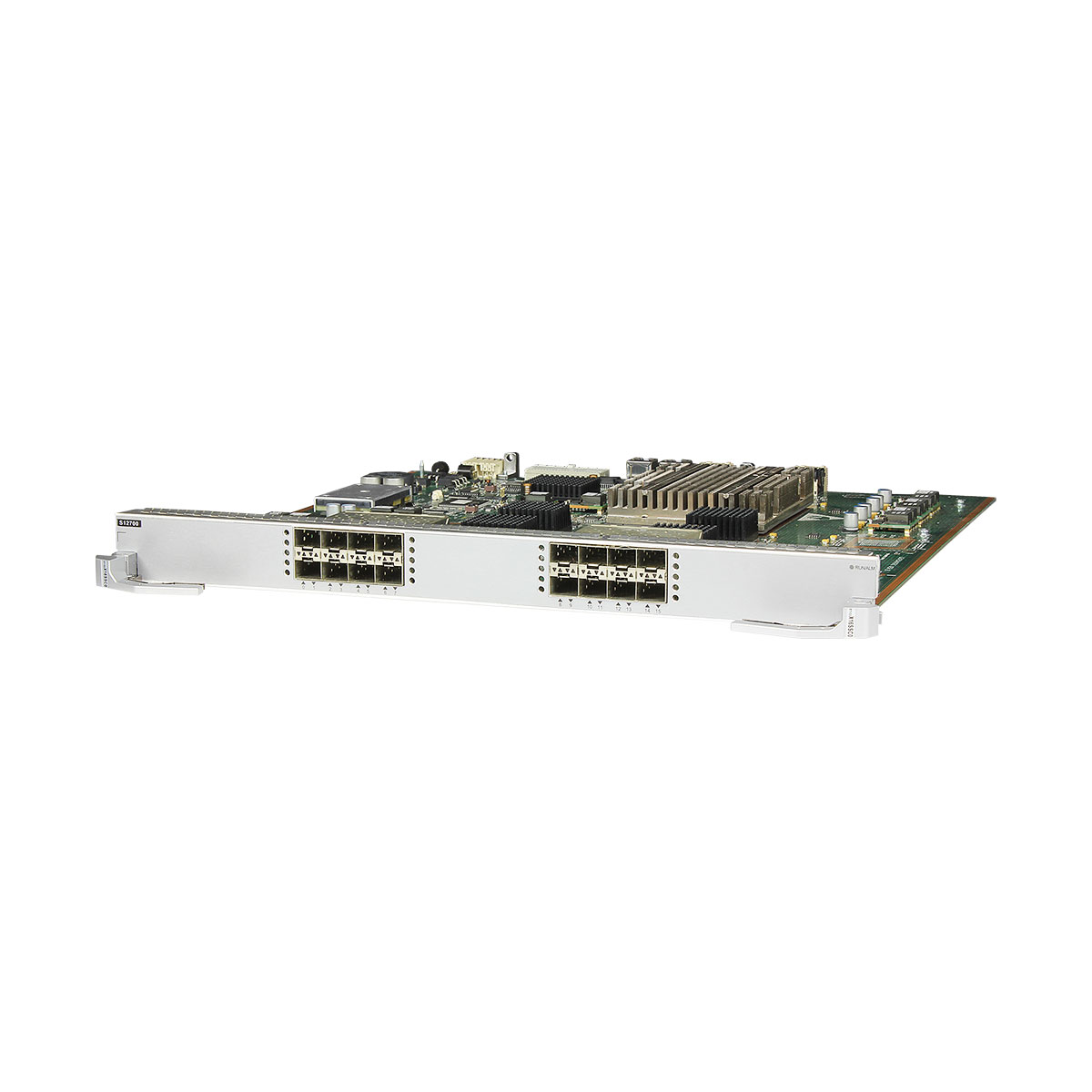

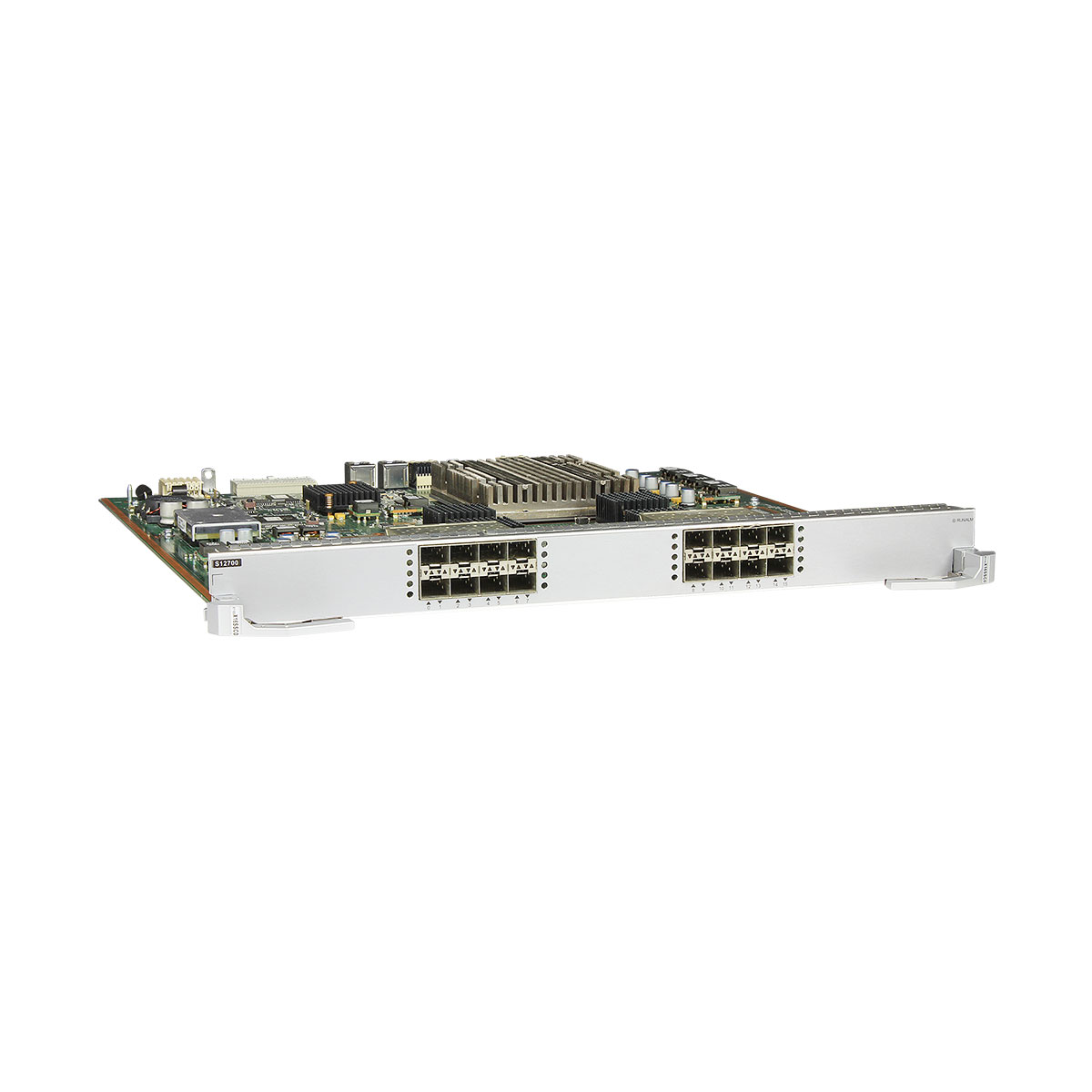

ET1D2X16SSC0-16-Port 10GBASE-X Interface Card (SC, SFP+) apply for Huawei S9700/S12700 series switches.
Switch chassis and software versions matching the card (S12700)
| Card Name | S12704 Chassis | S12708 and S12712 Chassis | S12710 Chassis |
|---|---|---|---|
| ET1D2X16SSC0 | Supported in V200R008C00 and later versions | Supported in V200R005C00 and later versions | Supported in V200R010C00 and later versions |
Switch chassis and software versions matching the card (S12700E)
| Card Name | S12700E Chassis |
|---|---|
| ET1D2X16SSC0 | Not supported |
The ET1D2X16SSC0 can be installed in:
- Slots 01 to 04 in an S12704 chassis.
- Slots 01 to 08 in an S12708 chassis.
- Slots 01 to 10 in an S12710 chassis.
- Slots 01 to 12 in an S12712 chassis.

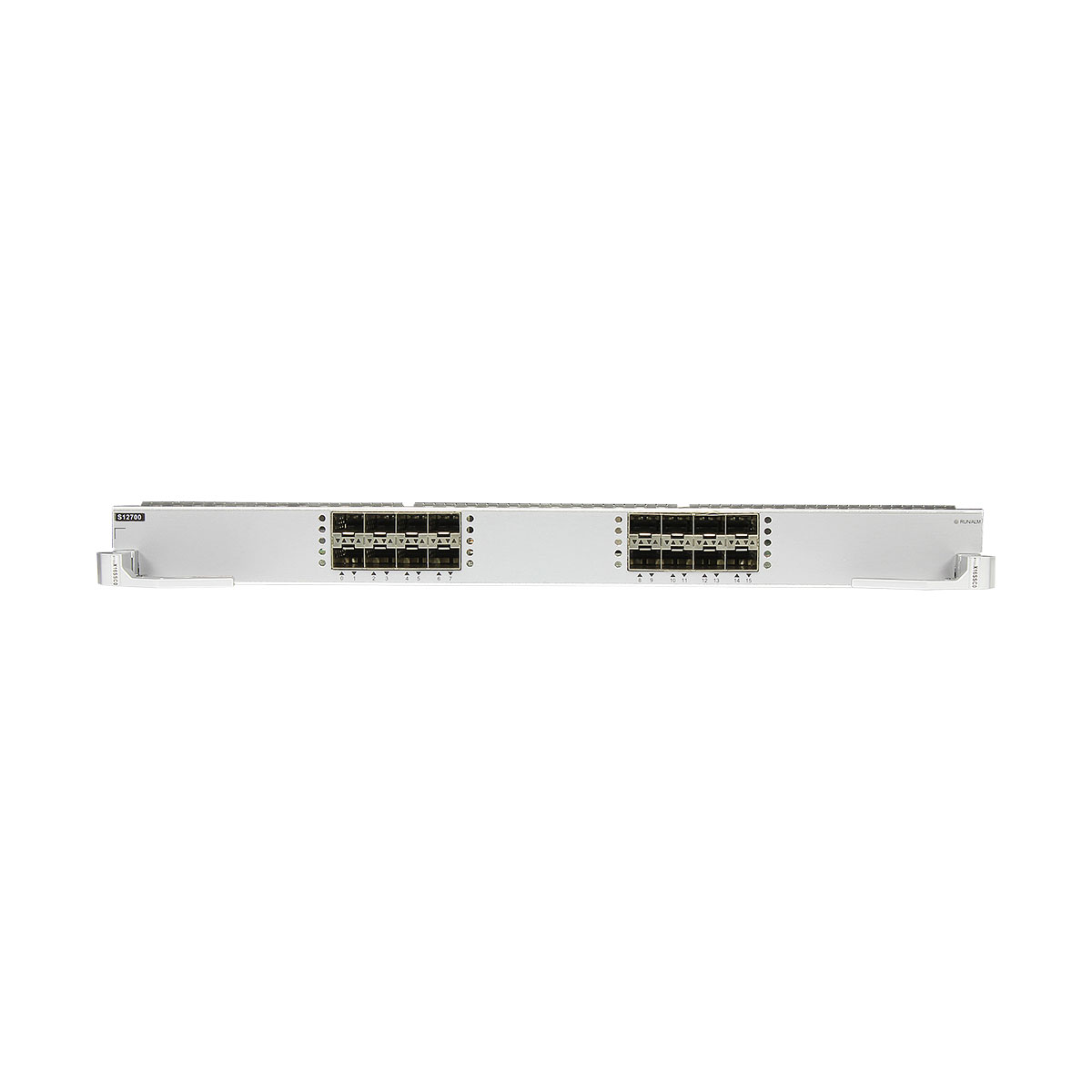

Ports on the ET1D2X16SSC0 panel
| 1 | Sixteen 10GBASE SFP+/1000BASE-X optical ports |
10GBASE SFP+/1000BASE-X optical port
Optical port attributes (GE optical module)
| Attribute | Description |
|---|---|
| Connector type | SFP+ |
| Optical port attributes | Depend on the SFP optical module used.For the optical modules supported by the ET1D2X16SSC0 and their attributes, see GE eSFP Optical Modules, GE-CWDM eSFP Optical Modules, and GE-DWDM eSFP Optical Modules. |
| Standards compliance | IEEE802.3z |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
Optical port attributes (10GE optical module, high-speed cable or SFP+ optical cable)
| Attribute | Description |
|---|---|
| Connector type | SFP+ |
| Optical port attributes | Depend on the SFP+ to SFP+ high-speed cable (1 m, 3 m, 5 m, 10 m), QSFP+ to 4*SFP+ high-speed cable (1 m, 3 m, 5 m), SFP+ optical module, or SFP+ optical cable used.
For the optical modules supported by the ET1D2X16SSC0 and their attributes, see 10GE SFP+ Optical Modules, 10GE-CWDM SFP+ Optical Modules and 10GE-DWDM SFP+ Optical Modules. |
| Standards compliance | IEEE 802.3ae |
| Frame format | Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
| Network protocol | IP |
Optical port attributes (copper module)
|
Attribute |
Description |
|---|---|
|
Connector type |
SFP |
|
Optical port attributes |
Depend on the SFP copper module used.
For details on the copper modules supported by the cards and attributes of the copper modules, see GE SFP Copper Modules (1000 Mbit/s rates). |
|
Standards compliance |
IEEE 802.3ab |
|
Frame format |
Ethernet_II, Ethernet_SAP, Ethernet_SNAP |
|
Network protocol |
IP |
