The Huawei ETP48200-C5E1 is embedded telecom power systems that supply power to –48 V DC communications equipment with a maximum current of 200 A.

Description

Overview

ETP48200-C5E1 is embedded telecom power systems that supply power to –48 V DC communications equipment with a maximum current of 200 A.

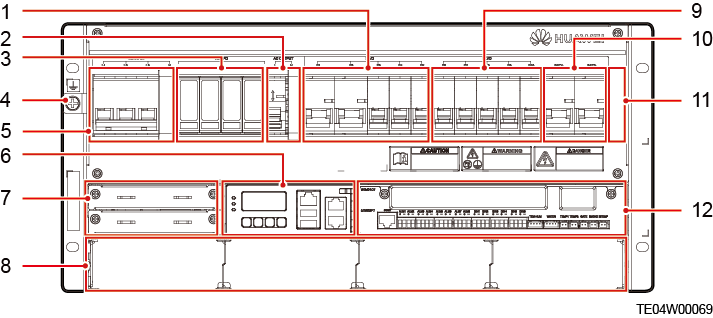

ETP48200-C5E1 Appearance

ETP48200 C5E1

(1) LLVD circuit breakers

(2) AC output circuit breaker and terminal

(3) AC SPD

(4) Ground screw

(5) AC input circuit breaker and terminal

(6) SMU02C

(7) Space for communications expansion module

(8) Space for rectifiers

(9) BLVD circuit breakers

(10) Battery circuit breakers

(11) Battery switch (behind the cover)

(12) User Interface Module UIM02C



System Configurations

Item

ETP48200-C5E1

Subrack

  • 3 U power distribution space
  • 1 U SMU
  • 1 U rectifier space

PDU

  • AC power distribution: AC input circuit breaker and AC output circuit breaker
  • DC power distribution: battery low voltage disconnection (BLVD) route, load low voltage disconnection (LLVD) route, and battery route

Rectifier

A maximum of three R4875G5 or four R4850G2s or four R4850S1s

SMU

SMU02C

User interface module (UIM)

UIM02C

Surge protective device (SPD)

AC surge protection: nominal lightning strike discharge current of 20 kA (8/20 µs), maximum lightning strike discharge current of 40 kA (8/20 µs)

DC surge protection: 10 kA (8/20 µs) in differential mode, 20 kA (8/20 µs) in common mode

ETP48200-C5E1 Datasheet

Item

ETP48200-C5E1

Specifications

Environment

Operating temperature

-40°C to +65°C

Transport temperature

-40°C to +70°C

Storage temperature

-40°C to +70°C

Operating humidity

5%–95% RH (non-condensing)

Storage humidity

5%–95% RH (non-condensing)

Altitude

0 m to 4000 m

(When the altitude ranges from 2000 m to 4000 m, the operating temperature decreases by 1°C for each additional 200 m.)

AC input

Input system

220/380 V AC three-phase, compatible with 220 V AC single-phase

Input frequency

45–66 Hz (rated frequency: 50 Hz or 60 Hz)

Power factor (PF)

≥ 0.98 (20%-50% load)

≥ 0.99 (50%-100% load)

Total Harmonic Distortion (current)

≤5%(50%~100% load)

DC output

Output voltage range

-42 V DC to -58 V DC

Default output voltage

-53.5 V DC

Maximum output current

200 A

Regulated voltage precision

≤ ±1% (The output voltage is within 53.5 V DC ±0.1 V DCunder 50% loads.)

Peak-to-peak noise voltage

≤ 200 mV (rated input voltage and load)

Telephone noise weighting voltage

≤ 2 mV (300–3400 Hz, input power ≤ 264 V AC)

Current imbalance

≤ ±5% (50%–100% load)

AC input protection

AC input overvoltage protection threshold

≥ 300 V AC

AC input overvoltage recovery threshold

290 V AC to 300 V AC

AC input undervoltage protection threshold

≤80 V AC

AC input undervoltage recovery threshold

80 V AC to 90 V AC

DC output protection

DC output overvoltage protection threshold

-58.5 V DC to -60.5 V DC

Electromagnetic compatibility (EMC)

Conducted emission (CE)

AC port: EN 55032 class B

DC port: EN 55032 class A

Signal port: EN 55032 class B

Radiated emission (RE)

EN 55032 class B

Harmonic current

IEC 61000-3-12

Voltage fluctuation and flick

IEC 61000-3-11

Electrostatic discharge (ESD)

IEC 61000-4-2

Shell port: contact discharge of 6 kV and air discharge of 8 kV (B level);

Signal port: contact discharge of 2 kV (R level)

Electrical fast transient (EFT)

IEC 61000-4-4

AC and DC power ports: 2 kV

Radiated susceptibility (RS)

IEC 61000-4-3

80MHz-2.7GHz, 10 V/m field strength, 80%AM(1KHz)

Conducted susceptibility (CS)

IEC 61000-4-6

Power port: 10 V; signal port: 3 V

Surge immunity

IEC 61000-4-5

AC and DC power ports: 2 kV (1.2/50 µs) in differential mode, 4 kV (1.2/50 µs) in common mode

Voltage dips immunity (DIP)

IEC 61000-4-11

Others

Surge protection

AC power port: nominal lightning strike discharge current of 20 kA (8/20 µs), maximum lightning strike discharge current of 40 kA (8/20 µs)

DC power port: 10 kA (8/20 µs) in differential mode, 20 kA (8/20 µs) in common mode

Safety and regulatory design

IEC62368-1, GB4943 and CE certifications

Mean time between failures (MTBF)

200,000 hours

Structure

Power system dimensions (H x W x D)

219.5 mm x 482.6 mm x 330 mm

Weight

≤ 20 kg (excluding rectifiers)

Protection level

IP20

Installation mode

Installed in a 19-inch rack

Cabling

Routed in and out from the top

Maintenance mode

Maintained from the front

Heat dissipation

Nature heat dissipation

Additional information

Brand

Huawei

ETP48200-C5E1 Datasheet

Item

ETP48200-C5E1

Specifications

Environment

Operating temperature

-40°C to +65°C

Transport temperature

-40°C to +70°C

Storage temperature

-40°C to +70°C

Operating humidity

5%–95% RH (non-condensing)

Storage humidity

5%–95% RH (non-condensing)

Altitude

0 m to 4000 m

(When the altitude ranges from 2000 m to 4000 m, the operating temperature decreases by 1°C for each additional 200 m.)

AC input

Input system

220/380 V AC three-phase, compatible with 220 V AC single-phase

Input frequency

45–66 Hz (rated frequency: 50 Hz or 60 Hz)

Power factor (PF)

≥ 0.98 (20%-50% load)

≥ 0.99 (50%-100% load)

Total Harmonic Distortion (current)

≤5%(50%~100% load)

DC output

Output voltage range

-42 V DC to -58 V DC

Default output voltage

-53.5 V DC

Maximum output current

200 A

Regulated voltage precision

≤ ±1% (The output voltage is within 53.5 V DC ±0.1 V DCunder 50% loads.)

Peak-to-peak noise voltage

≤ 200 mV (rated input voltage and load)

Telephone noise weighting voltage

≤ 2 mV (300–3400 Hz, input power ≤ 264 V AC)

Current imbalance

≤ ±5% (50%–100% load)

AC input protection

AC input overvoltage protection threshold

≥ 300 V AC

AC input overvoltage recovery threshold

290 V AC to 300 V AC

AC input undervoltage protection threshold

≤80 V AC

AC input undervoltage recovery threshold

80 V AC to 90 V AC

DC output protection

DC output overvoltage protection threshold

-58.5 V DC to -60.5 V DC

Electromagnetic compatibility (EMC)

Conducted emission (CE)

AC port: EN 55032 class B

DC port: EN 55032 class A

Signal port: EN 55032 class B

Radiated emission (RE)

EN 55032 class B

Harmonic current

IEC 61000-3-12

Voltage fluctuation and flick

IEC 61000-3-11

Electrostatic discharge (ESD)

IEC 61000-4-2

Shell port: contact discharge of 6 kV and air discharge of 8 kV (B level);

Signal port: contact discharge of 2 kV (R level)

Electrical fast transient (EFT)

IEC 61000-4-4

AC and DC power ports: 2 kV

Radiated susceptibility (RS)

IEC 61000-4-3

80MHz-2.7GHz, 10 V/m field strength, 80%AM(1KHz)

Conducted susceptibility (CS)

IEC 61000-4-6

Power port: 10 V; signal port: 3 V

Surge immunity

IEC 61000-4-5

AC and DC power ports: 2 kV (1.2/50 µs) in differential mode, 4 kV (1.2/50 µs) in common mode

Voltage dips immunity (DIP)

IEC 61000-4-11

Others

Surge protection

AC power port: nominal lightning strike discharge current of 20 kA (8/20 µs), maximum lightning strike discharge current of 40 kA (8/20 µs)

DC power port: 10 kA (8/20 µs) in differential mode, 20 kA (8/20 µs) in common mode

Safety and regulatory design

IEC62368-1, GB4943 and CE certifications

Mean time between failures (MTBF)

200,000 hours

Structure

Power system dimensions (H x W x D)

219.5 mm x 482.6 mm x 330 mm

Weight

≤ 20 kg (excluding rectifiers)

Protection level

IP20

Installation mode

Installed in a 19-inch rack

Cabling

Routed in and out from the top

Maintenance mode

Maintained from the front

Heat dissipation

Nature heat dissipation
