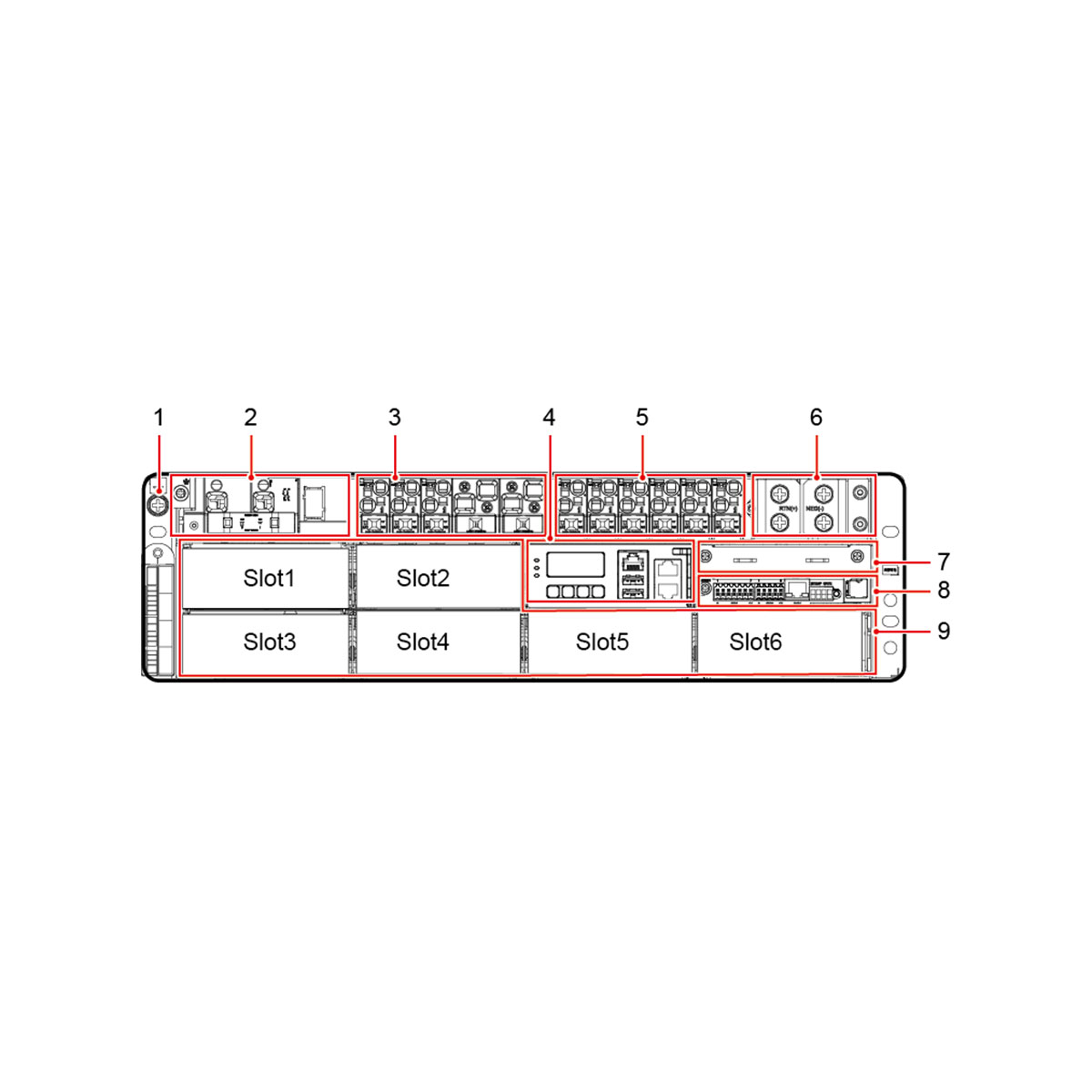

ETP48400-C3B2

Environment

Operating temperature

–40°C to +65°C (When the ambient temperature is between –33°C and +55°C, the power system works properly. When the ambient temperature is greater than 55°C and less than or equal to 65°C, the output power is linearly derated to 80%. When the ambient temperature is –40°C, the power system can start properly after AC power is applied.)

Transport temperature

–40°C to +70°C

Storage temperature

–40°C to +70°C

Operating humidity

5%–95% RH (non-condensing)

Storage humidity

5%–95% RH (non-condensing)

Altitude

0–4000 m

(When the altitude ranges from 2000 m to 4000 m, the temperature condition for high temperature derating decreases by 1°C for each additional 200 m.)

Noise

System audible noise: ≤ 60 dBA at 25°C, ≤ 72 dBA at 40°C; Class 3.1 requirements in ETSI 300753

Other

There must be no conductive dust, corrosive gas, or explosion hazard.

Dust, corrosive substances, pests, molds, and other indicators are controlled in accordance with Class 3.1 requirements in ETSI EN 300 019-1-3 (V2.3.2 or a later version).

AC input

Input frequency

45–66 Hz, rated frequency: 50 Hz/60 Hz

Power factor (PF)

≥ 0.99 (rated voltage input, 50%–100% load)

DC output

Output voltage

–53.5 V DC

Maximum output power

• ETP48400-C3B1: 24 kW for three-phase; 12 kW for single-phase
• ETP48400-C3B2: 18 kW

Regulated voltage precision

≤ ±1%

Peak-to-peak noise voltage

≤ 200 mV (0–20 MHz)

Psophometrically weighted noise voltage

≤ 2 mV

Current sharing imbalance

≤ ±5% (50%–100% load)

AC input protection

AC input overvoltage protection threshold

≥ 300 V AC

AC input overvoltage recovery threshold

290–300 V AC

AC input undervoltage protection threshold

≤ 80 V AC

AC input undervoltage recovery threshold

80–90 V AC

DC output protection

DC output overvoltage protection threshold

–56 V DC to –60.5 V DC (59.5 V DC by default)

EMC specifications

Conducted emission (CE)

• AC port: EN 55032, Class B
• DC port: EN 55032, Class A¹
• Signal port: EN 55032, Class B

Radiated interference

EN 55032, Class B

Harmonic current

IEC 61000-3-12

Voltage fluctuation and flicker

IEC 61000-3-11

Electrostatic discharge (ESD)

IEC 61000-4-2

Electrical fast transient (EFT)

IEC 61000-4-4

Radiated susceptibility (RS)

IEC 61000-4-3

Conducted susceptibility (CS)

IEC 61000-4-6

Surge

IEC 61000-4-5

Voltage dips immunity

IEC 61000-4-11

Others

Mean time between failures (MTBF)

200,000 hours (at 25°C)

Structure

Dimensions (H x W x D)

132.0 mm x 482.6 mm x 330.0 mm (including mounting ears)

Weight

≤ 20 kg (excluding PSUs)

IP rating

IP20

Installation mode

Installed in a 19-inch rack

Cabling mode

Routed in and out from the front

Maintenance mode

Maintained from the front

Cooling mode

Free cooling
