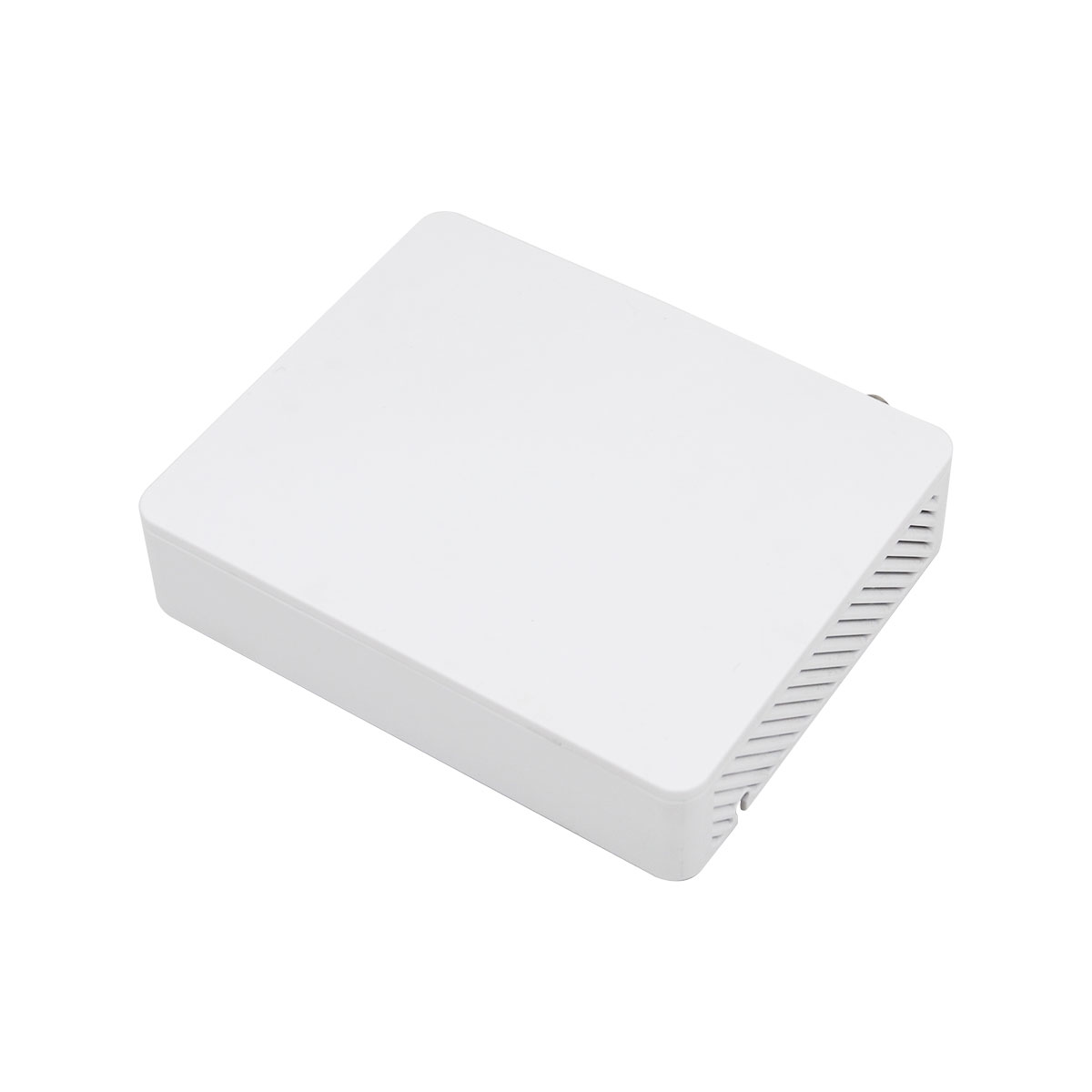

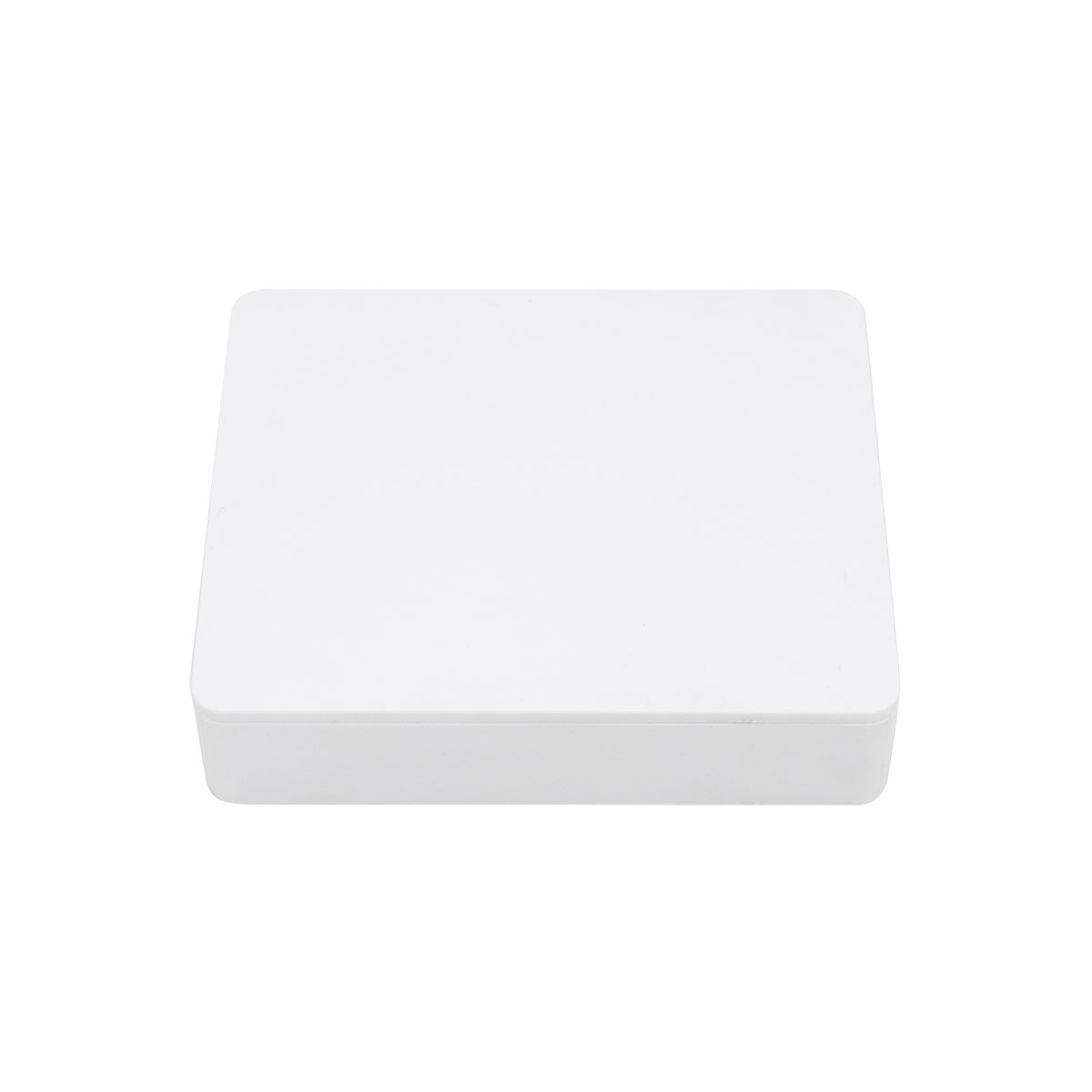

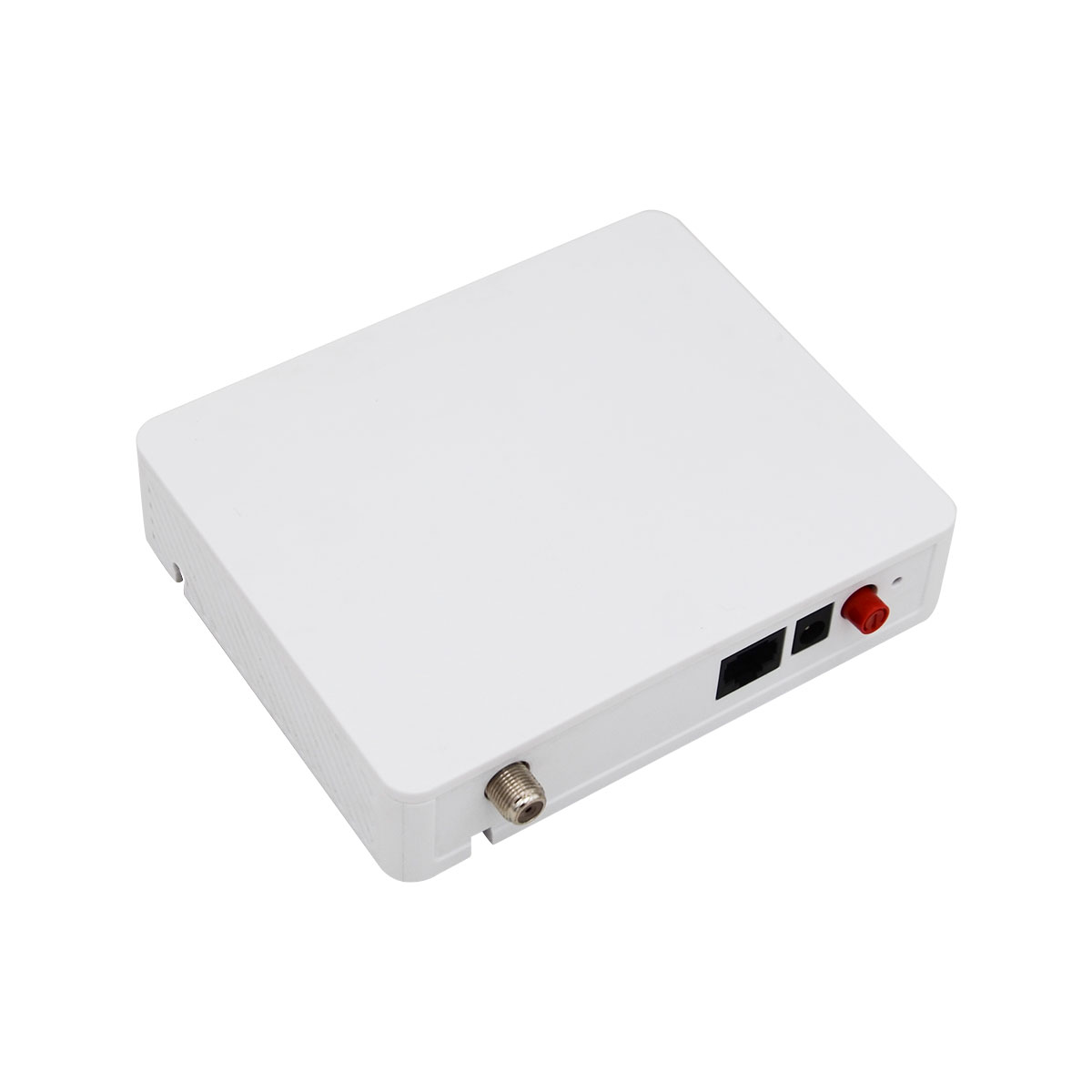

ZTE ZXHN F601C
ZTE ZXHN F601C CATV GPON Terminal supports 1 GE port, CATV/ RF controllable port
ZTE
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Packing info
- Reviews (1)
Description
ZTE ZXHN F601C overview
ZTE ZXHN F601C CATV GPON Terminal comes with 1GE port and 1 RF/CATV controllable port. Huawei HG8012H is integrated with a controllable CATV port without WIFI.
- CATV GPON ONT F601C Optical Network Terminal
- 1GE CATV
- ENG firmware, ENG interface
- Connector type SC/APC
- Can be configured by OLT or Web or NMS
- Suitable for home and SOHO users
- Compatible with Huawei/ZTE/Nokia OLT that supports TR069
| Item | ZTE ZXHN F601C |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Pressure environment: 0 to 106 kPa | |
| Power consumption | Static power: 2 W |
| Maximum power consumption: 2.5 W | |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 VDC, 0.5 A | |
| Dimensions | 82 mm x 90 mm x 27 mm |
| (length x width x height) | |
| Weight | About 0.5 Kg |
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 8.2 × 9.0 × 2.7 cm |
Alchibald –
It can be configured by OLT or Web or NMS, which is convenient to control it.
