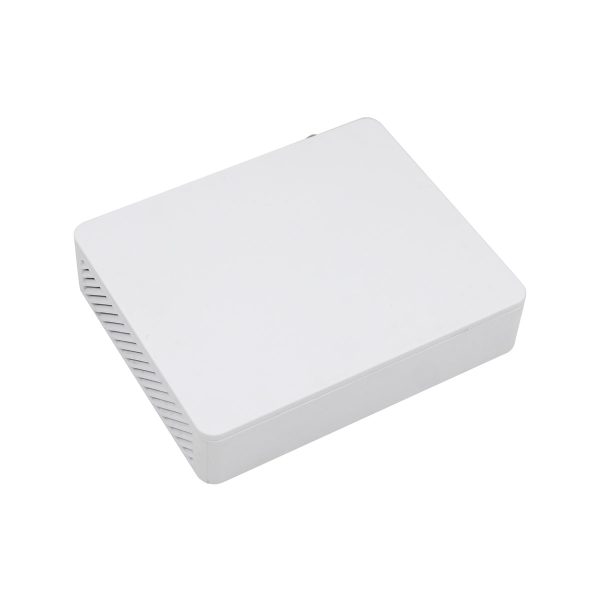

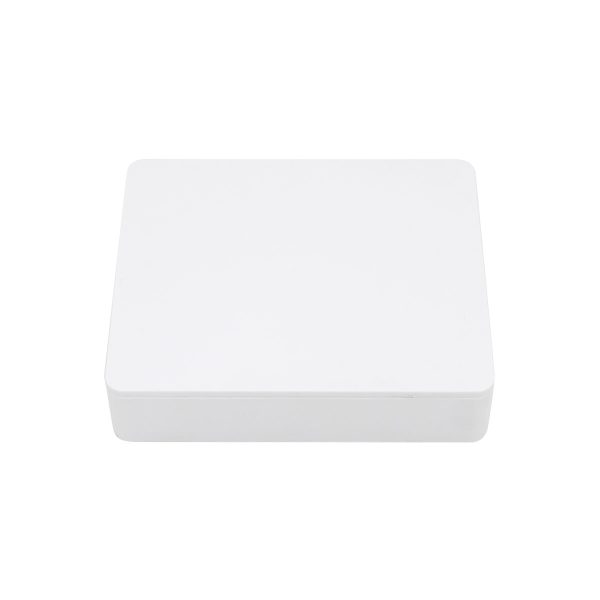

ZTE ZXHN F601C CATV GPON Terminal supports 1 GE port, CATV/ RF controllable port
ZTE ZXHN F601C CATV GPON Terminal comes with 1GE port and 1 RF/CATV controllable port. Huawei HG8012H is integrated with a controllable CATV port without WIFI.
| Item | ZTE ZXHN F601C |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Pressure environment: 0 to 106 kPa | |
| Power consumption | Static power: 2 W |
| Maximum power consumption: 2.5 W | |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 VDC, 0.5 A | |
| Dimensions | 82 mm x 90 mm x 27 mm |
| (length x width x height) | |
| Weight | About 0.5 Kg |
| Weight | 0.5 kg |
|---|---|
| Dimensions | 8.2 × 9.0 × 2.7 cm |
| Brand | ZTE |
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | ZTE ZXHN F601C |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Pressure environment: 0 to 106 kPa | |
| Power consumption | Static power: 2 W |
| Maximum power consumption: 2.5 W | |
| Power specifications | Power adapter input: 100 to 240 V AC, 50–60 Hz |
| System power supply: 11–14 VDC, 0.5 A | |
| Dimensions | 82 mm x 90 mm x 27 mm |
| (length x width x height) | |
| Weight | About 0.5 Kg |
.svg)
.svg)
Alchibald –
It can be configured by OLT or Web or NMS, which is convenient to control it.
Jane –
I ordered 1000 units F601, and telecomate.com helps me to customize my logo, nice!
