FAN-036A-B

0 Reviews Write a review
PN02312EYW
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

HuaWei FAN-036A-B Fan Module (FAN panel side exhaust)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

FAN-036A-B Overview

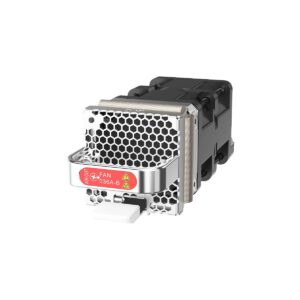

HuaWei FAN-036A-B Fan Module (FAN panel side exhaust)

FAN 036A B

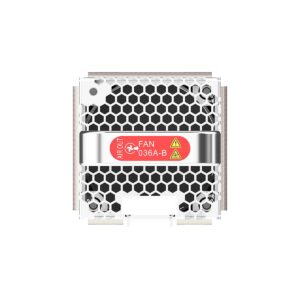

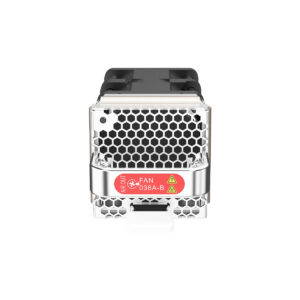

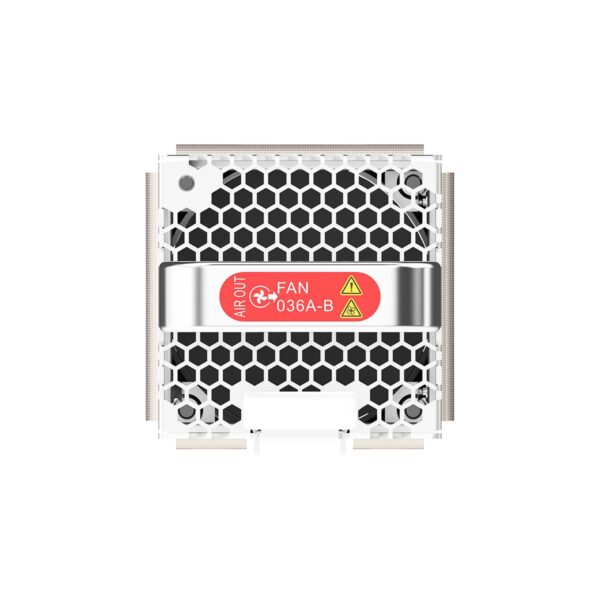

Panel of the FAN-036A-B



1. Lock

2. Indicator

3. Fan air vent

4. Handle

5. Airflow flag

  • en us image 0000001128953981: back-to-front airflow
  • en us image 0000001082257282: front-to-back airflow

–





Mappings between FAN-036A-B and product models

Product Product Model First Supported Version Limitations
CloudEngine 8800 CE8850-HAM (02354WBD) V300R022C00 –
CloudEngine 8800 CE8850-HAM (02354WBE) V300R022C00 –
CloudEngine 8800 CE8850-HAM (02354WBF) V300R022C00 –
CloudEngine 8800 CE8850-SAN (02354FPQ) V300R020C10SPC200 –
CloudEngine 8800 CE8850-SAN (02354FPS) V300R020C10SPC200 –
CloudEngine 8800 CE8850-SAN (02354FPT) V300R020C10SPC200 –
CloudEngine 8800 CE8851-32CQ8DQ-K (02353PJQ) V300R020C00 –
CloudEngine 8800 CE8851-32CQ8DQ-K (02353PJR) V300R020C00 –
CloudEngine 8800 CE8851-32CQ8DQ-P (02353EGP) V300R020C00 –
CloudEngine 8800 CE8851-32CQ8DQ-P (02353EGQ) V300R020C00 –
CloudEngine 8800 CE8851-32CQ8DQ-P (02353EGR) V300R020C00 –



Item FAN-036A-B
Maximum power consumption [W] 29 W
Operating voltage range [V] 10.8 V to 13.2 V
Maximum fan speed [RPM] 22500±10%
Maximum airflow [CFM] 36 CFM
Maximum noise level [dB(A)] 69.8 dB(A)
Maximum wind pressure [Pa] 950Pa
Airflow direction FAN panel side exhaust
Automatic fan speed adjustment After the fan module communicates normally with the switch, the switch controls the speed of the fan based on temperature of the chassis.
Hot swap Supported
Heat dissipation Back-to-front airflow
Dimensions without packaging (H x W x D) [mm (in.)] 40.0 mm x 40.0 mm x 128.3 mm (1.57 in. x 1.57 in. x 5.05 in.)
Weight without packaging [kg (lb)] 0.15 kg (lb)

Additional information

Item FAN-036A-B
Maximum power consumption [W] 29 W
Operating voltage range [V] 10.8 V to 13.2 V
Maximum fan speed [RPM] 22500±10%
Maximum airflow [CFM] 36 CFM
Maximum noise level [dB(A)] 69.8 dB(A)
Maximum wind pressure [Pa] 950Pa
Airflow direction FAN panel side exhaust
Automatic fan speed adjustment After the fan module communicates normally with the switch, the switch controls the speed of the fan based on temperature of the chassis.
Hot swap Supported
Heat dissipation Back-to-front airflow
Dimensions without packaging (H x W x D) [mm (in.)] 40.0 mm x 40.0 mm x 128.3 mm (1.57 in. x 1.57 in. x 5.05 in.)
Weight without packaging [kg (lb)] 0.15 kg (lb)
