HuaWei FAN-180E-F Fan Module

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

FAN-180E-F Overview

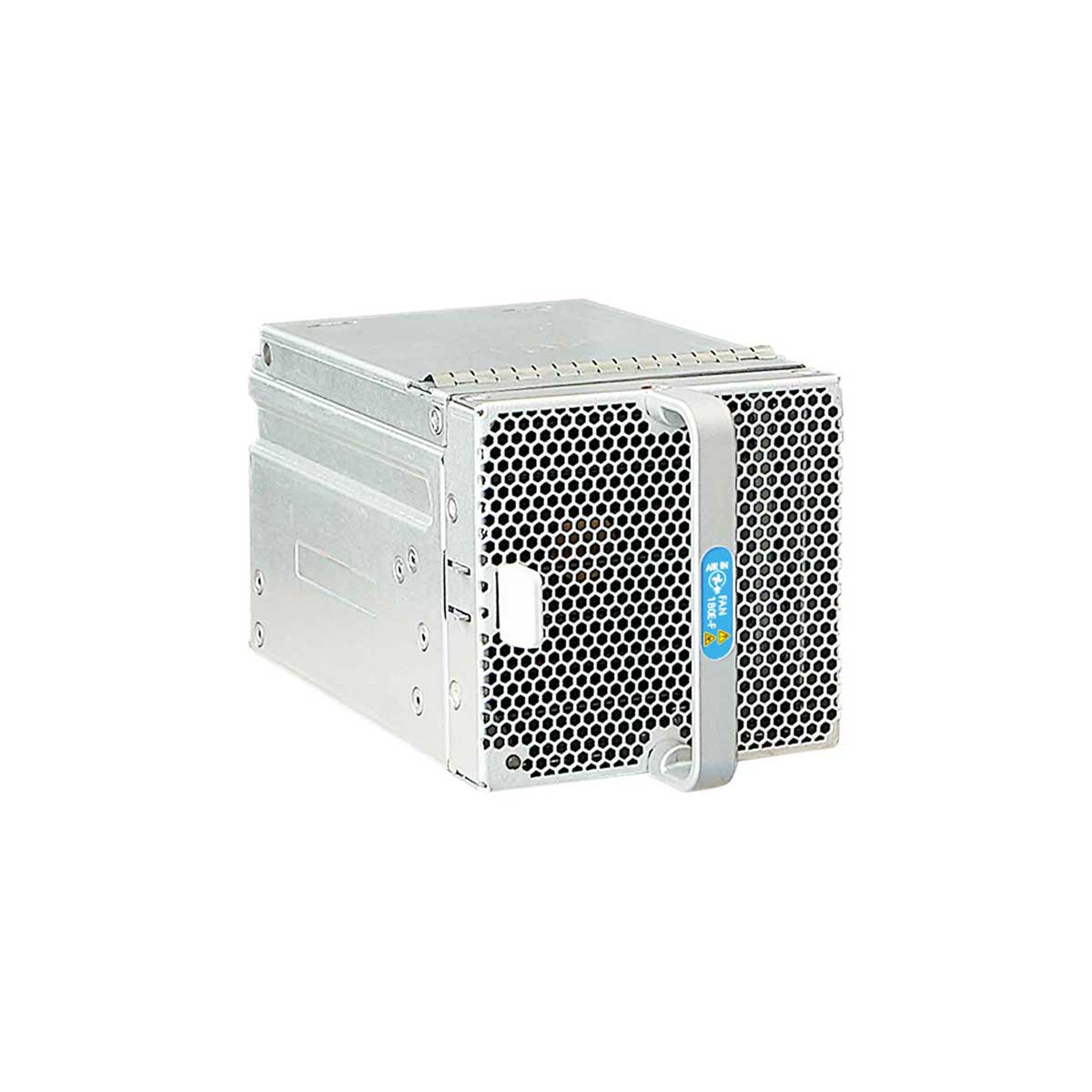

HuaWei FAN-180E-F Fan Module

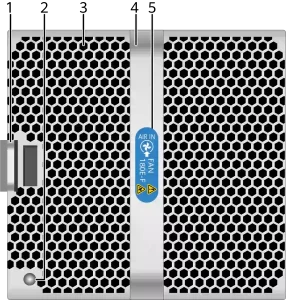

Panel of the FAN-180E-F

EN US IMAGE 0000001186887508 1

1. Lock

2. Indicator

3. Fan air vent

4. Handle

5. Airflow flag

  • FAN-180E-F: back-to-front airflow
  • FAN-180E-F: front-to-back airflow

–



Mappings between FAN-180E-F and product models

Product Product Model First Supported Version Limitations
CloudEngine 8800 CE8850-64CQ-EI (02351RFF) V200R021C10SPC600 –
CloudEngine 8800 CE8850-64CQ-EI (02351RFF-001) V200R021C10SPC600 –
CloudEngine 8800 CE8850-64CQ-EI (02351RFF-004) V200R022C00 –
CloudEngine 8800 CE8850-64CQ-EI (02351RFJ-001) V200R021C10SPC600 –
CloudEngine 8800 CE8850-64CQ-EI (02351RFH-001) V200R021C10SPC600 –
CloudEngine 8800 CE8850-64CQ-EI (02351RFH-004) V200R022C00 –
CloudEngine 8800 CE8850-64CQ-EI (02351RFJ-004) V200R022C00 –
Item FAN-180E-F
Number of fans Two counter-rotating fans with each containing two fan blades
Typical power consumption 75
Maximum power consumption [W] 86 W
Operating voltage range [V] 7 V to 15 V
Maximum fan speed [RPM] 13200RPM (Front), 11340RPM (Rear)
Maximum airflow [CFM] 180 CFM
Maximum noise level [dB(A)] 80 dB(A)
Maximum wind pressure [Pa] 1050 Pa
Airflow direction Front-to-back airflow
Dimensions without packaging (H x W x D) [mm (in.)] 82.0 mm x 82.0 mm x 169.3 mm (3.23 in. x 3.23 in. x 6.67 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 130.0 mm x 170.0 mm x 390.0 mm (5.12 in. x 6.69 in. x 15.35 in.)
Weight without packaging [kg (lb)] 0.846 kg (1.87 lb)
Weight with packaging [kg (lb)] 1.246 kg (2.75 lb)

Additional information

Item FAN-180E-F
Number of fans Two counter-rotating fans with each containing two fan blades
Typical power consumption 75
Maximum power consumption [W] 86 W
Operating voltage range [V] 7 V to 15 V
Maximum fan speed [RPM] 13200RPM (Front), 11340RPM (Rear)
Maximum airflow [CFM] 180 CFM
Maximum noise level [dB(A)] 80 dB(A)
Maximum wind pressure [Pa] 1050 Pa
Airflow direction Front-to-back airflow
Dimensions without packaging (H x W x D) [mm (in.)] 82.0 mm x 82.0 mm x 169.3 mm (3.23 in. x 3.23 in. x 6.67 in.)
Dimensions with packaging (H x W x D) [mm (in.)] 130.0 mm x 170.0 mm x 390.0 mm (5.12 in. x 6.69 in. x 15.35 in.)
Weight without packaging [kg (lb)] 0.846 kg (1.87 lb)
Weight with packaging [kg (lb)] 1.246 kg (2.75 lb)
