Huawei FutureMatrix S1730S-S8P4S-A1 switch supports 8 PoE+  10/100/1000BASE-T ports, 4 1000BASE-X GE SFP ports, fixed AC power

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

FutureMatrix 1730S-S8P4S-A1 overview

Huawei FutureMatrix S1730S-S8P4S-A1 switch comes with 8 PoE+ 10/100/1000BASE-T ports, 4 GE SFP ports, and 1 fixed AC power, which is one of the Huawei FutureMatrix S1730S-S series switches.

FutureMatrix S1730S-S series switches are web-managed Ethernet switches for the SOHO office market. They have been certified by Huawei Datacom Smart Selection, and can provide 8, 24 and 48 port models, with 4 gigabit or 10-gigabit uplink ports.

S1730S-S series switches can be used as access switches for small networks (such as small business offices), and support S5700 series switches to create an office network for small and micro enterprises. It can meet the data access requirements of wired and wireless networks.

S1730S-S series switches can be used as access switches for micro-site networks (such as small studios), meeting a small number of terminals such as printers, notebooks, cameras, and wireless routers, data access, and power supply requirements of other equipment.



FutureMatrix 1730S-S8P4S-A1 fast spec

8-port 10/100/1000BASE-T RJ45

4-port 1000BASE-X GE SFP

1 fixed AC input power supply

Switching capacity: 336Gbps

Packet forwarding rate: 18Mpps

PoE+ supported

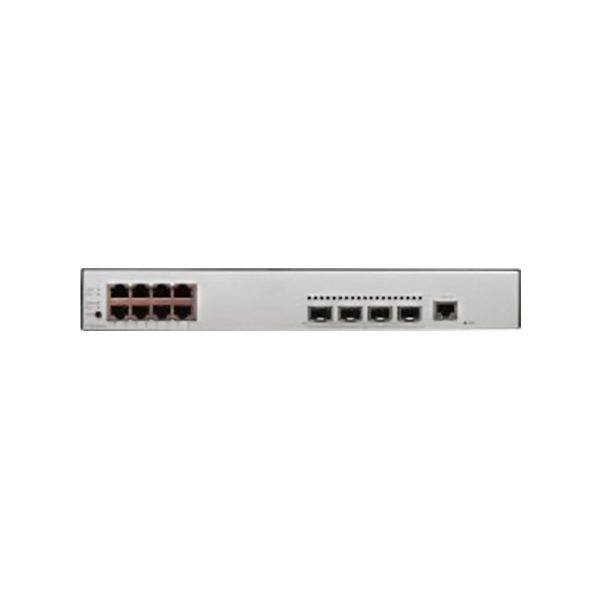

FutureMatrix S1730S-S8P4S-A1 appearance



1 Eight PoE+ 10/100/1000BASE-T ports 2 Four 1000BASE-X ports
3 One console port 4 One RST button

NOTICE: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the button.
5 Ground screw 6 AC socket
7 Jack for AC power cable locking strap

NOTE: The AC power cable locking strap is not delivered with the switch.

 – –



FutureMatrix S1730S-S8P4S-A1 features and benefits

New energy-saving design, leading low-carbon communication

Non-blocking high-speed forwarding

PoE power supply capability: Fast PoE, Permanent PoE.

Convenient operation and maintenance

Intelligent operation and maintenance

Smart upgrade

Excellent safety

Powerful networking and bandwidth expansion capabilities

Item S1730S-S8P4S-A1
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 300.0 mm x 220.0 mm (1.72 in. x 11.8 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 300.0 mm x 227.0 mm (1.72 in. x 11.8 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 110.0 mm x 435.0 mm x 360.0 mm (4.33 in. x 17.13 in. x 14.17 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 2.25 kg (4.96 lb)
Weight with packaging [kg(lb)] 3.17 kg (7 lb)
Typical power consumption [W] 28.4 W
Typical heat dissipation [BTU/hour] 96.9 BTU/hour
Maximum power consumption [W] Not providing the PoE function: 38.6 W 100% PoE loads: 162.6 W (PoE: 124 W)
Maximum heat dissipation [BTU/hour] Not providing the PoE function: 131.71 100% PoE loads: 554.81
MTBF [year] 66.56 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 42.2 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 30.5 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules) -5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km)
Short-term operating temperature [°C(°F)] Not supported
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distance greater than or equal to 70 km are used.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A] 3 A
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Supported
Certification EMC certification Safety certification Manufacturing certification

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item S1730S-S8P4S-A1
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 300.0 mm x 220.0 mm (1.72 in. x 11.8 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 300.0 mm x 227.0 mm (1.72 in. x 11.8 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 110.0 mm x 435.0 mm x 360.0 mm (4.33 in. x 17.13 in. x 14.17 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 2.25 kg (4.96 lb)
Weight with packaging [kg(lb)] 3.17 kg (7 lb)
Typical power consumption [W] 28.4 W
Typical heat dissipation [BTU/hour] 96.9 BTU/hour
Maximum power consumption [W] Not providing the PoE function: 38.6 W 100% PoE loads: 162.6 W (PoE: 124 W)
Maximum heat dissipation [BTU/hour] Not providing the PoE function: 131.71 100% PoE loads: 554.81
MTBF [year] 66.56 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 42.2 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 30.5 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) (0 m to 1800 m altitude, non-industrial optical modules) -5°C to +55°C (23°F to 131°F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km)
Short-term operating temperature [°C(°F)] Not supported
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). The operating temperature ranges from -5°C to +45°C (23°F to 113°F) when optical modules with transmission distance greater than or equal to 70 km are used.
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A] 3 A
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Supported
Certification EMC certification Safety certification Manufacturing certification
