FWLT-B

Alcatel-Lucent NOKIA 7360 ISAM FX 8-port symmetric 10G GPON (XGS-PON/TWDM-PON) line termination board

12 Months

ALCATEL & LUCENT

SKU: 10549 Category:

Description

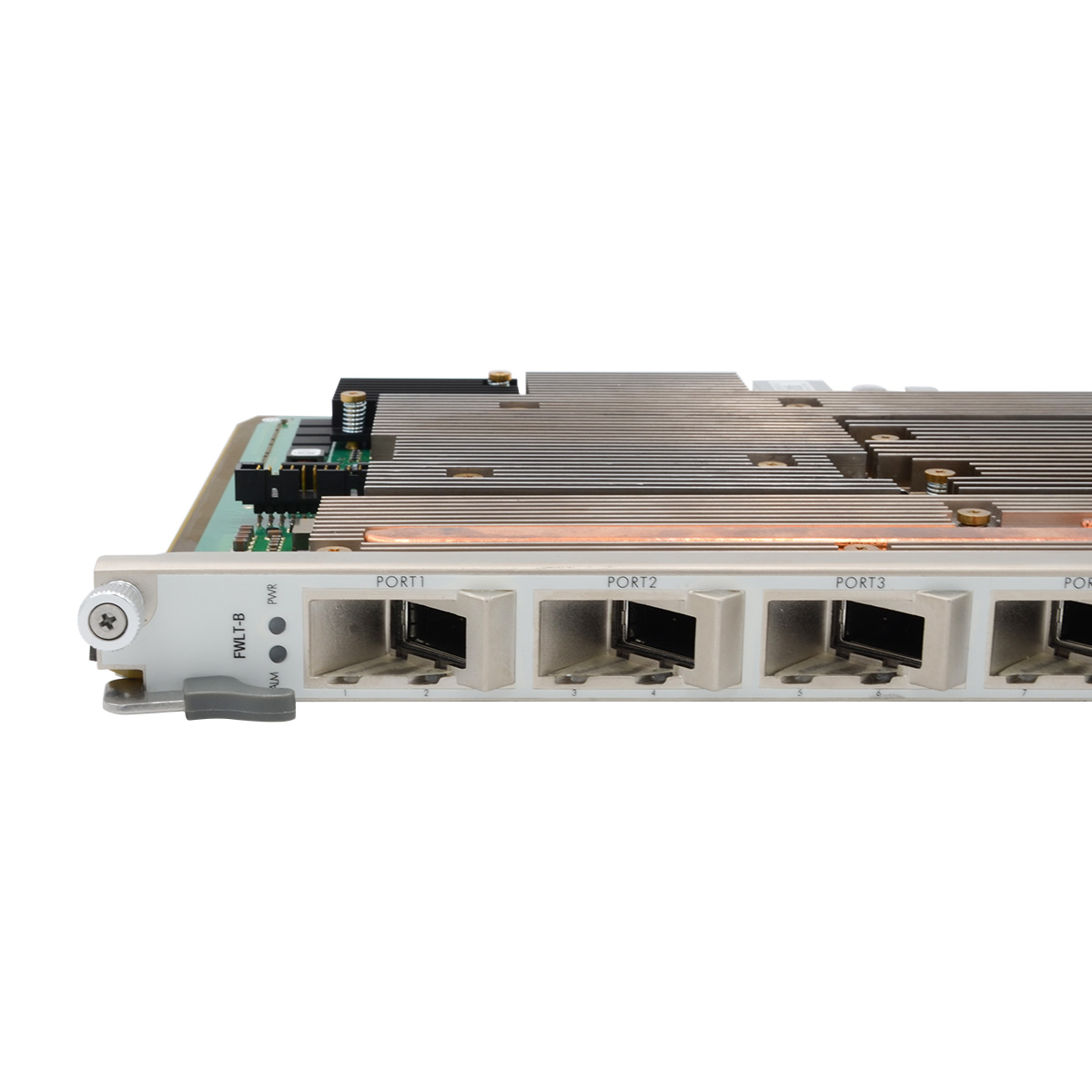

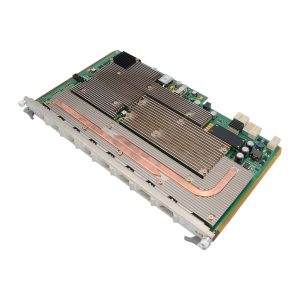

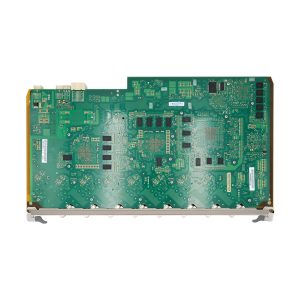

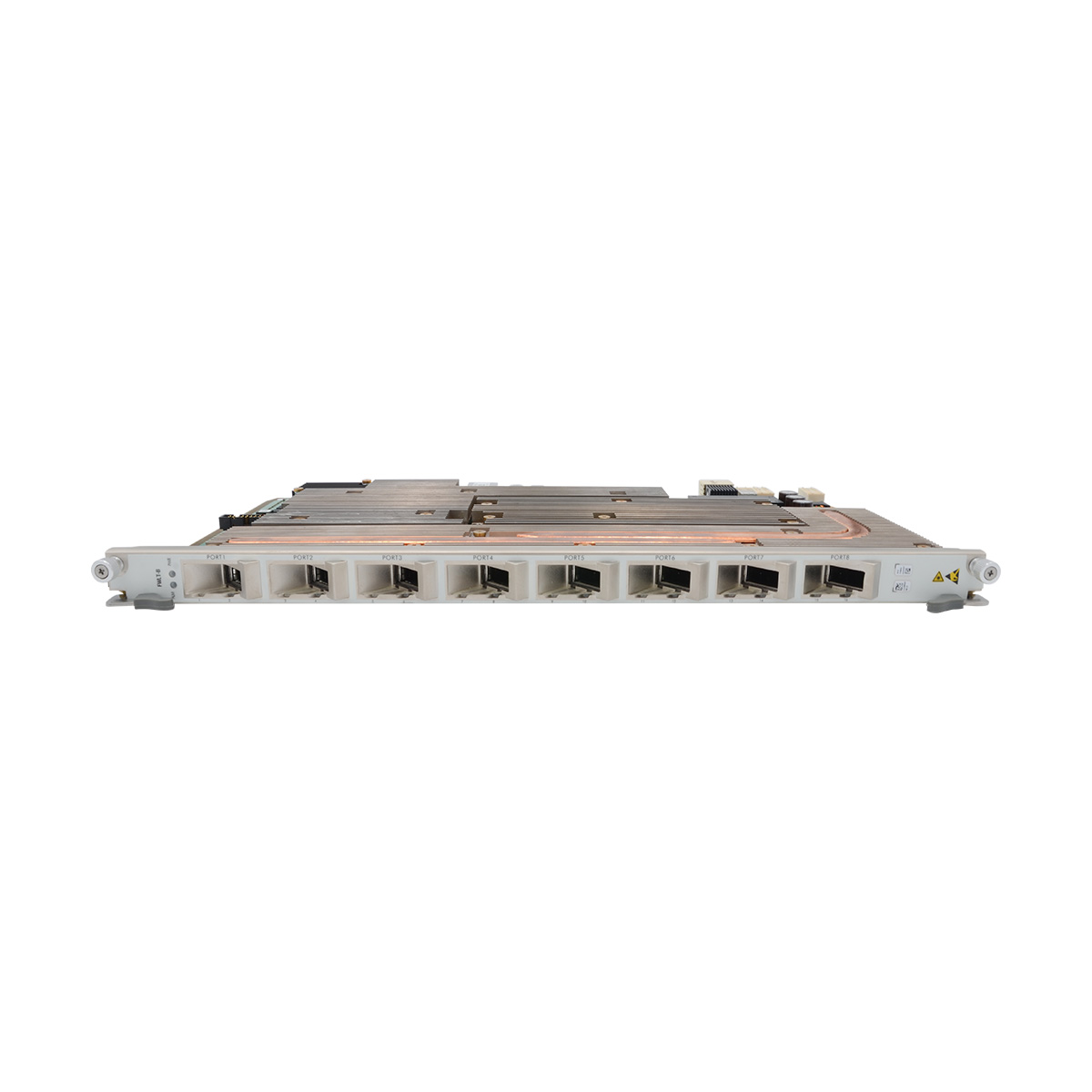

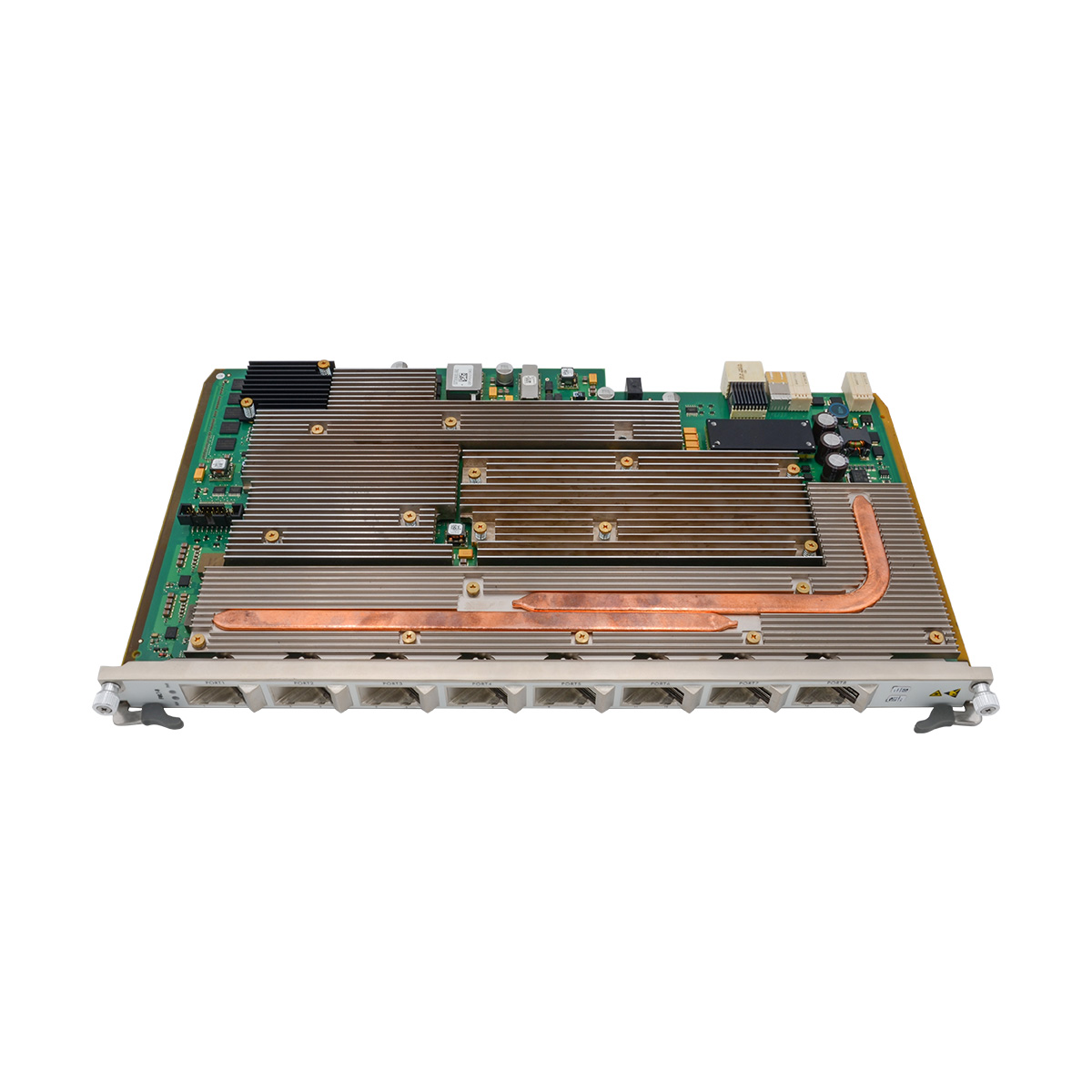

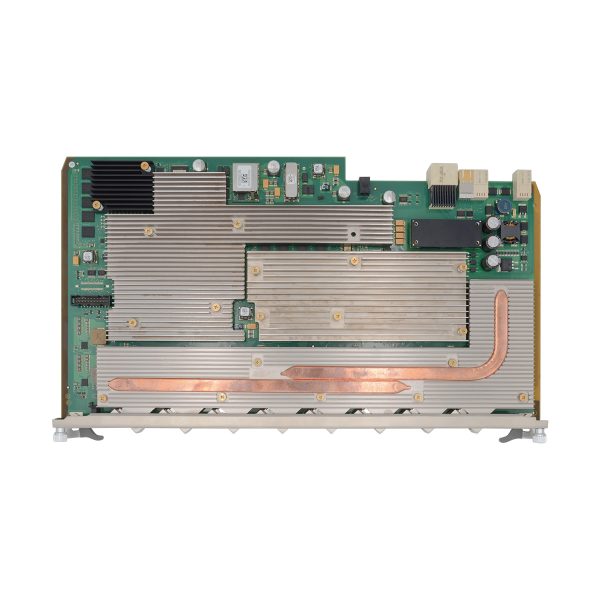

Alcatel-Lucent NOKIA 7360 ISAM FX 8-port symmetric 10G GPON (XGS-PON/TWDM-PON) line termination board.



The Nokia Intelligent Services Access Manager (ISAM) FWLT-B is the next generation fiber line termination card, supporting 10G symmetrical and asymmetrical PON (XGS-PON dual rate) and Time and Wavelength Division Multiplexing Passive Optical Network (TWDM-PON) technology. The card is deployed in the Nokia 7360 ISAM FX, the market-leading fiber access platform that allows coexistence of XGS-PON and TWDM-PON with GPON and EPON, making it easy for operators to evolve their networks. The FWLT-B has eight ports, each supporting up to 10 Gb/s bit rates, enabling operators to deliver greater speeds and capture new revenues.



Alcatel-Lucent NOKIA ISAM FWLT-B is a universal NG-PON (XGS-PON/TWDM-PON) line termination card. Universal NG-PON solution is a Nokia innovation that supports XGS-PON dual rate and TWDM-PON on a single platform or line card. The FWLT-B card simplifies and accelerates the fiber network evolution and lowers the entry cost of TWDM-PON. Additionally, the card is designed to support different wavelength constellations, which ensure cost-efficient network evolution.

Item FWLT-B
10GPON Port 8 x 10G XGS-PON/TWDM-PON Port
XGS-PON dual rate, 10G/10G and 10G/2.5G capable
TWDM-PON either 10G/10G or 10G/2.5G capable
Encapsulation Type XFP
Inlet/ambient temperature range -5°C to 45°C (23°F to 113°F) ,when used in fully populated ISAM FX rack.
Humidity 10% to 95% (non-condensing)
Weight 2kg
Dimensions (W x D x H) Height: 405 mm      Depth: 225 mm
PN. Model Description
3FE64991AB Alcatel-Lucent NOKIA 7360 ISAM FX-4 Alcatel-Lucent NOKIA 7360 ISAM FX-4 with 2*FANT-F NT card, and 1*NGFC-G power unit, provides 4 service slots and supports a non-blocking, 2*100Gb/s per slot, VDSL2, point-to-point, GPON, EPON (with DPoE) and 10G PON services
3FE67229AB Alcatel-Lucent NOKIA 7360 ISAM FX-8 Alcatel-Lucent NOKIA 7360 ISAM FX-8 with 2xFANT-F, 1xNGFC-E, provides 8 service slots and supports 2×100 Gb/s per slot, VDSL2 with vectoring, GPON, EPON (with DPoE) and 10G PON services
FWLT-P FWLT-P Alcatel-Lucent NOKIA 7360 ISAM FX 8-port asymmetric 10G GPON line termination board
