GM8A overview

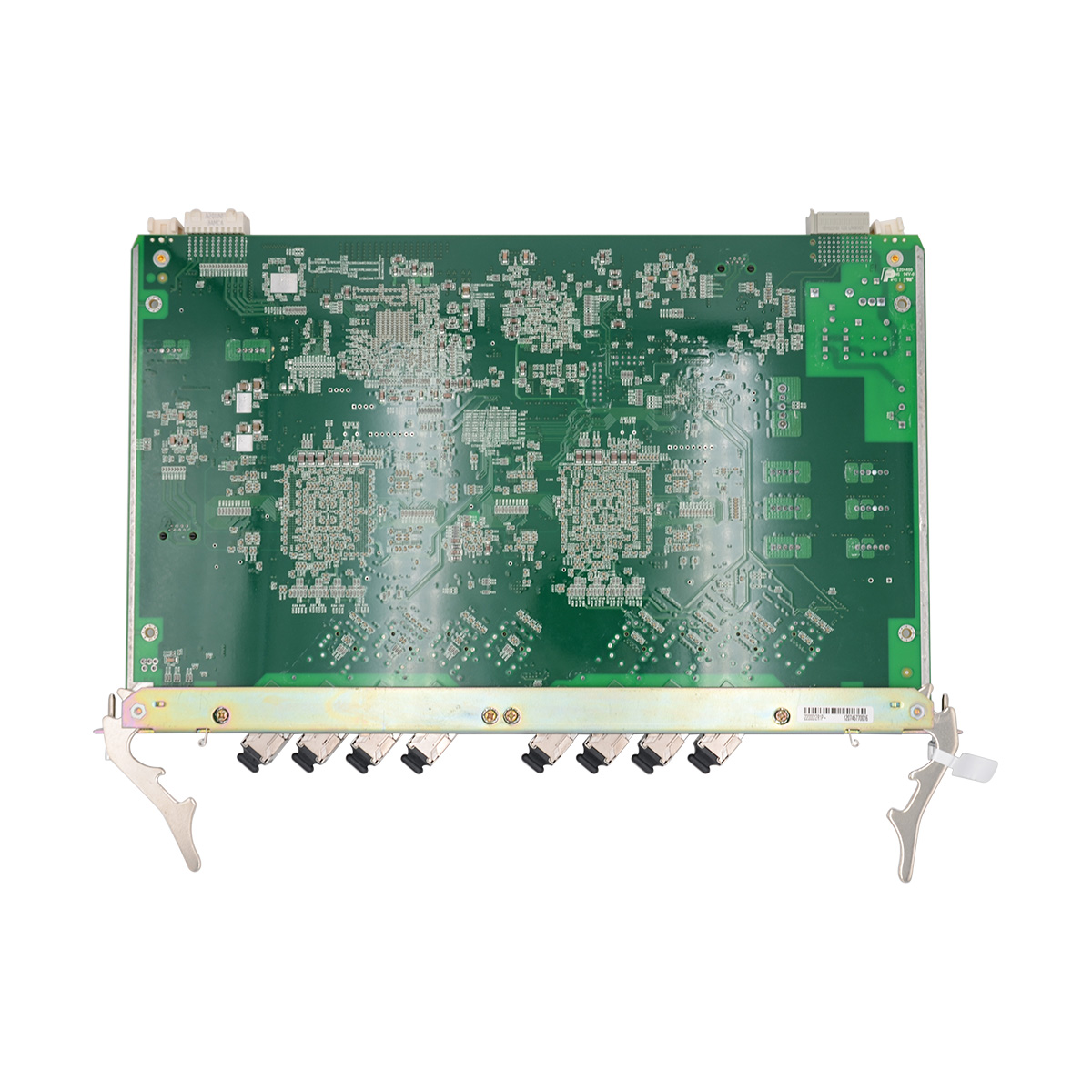

GM8A is an 8-port XG-PON and GPON combo card, which can be used in the chassis of Fiberhome brand OLT AN6000-7, AN6000-15, AN6000-17, and AN6000-2.

As a next-generation enhanced GPON technology evolved from GPON technology standardized in ITU-T G.984, XGPON caters to the demand for high-bandwidth services. The figure below shows the network structure of XG-PON.

Combo PON adopts the new WDM1r technology to achieve optical wave splitting, and one device can meet the bandwidth requirements from high to low of different subscribers in a unified area. The self-adaptation of GPON & XG-PON is realized by inserting different optical modules into each PON port, which is the best choice for ISP companies under the current wave of network upgrades.



GM8A application

Advantages of XG-PON application:
Smooth evolution: All FiberHome OLTs in current networks support XG-PON service cards; therefore, users need not replace existing OLT equipment to provision the XG-PON service.
High bandwidth: 2.5 Gbit/s in the uplink direction and 10 Gbit/s in the downlink direction.
High split ratio: Provides a split ratio up to 1:256.
Shared ODN: XG-PON ONUs can be connected to the OLT equipment via an existing GPON ODN, based on the external wavelength division multiplexing (WDM) technology.



GM8A hight-lights

GPON & XG-PON Combo access: GPON and XG-PON ONUs can be connected to the same service card.

Smooth upgrade: XG-PON service cards can replace GPON service cards with little configuration change. Accordingly, services can be migrated smoothly.
Software and hardware compatibility: Bandwidth can be upgraded without replacing subracks. Various PON service cards can coexist in a subrack.

Clock and time synchronization with high precision: Uses the system time transfer protocol as defined in IEEE 802. 1 as supports synchronous Ethernet (SyncE), IEEE1588 V2, and 1PPS+ToD.

Overall protection: Supports backbone fiber protection (Type B) and all-fiber protection (Type C), with a switching time of no more than 50 ms.

Efficient data transmission: Encapsulates all the data to be transmitted into 125 us frames (fixed length frames) with a new GEM encapsulation structure, which uses fewer transmission overhead bytes and improves the transmission efficiency.
The transmission efficiency can reach 93% when the downlink rate is 10 Gbit/s or the uplink rate is 2.5 Gbit/s.

Item

GM8A

Standard compliance

Conforms to ITU-T G.987 series of standards, with good interoperability.

transmission rate

GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s   XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s

Wavelength

GPON channel: Tx: 1490 nm Rx: 1310 nm   XG-PON channel: Tx: 1577 nm Rx: 1270 nm

Maximum transmission   distance

60 km

Maximum differential fiber   distance

40 km

Maximum split ratio

1:256

Detection of optical power

Supports RSSI detection.

Detection of rogue ONUs

Supports automatic detection and location of ONUs that constantly emit light.

Compatibility

Supports various ONUs, such as SBU, SFU, MTU, cassette  MDU, and MDU which can accommodate cards.

DBA

Dynamically allocates bandwidth according to subscribers’  traffic status.

Reliability

Supports Type B, Type C, and Type C dual-homing protections.

Throughput

When the XG-PON system bears Ethernet services only and is fully configured with services (64 ONUs), the uplink throughput is no less than 1.9 Gbit/s, and the downlink throughput is no less than 8.5 Gbit/s.

transmission delay

The uplink average transmission delay (when the traffic is no more than 90% of the system throughput) is less than 1.5 ms    (packets of all sizes are counted).

The downlink average transmission delay (when the traffic is no more than 90% of the system throughput) is less than 1 ms    (packets of all sizes are counted).

Additional information

Weight	3 kg
