H2XF8D

H2XF8D overview

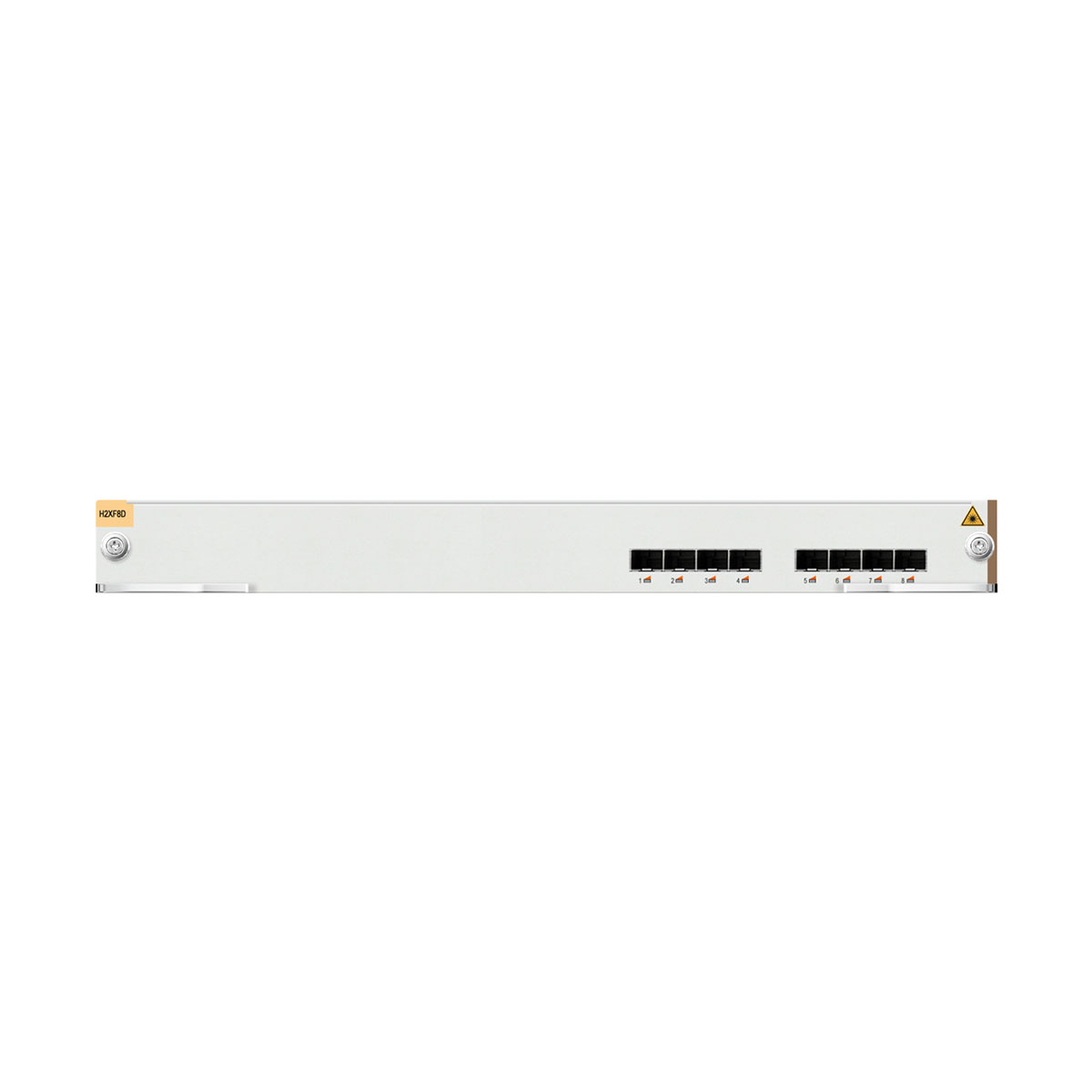

The H2XF8D card provides eight 10-GE optical interfaces. It is applicable to the ZXR10 8912E/8908E/8905E switch only (if installed on the ZXR10 8912E, it can be installed on any of the first four slots only). It supports the Synchronous Ethernet, IEEE 1588v2, and OAM functions.

The H2XF8D card provides the following functions:
• Large switching capacity
It provides eight 10-GE optical interfaces for wire-speed forwarding and supports large table entries and the MPLS function.

• Gigabit out-of-band communication
The MCS module communicates with the CPU of the card through this function, for example, downloading the CPU initialization information.

• EPLD online upgrade
The EPLD of the H2XF8D card provides the online upgrade function by simulating the JTAG interface.

• JTAG test
The H2XF8D card connects to main chips of line interface cards through a daisy chain to conduct the JTAG test.

• Intelligent detection
Temperature, voltage, and power consumption monitoring circuits are designed on the card to implement real-time monitoring through the IIC bus.

• IPMC management and control unit
The IPMC of each line interface card connects to the IPMC of the MCS module through a bus to establish an intelligent platform management system.

• Synchronous Ethernet & IEEE 1588v2
• Power supply management
A power management chip can control the power-on sequence of devices. A power management chip can control the power-on sequence of devices.
