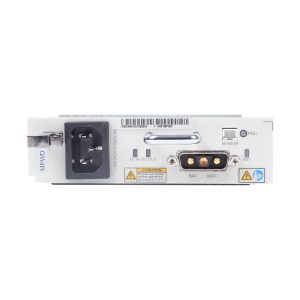

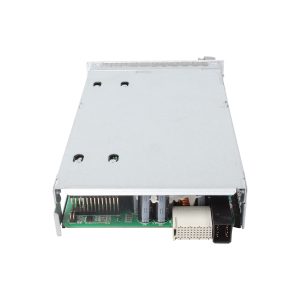

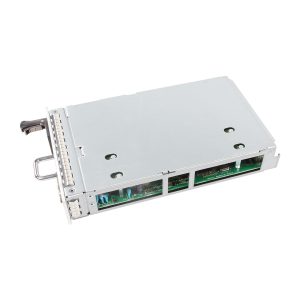

MA5608T AC power board H801MPWD
| Item | H801MPWD |

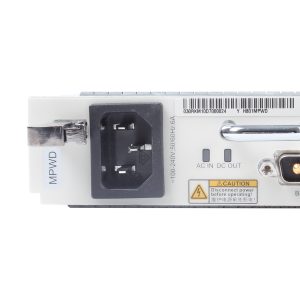

| Port & Function | AC input port:
Connected to the power socket and used for AC power input |
| Battery input port:
Connected through a 3V3 connector and used for battery input |
|
| Port for battery temperature sensor:
Connected to the temperature sensor |
|
| Connection | Cable requirements: low-smoke halogen-free; brown for L wire; blue for N wire; yellow green for PE wire |
| Dimensions (mm) | 35.56 mm x 251.70 mm x 132.10 mm |
Can the MA5600 Series interoperate with third-party ONUs/ONTs?
Yes, as long as both sides comply with ITU-T G.988 OMCI standards.
However, advanced functions such as Wi-Fi, VoIP, TR-069, and custom VLAN templates may behave differently.
A full OMCI interoperability and service verification test is strongly recommended before large-scale deployment.
What is the recommended optical power range for GPON on the MA5600 Series?
Typical GPON optical power budget:
1. OLT Receiver (Rx): –8 dBm to –27 dBm
2. ONU Receiver (Rx): –8 dBm to –27 dBm
Proper optical design is required to prevent ONU flapping caused by excessive split ratios or fiber degradation.
What control and switching capabilities does the MA5608T provide?
The MA5608T supports dual-control-board architecture and provides high switching throughput with carrier-grade forwarding performance. It supports L2/L3 edge access features, including VLAN, QinQ, QoS, multicast, and user authentication.
Which PON technologies are supported by the MA5608T?
The MA5608T supports:
GPON service boards (ITU-T G.984)
EPON service boards (IEEE 802.3ah)
What management and software features are supported?
The device supports IPv4/IPv6 dual stack, QoS, VLAN and QinQ, IGMP/MLD, OAM, remote maintenance, and full compatibility with Huawei NMS platforms.
| Weight | 2.5000 kg |
|---|---|
| Dimensions | 33.5000 × 15.0000 × 8.5000 cm |
| MA5600T |
.svg)
.svg)
Lukasz –
Expensive price, supplier said shortage in the market.
Penny –
MA5608T MPWD AC power module is less and less in the market, price is rising.
