Description

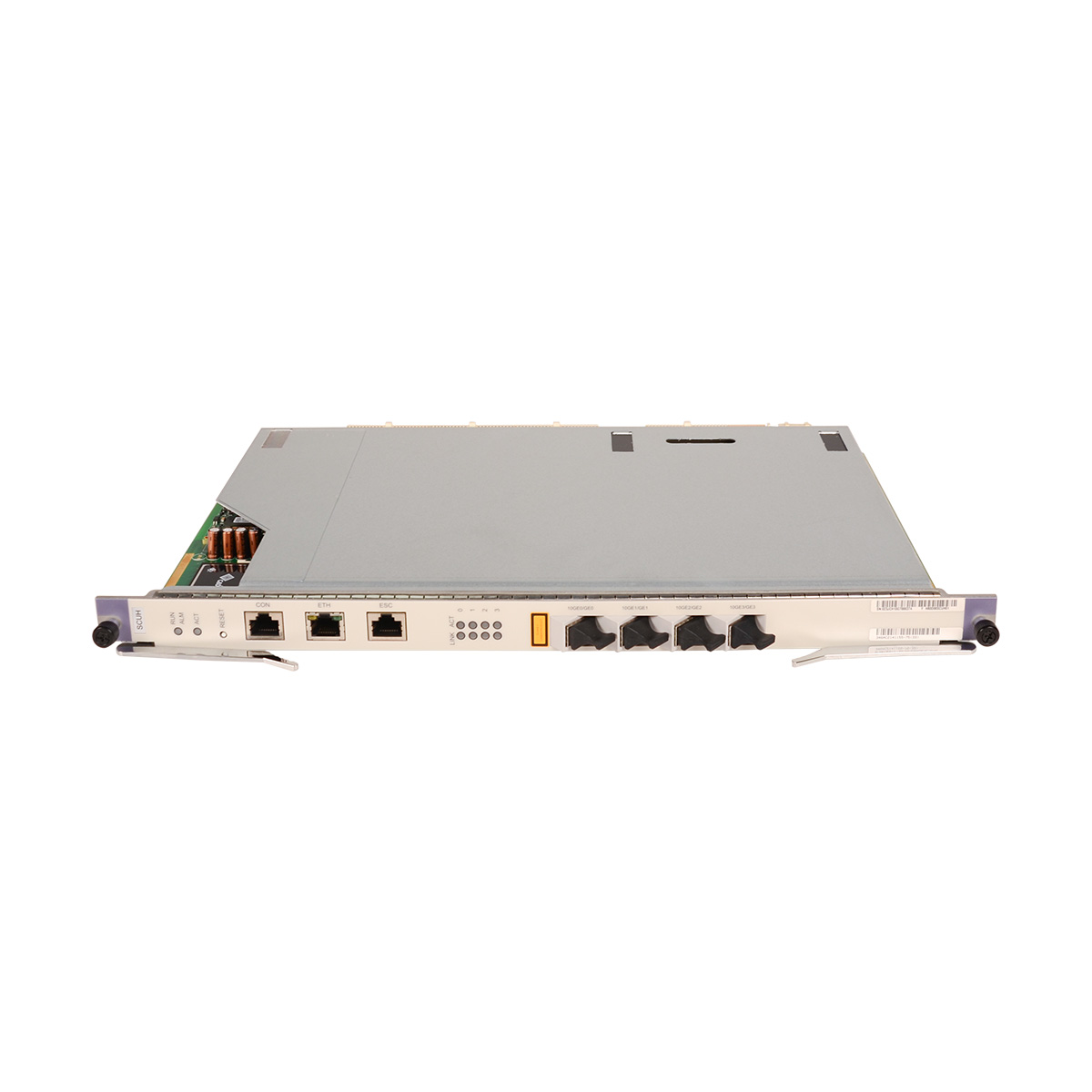

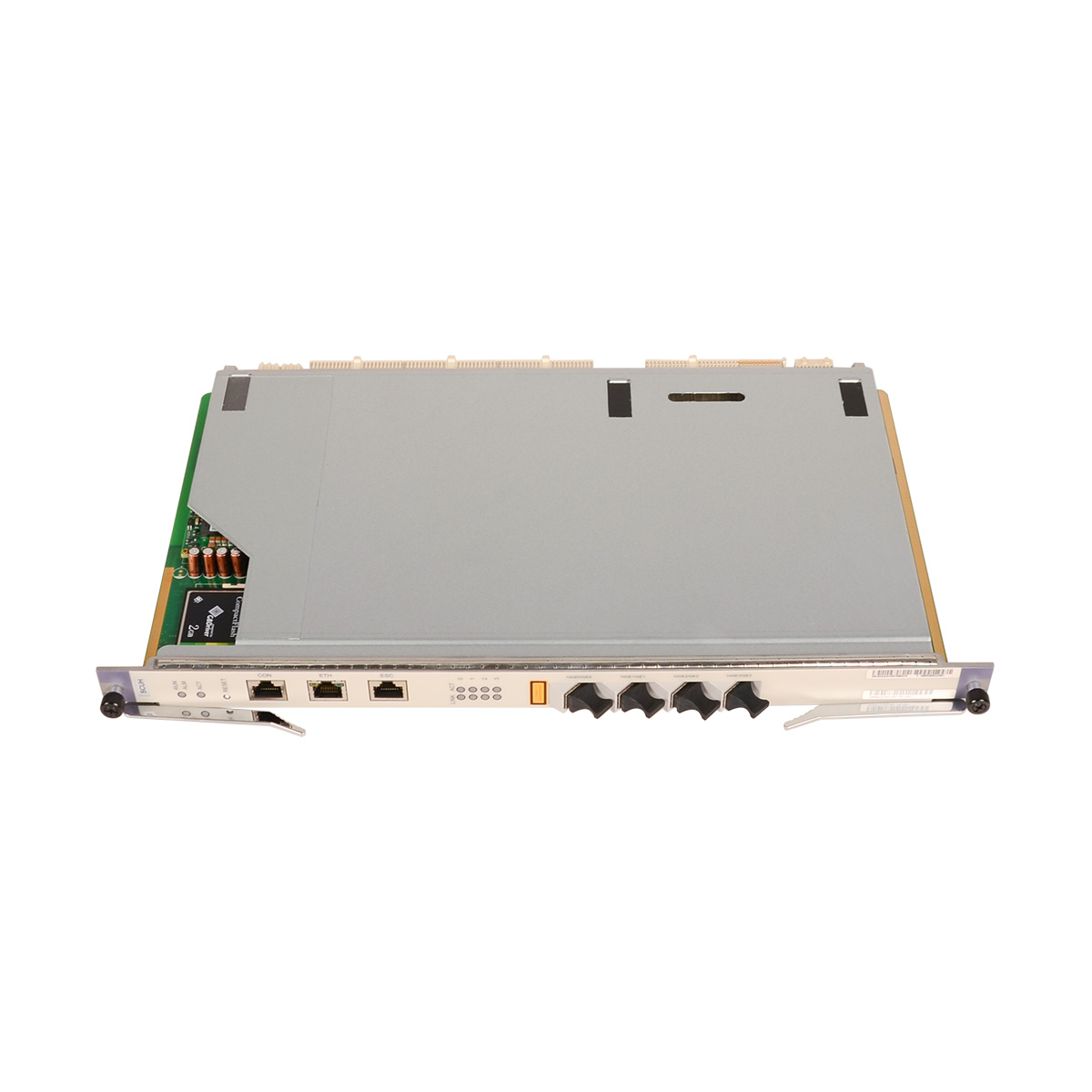

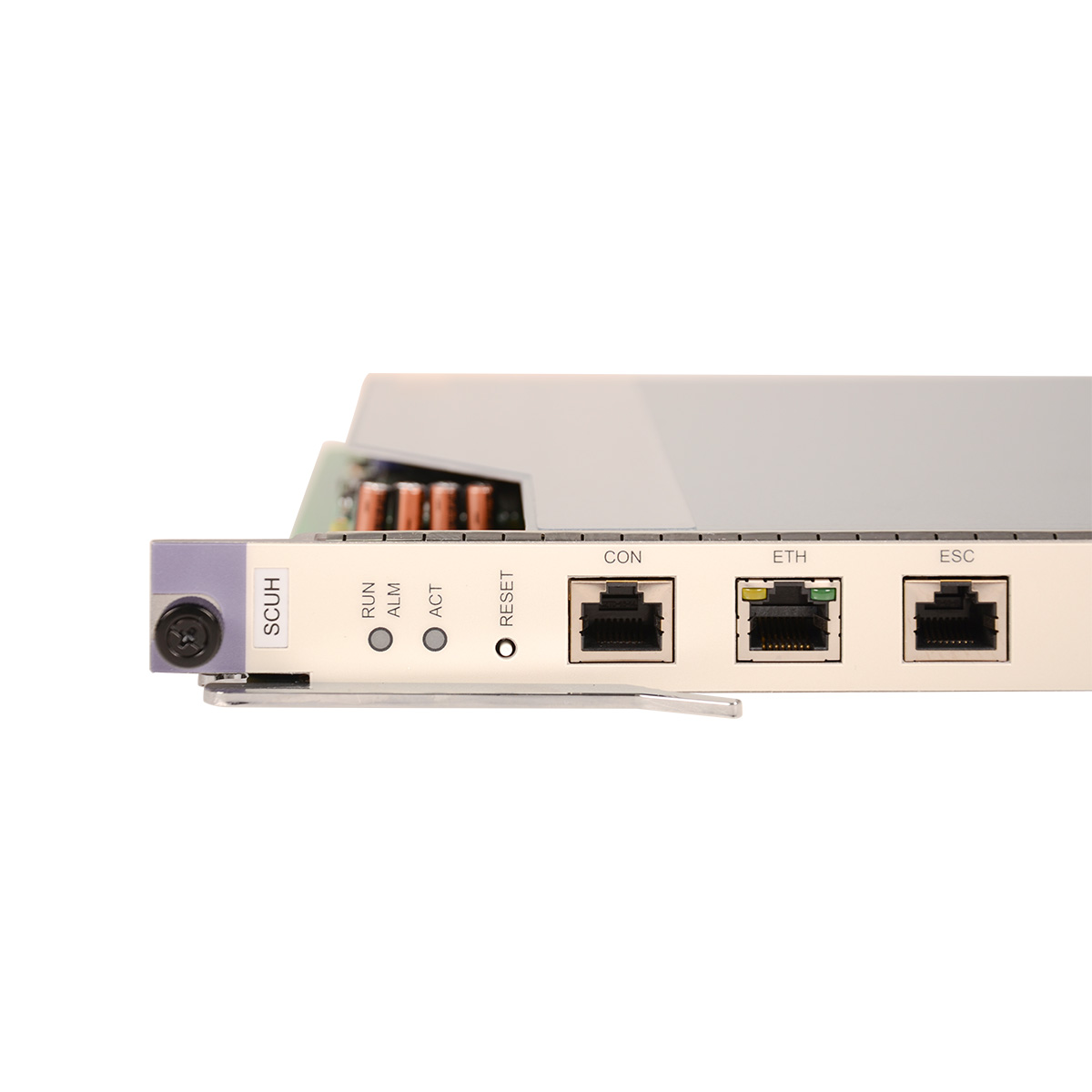

Huawei MA5683T MA5680T super main control board integrated with 4-port 10GE/GE optical uplink port
| Item | H801SCUH |
| LAN switch | 48 x10GE |
| Switching capacity | 9600 Gbit/s (active/standby mode) 1920 Gbit/s (load sharing mode) |
| Bandwidth per slot | 20 Gbit/s (active/standby mode) 40 Gbit/s (load sharing mode) |
| MAC address table | 131072 |
| Access user | 16384 |
| Multicast user | 16384 |
| Configurable multicast channel | 4096 |
| Concurrent multicast channel | 4000 |
| IPv4 routing table | 12288 |
| IPv6 routing table | 6144 |
| Service port | 131072 |
| ARP table | 16384 |
| ACL rule | 1024 |
| Maximum Frame Size | 2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
| VRF (L3 VPN) | Supported |
| Operating temperature | -25°C to +65°C |
| Power consumption | Static: 89W Maximum: 111 W (10GE service boards are fully configured) Maximum: 134 W (20GE service boards are fully configured) |
| Mechanical Specification | |
| Dimensions(mm) | 25.40 (W)x 237.00 (D) x 395.40(H) |
| Weight(kg) | 1 |
