Description

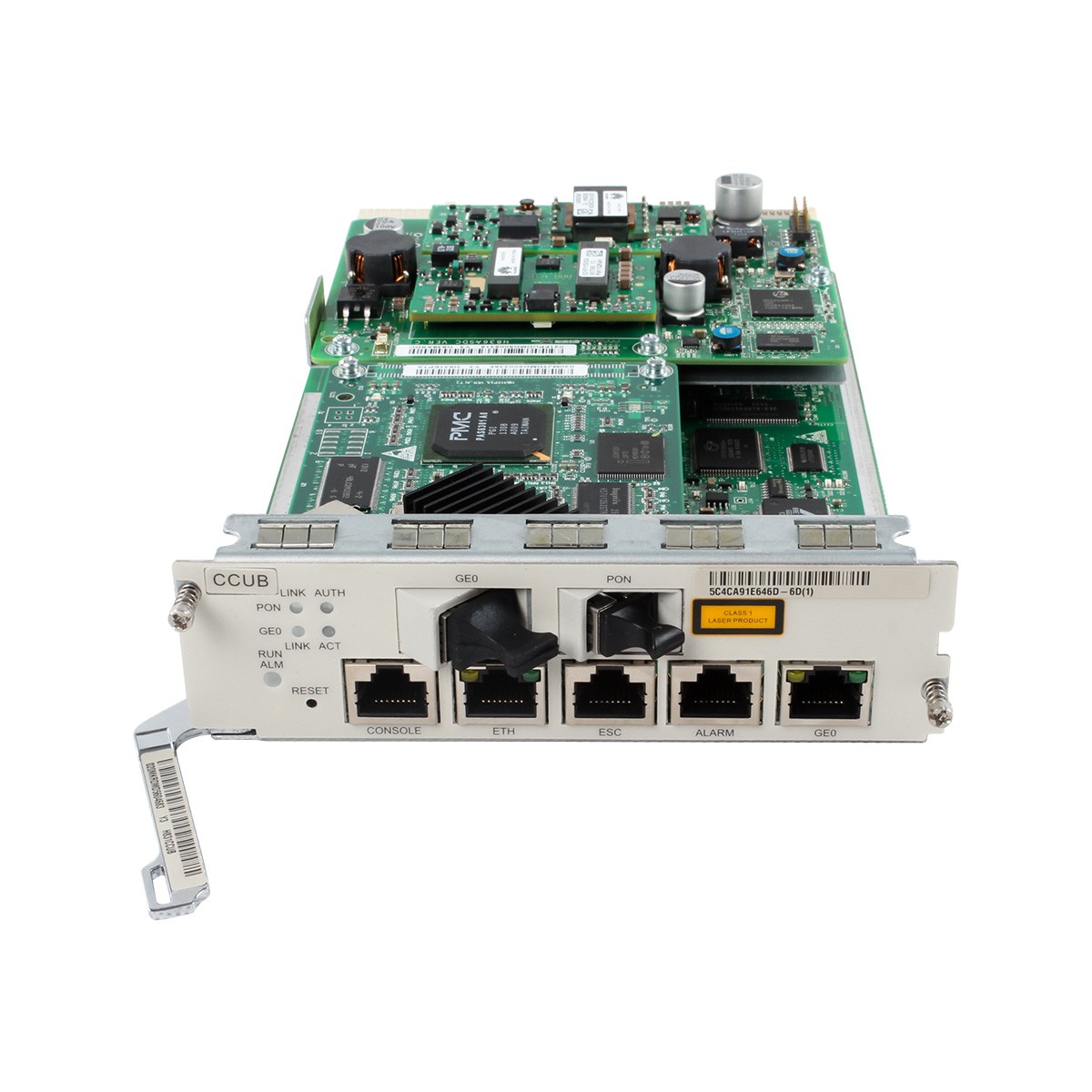

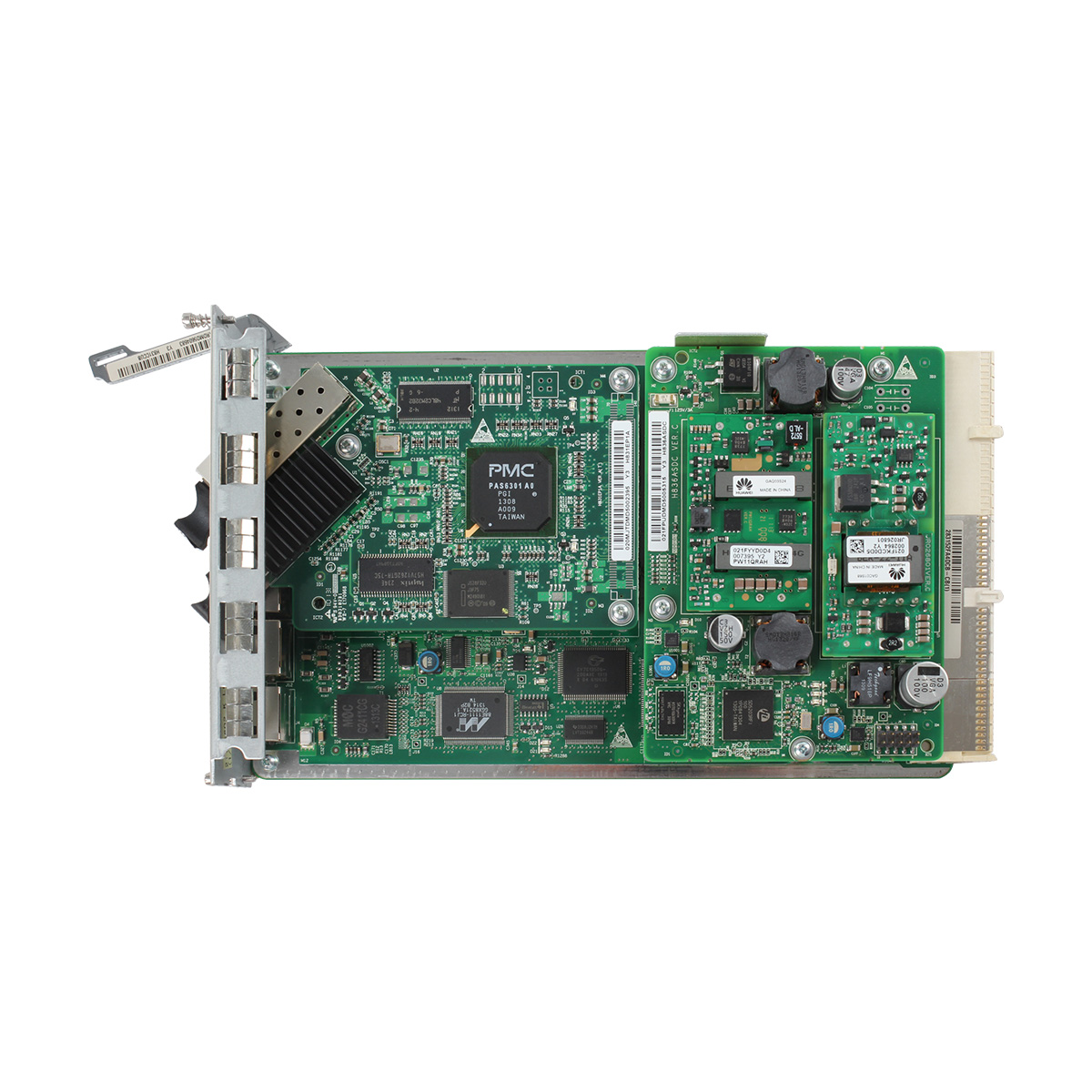

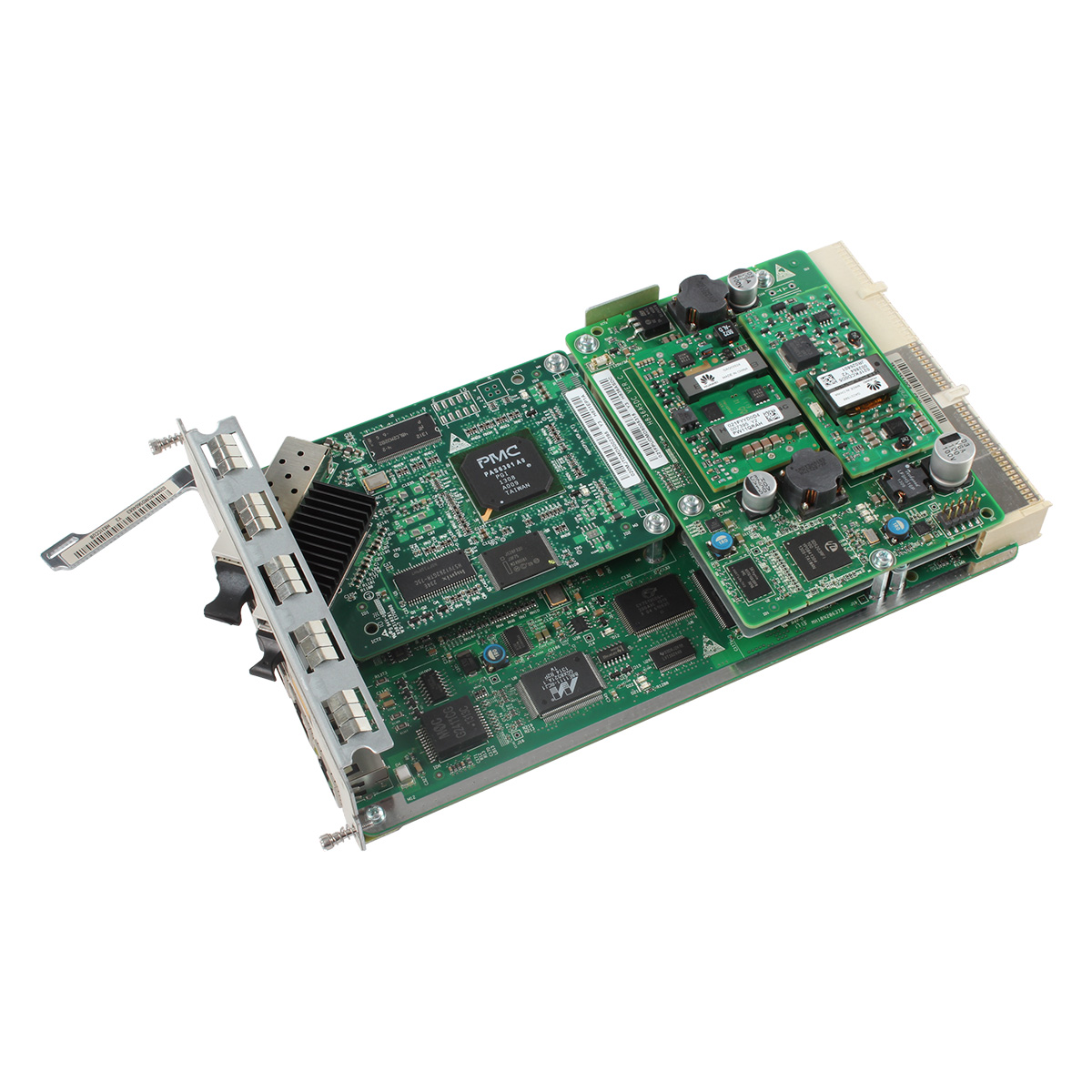

Huawei MA5616 main control board integrated with GE1A 2-port GE optical ports/GP1A 1-port GE and 1-port GPON optical ports
| Specification | |
| Support GPON uplink ports | GE1A: Two GE optical ports
GP1A: One GE and one GPON optical ports |
| Supported Daughter Board | Upstream daughter board:GP1A/EP1A/GE1A |
| Voice daughter board:ADSA/ADSC/ADSM | |

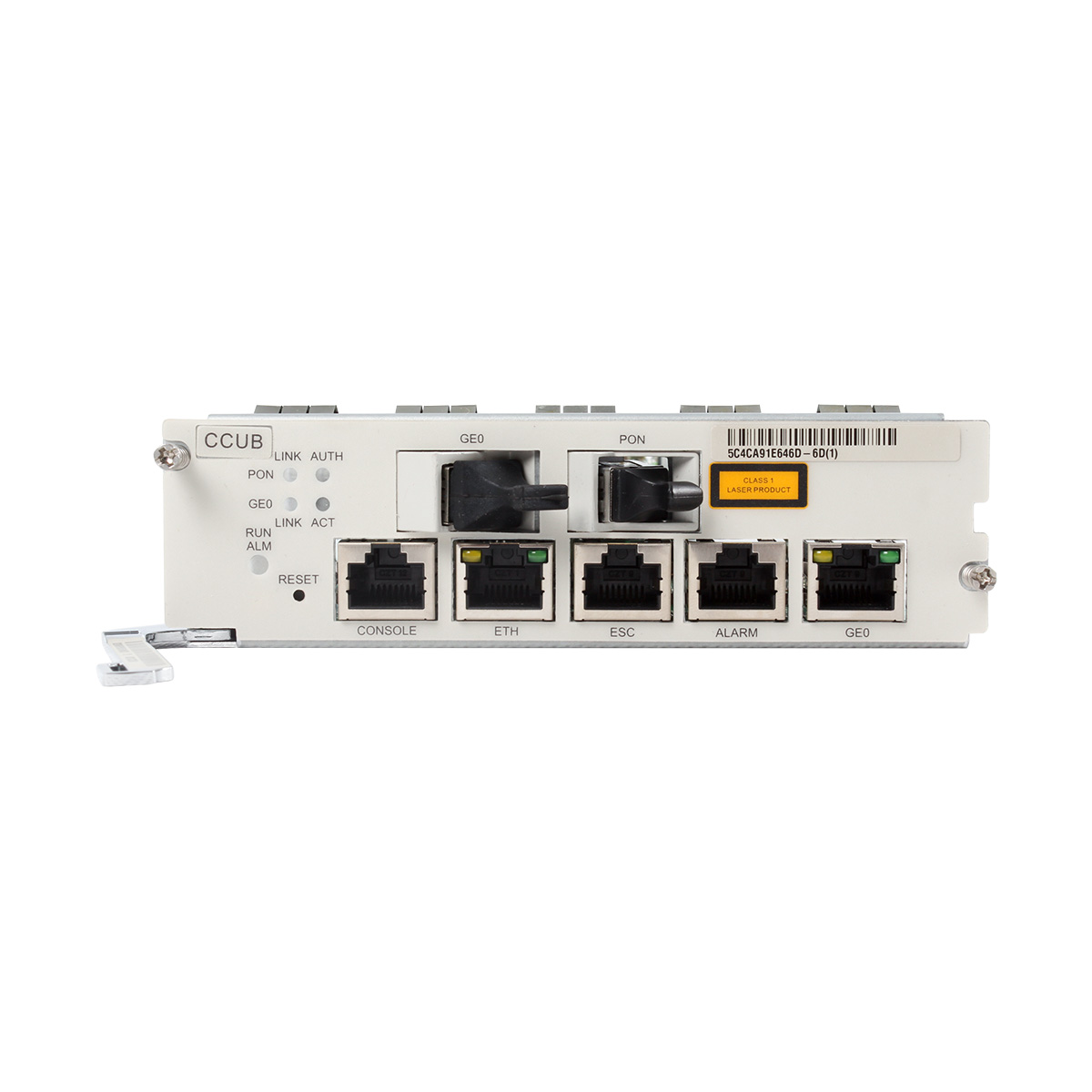

| Port on the Front Panel (on the Bottom Plate) | CONSOLE/ESC/ETH/ALARM/GE0 |
| Upstream Port (on the Daughter Board) | When the GE1A daughter board is configured: GE0 (SFP port)/GE1 (SFP port) |
| Operating temperature | -40℃ to 65℃; startup at -25℃ |
| Humidity | 5% to 95% (non-condensing) |
| Power supply | AC: 220 V/110 V, DC: -48 V |
| Clock features | Network time synchronization |
| Line clocks recovered on upstream ports | |
| Mechanical Specification | |
| Dimensions (H×W×D) | CCUB:140 mm x 220 mm x 40.14 mm |
