Description

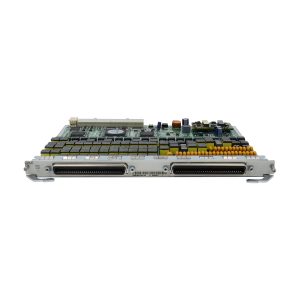

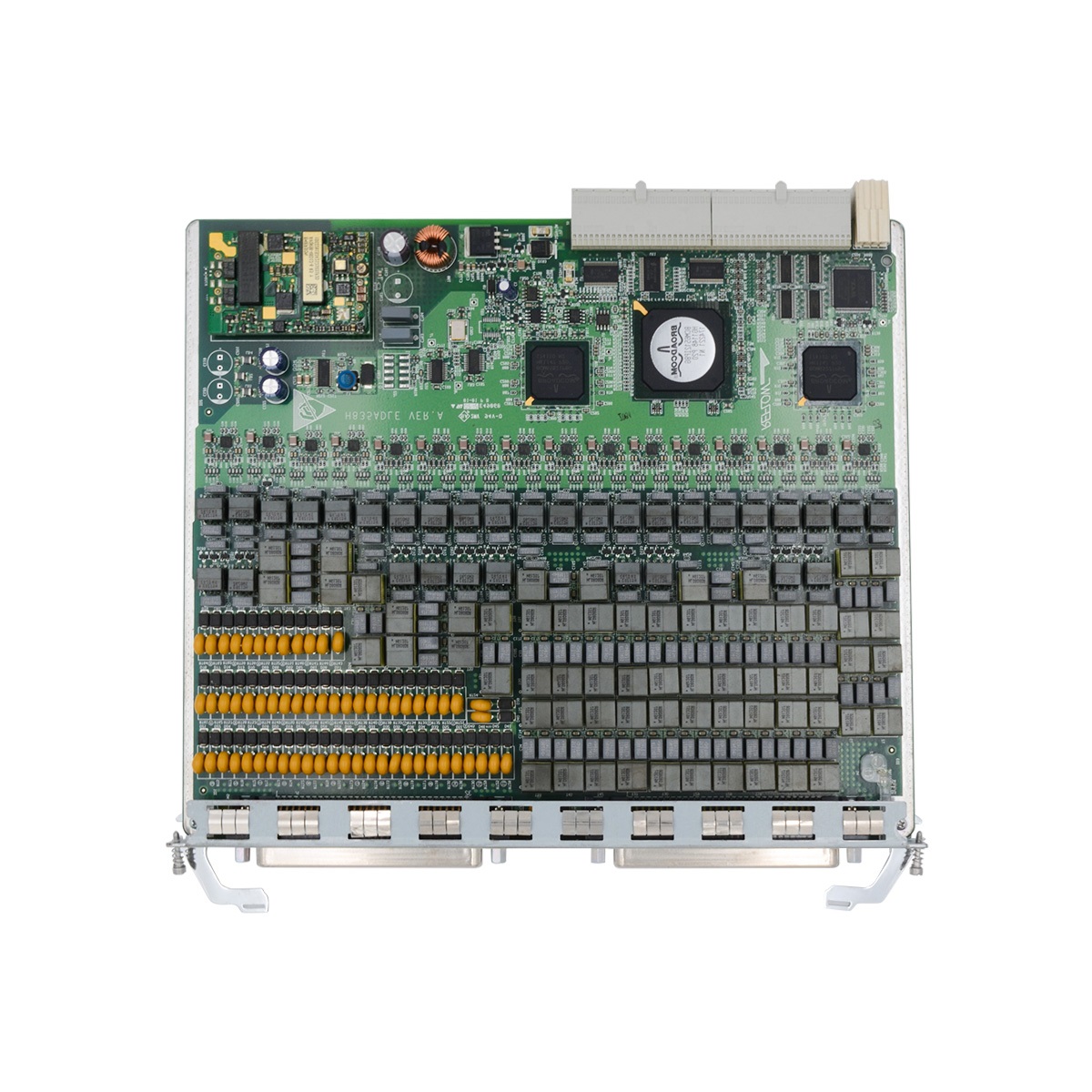

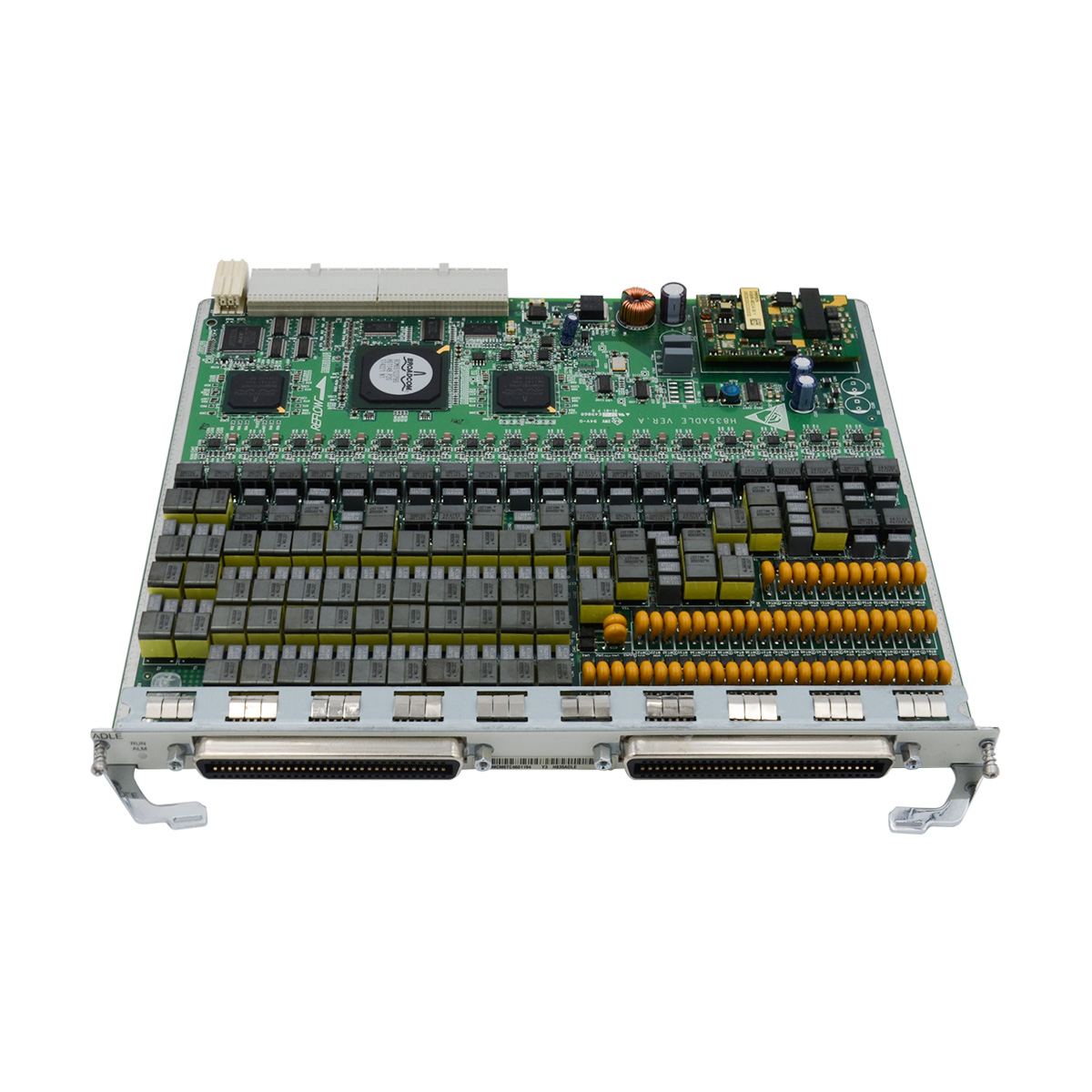

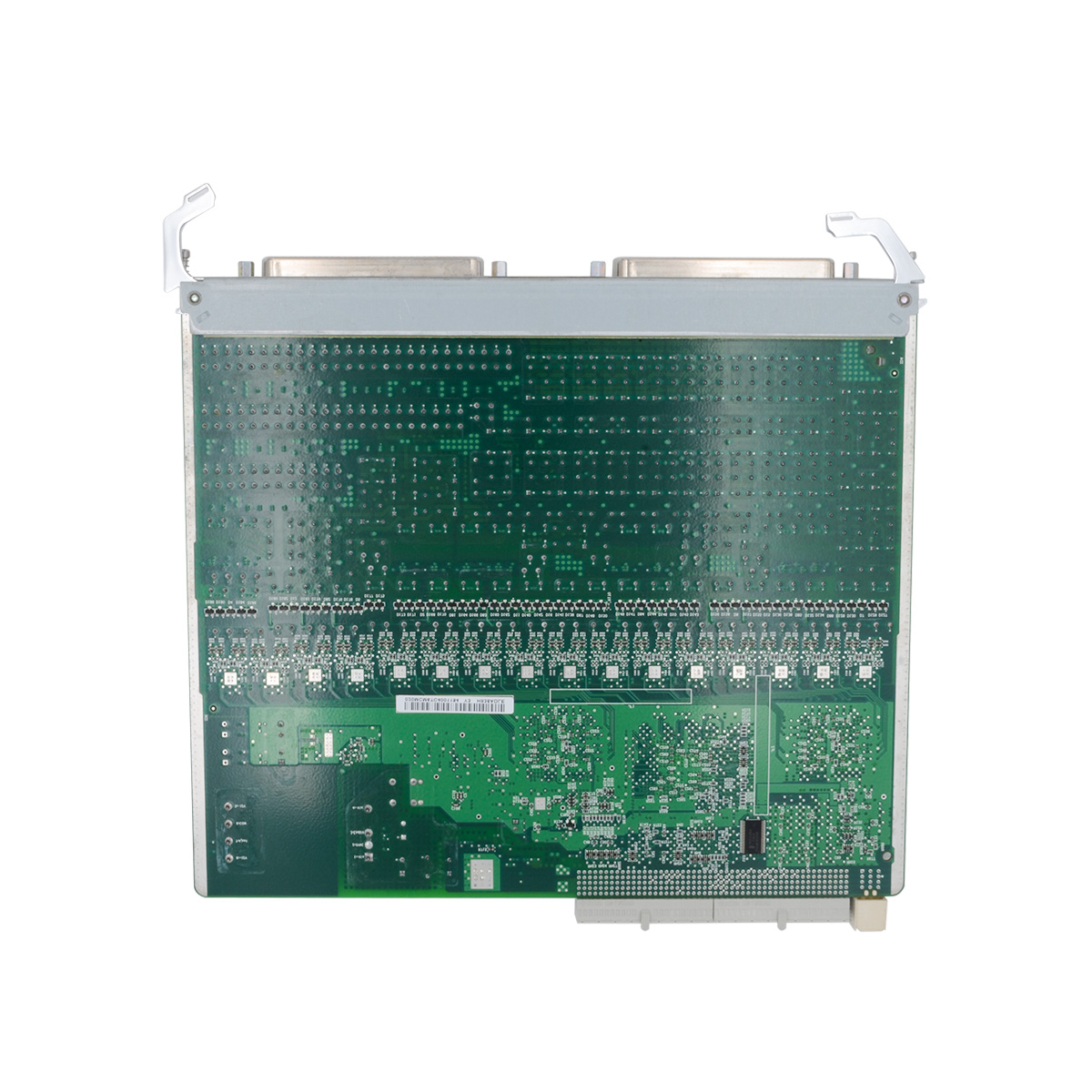

Huawei MA5616 32 channels ADSL2+ over POTS service board
| Specification | |
| PSTN port | transmits 32 channels of POTS signals separated by the built-in splitter of the H83A/H835/H836ADLE board |
| LINE port | Supports 32 channels of POTS and ADSL2+ integrated signals. Table 3 describes the pin assignments of the port. |
| Power Consumption | Static Power Consumption: 6~11W |
| Typical Power Consumption: 19~21W | |
| Maximum Power Consumption: 30~33W | |
| Operating temperature | -40℃ to 65℃; startup at -25℃ |
| Humidity | 5% to 95% (non-condensing) |
| Power supply | AC: 220 V/110 V, DC: -48 V |
| Clock features | Network time synchronization |
| Line clocks recovered on upstream ports | |
| Mechanical Specification | |
| Dimensions (H×W×D) | H835/H836ADLE: 265 mm x 220 mm x 20.32 mm |
| H83AADLE: 265 mm x 220 mm x 20.32 mm | |
