H836ADPE

1 Review Write a review
PN03021GKF
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

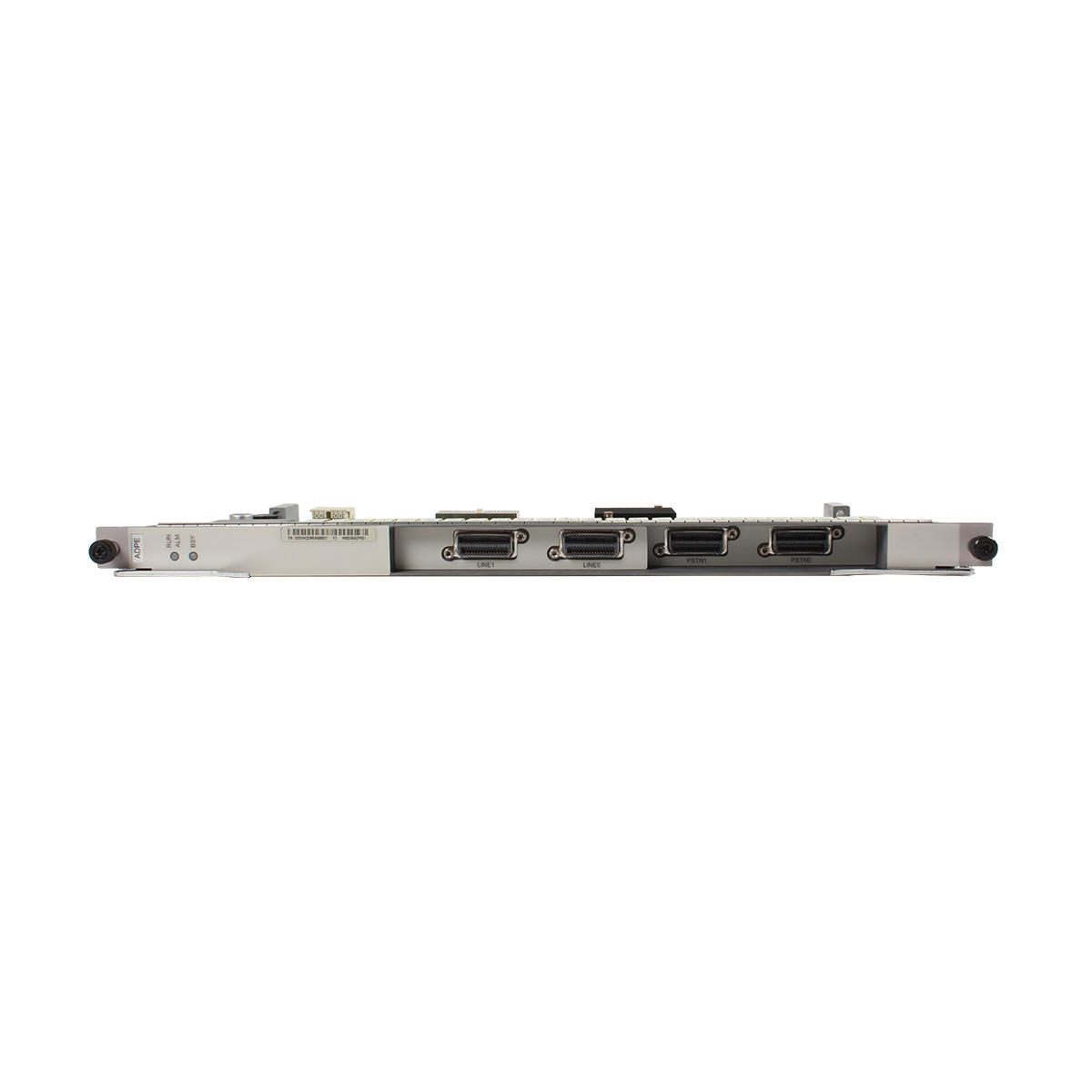

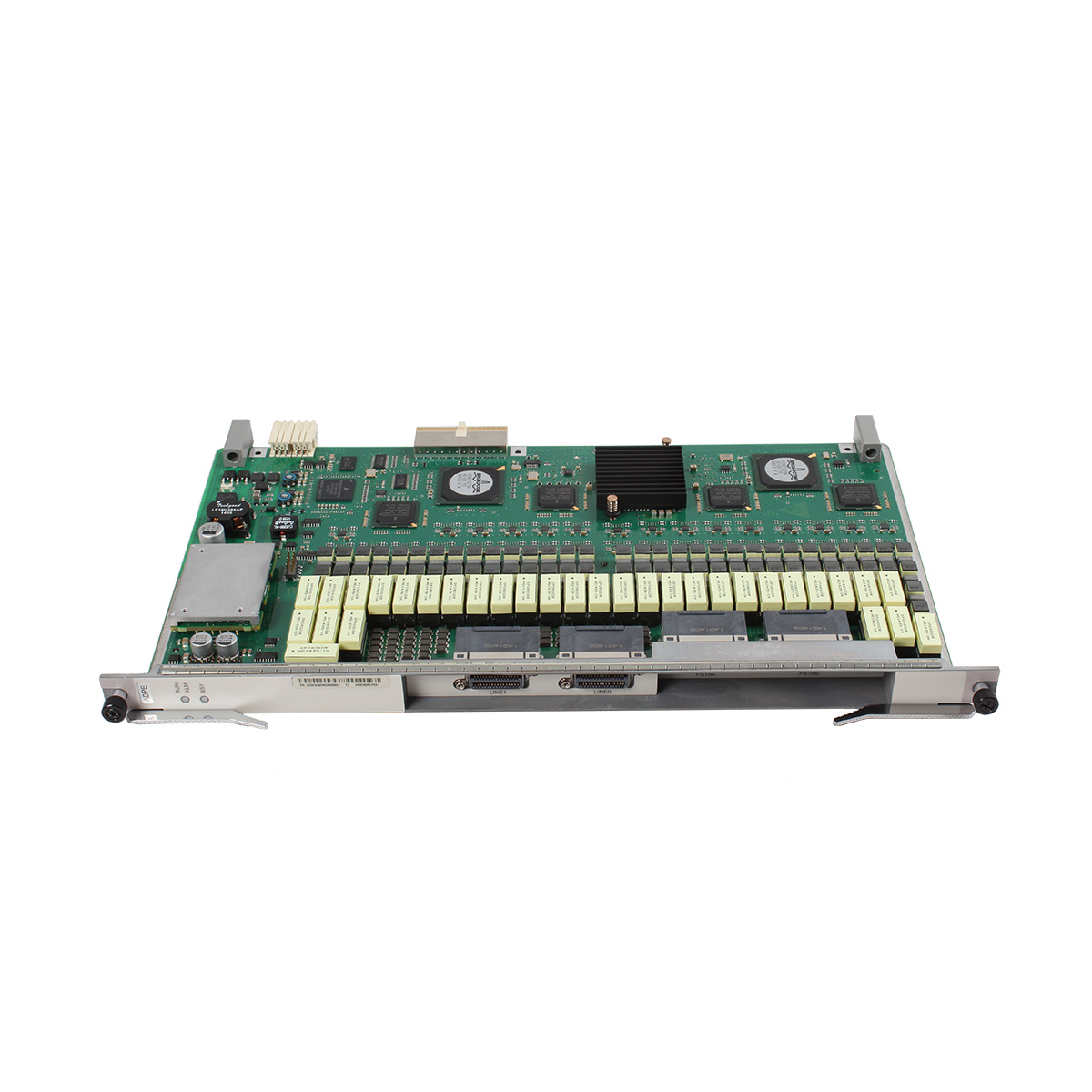

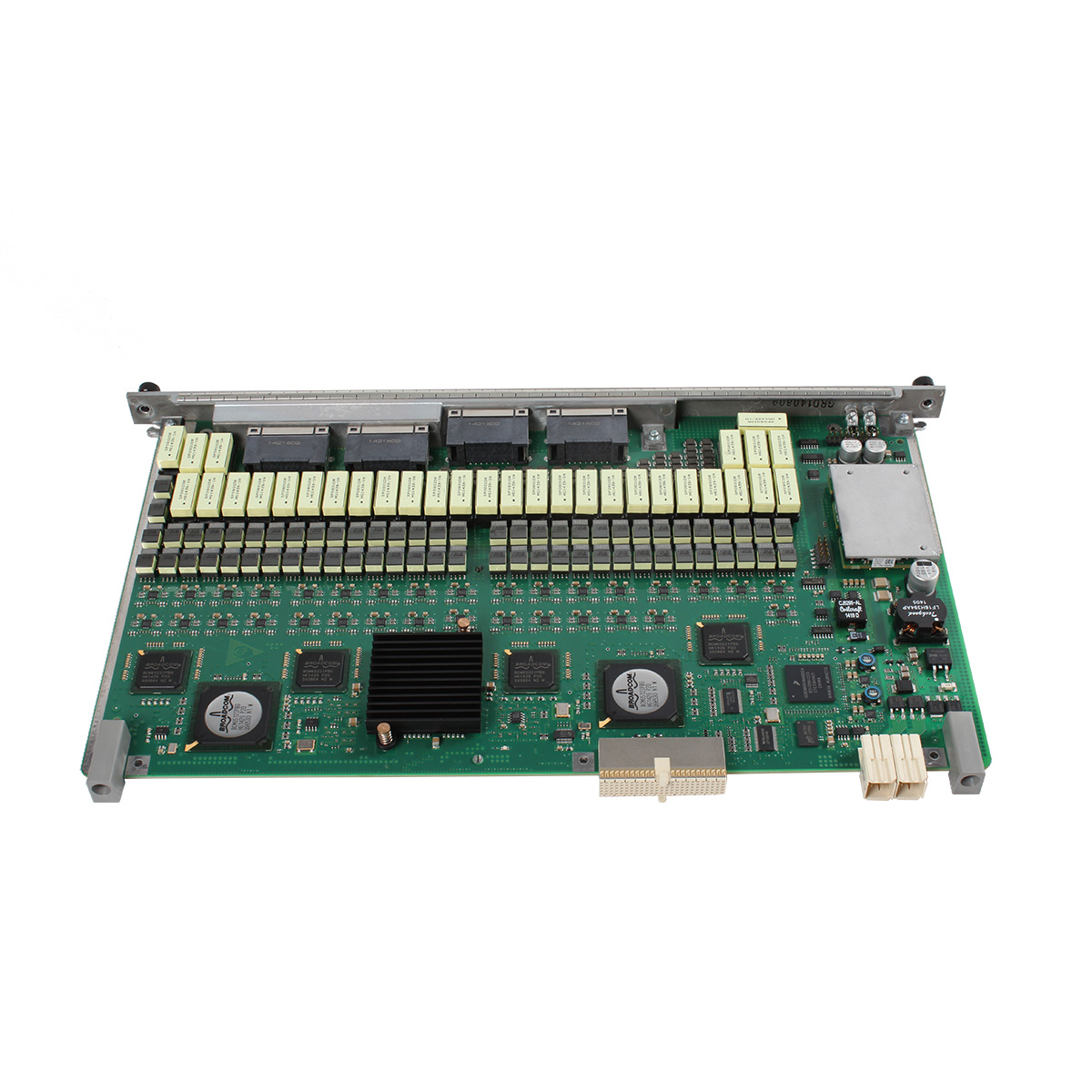

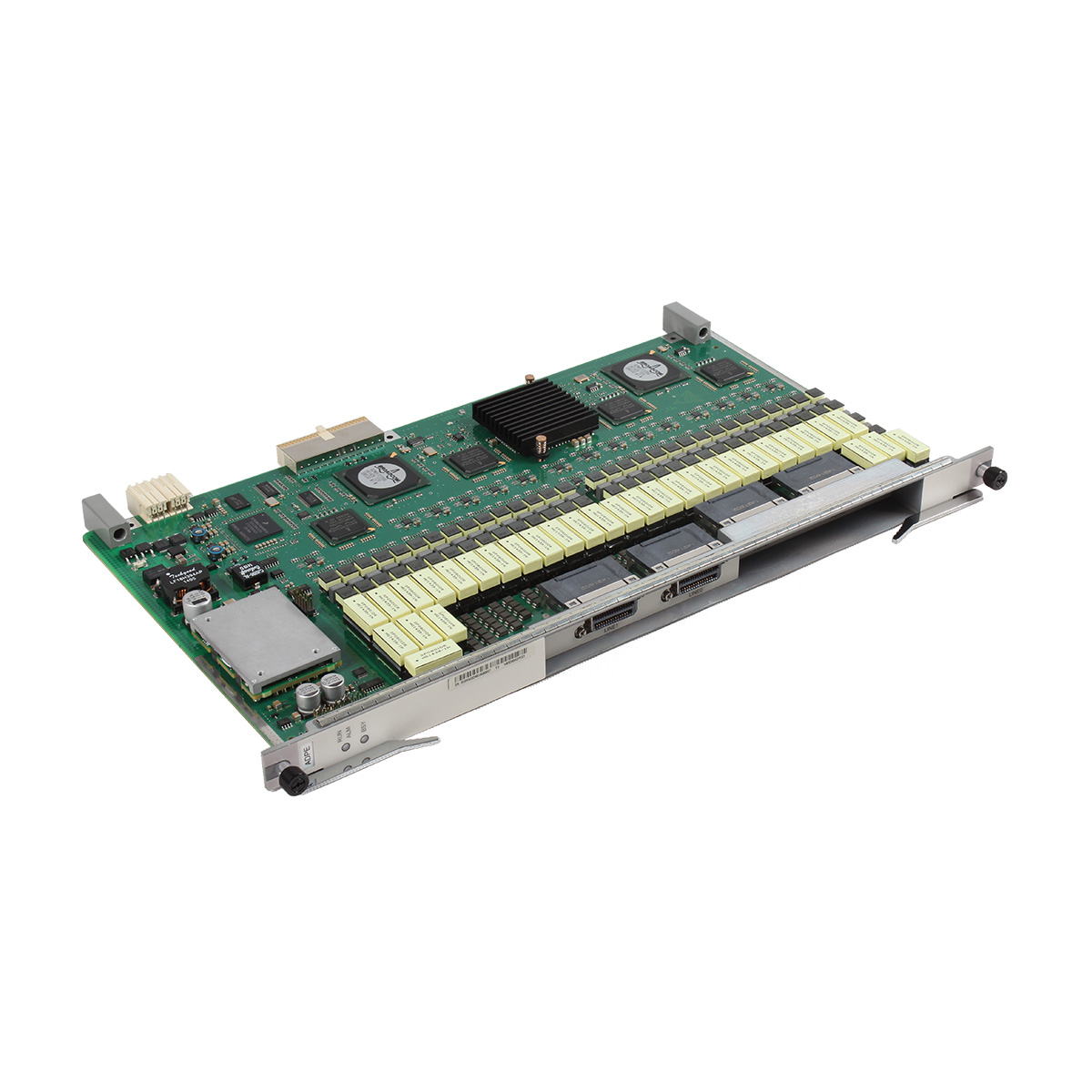

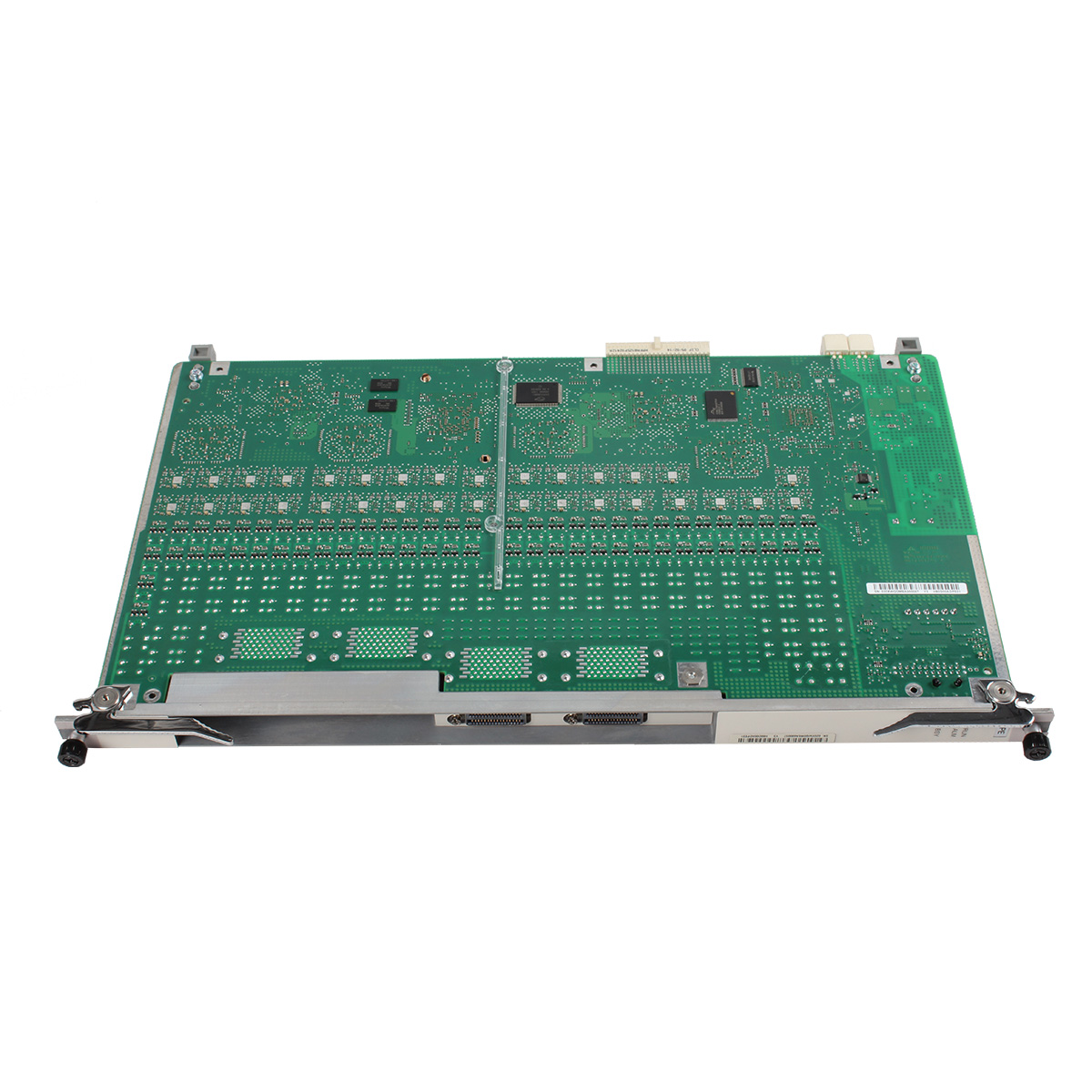

64 channels ADSL2+ over POTS service board

Description

Huawei MA5616 64 channels ADSL2+ over POTS service board can be configured with 3/5/10/20 meters Subscriber Cable.

Specification
PSTN1 port Transmits 32 channels of POTS signals (32-63) separated by the built-in splitter of the H836ADPE board
PSTN0 port Transmits 32 channels of POTS signals (0-31) separated by the built-in splitter of the H836ADPE board
LINE1 port Supports 32 channels of POTS and ADSL2+ integrated signals.
LINE0 port Supports 32 channels of POTS and ADSL2+ integrated signals.
Power Consumption Static Power Consumption: 12W
Typical Power Consumption: 32W
Maximum Power Consumption: 51W
Operating temperature -40℃ to 65℃; startup at -25℃
Humidity 5% to 95% (non-condensing)
Power supply AC: 220 V/110 V, DC: -48 V
Mechanical Specification
Dimensions (H×W×D) 265mm×220mm×20.32mm
