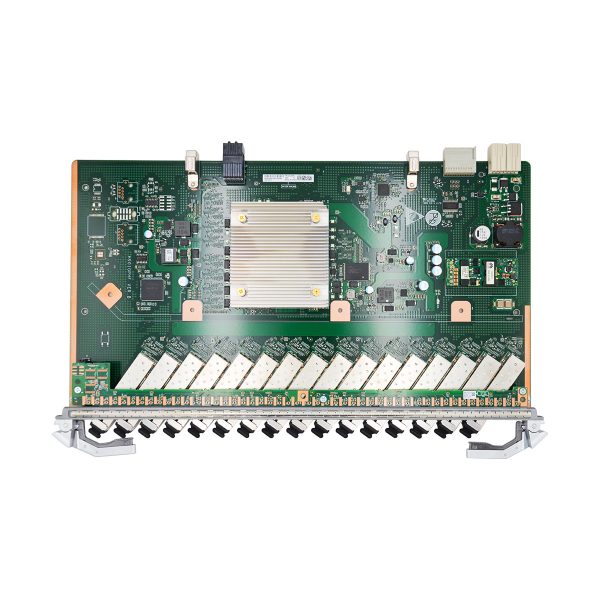

Huawei H901EPHF PX20++ 16-port EPON OLT interface board with PX20++ SFP module, apply to Huawei MA5800 series

SKU: 11007 PN: 03023APC Categories: ,


H901EPHF Overview

16-port EPON OLT interface board with PX20++ SFP module, apply to Huawei MA5800 series, MA5800-X2, X7, X15, X17 NG OLT system

Forwarding capality: 16 Gbit/s

Number of LLIDs supported by per PON port: 64

Service flows per PON board: 16368

Maximum number of MAC addresses: 131072

Max split radio 1:64, can maximum access 16*64 EPON subscribers

Port Rate: 1.25Gbit/s

Operating Wavelength: Tx: 1490 nm, Rx: 1310 nm

Standards Compliance: IEEE 802.3ah

PX20++ SFP Module Optical Power: 5dBm~9dBm, Receiver Sensitivity: -34dBm

Front Panel


H901EPHF Datasheet

Item H901EPHF
GPON Port 16-EPON Port
Forwarding Capality 16 Gbit/s

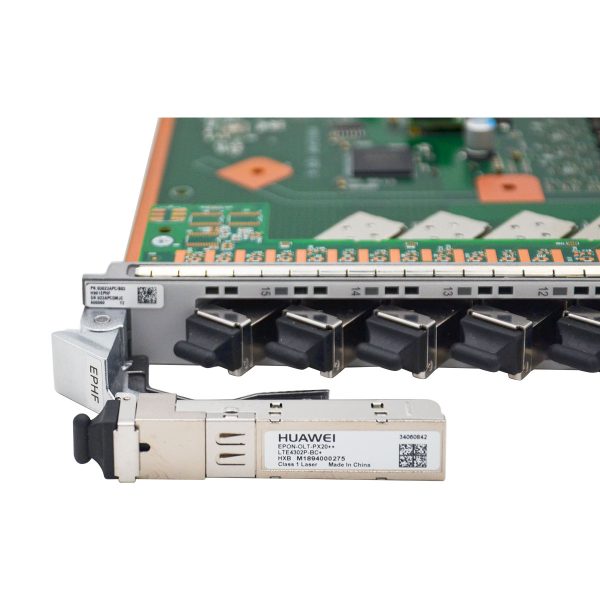

EPON SFP Module Specification
Type EPON Module : One-fiber bi-directional optical module, PX20++
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate 1.25Gbit/s
Minimun Output Optical Power 5.00 dBm
Maximum Output Optical Power 9.00 dBm
Maximum Receiver Sensitivity -34.00 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power -10.0 dBm
Extinction Ratio 9dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption
Power Consumption Static: 23W; Maximum:38W
Operating temperature -40°C to +65°C

Additional information

Weight 3.0000 kg
Dimensions 49.0000 × 32.5000 × 7.5000 cm

3 reviews for H901EPHF PX20++

  1. 5 out of 5


    I use 16-port EPON OLT interface board with PX20++ SFP module to apply to my Huawei MA5800 X7 NG OLT system. PX20++ SFP Module Optical Power can reach 5dBm~9dBm approximately.Really nice performance.

  2. 5 out of 5


    A great purchase experience we had, work well with my OLT. It came with PX20++ SFP Module Optical. I like this item very much.

  3. 5 out of 5


    The EPON module corresponds to the following
    PX20/B+; PX20+/C+; PX20++/C++.
