16-port GPON OLT interface board with B+/C+/C++ module, apply to Huawei MA5800 series

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

H901HGPUF Overview

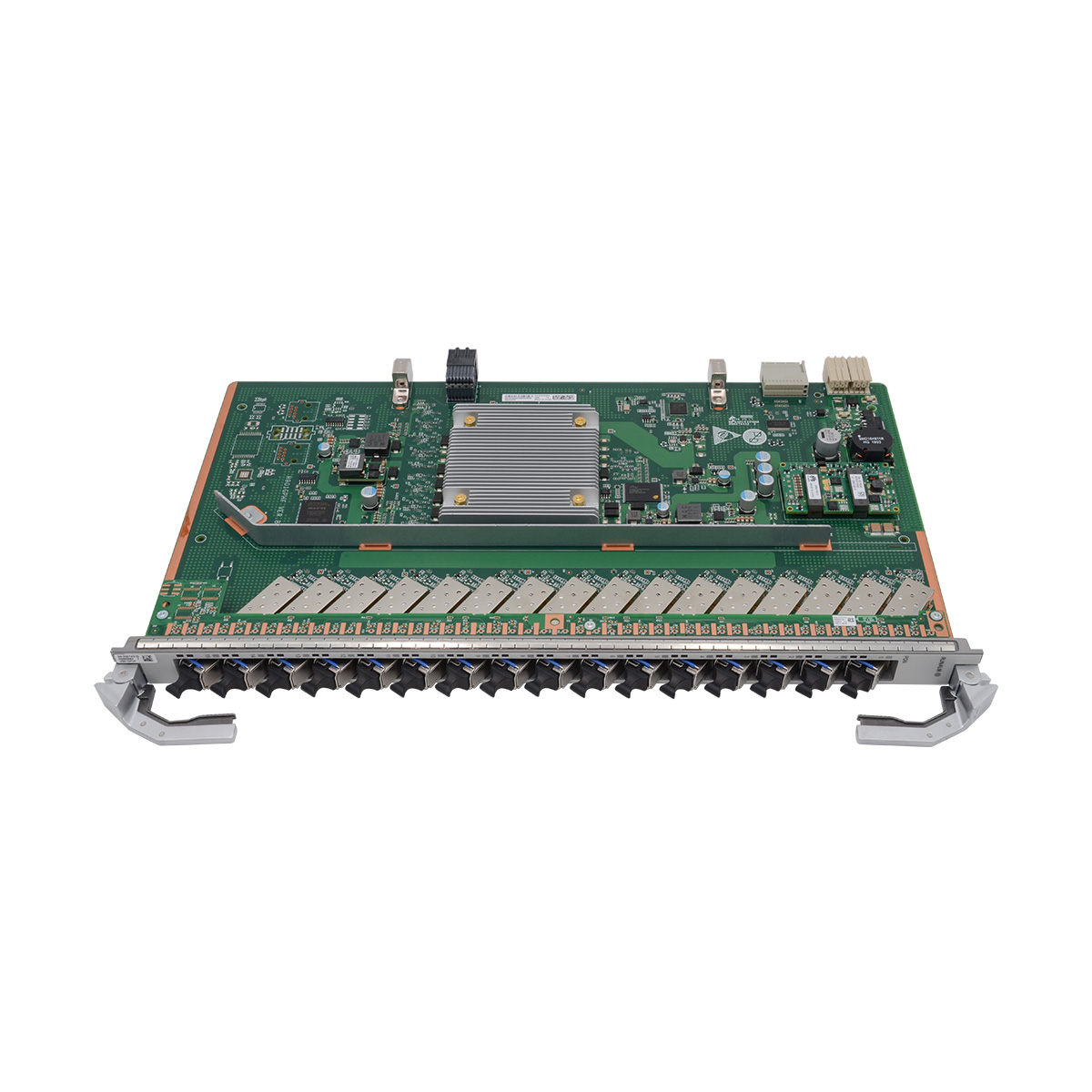

Huawei H901GPUF is a 16-GPON Port Interface Board with B+/C+/C++ SFP module, it works together with ONU to provide the GPON acess service, apply to Huawei MA5800-X2, X7, X15, X17 NG OLT system

Forwarding Capality: 40Gbit/s

Max. split radio: Class B+: 1:64; Class C+/++： 1:128
  • B+ SFP Module Optical Power: 1.5 dBm~5 dBm, Receiver Sensitivity: -28 dBm
  • C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm
  • C++ SFP Module Optical Power: 6 dBm~10dBm, Receiver sensitivity: -35 dBm
T-CONTs per PON port: 1024
Maximum number of MAC addresses: 32768
Service flows per PON board: 16368
Operating Wavelength: Tx: 1490 nm, Rx: 1310 nm
Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984

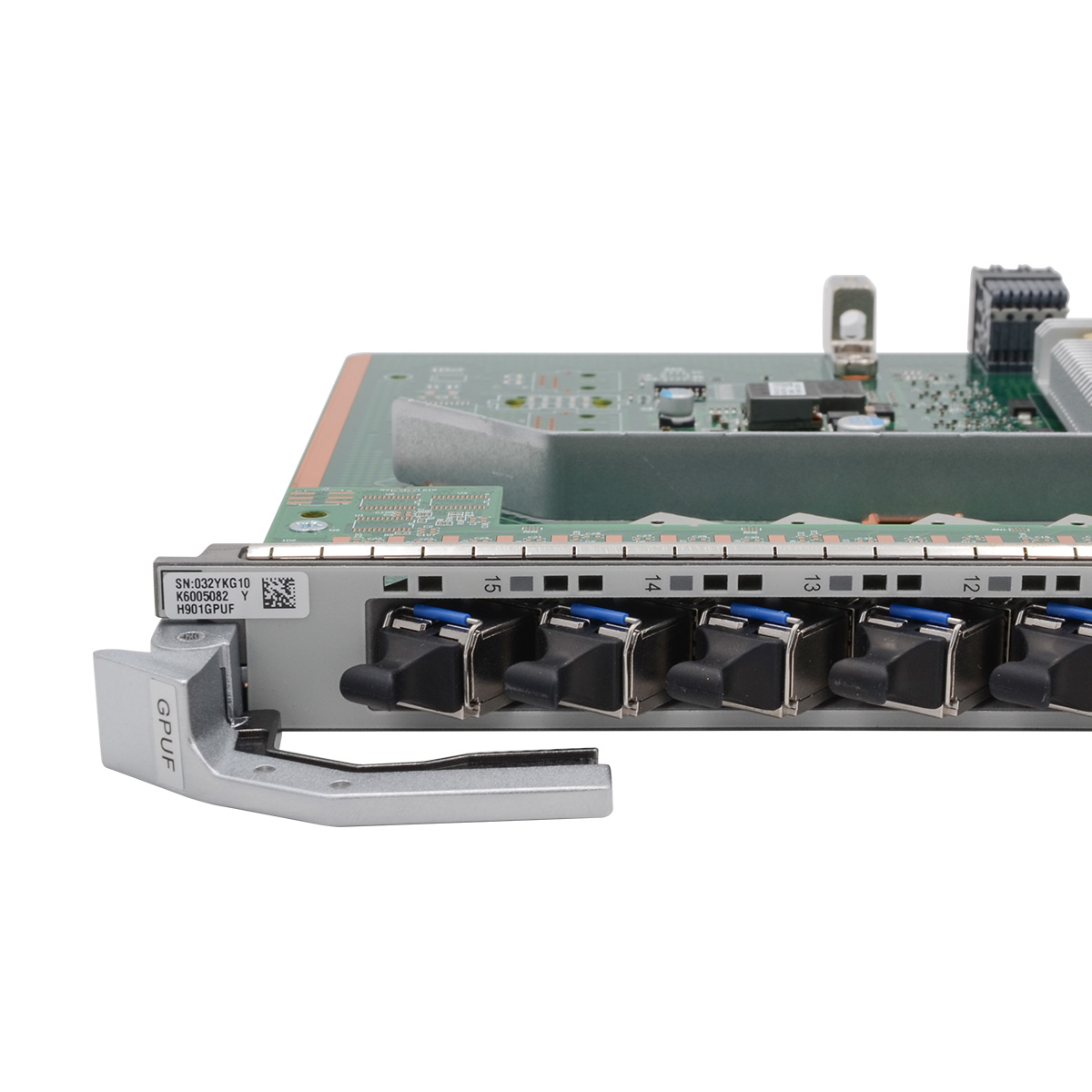

Front Panel

H901GPUF

H901GPUF Datasheet
Item H901GPUF
Service port
GPON Port 16-GPON Port
Forwarding Capality 40Gbit/s
Maximum distance difference between two ONUS under the same pon port 40km
T-CONTs per PON board 16368
Maximum frame size 2052 bytes
FEC Bidirection
CAR group Supported
HQoS Not supported
Variable-length OMCI Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(dual-homing) Not supported
Type B protection(single-homing) Supported
Type C protection(dual-homing) Not supported
Type C protection(single-homing) Supported
1588v2 Supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Not supported
GPON SFP Module Specification
Type B+ Module : One-fiber bi-directional optical module, class B+ C+ Module : One-fiber bi-directional optical module, class C+ C++ Module: One-fiber bi-directional optical module, class C++
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate
Class B+/C+: Tx:2.49Gbit/s Rx:1.24Gbit/s
Class C++: Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s
Minimun Output Optical Power B+ Module : 1.50 dBm C+ Module : 3.00 dBm C++ Module: 6.00 dBm
Maximum Output Optical Power B+ Module : 5.00 dBm C+ Module : 7.00 dBm C++ Module : 10.00 dBm
Maximum Receiver Sensitivity B+ Module : -28.00 dBm C+ Module : -32.00 dBm C++ Module: -35.00 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power B+ Module : -8.0 dBm C+ Module : -12.0 dBm C++ Module : -15.0 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption Static: 25W; Maximum:50W
Operating temperature -40°C to +65°C


What's the power module for MA5800 series OLT?

MA5800-X2: PISB-AC power module PISA: DC power module
MA5800-X7/X15/X17: PILA, -48V DC power module

How to add local digitmap for Huwei ONT?

Because the specific ONT model is unknown, you can refer to the general ONT configuration method for configuring the ONT digitmap.
1. Log in to the WebUI of the Huawei ONT.
2. In the navigation tree on the left, choose Advanced Configuration > Voice > VoIP Basic Configuration. In the pane on the right, parameters of a VoIP interface can be configured, including the IP addresses of the primary server and secondary server, and digitmap.

I have MA5800 with CSHF card. If I use XG-PON and XGS-PON ONTs mixed on a port. How can they share the download/upload bandwith?

When XG-PON and XGS-PON ONTs are mixed on the same PON port of an MA5800 with a CSHF card, they share the same optical wavelength for downstream but use different upstream channels.
In the downstream direction, both XG-PON and XGS-PON ONTs receive data from the same 10 Gbps wavelength. So if the XG-PON ONTs are using 5 Gbps, the remaining 5 Gbps can still be used by the XGS-PON ONTs. The total downstream capacity is shared dynamically among all ONTs connected to that port, depending on traffic demand and DBA (Dynamic Bandwidth Allocation) scheduling.
In the upstream direction, it’s different:
XG-PON uses a 2.5 Gbps upstream channel.
XGS-PON uses a 10 Gbps upstream channel.

What is the main architectural advantage of the MA5800?

MA5800 adopts a distributed architecture, meaning each service board has independent forwarding capability. This ensures higher performance, enhances reliability, and supports large-scale 10G PON deployments compared with MA5600T’s centralized architecture.

What QoS features are supported?

The QoS model implemented on the MA5800 is the differentiated service (DiffServ) model.
This model is based on priorities. In this model, the network identifies each data stream and provides corresponding QoS guarantees for the data streams. Traffic classification and priority marking are the prerequisites for using this model.
This model involves simple packet processing and is highly extendible. It is used for the following services:
*VoD
*Streaming media
*VoIP
*Video conferencing
