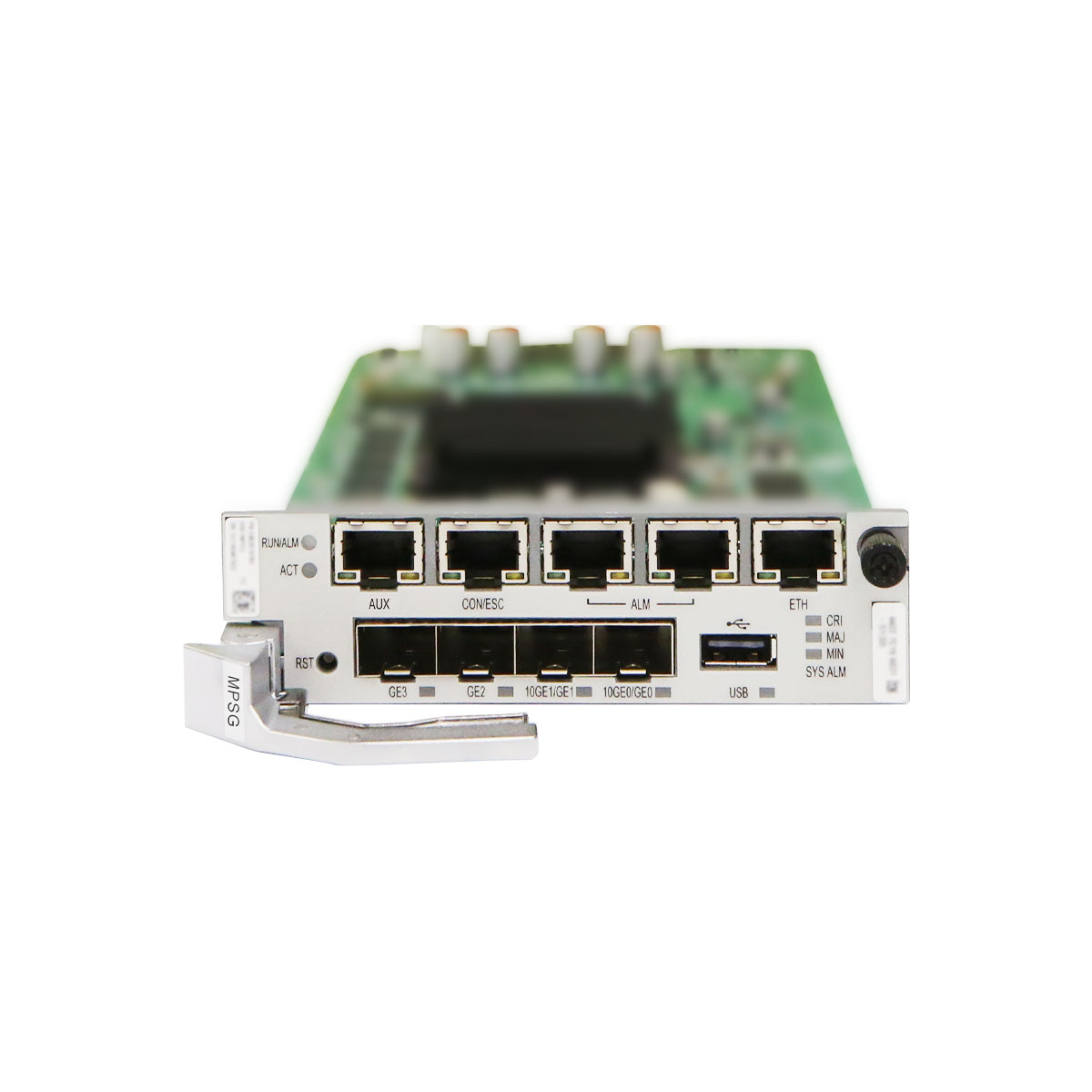

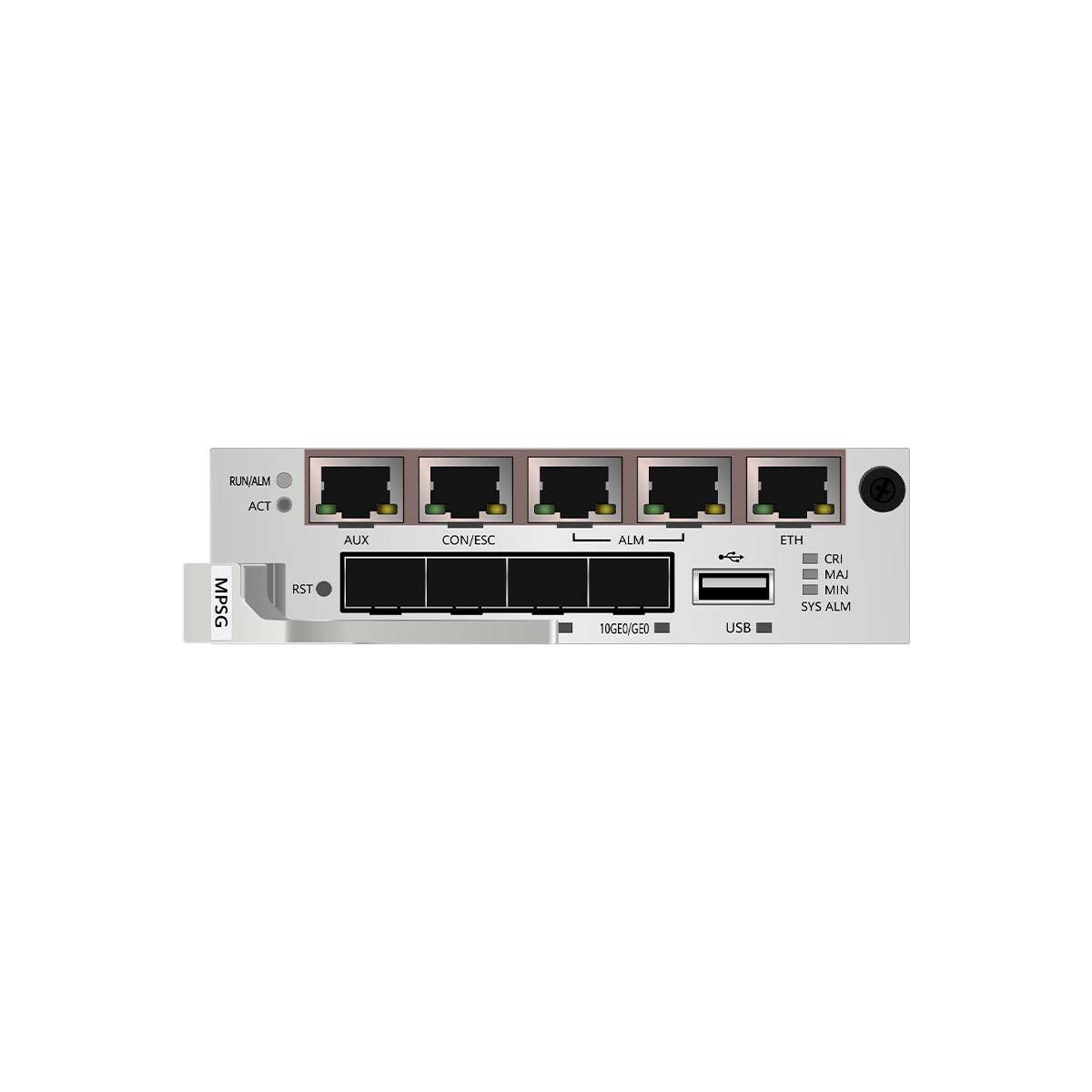

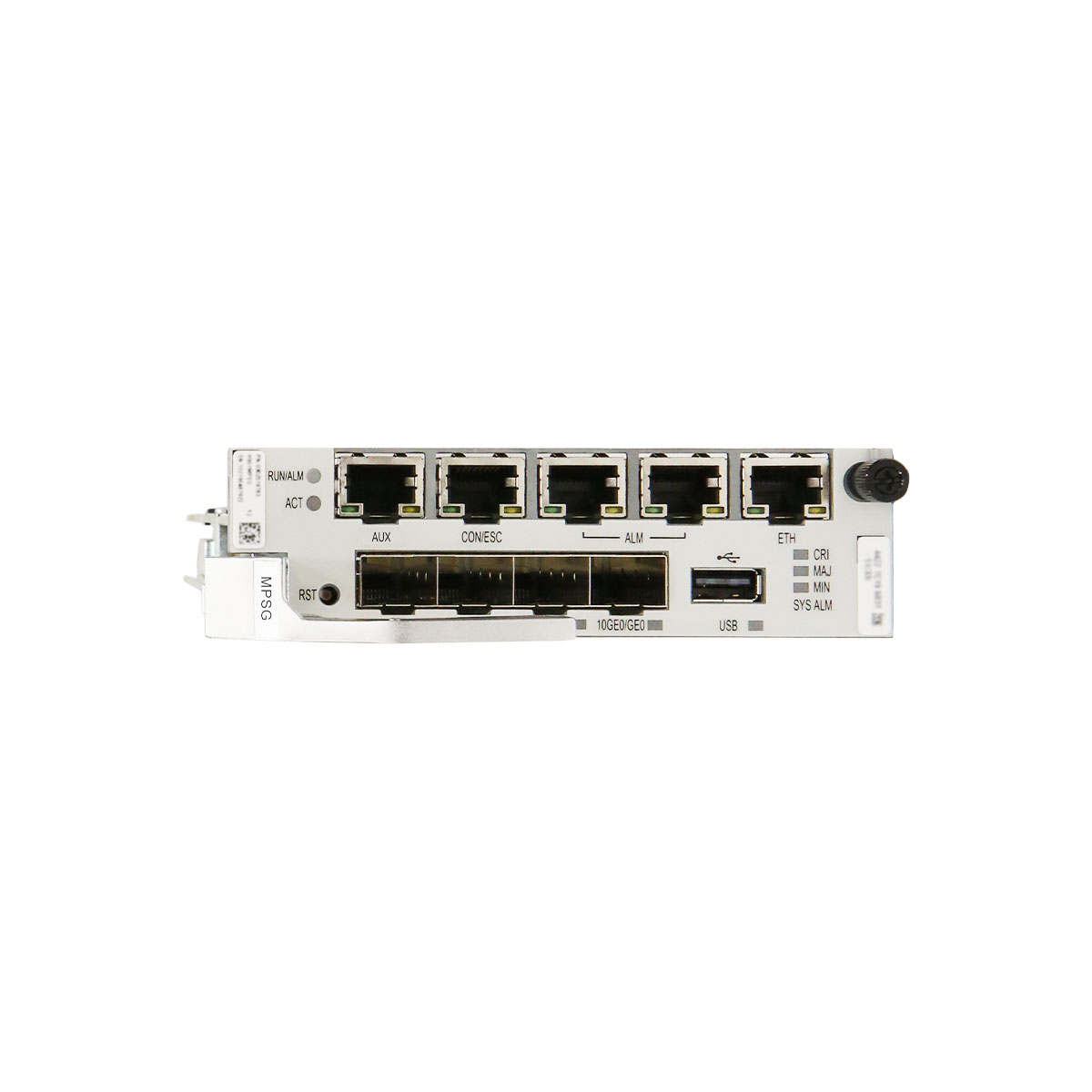

H901MPSG Main control board apply to Huawei MA5800 X2 integrated 2*10GE/GE+2*10GE uplink port
H901MPSG Overview
H901MPSG is a main control card of Huawei SmartAX MA5800-X2 NG OLT, It is the core of system control and service switching and aggregation.
Supports active/standby switchover at the control plane
Supports Max 40Gbit/s bandwidth
Supports 2*10GE/GE+2*10GE uplink port
| Item | H901MPSG |
| Bandwidth per slot | 40Gbit/s (load sharing mode) |
| MAC address table | 262143 |
| Access ONT | 4096 |
| Multicast user | 4096 |
| Static programs | 8192 |
| Online programs | IPv4: 2000; IPv6: 2000 |
| IPv4 routing table | 65536 |
| IPv6 routing table | 16384 |
| Service port | 32768 |
| ND table | 16384 |
| ARP table | 32768 |
| ALM port (Alarm digital parameters) | Y (7 Boolean value inputs and 1 Boolean value output) |
| Environment | |
| Operating temperature | -40°C to +65°C |
| Power consumption | Static: 26W Maximum: 41W |
| Mechanical Specification | |
| Dimensions(mm) | 35.28 (W)x 258.15 (D) x 130.36 (H) |
| Weight(kg) | 0.7 |
| Weight | 3.0000 kg |
|---|---|
| Dimensions | 49.0000 × 32.5000 × 7.5000 cm |
| MA5800 |
