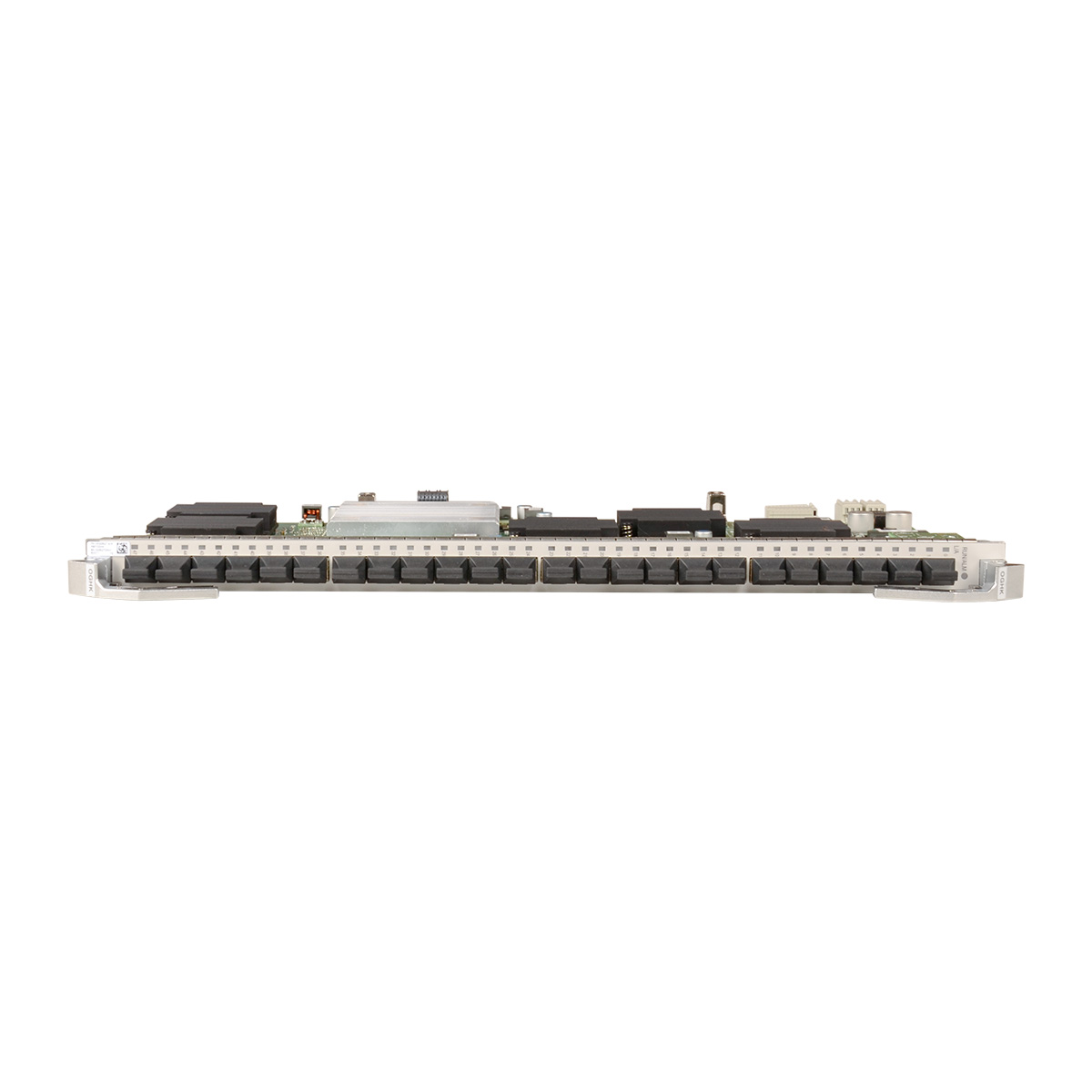

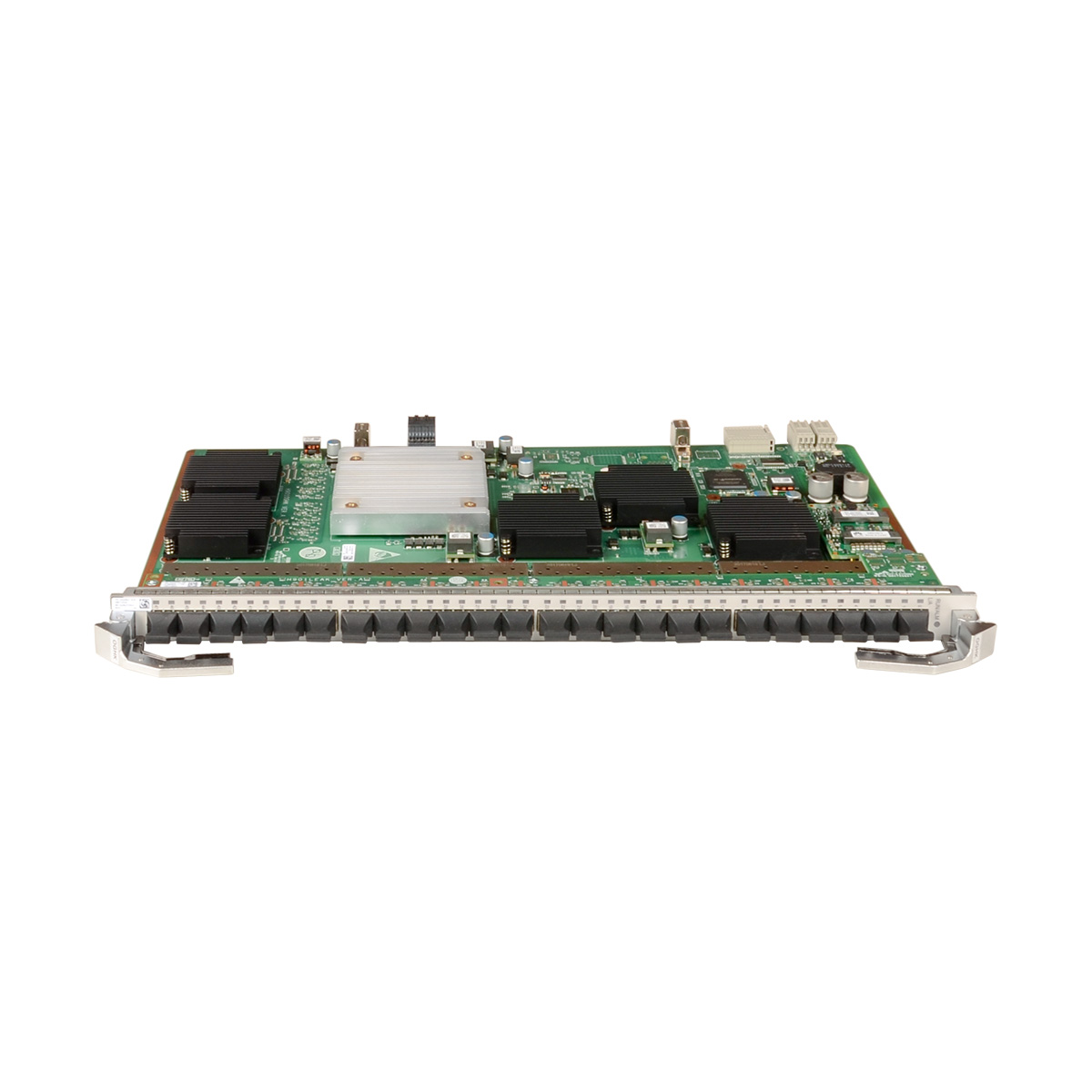

Huawei H901OGHK 48-channels GE/FE P2P interface board apply to Huawei MA5800 series
Huawei H901OGHK is a P2P interface board, providing Ethernet optical access. It supports a maximum of 48 channels of GE/FE P2P access services. Apply to Huawei MA5800-X2, X7, X15, X17
Forwarding capability: 40 Gbit/s
Maximum frame size:
2052 bytes
9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses: 131072
| Item | H901OGHK |
| Function | |
| Forwarding capability | 40 Gbit/s |
| MAC address number | 131072 |
| Shaping in inband and outband management | Supported |
| Link aggregation | Supported |
| MSTP ring network protection | Supported |
| Protection group | Supported |
| Temperature query | Supported |
| Automatic shutdown at high temperature | Supported |
| high temperature alarm | Supported |
| Clock synchronization | Supported |
| Maximum Frame Size | 2052 bytes 9216 bytes(jumbo frame enabled) |
| Environment | |
| Operating temperature | -40°C to +65°C |
| Power consumption |
Static: 42W Maximum: 75W |
| Weight | 3.5000 kg |
|---|---|
| Dimensions | 50.0000 × 33.0000 × 8.0000 cm |
| MA5800 |
| Item | H901OGHK |
| Function | |
| Forwarding capability | 40 Gbit/s |
| MAC address number | 131072 |
| Shaping in inband and outband management | Supported |
| Link aggregation | Supported |
| MSTP ring network protection | Supported |
| Protection group | Supported |
| Temperature query | Supported |
| Automatic shutdown at high temperature | Supported |
| high temperature alarm | Supported |
| Clock synchronization | Supported |
| Maximum Frame Size | 2052 bytes 9216 bytes(jumbo frame enabled) |
| Environment | |
| Operating temperature | -40°C to +65°C |
| Power consumption |
Static: 42W Maximum: 75W |
