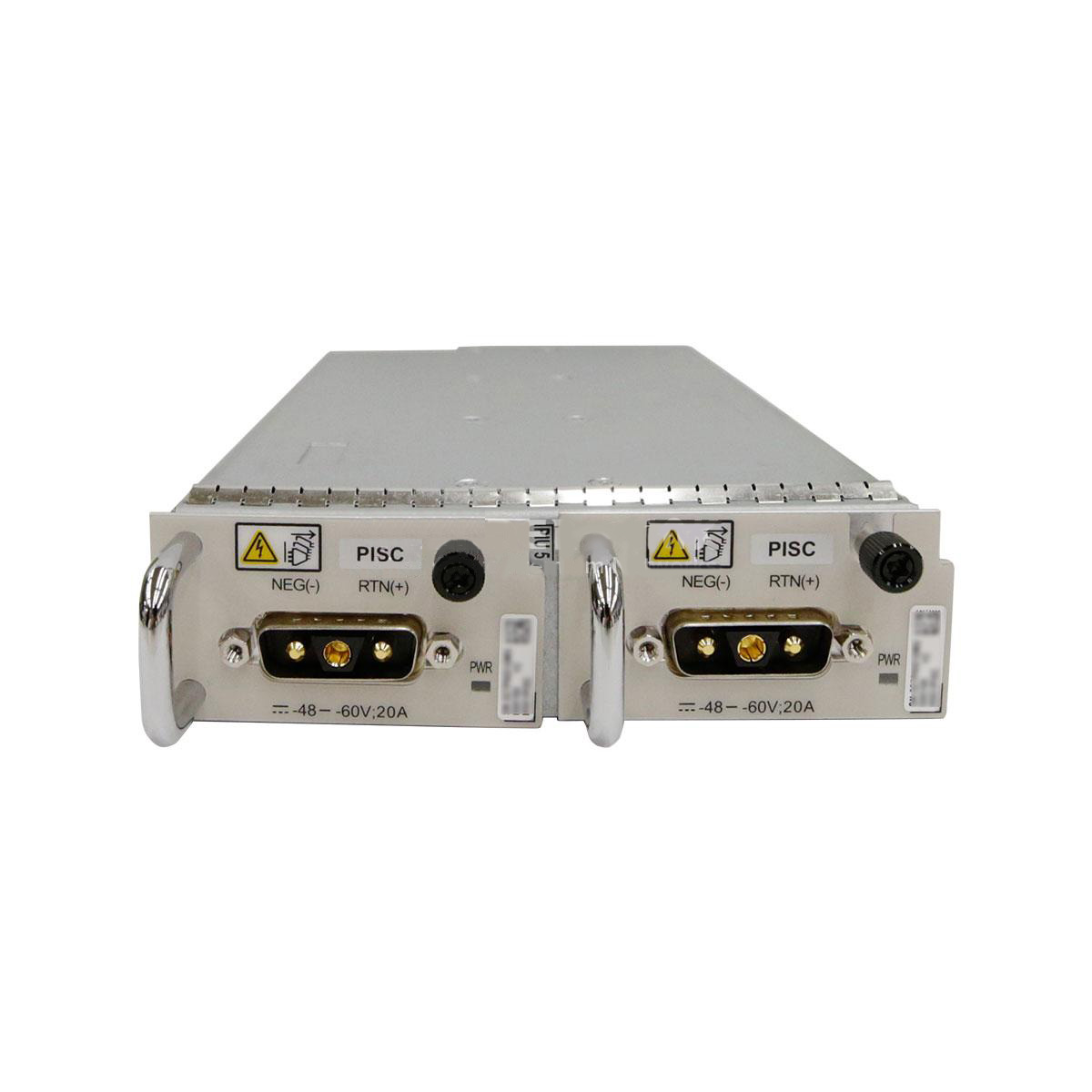

Huawei H901PISC DC power board, apply to Huawei MA5800 series OLT
The board is a power transfer board. It leads in channels of -48 V or -60 V DC power, and transfers the power to the protection circuit, then to the filter circuit, and finally to the backplane, supplying power to the other boards.
| Item | Details |
|---|---|
| Description | DC Power Board,Complete Set |
| Part Number | 02313ATW |
| Model | H901PISC |
| Card type | Power board |
| Silkscreen | PISC |
| Item | H901PISC |
| Board detection | Y |
| Filtering and current-limiting for the power input port | Y |
| Detection of protection fuse faults | Y |
| Protection alarm | Y |
| Energy consumption management | Y |
| Detection of power input | Y |
| Dimensions without packaging (H x W x D) [mm] | 130.00 mm x 35.28 mm x 253.00 mm |
| Weight without packaging [kg] | 0.79 kg |
| Number of power inputs | 2 |
| Rated input voltage | -48V/-60V DC |
| Input voltage range | -38.4V to -72V |
| Static power consumption [W] | 2.5 W |
| Maximum power consumption [W] | 3 W |
| Operating temperature [°C] | -40°C to +65°C |
| Maximum Frame Size of Boards (Default) [bytes] | N/A |
| Maximum Frame Size of Boards (jumbo frame enabled) [bytes] | N/A |
| Maximum split ratio | N/A |
What sub-rack models are available in the MA5800 series?
*MA5800-X2: 2 service slots
*MA5800-X7: 7 service slots
*MA5800-X15: 15 service slots
All models share the same software system and service boards.
Does the MA5800 support IPv6?
Yes. Supports:
*IPv4/IPv6 dual-stack
*IPv6 over PPPoE/IPoE
*DHCPv6
*SLAAC
*IPv6 multicast
Ensuring future-proof network evolution.
What service boards are supported for MA5800 series OLT?
GPON Board: GPHF/GPUF/GPLF/GPSF
XGPON Board: XGHD
GPON&XGPON combo Board: CGHF
XGS-PON Board: XSHF/XSHD
XGS-PON&GPON combo Board: CSHF
Flex-PON Board: FLHF
What QoS features are supported?
The QoS model implemented on the MA5800 is the differentiated service (DiffServ) model.
This model is based on priorities. In this model, the network identifies each data stream and provides corresponding QoS guarantees for the data streams. Traffic classification and priority marking are the prerequisites for using this model.
This model involves simple packet processing and is highly extendible. It is used for the following services:
*VoD
*Streaming media
*VoIP
*Video conferencing
*Private-line services
What's the power module for MA5800 series OLT?
MA5800-X2: PISB-AC power module PISA: DC power module
MA5800-X7/X15/X17: PILA, -48V DC power module
| Weight | 3.0000 kg |
|---|
