huawei-ma5800 XGS-PON Board
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei H901XSED MA5800 series 8-port Symmetric 10G GPON (XGS-PON) OLT interface board, apply to Huawei MA5800 series

Description

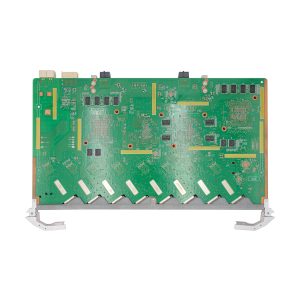

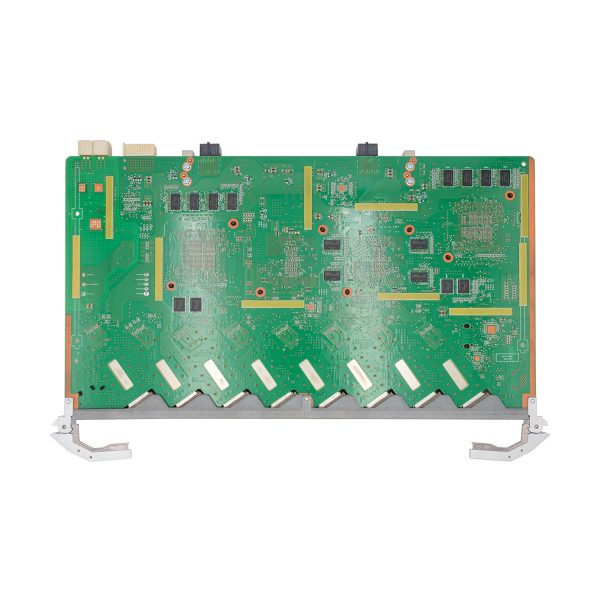

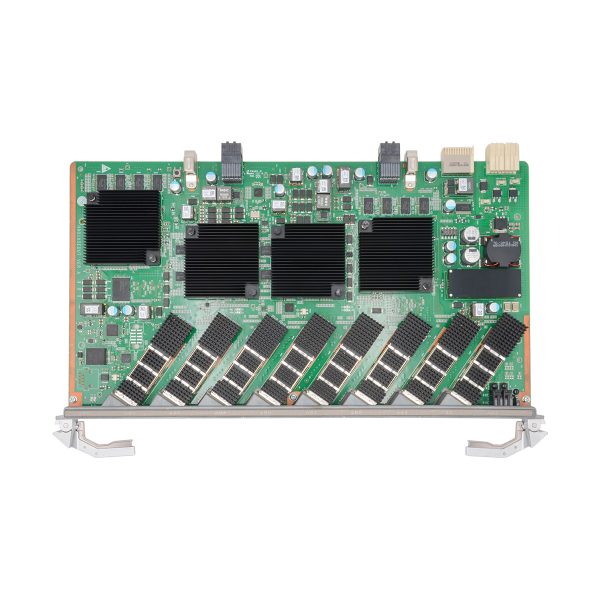

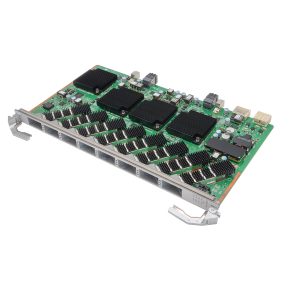

H901XSED Overview

Huawei H901XSED is an 8-port Symmetric XGS-PON OLT Interface Board apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system, and it works together with the ONU to provide symmetric XGS-PON access services.

Forwarding capability: 80Gbit/s

Maximum split ration 1:256

Rate mode: Asymmetric & Symmetric



Maximum Frame Size:
2052 bytes
9216 bytes (jumbo frame enabled)
Port Rate

Upstream: 9.953 Gbit/s & 2.488G bit/s

Downstream: 9.953 Gbit/s

T-CONTs per PON port: 2048
Maximum number of MAC addresses: 131072
Service flows per PON board: 16376
Maximum distance difference between two ONUS under the same pon port: 40 km

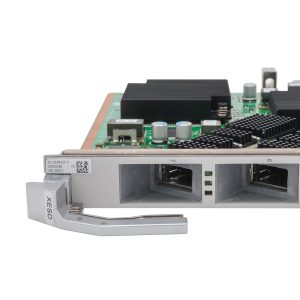

Front Panel

H901XSED

H901XSED Datasheet
Item H901XSED
Service ports
GPON Port 8 Symmetric 10G GPON Port
Forwarding capability 80 Gbit/s
Rate mode Asymmetric Symmetric
T-CONTs per PON port 2048
Service flows per PON board 16376
Maximum Frame Size 2052 bytes 9216 bytes (jumbo frame enabled)
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUs under the same PON port 40 km
FEC Bidirection
CAR group Supported
HQoS Supported
Variable-length OMCI Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(single-homing) Supported
Type B protection(dual-homing) Not supported
Rogue ONT detection and isolation Supported
1588v2 Not supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Supported
Device Specifications
Dimensions (W x D x H) 23.30 mm * 257.90 mm * 399.20 mm
Power Consumption Static: 108 W; Maximum: 151 W
Operating temperature -40°C to +55°C (in MA5800–X17/X15/X7) or -40°C to +65°C (in MA5800–X2)

What are the differences between MPLA and MPLB? What versions are available?

MPLA and MPLB both integrated with4*GE/10GE uplink port, the difference is that MPLA supports 100G slot bandwidth, while MPLB supports 200G.
Currently available version are H901/H902/H903/H907MPLB and H901/H902/H903/H905MPLA.

What's the power module for MA5800 series OLT?

MA5800-X2: PISB-AC power module PISA: DC power module
MA5800-X7/X15/X17: PILA, -48V DC power module

What QoS features are supported?

The QoS model implemented on the MA5800 is the differentiated service (DiffServ) model.
This model is based on priorities. In this model, the network identifies each data stream and provides corresponding QoS guarantees for the data streams. Traffic classification and priority marking are the prerequisites for using this model.
This model involves simple packet processing and is highly extendible. It is used for the following services:
*VoD
*Streaming media
*VoIP
*Video conferencing
*Private-line services

What is the main architectural advantage of the MA5800?

MA5800 adopts a distributed architecture, meaning each service board has independent forwarding capability. This ensures higher performance, enhances reliability, and supports large-scale 10G PON deployments compared with MA5600T’s centralized architecture.

What service boards are supported for MA5800 series OLT?

GPON Board: GPHF/GPUF/GPLF/GPSF
XGPON Board: XGHD
GPON&XGPON combo Board: CGHF
XGS-PON Board: XSHF/XSHD
XGS-PON&GPON combo Board: CSHF
Flex-PON Board: FLHF

Additional information

Weight 3.0000 kg
Dimensions 49.0000 × 32.5000 × 7.5000 cm
