H902XSHD Overview

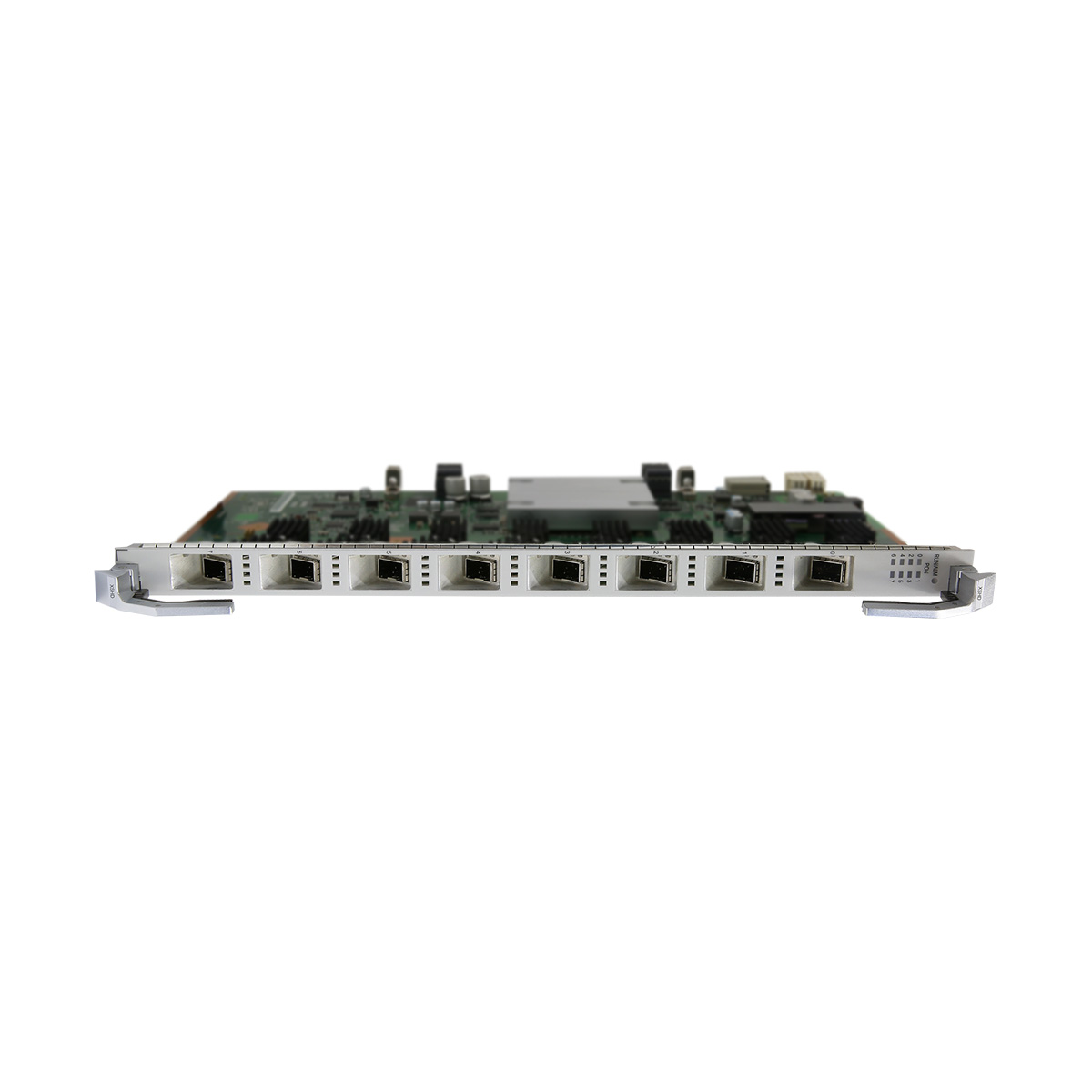

Huawei H902XSHD is an 8-port XGS-PON interface board with XGS-PON N1/N2 optical module. It works together with optical network unit(ONU) to provide XS(S)-PON access services.

Forwarding Capability: 80 Gbit/s

Max split radio: 1:256
Maximum Frame Size:
2052 bytes
9216 bytes (jumbo frame enabled)
T-CONTs per PON port: 2048
Maximum number of MAC addresses: 131072
Service flows per PON board: 16376
Maximum distance difference between two ONUS under the same pon port: 40 km
Tx: 9.953 Gbit/s
Rx: 9.953/2.488 Gbit/s

Front Panel

H902XSHD
H902XSHD Datasheet
Item H902XSHD
Service ports
Port 8
Forwarding capability 80 Gbit/s
Rate mode Asymmetric rate Symmetric rate
T-CONTs per PON port 2048
Service flows per PON board 16376
Maximum frame size 2052 bytes 9216 bytes(jumbo frame enabled）
Maximum number of MAC addresses 131072
Maximum distance difference between two ONUS under the same pon port 40km
FEC Bidirection
CAR group Supported
Variable-length OMCI Supported
HQoS Supported
ONU-based shaping or queue-based shaping Supported
Type B protection(dual-homing) Supported
Type B protection(single-homing) Supported
Type C protection(dual-homing) Supported
Type C protection(single-homing) Supported
1588v2 Supported
Rogue ONT detection and isolation Supported
Automatic shutdown at high temperature Supported
Energy saving for service boards Supported
D-CCAP Supported
GPON SFP Module Specification
Type N1 Module: One-fiber bidirectional optical module, N1 N2 Module: One-fiber bidirectional optical module, N2
Operating Wavelength N1/N2 Module: Tx: 1577 nm Rx: 1270 nm
Encapsulation Type SFP+
Port Rate N1/N2 Module: Tx: 9.953 Gbit/s Rx: 9.953/2.488 Gbit/s
Minimun Output Optical Power N1 Module: 2 dBm N2 Module: 4 dBm
Maximum Output Optical Power N1 Module: 5 dBm N2 Module: 7 dBm
Maximum Receiver Sensitivity N1 Module: XG-PON channel: -27.5 dBm XGS-PON channel: -26 dBm N2 Module: XG-PON channel: -29.5 dBm XGS-PON channel: -28 dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power N1 Module: XG-PON channel: -7 dBm XGS-PON channel: -5 dBm N2 Module: XG-PON channel: -9 dBm XGS-PON channel: -7 dBm
Extinction Ratio 8.2 dB
Dimensions (W x D x H) 23.3 mm x 257.90 mm x 399.20 mm
Power Consumption Static: 26 W Maximum: 48 W
Operating temperature -40°C to +65°C

What's the power module for MA5800 series OLT?

MA5800-X2: PISB-AC power module PISA: DC power module
MA5800-X7/X15/X17: PILA, -48V DC power module

Does the MA5800 support IPv6?

Yes. Supports:
*IPv4/IPv6 dual-stack
*IPv6 over PPPoE/IPoE
*DHCPv6
*SLAAC
*IPv6 multicast
Ensuring future-proof network evolution.

How to add local digitmap for Huwei ONT?

Because the specific ONT model is unknown, you can refer to the general ONT configuration method for configuring the ONT digitmap.
1. Log in to the WebUI of the Huawei ONT.
2. In the navigation tree on the left, choose Advanced Configuration > Voice > VoIP Basic Configuration. In the pane on the right, parameters of a VoIP interface can be configured, including the IP addresses of the primary server and secondary server, and digitmap.

I have MA5800 with CSHF card. If I use XG-PON and XGS-PON ONTs mixed on a port. How can they share the download/upload bandwith?

When XG-PON and XGS-PON ONTs are mixed on the same PON port of an MA5800 with a CSHF card, they share the same optical wavelength for downstream but use different upstream channels.
In the downstream direction, both XG-PON and XGS-PON ONTs receive data from the same 10 Gbps wavelength. So if the XG-PON ONTs are using 5 Gbps, the remaining 5 Gbps can still be used by the XGS-PON ONTs. The total downstream capacity is shared dynamically among all ONTs connected to that port, depending on traffic demand and DBA (Dynamic Bandwidth Allocation) scheduling.
In the upstream direction, it’s different:
XG-PON uses a 2.5 Gbps upstream channel.
XGS-PON uses a 10 Gbps upstream channel.

What service boards are supported for MA5800 series OLT?

GPON Board: GPHF/GPUF/GPLF/GPSF
XGPON Board: XGHD
GPON&XGPON combo Board: CGHF
XGS-PON Board: XSHF/XSHD
XGS-PON&GPON combo Board: CSHF
Flex-PON Board: FLHF
