High-Availability FAQ: Minimizing MTTR and Configuring Redundancy in Rectifier Subrack

Overview & Thematic Scope

In the high-stakes environment of telecom and datacenter power systems, the reliability of your -48V DC power subrack is non-negotiable. This FAQ addresses the critical question: What happens if a single rectifier module fails? We explore the impact on system load, the role of N+1 redundancy, alarm triggers, and the best practices for minimizing Mean Time To Repair (MTTR) to maintain five-nines availability. This guide is tailored for network engineers, facilities managers, and procurement specialists looking to harden their power infrastructure against single points of failure.

Frequently Asked Questions

Q1: What exactly happens to the subrack’s output voltage when a single rectifier module fails?

The subrack’s output voltage will remain stable and within nominal limits (e.g., -48V DC) assuming the system has adequate N+1 redundancy.

The remaining active rectifier modules will automatically compensate for the loss by increasing their individual current output to meet the total system load demand. For example, if a 100A subrack is operating with 5x 25A modules in a 4+1 redundant configuration and one module fails, the other four will distribute the load evenly, running at a slightly higher capacity. The system will not experience a voltage dip or interruption, ensuring zero downtime for the connected network equipment. Load sharing is seamless due to active current balancing algorithms.

Q2: Will I receive any notification or alarm that a rectifier module has failed?

Yes, the subrack’s controller (e.g., SMU or EMU) will immediately trigger a major or critical audible/visual alarm and send an SNMP trap or dry contact alarm to your central monitoring system.

Key alarms triggered include a Rectifier Fail alarm, AC Input Fail (if the failure is due to input loss), or a High Temperature alarm if the failure was thermal-related. The front panel LED of the failed module will typically change from green to red or turn off entirely. The system management software will log the event with a specific timestamp and error code, enabling remote diagnostics and dispatch of the correct replacement part without requiring an on-site visit.

Q3: Does a single module failure overload the remaining modules and cause a cascading failure?

A properly designed N+1 or 2N redundant system prevents cascading failures by ensuring the remaining modules have sufficient spare capacity to handle 100% of the load.

If the system lacks redundancy, the remaining modules will operate at over 100% capacity, which can trigger an Overload Protection (OLP) shutdown. However, with standard N+1 redundancy, a single module failure still leaves the system at or below 90-95% of total capacity. It is critical to understand the load profile before assuming redundancy exists. While a single failure won’t cause a cascade, a second failure before the first is replaced could lead to system shutdown, hence the urgency in replacing the failed unit.

Q4: What are the immediate steps for troubleshooting and replacing a failed rectifier module to minimize MTTR?

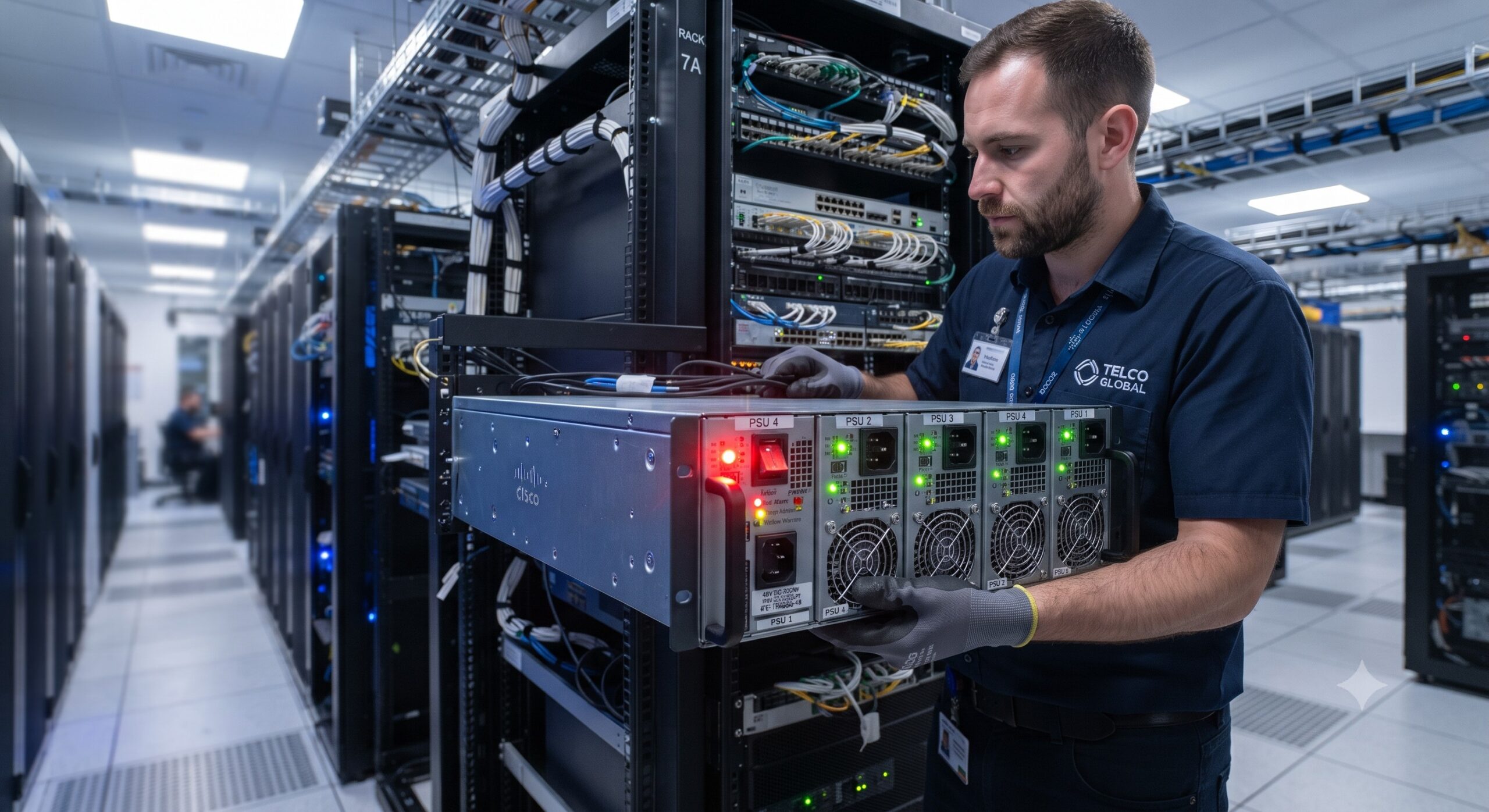

To minimize MTTR, the immediate steps are to isolate the failed module via the management interface, physically remove the module, and insert a replacement while the subrack is online.

The procedure is typically hot-swappable and involves the following steps: (1) Identify the failed module via the red LED/alarm list. (2) Disconnect the AC input breaker for that specific slot (if applicable). (3) Loosen the captive screws, pull the ejector handle, and slide the module out. (4) Slide in the new module, lock it into place, and reconnect the AC breaker. The controller will automatically recognize the new hardware, start it up, and integrate it into the current-sharing bus. This entire process should take under 10 minutes for a trained engineer.

Q5: How does the subrack handle the replacement module when it is inserted? Does it need manual configuration?

When a replacement rectifier module is inserted, the subrack’s controller automatically detects it, synchronizes its firmware, and begins a soft-start sequence to bring it online without any manual configuration required.

The intelligent controller automatically assigns the module a new address and downloads the current operating parameters (float voltage, boost voltage, temperature compensation settings) to the new hardware. The new module then gradually ramps up its output current to avoid a surge on the DC bus. This is referred to as ‘hot-swap’ capability. Manual intervention is generally not required for standard replacements, significantly reducing the risk of human error and site visits.

Q6: What is the difference in behavior between an AC input failure and an internal module hardware failure?

From the DC load perspective, both result in the loss of one module’s output. However, an AC input failure triggers a specific alarm distinguishing it from an internal hardware fault.

If the AC input fails, the management system will log an ‘AC Fail’ alarm indicating upstream utility issues. The module itself remains functional and will resume operation immediately when AC power is restored (auto-restart). In contrast, a hardware failure results in a permanent fault alarm requiring physical replacement of the FRU (Field Replaceable Unit). The distinction helps maintenance teams pack the correct spare parts—a rectifier module versus checking the AC distribution panel.

Q7: How does a rectifier module failure affect the battery backup system (if connected)?

If the subrack is connected to batteries, a rectifier failure will cause the batteries to enter a slight discharge state to make up the deficit, which could impact the overall battery float charge if not rectified quickly.

The batteries supply power during the transition. If the load exceeds the remaining rectifier capacity, the batteries will discharge to provide the difference. Since the float voltage will drop, the batteries are technically discharging, and the management system will track this state. If the module is not replaced, the batteries may not fully recharge during the next cycle, shortening backup autonomy during a future main AC outage. This highlights the importance of a swift replacement to maintain battery health.
