How to Clean Optical Connectors on Transmission Boards FAQ: Expert Answers to Technical & Deployment Questions

Overview & Thematic Scope

Cleaning optical connectors on transmission boards is a critical maintenance task that ensures signal integrity and prevents network failures. Even microscopic dust particles can cause significant insertion loss, back reflection, and permanent damage to delicate fiber end faces . This FAQ provides clear, expert-backed answers to the most common questions about cleaning procedures, tools, and best practices for transmission board optical interfaces.

Frequently Asked Questions

Q1: What is the most important rule when cleaning optical connectors on transmission boards?

Always clean and inspect both connectors before making a mating connection. Contamination from a single dirty connector can cross-contaminate its mate, potentially ruining both interfaces permanently . A major source of contamination is often a contaminated mating connector, so it is essential to clean the connector ferrule end surface each time before making connections .

Q2: When should I clean the optical transceiver ports on a transmission board?

Optical ports on a transceiver should be cleaned when contamination is suspected due to reduced optical performance or when non-approved practices, such as plugging in an uncleaned cable, have been observed . It is recommended to clean the connector inside the adapter before cleaning the cable assembly to create consistency and reduce the possibility of missing a connector .

Q3: What are the recommended dry cleaning tools for optical transceivers and adapters?

For cleaning optical transceivers, a dry cleaning method using specialized tools is the standard default. For connectors in a mating adapter or transceiver, use a cleaning stick (also called a swab) or a click-to-clean pen-style cleaner . For LC transceivers specifically, an LC Port Cleaning Tool (like IBM part number 54Y4392) is highly effective; two ‘clicks’ of this tool in both ports has been shown to clean most types of debris . A cassette-style reel cleaner is a standard industry choice for cleaning connector tips .

Q4: What is the correct method for wet-to-dry cleaning of an optical connector?

The wet-to-dry method is used for stubborn contaminants that dry cleaning cannot remove. Fold a lint-free cleaning wipe, press it once or twice on the nozzle of the cleaning fluid to extract a measured dose, and slightly moisten the tip of a cleaning stick or wipe . Never apply cleaning fluid directly onto the connector or cleaning tool, as this can oversaturate and leave residue . Wipe the connector from the wet section of the wipe into the dry section to fully remove the dissolved contamination . A dry clean should always follow a wet clean to remove any remaining fluid residue .

Q5: Are there any cleaning steps I should avoid on a transmission board transceiver?

Yes, never perform cleaning steps that involve physical contact, like using a stick, on the receive (RX) port. The RX port contains a delicate lens for focusing a wide input signal that is more easily scratched than cleaned . These steps should be performed only on the transmit (TX) port and only if air blows have failed to remove the contamination .

Q6: Is it safe to use canned air or compressed air for cleaning?

Caution is required. If using canned air, always hold the can perfectly upright to prevent the liquid propellant from being released onto the connector surface, which can leave a residue . Spray for 3-5 seconds before using to ensure any liquid propellant is expelled . Never use compressed air from a workshop hose, as it can emit fine oil spray that will permanently damage the connector .

Q7: Why is it important to keep dust covers on optical connectors?

Pluggable transmission modules and connectors are shipped with dust covers to maintain cleanliness during storage. It is critical to keep the dust cover in place at all times until the optical fiber is connected . Traditional dust caps, however, are not a perfect barrier and may not block all dust and debris, so connectors should still be inspected and cleaned before use . The clean dust cap should be reinstalled whenever the connection is broken to maintain cleanliness .

Q8: How do I verify that an optical connector is clean?

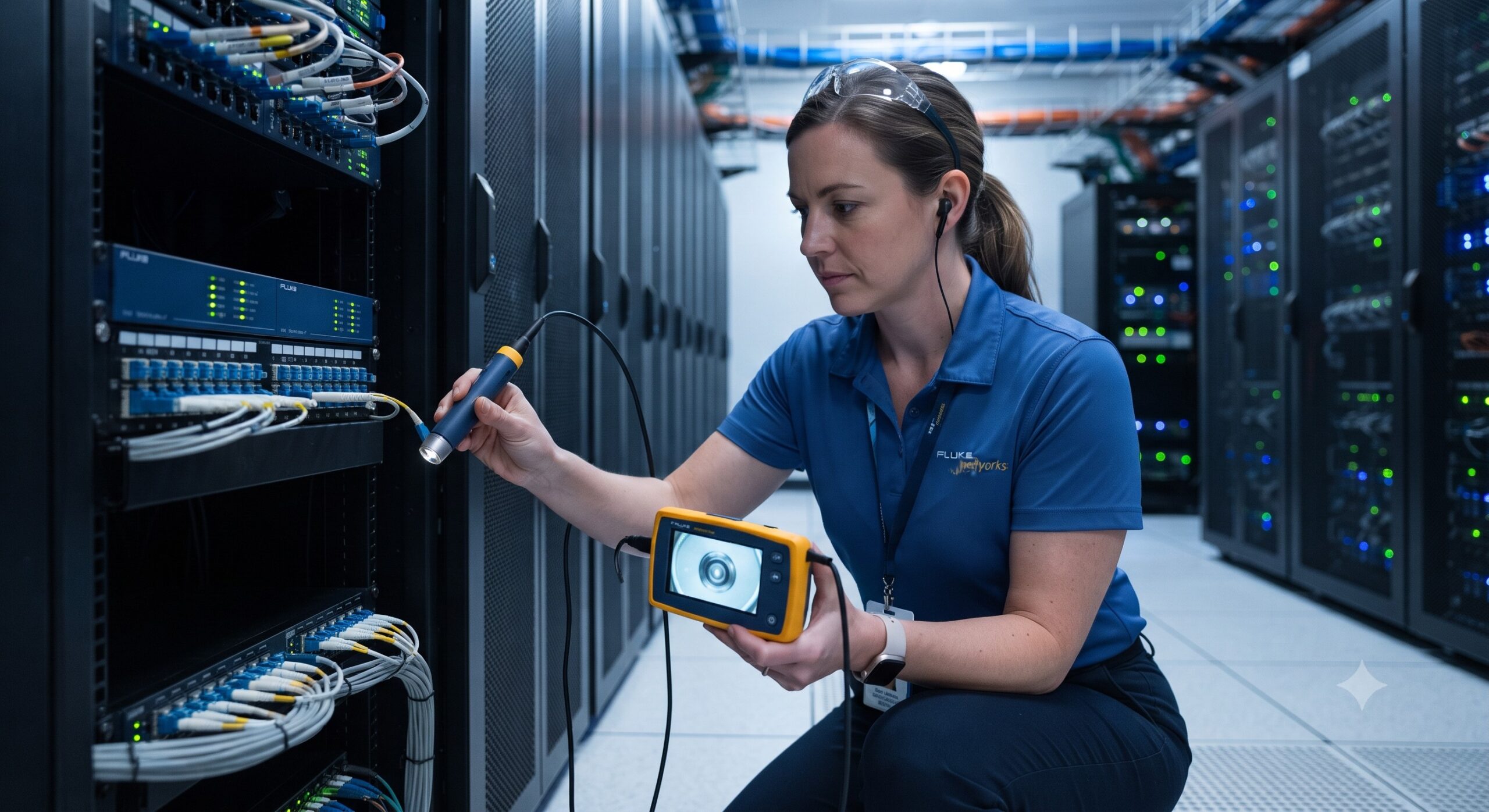

Always verify cleanliness with a fiber optic inspection microscope (video probe) to confirm the end face is free of contamination . The inspection gold standard is to have two scopes, so that both connectors can be inspected without further handling, and then mated . While many technicians rely on dry cleaning as the default, cleaning and inspection go hand-in-hand; a good practice loop is to inspect, clean if necessary, and re-inspect before mating .
