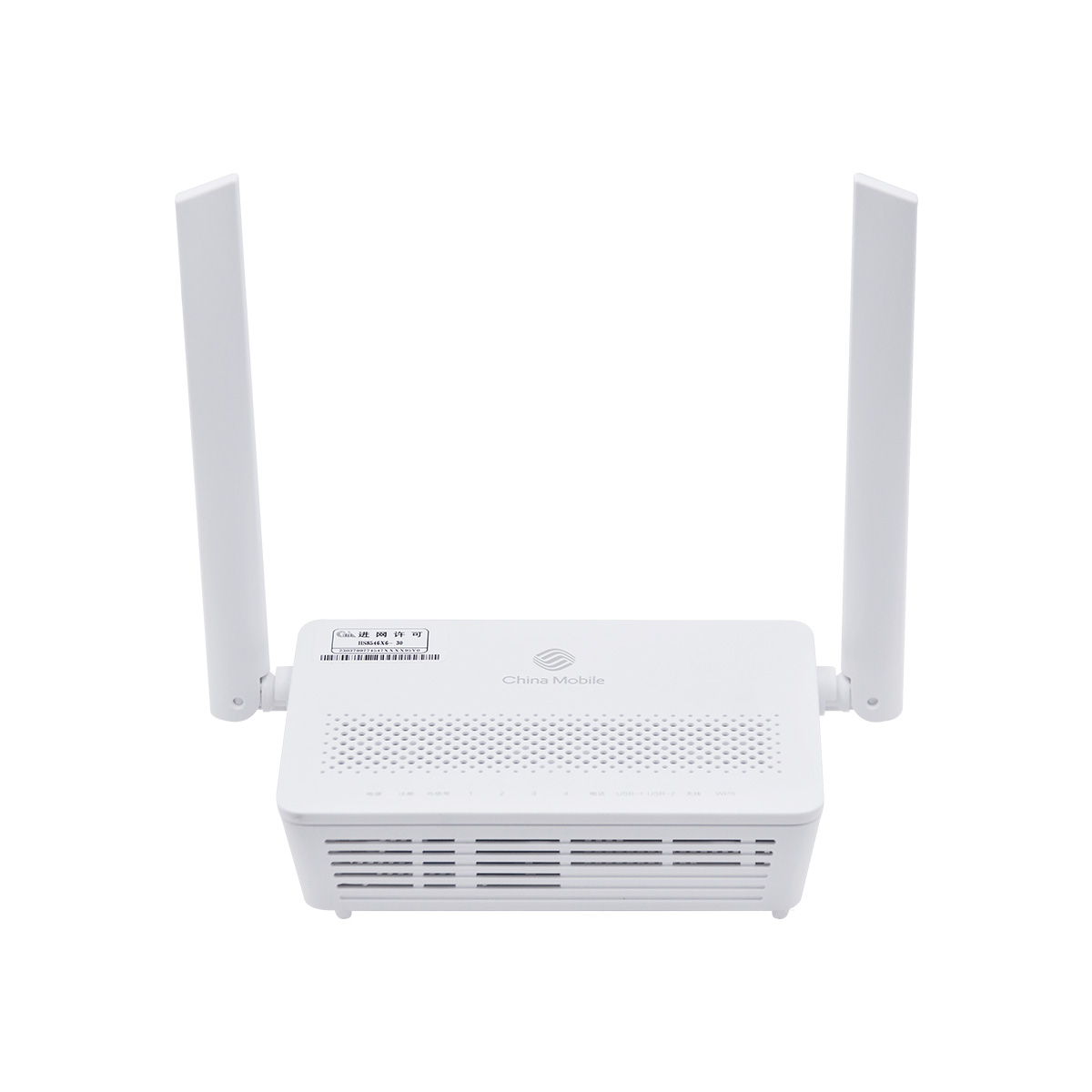

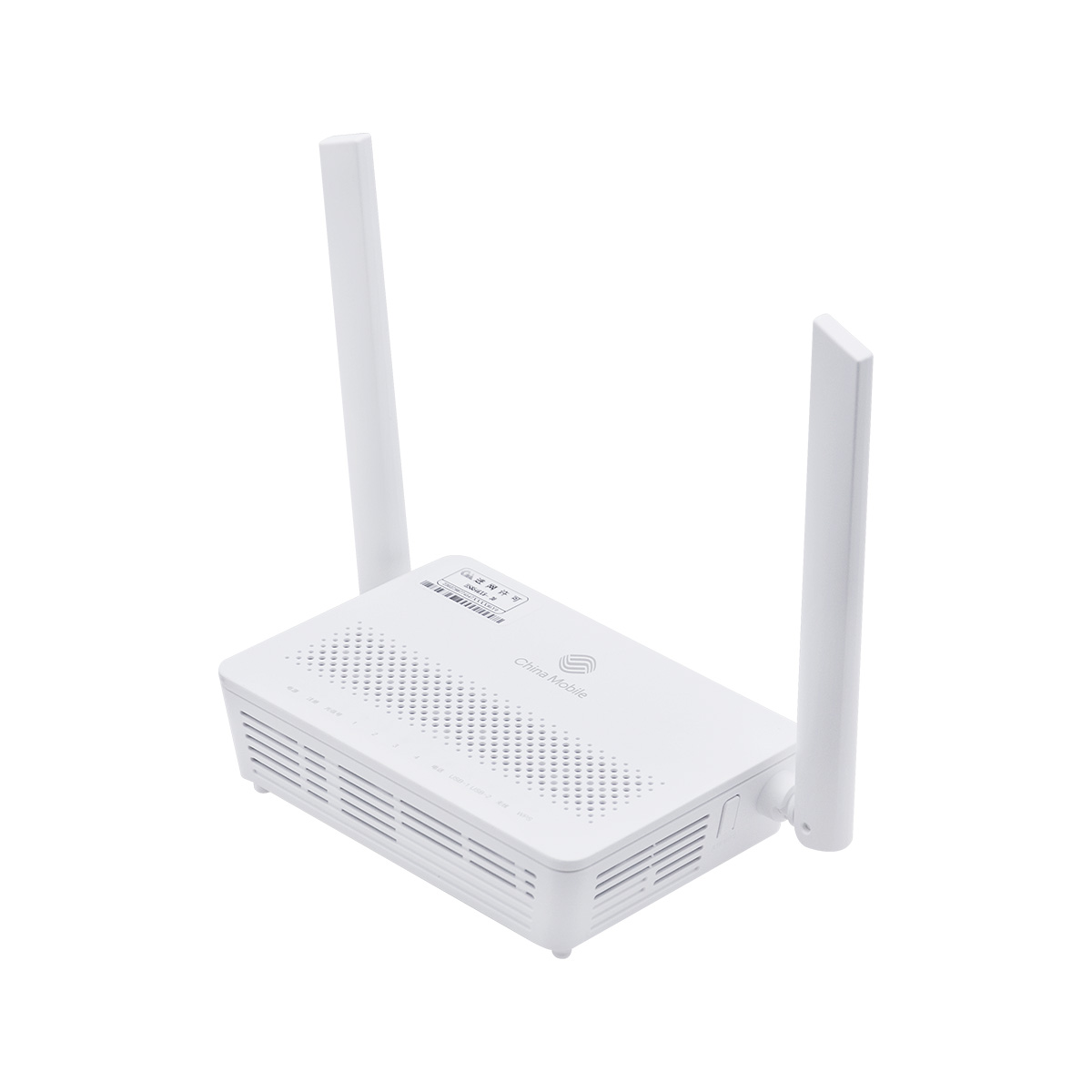

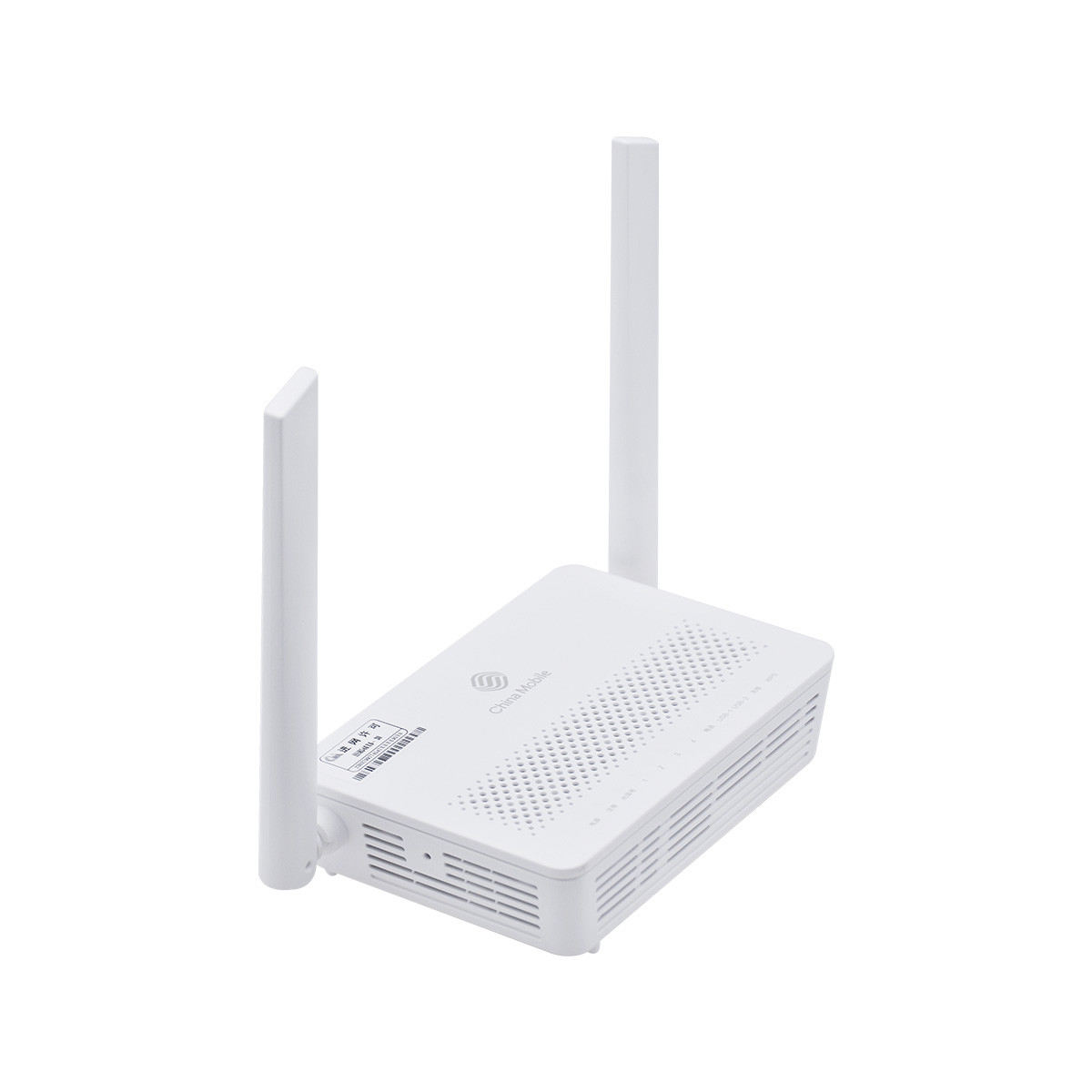

Huawei HS8546X6-30 GPON terminal with 4*GE+1*POTS+2*USB+2.4G&5G WIFI 6

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

HS8546X6-30 Overview

Huawei OptiXstar HS8546X6-30 is a Wi-Fi 6 smart ONT for Huawei’s full optical access solution, providing ultra-broadband access to users through GPON technology.

It offers 4 Gigabit Ethernet ports, 1 POTS voice port, 2 USB ports, 1 2.4G 5G Wi-Fi port. With high-performance forwarding capabilities, it effectively ensures the service experience for voice, data, and 4K/VR applications, providing customers with an ideal full-optical access solution and future-proof business support capabilities.

Hardware specifications
Item HS8546X6-30
Power supply: 12V DC, 1 A
Working environment temperature: 0°C ~ +40°C
Working environment humidity: 5% RH to 95% RH (non-condensing)
Power adapter rated input Range: 170 ~ 240 V AC, 50/60 Hz
Maximum power consumption: 12 W
Network side interface: GPON

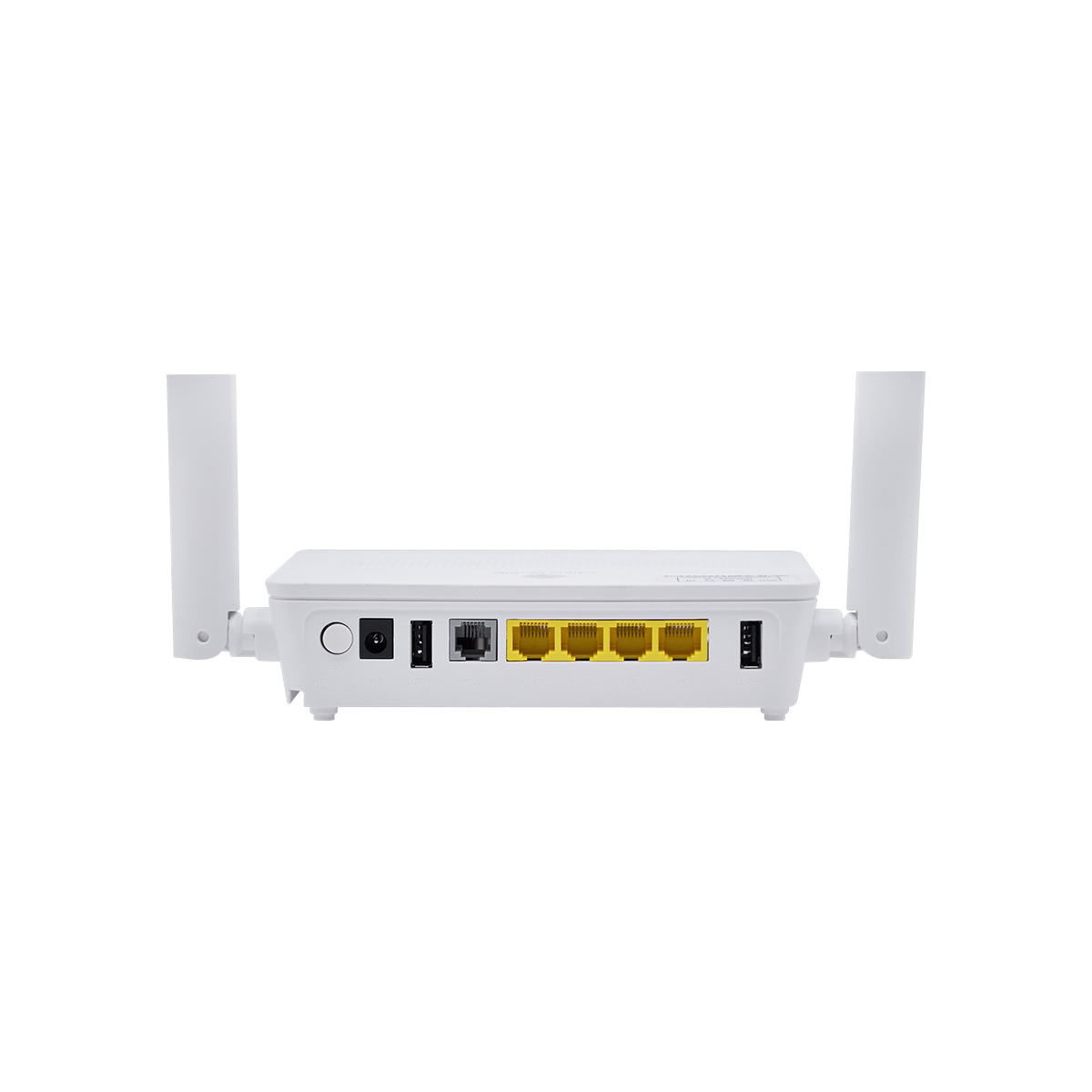

User side interface: 4*GE+1*POTS + 1*USB + 2.4G&5G Wi-Fi 6
Optical connector: SC/UPC
Storage: 256MB flash, 256MB RAM
Dimensions (H x W x D): 35mm x 155mm x 105mm (excluding antenna and foot pads)
Weight (excluding adapter) Approximately: 241 g


Interface parameters

Type Parameters
GPON/EPON port
  • GPON: Class B+/EPON: PX20+
  • Receiver sensitivity: -27dBm
  • Overload optical power: GPON:-8dBm
  • Wavelength: Upstream 1310nm, Downstream 1490nm
  • Wavelength blocking filter (WBF) supporting G.984.5 protocol
  • Authentication: SN/Password/LOID
  • FEC(Forward Error Correction)
  • Support SR, NSR DBA
USB port
  • USB 2.0
2.4G&5G Wi-Fi
  • IEEE 802.11 b/g/n/ax(2.4G)
  • IEEE 802.11 a/n/ac/ax(5G)
  • 2×2 MIMO(2.4G&5G)
  • Antenna gain: 5dBi
  • WMM(Wi-Fi Multi Media)
  • Multi-SSID
  • WPS
  • Air interface rate: 574 Mbit/s(2.4G); 2402 Mbit/s(5G)
  • Beamforming
  • Band steering
  • DL OFDMA
  • DL MU-MIMO
  • 1024QAM
  • 160MHz bandwidth
  • WPA3
Ethernet port
  • Limit on the number of learned MAC addresses
  • MAC address learning
  • Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
POTS port
  • Maximum ringer equivalence number (REN): 4
  • G.711A/u, G.729a/b and G.722 encoding/decoding
  • T.30/T.38/G.711 fax mode
  • DTMF
  • Emergency calls (with the SIP protocol)
