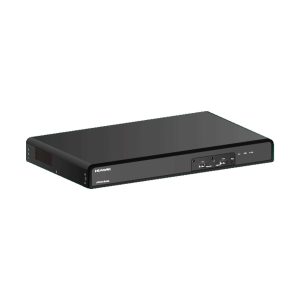

Huawei AR6120

1 Review Write a review
SKU2014028
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Huawei AR6120, 1*GE WAN, 1*GE combo WAN, 1*10GE SFP+, 8*GE LAN, 2*USB, 2*SIC

Description

Overview

Huawei AR6120, 1*GE WAN, 1*GE combo WAN, 1*10GE SFP+, 8*GE LAN, 2*USB, 2*SIC

Item Details
Description AR6120, 1*GE WAN, 1*GE combo WAN, 1*10GE SFP+, 8*GE LAN, 2*USB, 2*SIC
Part Number 02352CQW
Model AR6120
First supported version V300R003C10
Remarks When configuring cards, ensure that the total power of the configured cards does not exceed 30 W or contact technical support engineers to obtain more suggestions.
Item AR6120
Installation type
  • Rack
  • Work bench
  • Against the wall
Dimensions without packaging (H x W x D) [mm(in.)]
  • Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 390.0 mm x 229.8 mm (1.75 in. x 15.35 in. x 9.05 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 390.0 mm x 234.6 mm (1.75 in. x 15.35 in. x 9.24 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 150 mm x 525 mm x 388 mm (5.91 in. x 20.67 in. x 15.28 in.)
Chassis height [U] 1 U
Weight with packaging [kg(lb)] 4.7 kg (10.3 lb)
Weight without packaging [kg(lb)] 2.9 kg (6.39 lb)
CPU 1.4 GHz, 4 Cores
Memory 2 GB
NAND Flash 512 MB
Console port RJ45
RTC Supported
Maximum power consumption [W] 20 W
Power supply mode AC built-in
Number of power modules 1
Rated input voltage [V] 100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V] 90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A] 2 A
Maximum output power [W] 60 W
Type of fans Built-in
Number of fan modules 0
Heat dissipation mode Air cooling
Airflow direction Left to right
Extended slots (standard configuration) 2 x SIC
Number of service board slots 2
Redundant power supply Not supported
RPS input Not supported
PoE Not supported
Noise at normal temperature (acoustic power) [dB(A)] 49.6 dB(A)
Long-term operating temperature [°C(°F)]

0°C to 45°C (32°F to 113°F)

NOTE:

When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] < 5000 m (16404.2 ft.)
MTBF [year] 36.7 year
MTTR [hour] 2 hour
Availability 0.9999937802

Additional information

Brand

Huawei

Lead Time

3-5 days

Ship From

Shenzhen Warehouse

Item AR6120
Installation type
  • Rack
  • Work bench
  • Against the wall
Dimensions without packaging (H x W x D) [mm(in.)]
  • Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 390.0 mm x 229.8 mm (1.75 in. x 15.35 in. x 9.05 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 390.0 mm x 234.6 mm (1.75 in. x 15.35 in. x 9.24 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 150 mm x 525 mm x 388 mm (5.91 in. x 20.67 in. x 15.28 in.)
Chassis height [U] 1 U
Weight with packaging [kg(lb)] 4.7 kg (10.3 lb)
Weight without packaging [kg(lb)] 2.9 kg (6.39 lb)
CPU 1.4 GHz, 4 Cores
Memory 2 GB
NAND Flash 512 MB
Console port RJ45
RTC Supported
Maximum power consumption [W] 20 W
Power supply mode AC built-in
Number of power modules 1
Rated input voltage [V] 100 V to 240 V, 50 Hz/60 Hz
Input voltage range [V] 90 V to 264 V, 47 Hz to 63 Hz
Maximum input current [A] 2 A
Maximum output power [W] 60 W
Type of fans Built-in
Number of fan modules 0
Heat dissipation mode Air cooling
Airflow direction Left to right
Extended slots (standard configuration) 2 x SIC
Number of service board slots 2
Redundant power supply Not supported
RPS input Not supported
PoE Not supported
Noise at normal temperature (acoustic power) [dB(A)] 49.6 dB(A)
Long-term operating temperature [°C(°F)]

0°C to 45°C (32°F to 113°F)

NOTE:

When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] < 5000 m (16404.2 ft.)
MTBF [year] 36.7 year
MTTR [hour] 2 hour
Availability 0.9999937802
