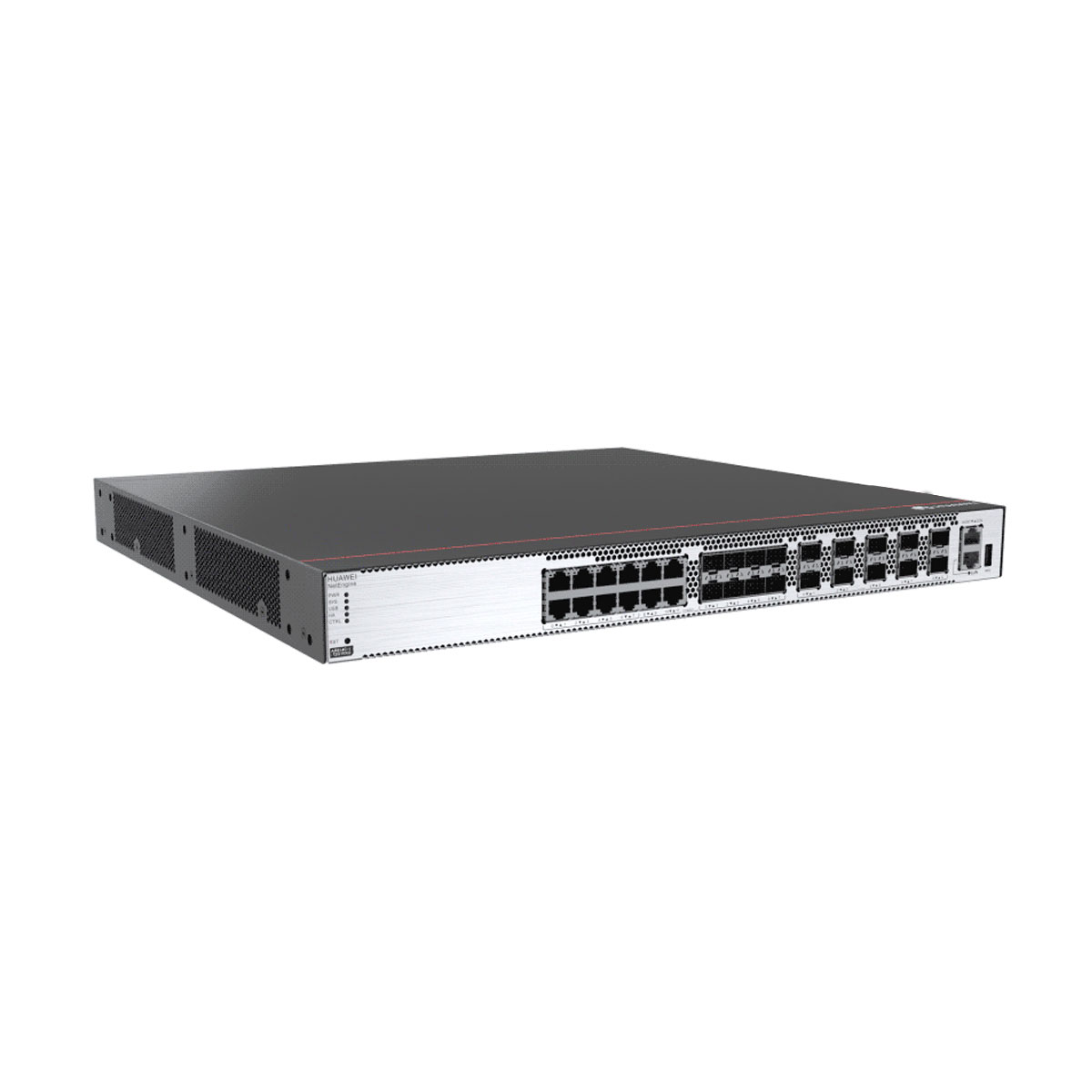

Huawei AR8140-T-12G10XG,10*10GE(SFP+),8*GE Combo,4*GE Copper,1*USB3.0,4*SIC
Huawei AR8140-T-12G10XG,10*10GE(SFP+),8*GE Combo,4*GE Copper,1*USB3.0,4*SIC
| Item | Details |
|---|---|
| Description | AR8140-T-12G10XG,10*10GE(SFP+),8*GE Combo,4*GE Copper,1*USB3.0,4*SIC |
| Part Number | 02353LJW |
| Model | AR8140-T-12G10XG |
| First supported version | V600R021C00 |
| Item | AR8140-T-12G10XG |
|---|---|
| Installation type | Rack |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 185 mm x 550 mm x 650 mm (7.28 in. x 21.65 in. x 25.59 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 9 kg (19.84 lb) |
| Weight without packaging [kg(lb)] | 5.8 kg (12.79 lb) |
| CPU | 2.0 GHz, 16 cores |
| Memory | 16 GB |
| NAND Flash | 4 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 191 W |
| Power supply mode | AC external |
| Number of power modules | 2 |
| Rated input voltage [V] | AC: 100 V to 240 V, 50 Hz/60 Hz DC: 240 V |
| Input voltage range [V] | AC: 90 V to 290 V, 45 Hz to 65 Hz DC: 240 V |
| Maximum input current [A] | AC: 5.5 A DC: 2.5 A |
| Maximum output power [W] | 350 W |
| Type of fans | Built-in |
| Number of fan modules | 0 |
| Heat dissipation mode | Air cooling |
| Airflow direction | Left to right |
| Extended slots (standard configuration) | 4 x SIC |
| Number of service board slots | 4 |
| Redundant power supply | Support double power supply (1:1 backup) |
| RPS input | Not supported |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 57.6 dB(A) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F)
NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
|
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| MTBF [year] | 37.49 year |
| MTTR [hour] | 2 hour |
| Availability | 0.9999939099 |
| Brand | Huawei |
|---|---|
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
| Item | AR8140-T-12G10XG |
|---|---|
| Installation type | Rack |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 185 mm x 550 mm x 650 mm (7.28 in. x 21.65 in. x 25.59 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 9 kg (19.84 lb) |
| Weight without packaging [kg(lb)] | 5.8 kg (12.79 lb) |
| CPU | 2.0 GHz, 16 cores |
| Memory | 16 GB |
| NAND Flash | 4 GB |
| Console port | RJ45 |
| RTC | Supported |
| Maximum power consumption [W] | 191 W |
| Power supply mode | AC external |
| Number of power modules | 2 |
| Rated input voltage [V] | AC: 100 V to 240 V, 50 Hz/60 Hz DC: 240 V |
| Input voltage range [V] | AC: 90 V to 290 V, 45 Hz to 65 Hz DC: 240 V |
| Maximum input current [A] | AC: 5.5 A DC: 2.5 A |
| Maximum output power [W] | 350 W |
| Type of fans | Built-in |
| Number of fan modules | 0 |
| Heat dissipation mode | Air cooling |
| Airflow direction | Left to right |
| Extended slots (standard configuration) | 4 x SIC |
| Number of service board slots | 4 |
| Redundant power supply | Support double power supply (1:1 backup) |
| RPS input | Not supported |
| PoE | Not supported |
| Noise at normal temperature (acoustic power) [dB(A)] | 57.6 dB(A) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F)
NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
|
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| MTBF [year] | 37.49 year |
| MTTR [hour] | 2 hour |
| Availability | 0.9999939099 |
