Description

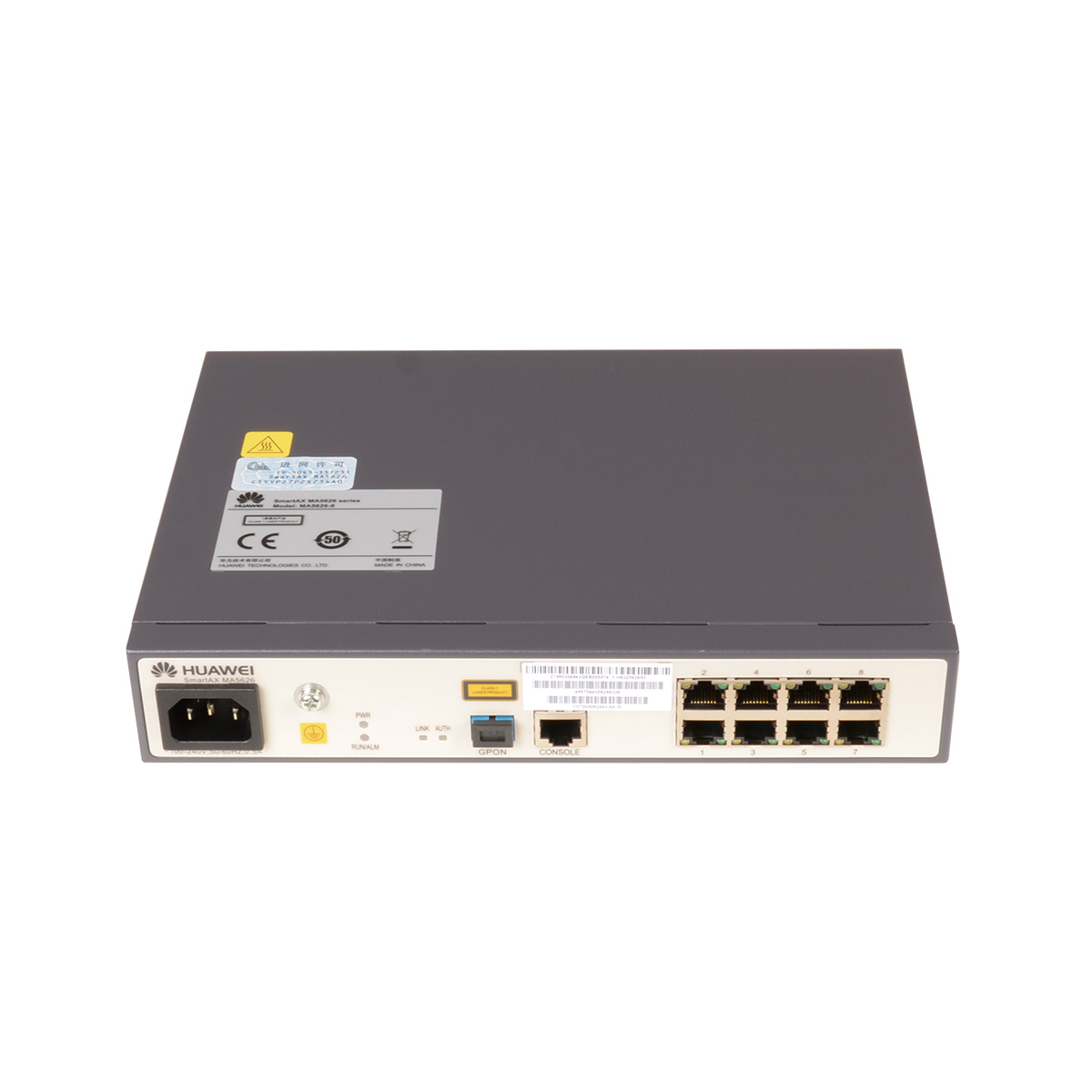

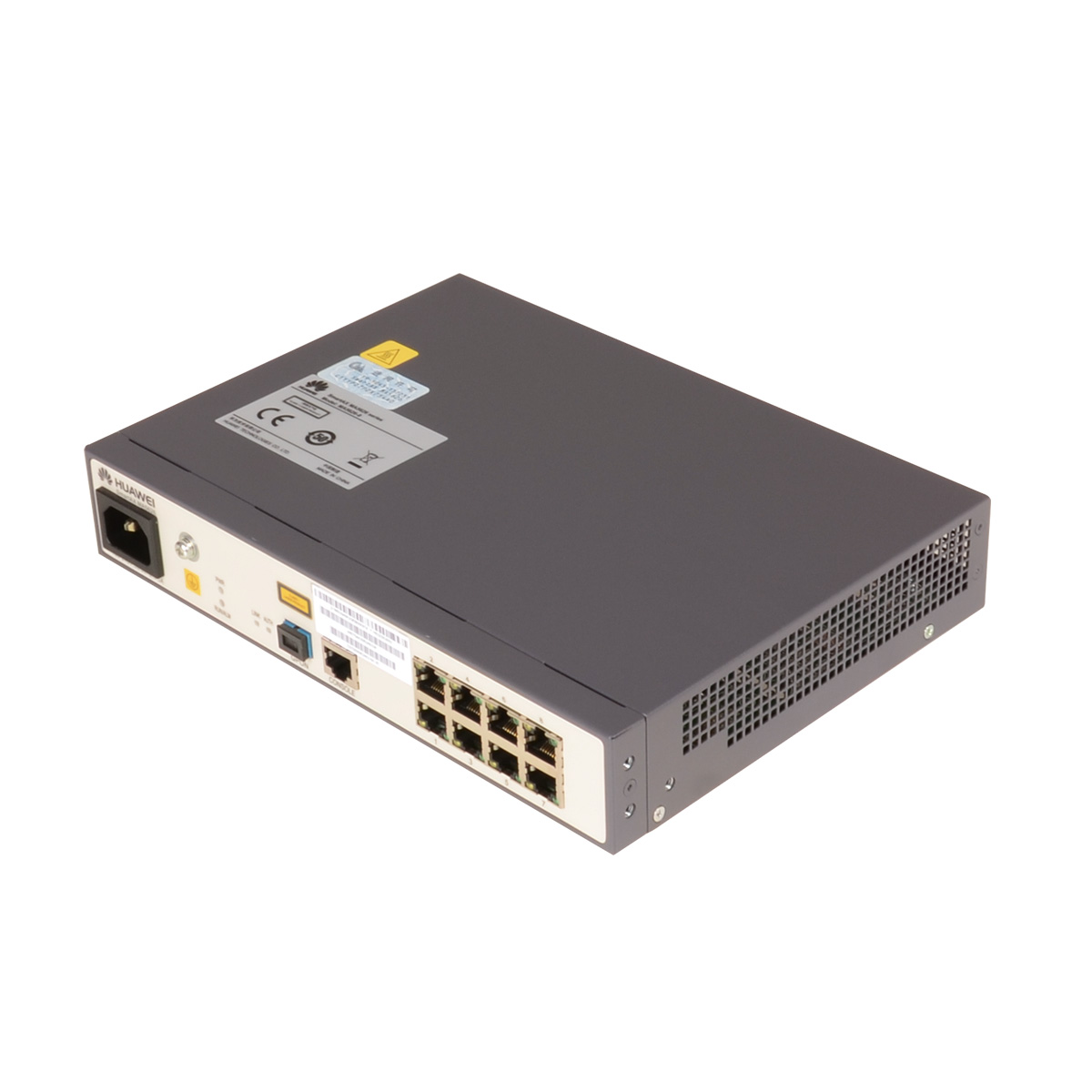

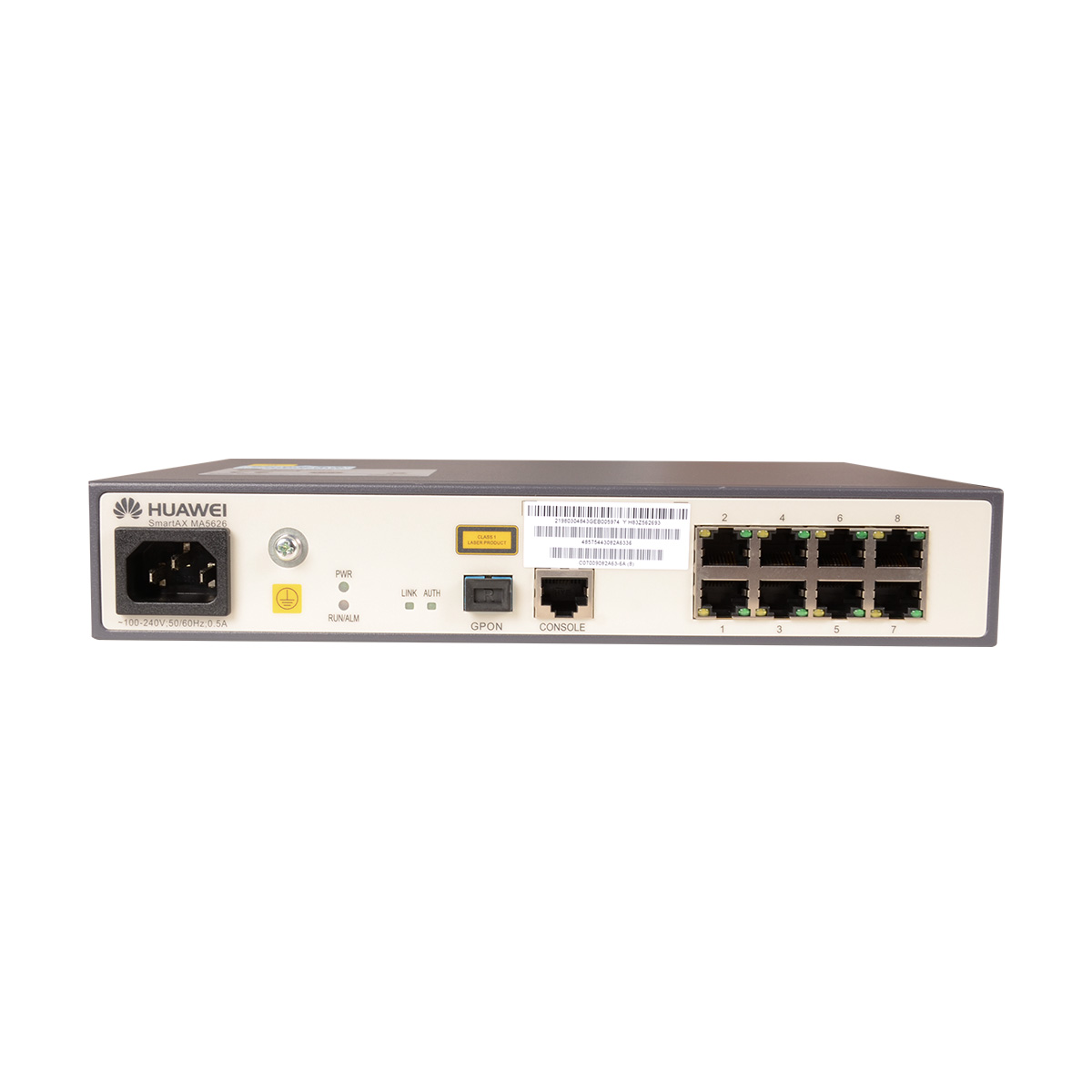

Huawei MA5626 GPON ONU with 8 FE electrical ports, AC 220V power
| Specification | |
| Working environment | -40°C to +55°C (start up at -25°C) |
| Environment humidity: 5% RH to 95% RH(1~29g/m3) | |
| Power supply mode (VAC) | AC: 220 |
| Working voltage range (VAC) | 90 to 300 |
| Maximum input current (A) | 0.5 |
| Static Power Consumption (W) | 5.05 |
| Max Power Consumption (W) | 8.1 |
| System packet forwarding rate (Mpps) |
8.4 |
| System switching capacity (Gbit/s) |
5.6 |
| Dimensions (mm) (length x width x height) |
250 mm×180 mm×43.6 mm (without the mounting brackets) 482.6 mm×220 mm×43.6 mm (with the long mounting brackets) |
| Weight(kg) | 1.23 |
